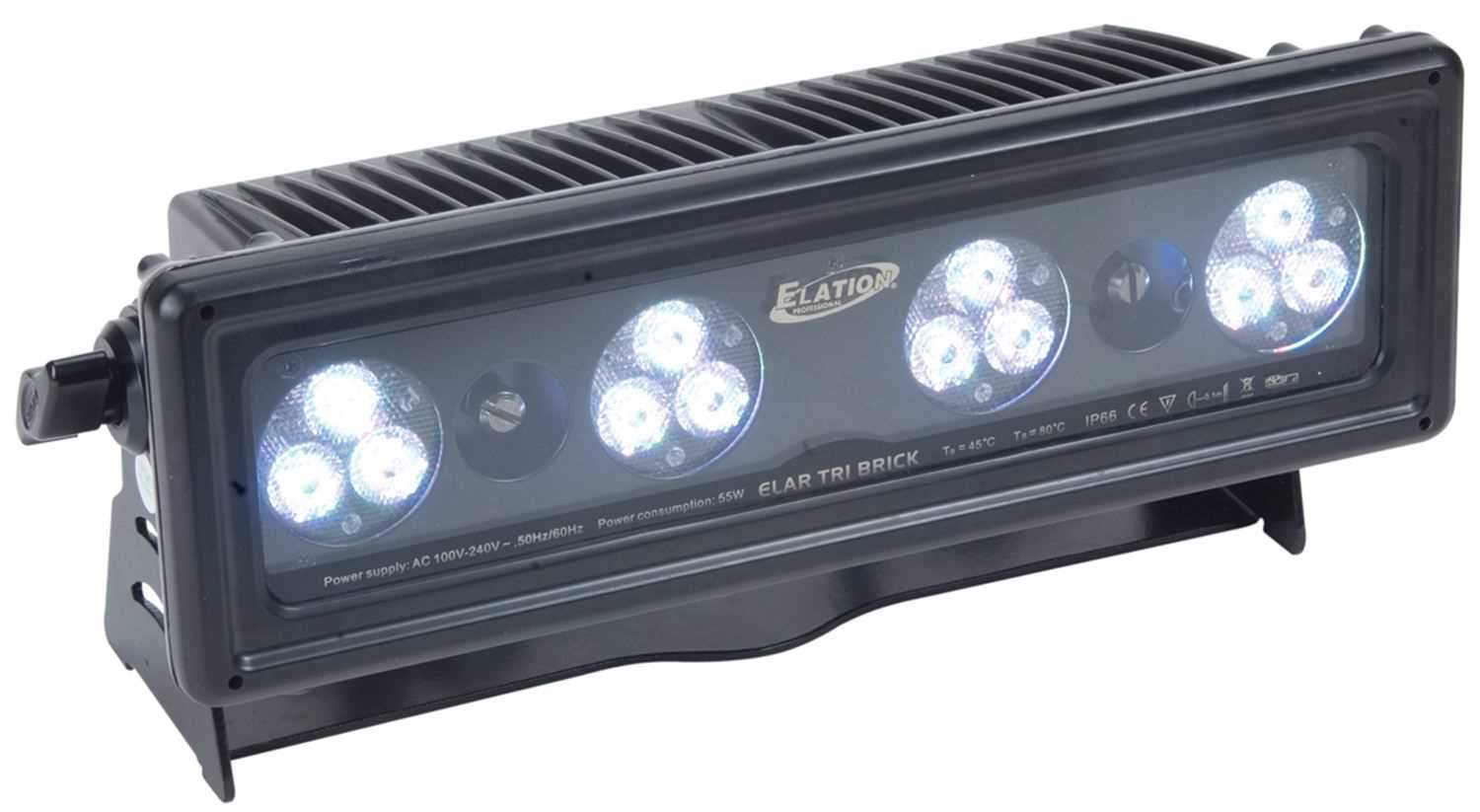

Elation ELAR Tri LED Brick

Features:

• Tri Color LED IP 66 Brick
• 12 x 3W Tri Color LED's
• Smooth Color Mixing Flicker Free
• Tri Color Technology
• 18 degrees Beam Angle/35 degrees Field Angle (25 degrees Lens)
• IP 66 Rugged Design Par Die Cast Aluminum Case
• Power / Data Link up to 16 fixtures
• 3 Pin DMX & 120v AC power cable adapters included
• Built In Color Macros
• Upgradeable firmware via Elation "E-Loader" Data Pack
• Electronic Switching Power Supply 100v~240v

Specifications:

• DMX Channels: 5 DMX modes - 3/4/9/12/15 Channels DMX
• Control: USITT DMX-512
• Color: Tri color (RGB) LED technology, linear RGB Color Mixing, infinite color possibilities
• Strobe: Electronic strobe 0-18 flashes per second
• Dimmer: 0-100% Continuous Dimming
• Cooling: Conventional - no fans
• Cable Plug Type: Twist lock IP rated
• LED's Source: 12 x 3W Tri Color LEDs
• Total Lumens: 5,020 (all @ 1m)
• Lux: 692 lux / 64 fc @ 10'
• LED Life: 100,000 hours

Environmental Specifications

• Max Ambient Temperature: -20 degrees +20 degreesC
• IP Level: IP 66

Electrical Specifications

• Ballast: Electronic Power supply
• Power Supply: 100-240V 50/60Hz
• Power Consumption: 120W maximum
• Dimensions: (LxWxH) 9.3" x 8.66" x 10.24" / 232 x 220 x 260mm
• Weight: 15.2 lbs. (6 Kgs)
