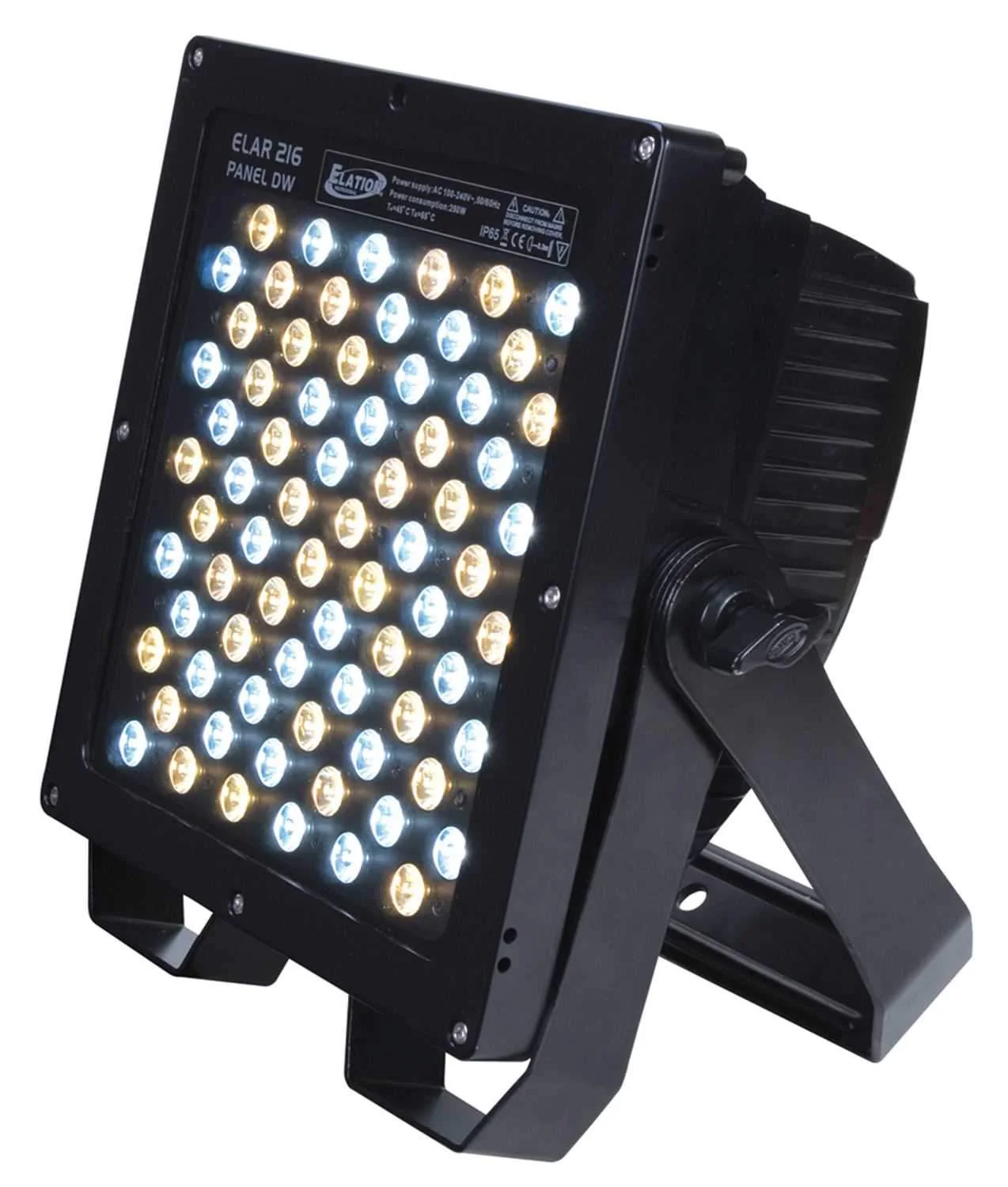

Elation ELAR 216 Panel DW 65 LED Par

Shutter/Dimmer

• Strobe: 25 flashes per second
• 0-100% continuous dimming

Light Source

• Lux: 10,430 lux / 969 fc @ 2.5m / 8' @ full
• 72 x 3W LEDs
• 48 Warm White, 24 Cool White
• LED Life: Rated 100,000 hours

Optical System

• 10 degrees beam angle, 22 degrees field angle

Control

• DMX channels: 4 DMX modes 4/5/7/9 Channels
• USITT DMX-512
• Built In color macros, auto & manual control
• 7 built-in programs
• Software Update via SUP (E-Loader) Box

Operation Parameters

• Maximum Ambient Temperature: 113 degreesF / 45 degreesC
• IP Rating: IP65
• Cooling: Silent Operation, convection cooled, no fans
• Rugged die cast aluminum case design

Power Supply

• Ballast: Electronic Switching Power supply
• Power Supply: 100-240V 50/60Hz
• Power Consumption: 250W

Connectors

• 3 Pin & 5pin DMX

Dimensions and Weight

• Dimensions: (L x W x H) 13" x 7.75" x 15" / 341 x 197 x 377mm
• Weight: 26.5 lbs. / 12 Kgs
