Elation DR-Pro Rack 19" Rack Mount DMX Recorder

The DR-Pro Rack from Elation allows you to easily transfer up to 5 hours of any lightshows into the digital real time recorder and playback using either of the playback sequence buttons. Furthermore professional trigger and playback functions are available, even by external electrical contacts for use in Multimedia- and Show- Installations. Or just use it as a simple way of recording and playback of your shows in discotheques, home installations and exhibitions.

• Standard DMX-512 (1990), DMX Recorder/Playback device
• Up to 8 memories consisting of Static Scenes, Chases or Shows can be recorded and triggered
• 5 operation modes include Manual control, Real-time trigger, SMPTE/MIDI time code trigger, DMX trigger and DMX monitor
• Over 5 hours recording time
• 4 record modes include, Manual, Auto, Semi-Auto and Smart
• Individual cue Fade/Hold time setting for every Chase step
• Password lock function
• 3pin XLR DMX male/female connectors
• SD card port & USB port for data memory and firmware upgrade
• 3pin XLR, SMPTE port
• 5pin standard MIDI input
• Ports available for external contact trigger
• 128 x 160 character color LCD display

• 9~12VDC, 500mA Min. Power supply (Included)

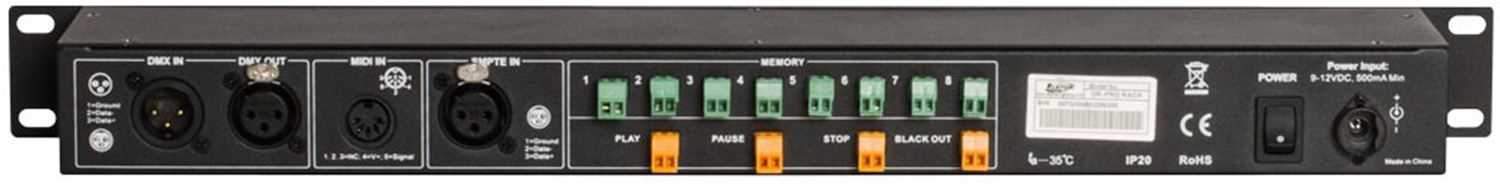

• 3-pin XLR connectors for DMX in/out, USB port for communicating with PC, 3pin SMPTE input, 5pin MIDI input and 12 phoenix connectors for dry contact closure triggering
• IP20 (Ingress Protection)
• -10°C to +50°C -20 operating temperature
• -20°C to +70°C storage temperature
• Dimensions (L x W x H): 19" x 3.07" x 1.73" (482 x 78 x 44 mm)
• Weight: 2.7lbs. (1.2kg)
