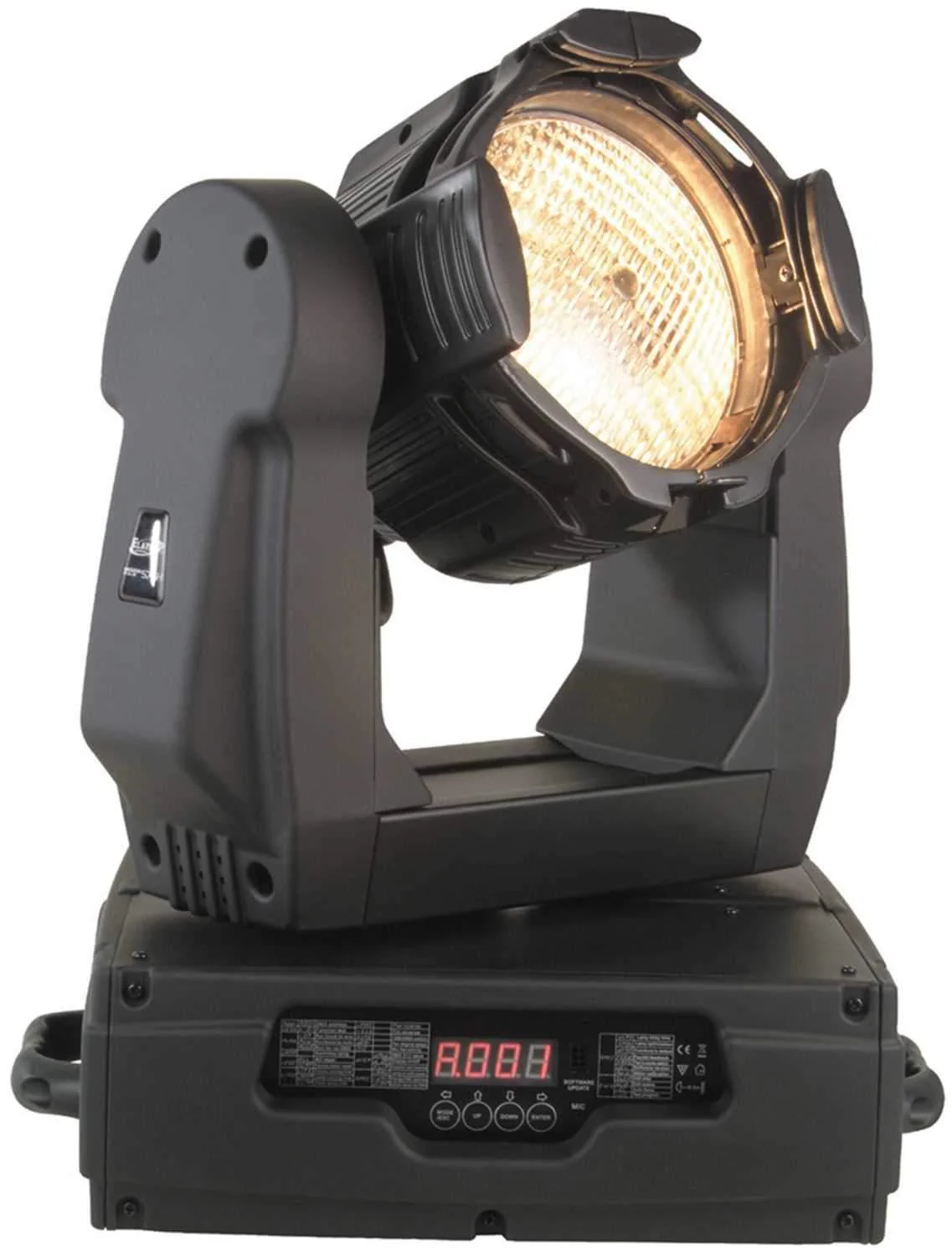

Elation DPAR575ETL 575W MSR Moving Head Wash

Features

• Gel Frame Holder Included
• 575W Discharge "Opti Par" Moving Head Fixture
• 40° Beam Angle
• Includes 4 Lens Options: Very Narrow, Narrow, Medium and Wide

Colors

• Gel frame holder included

Light Source

• 5,460 Lux / 507 FC @ 16 feet / 5 meters
• Lamp life: 1000hrs 7,200°k, 575W
• Lamp: ZB-MSR 575/2 575W Discharge (not included)

Optical System

• 40° beam angle
• Includes 4 lens options: very narrow, narrow, medium and wide
• Glass dichroic reflector for even lamp output
• Anti-reflective coated lenses

Movement

• Pan 630° or 540° (User selectable) / Tilt 265°
• Fine Pan and Tilt, Built-in programs
• Automatic repositioning
• Automatic Pan/Tilt Correction

Control

• 6 DMX channels default or 4 DMX channel user selectable
• Control board with 4-digit display and foil-keyboard
• Value of each DMX-channel can be displayed
• Digital display can be turned 180° to fit different installation positions
• USSIT DMX-512
• Built In lamp control via DMX
• RDMX - remote DMX addressing
• Internal programs
• Auto test for all functions
• 3 operation modes: DMX controlled, stand alone or sound activated
• 16 bit mode

Operation Parameters

• IP Rating: IP 20
• Quick out omega clamps
• Silent fan and operation

Power Supply

• Electronic ballast
• User Selectable Switching Power Supply (Internal)
• Voltage: 98V 50hz
• Power consumption: 700W

Connectors

• 3 pin XLR serial in/out

Dimensions and Weight

• Dimensions (L x W x H): 14.25" x 17" x 19.4" / 429 x 362 x 492mm
• Weight: 51 lbs / 23 kg

Approvals

• cETLus approved
