Elation DMX003 DMX10-3 Rackmount 10-port DMX Splitter

The DMX10-3 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.

Features:

• Dual A/B 3pin XLR DMX Input
• 10 isolated 3pin XLR DMX Outputs
• A/B routing per output port
• LED feedback for In/Out/A/B/Power
• Industrial strength powder-coated finish
• Lightweight and rugged rackmount housing

Specifications:

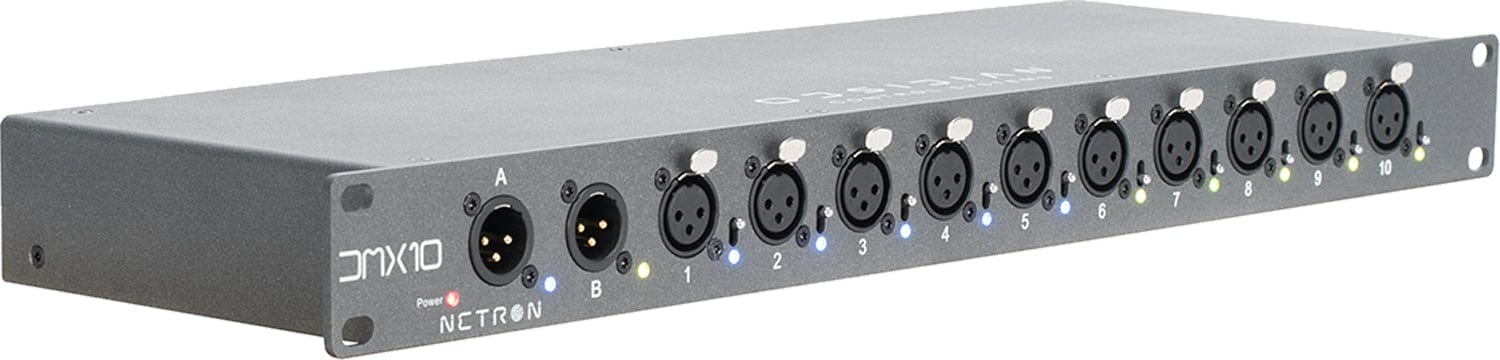

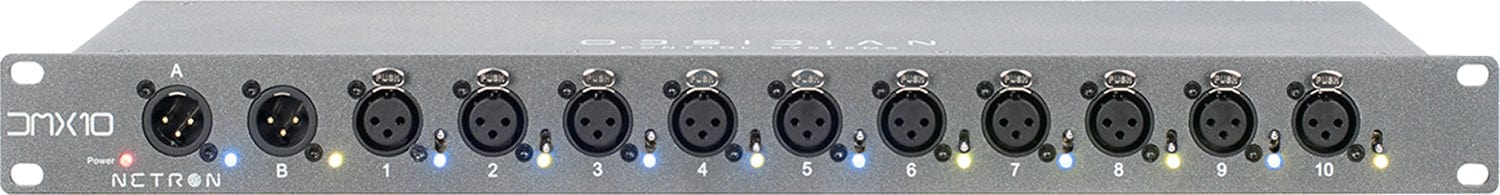

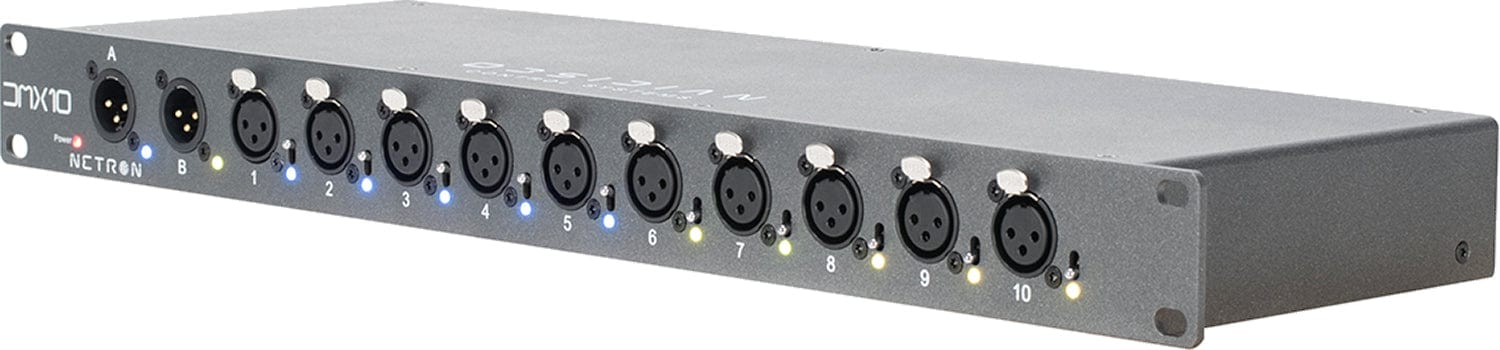

• Front:
  • (2) 3pin DMX Input
  • (10) 3pin Opto-Isolated DMX Outputs

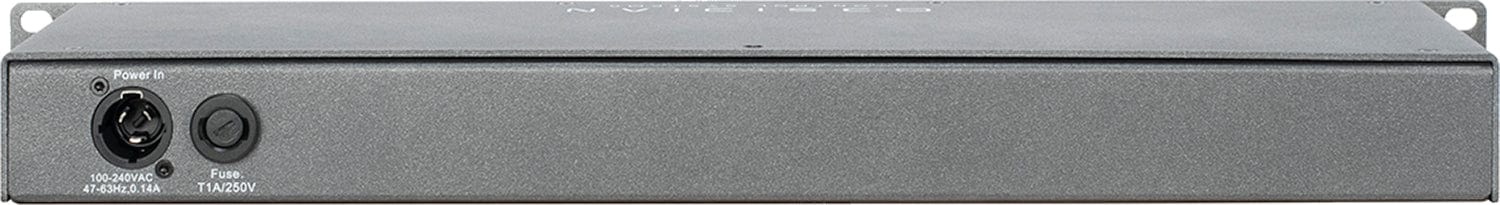

• Back: Locking Power In
• Physical:
  • Length: 482.0 mm (19 in.)
  • Width: 155.9 mm (6.1 in.)
  • Height: 44.0 mm (1.7 in.)
  • Weight: 1.50kg ( 3.31 lbs)
• Electrical: 100-240 V nominal, 50/60 Hz
• Approvals / Ratings: cETLus / CE / IP20
• Included Items: 1.5m Locking power cable (EU or US version).
