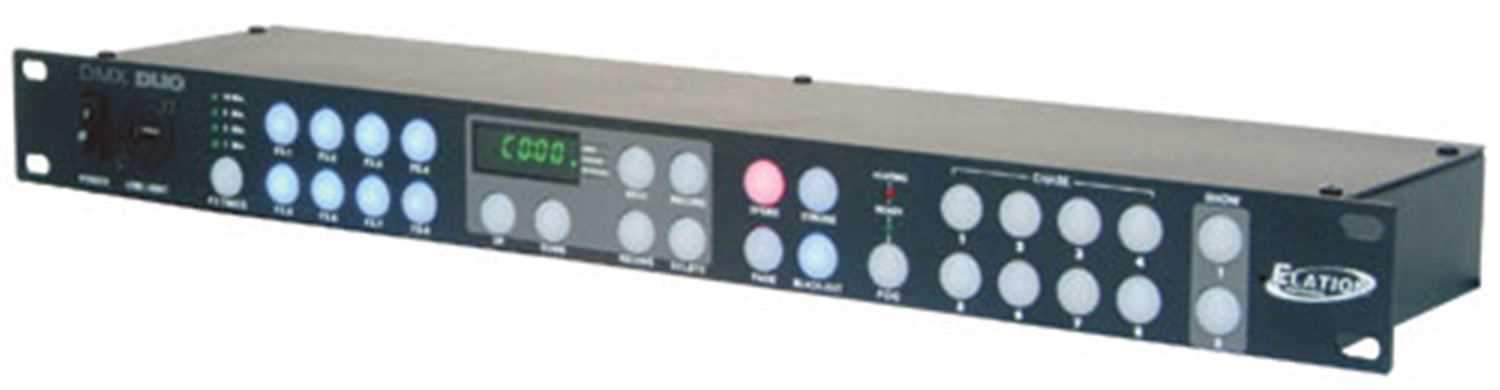

ELATION DMX Duo: Streamlined Lighting Control

The Elation DMX Duo is an ultra-compact lighting performance recorder that accepts DMX information from any standard DMX controller. The slim 1-space design maximizes efficiency without compromising control.

• Single space DMX recorder/controller
• Accepts DMX information from any standard DMX controller
• 96 DMX channels (intelligent lights)
• 8 DMX effects channels (on/off effects)
• Effects timer (1, 3, 5 & 10 intervals)
• Separate DMX outputs for effects and intelligent lights (outputs on rear)
• 8 chases (99 steps each)
• 2 shows (99 steps each, programmable hold & fade times)
• Mix or sequence playback for chases and shows
• Audio trigger
• Manual trigger
• USB gooseneck light input
• Separate speed and fade control
• Strobe button (programmable)
• Machine input and trigger button; compatible with MB-1000, Stallion, Vapor- Flow, Fog Storm-1200HD and Fog Storm-1700HD
• RS232 (input on rear)
• USB Light available as an optional
• 3-pin XLR in/out (intelligent lights)
• 3-pin XLR (effects out)
• Size: 19"w x 1.75"h x 3"d. Wt. 2 lbs.
