DMX-16 SW System

Ever wish there was an easier way to control the On/Off switching of your DMX lighting fixtures. Now there is - thanks to Elation Professionals new DMX-16 System, an expandable DMX On/Off switch controller system that includes everything you need to take command of your DMX lights: a 16-channel DMX-16SW Control Panel, two 4-channel DP-415 DMX Switch Packs, and the necessary cables to link the system together.Ready to use "out of the box," the DMX-16 System lets you hook up 8 DMX fixtures (4 on each Switch Pack) for convenient On/Off control from the DMX-16SW Control Panel. What if you have more than 8 DMX lights? Thats the really good news - the system is fully expandable! The DMX-16SW Control Panel can support up to two additional Switch Packs, making it capable of controlling a total of 16 DMX effects. Whats more, the DMX-16SW Control Panel will work with any DMX Dimmer/Switch Pack on the market, not just those sold by Elation.but the flexible DMX-16 System doesnt stop there. To handle even larger numbers of DMX fixtures, multiple DMX-16SW Control Panels can be linked together. Up to 32 DMX-16SWs can be linked, providing at-your-fingertips On/Off control of an impressive 512 DMX channels!

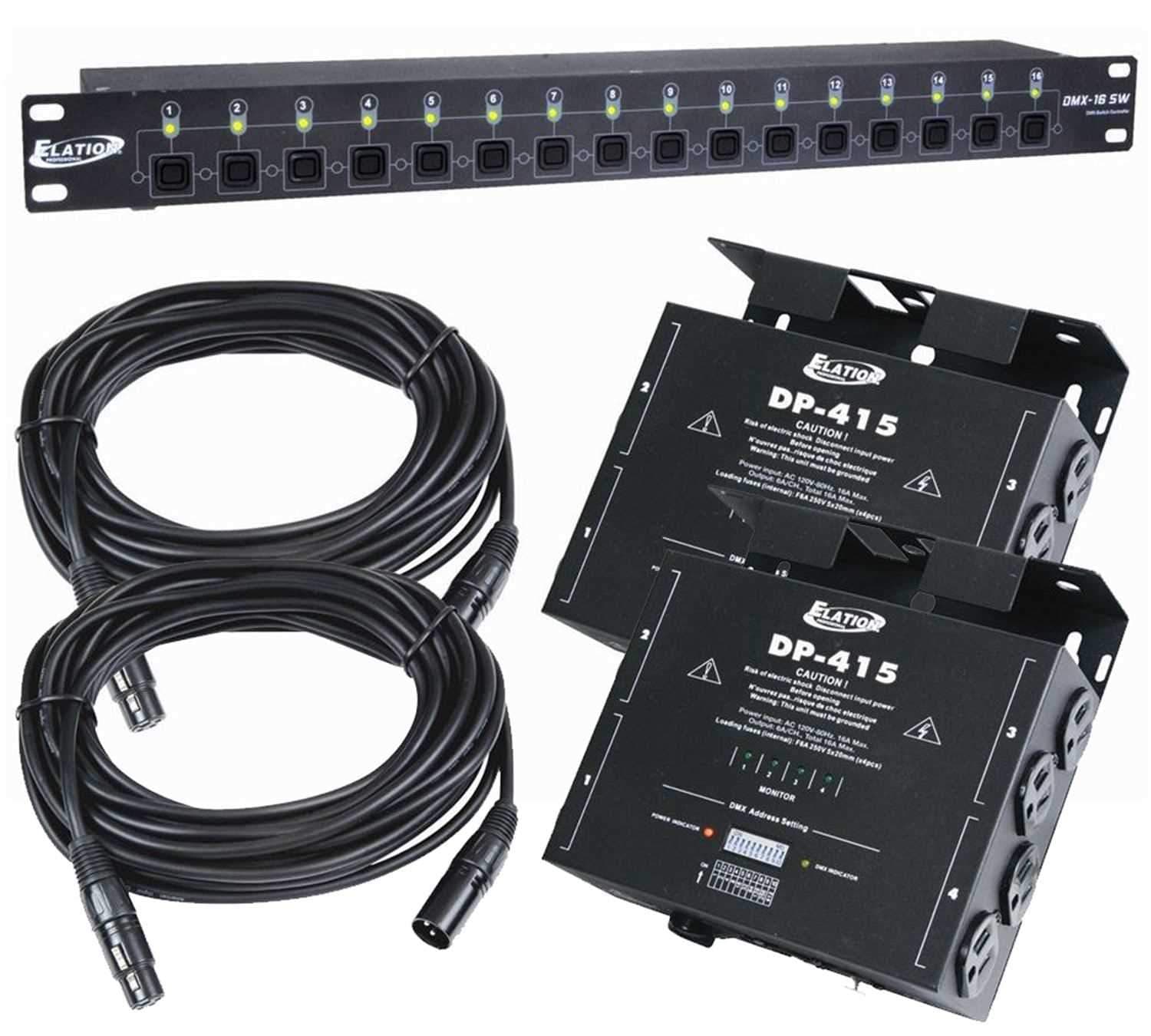

DMX-16 SYS Components:

• DMX-16SW
• DP-415
• 25ft. DMX cable
• 10ft. DMX cable

DMX-16 System Features:

• USITT DMX512 (1990) multiplexed control system
• 16 channel On/Off control system
• (2) DP-415 packs offer 8 output channels to connect fixtures into
• (2) DMX cables to connect from control panel to pack and from pack to pack
• Up to 32 DMX-16SW’s can be linked, for On/Off control of 512 DMX channels

DMX-16SW Control Panel Specifications:

• USITT DMX512 (1990) multiplexed control system
• 16 On/Off channel switches with LED indicators
• 3-pin XLR, DMX Input and Output to link additional DMX-16SW’s and to link to packs
• 10 position dip switch on rear of DMX-16SW for setting DMX address
• On/Off power switch on rear of DMX-16SW control panel
• Power failure memory
• DMX-16SW Power Requirement: 9VDC, 200mA Min. (Power supply included)
• DMX-16SW Dimensions: 19" x 3.25" x 1.75" (482 x 82 x 44mm)
• DMX-16SW Weight: 5.1lbs. (2.3kg)

DP-415 Specifications:

• Compact 4-channel DMX Dimmer/Switch Pack
• Dual 15 Amp Edison sockets per channel
• 10-position dip switch for setting DMX address
• Reversible hanging bracket allows for more flexible rigging options
• On/Off power switch with LED indicator
• 4-channel intensity LED indicators
• Load Capacity: 5 Amps per channel, 15 Amps maximum ON at a time
• Power Requirement: 120VAC ~ 60Hz, 15A max.
• Dimensions: 7.1" x 7" x 2.52" (180 x 177 x 64mm)
• Weight: 3.1lbs. (1.4kg) DP-415
