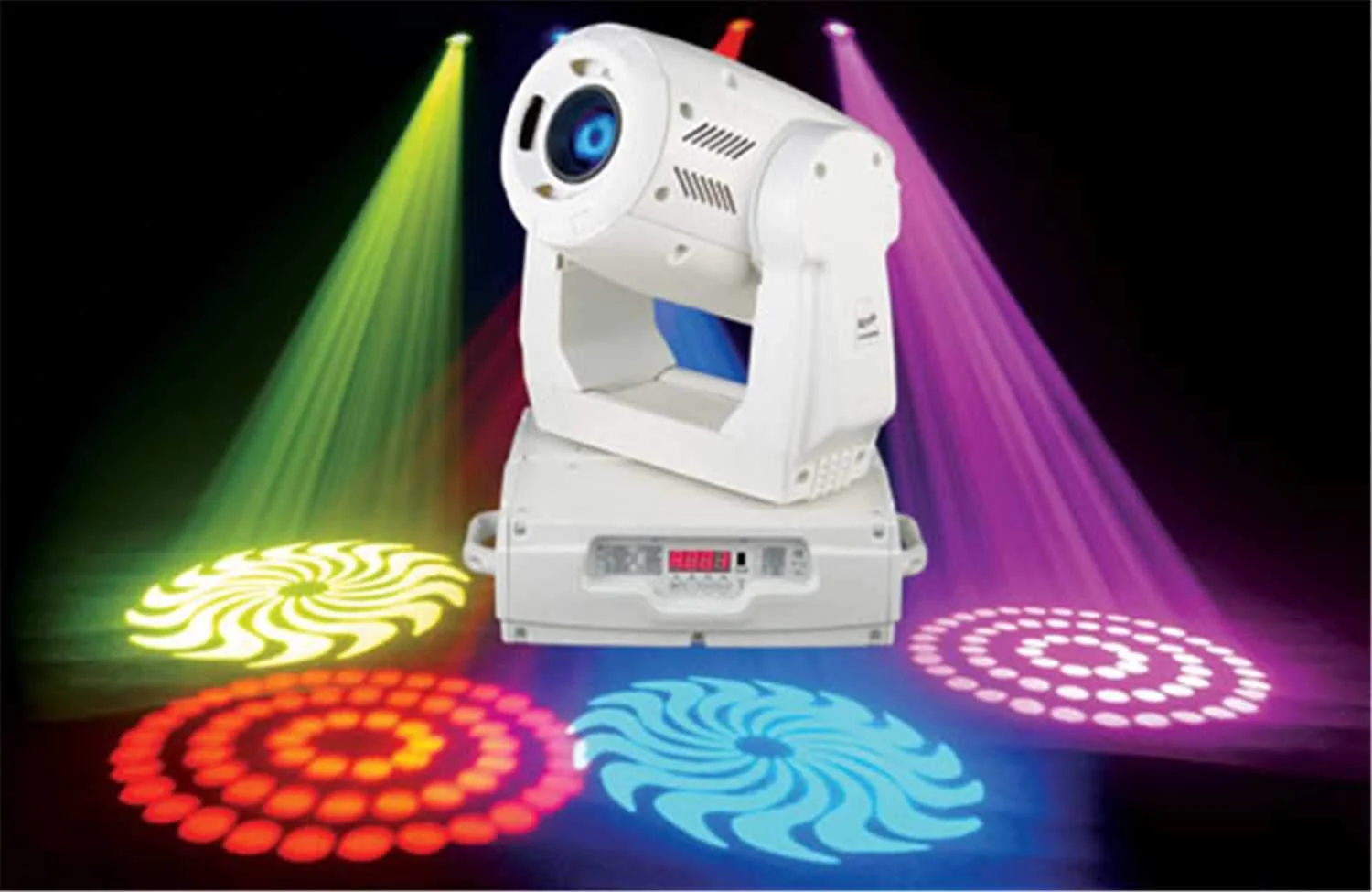

ELATION DESIGN SPOT 250 MOVING HEAD SPOT WHITE

Control Features
? RDMX - Remote DMX Addressing
? USITT DMX-512 (16-bit resoultion)
? 16 DMX Channels
? 4 Digit L.E.D. Display
? On board menu settings
? 3-pin XLR serial input/output
? Sound active mode

Optical System
? High output luminous-parabolic dichroic reflector
? Beam Angle 17?
? Replacable Beam 14?, 20? angles (included)
? All lenses are anti-reflection coated

Colors
? 8 Dichroic filters, 7 color, UV + White
? Continuous, variable speed, color scrolling in both directions (rainbow effect)
? More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

Gobos
? 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
? 7 interchangeable, indexable, rotating gobos plus open
? 7 interchangeable, static gobos plus open
? 26.9mm outside diameter, 23mm image diameter
? Gobo Overlay (Gobo Morphing)

Shutter/Dimmer
? Variable speed strobe effect (1-13) flashes per second
? Pre-set variable/random strobe and dimming pulse effect
? Dual Flag mechanical dimming system

Iris
? Beam narrow to wide (5% - 100%)
? Variable speed iris macros
? Small to large and large to small

Frost
? Variable Frost Control
? Hard edge to soft edge

Prism
? 3-facet rotating/Indexing Prism
? Both directions at variable speeds
? Macro-function for rotating gobos/rotating prisim combinations

Focus
? Motor driven focus from near to far

Lamp
? Phillips MSD 250/2 (250W, 8500?K, 3000 HRS)

Pan/Tilt
? Automatic Pan / Tilit position correction
? Maximum PAN-movement 630? in 2.0 secs (default) or 540? (user selectable) / 16 bit
? Maximum TILT-movement 265? in 1.5 secs / 16 bit
? Vector Mode with blackout

Size & Weight
? 14?L x 14?W x 22.5?H
? 51 lbs.

Power Supply
? Fuse: 8A (120V) or 4A (220V)
? Magnetic Ballast
? Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
? Power Consumption 400W
