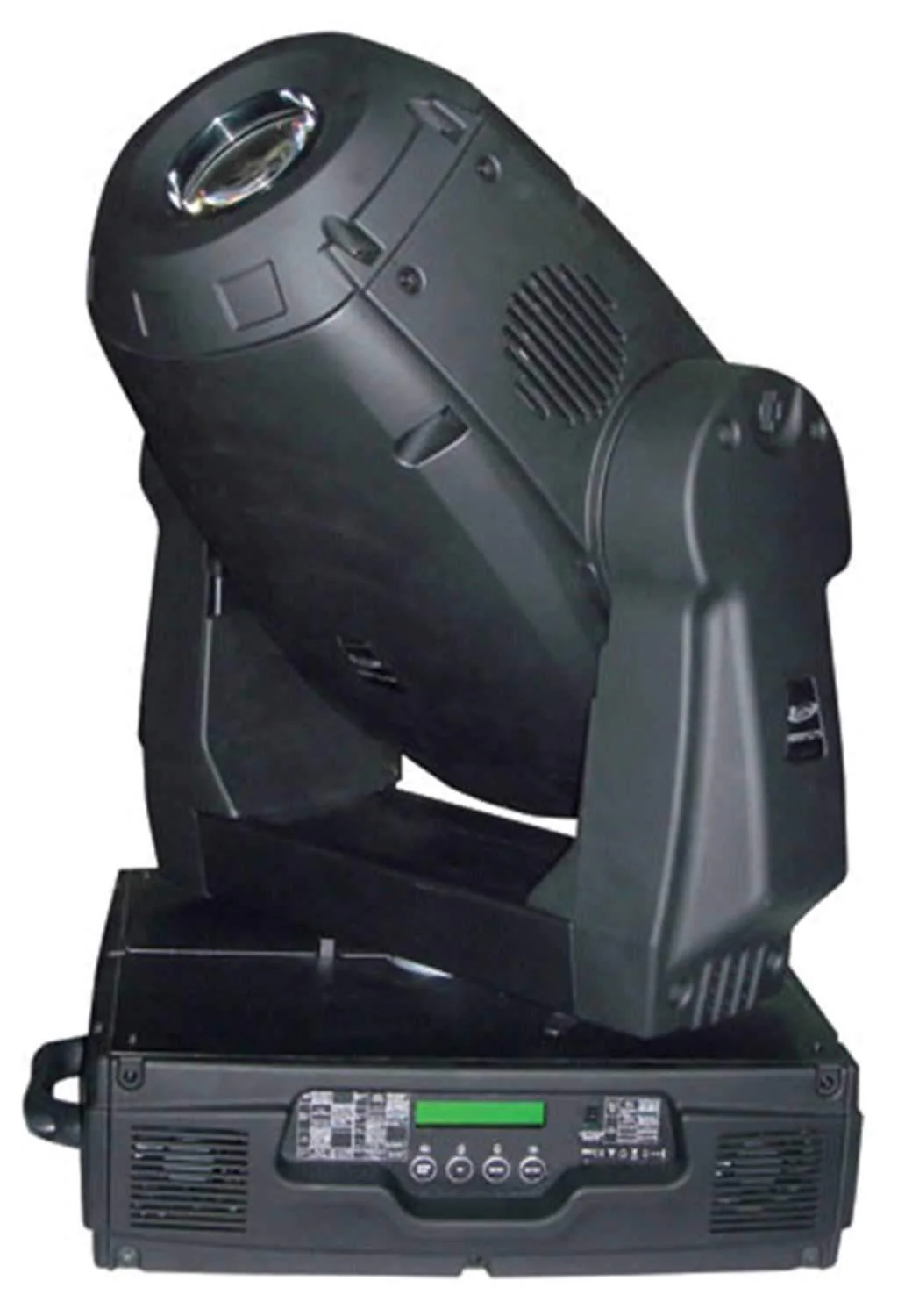

Elation DESIGN-SPOT-575E Moving Head Spot & Wash +

CONTROL FEATURES

• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 24 DMX Channels
• 32-Character LCD display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode

OPTICAL SYSTEM

• High output luminous-parabolic dichroic reflector
• 15º to 30º linear Zoom
• All lenses are anti-reflection coated
• 29,700 lux @ 2.5M

COLORS

• Full Color mixing with CMY flag system
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS

• 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
• 6 interchangeable, indexable, rotating gobos plus open
• 6 interchangeable, indexable, rotating gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)

ANIMATION

• 1 rotating animation wheel

SHUTTER/DIMMER

• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

IRIS

• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small

FROST

• Variable Frost Control
• Hard edge to soft edge

PRISM

• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations

FOCUS

• Motor driven focus from near to far

ZOOM

• 15 - 30 degree linear Zoom

POWER SUPPLY

• Electronic Ballast
• Voltage 90- 240vAC 50/60Hz
• Power Consumption: 600W (120V = 7A)
