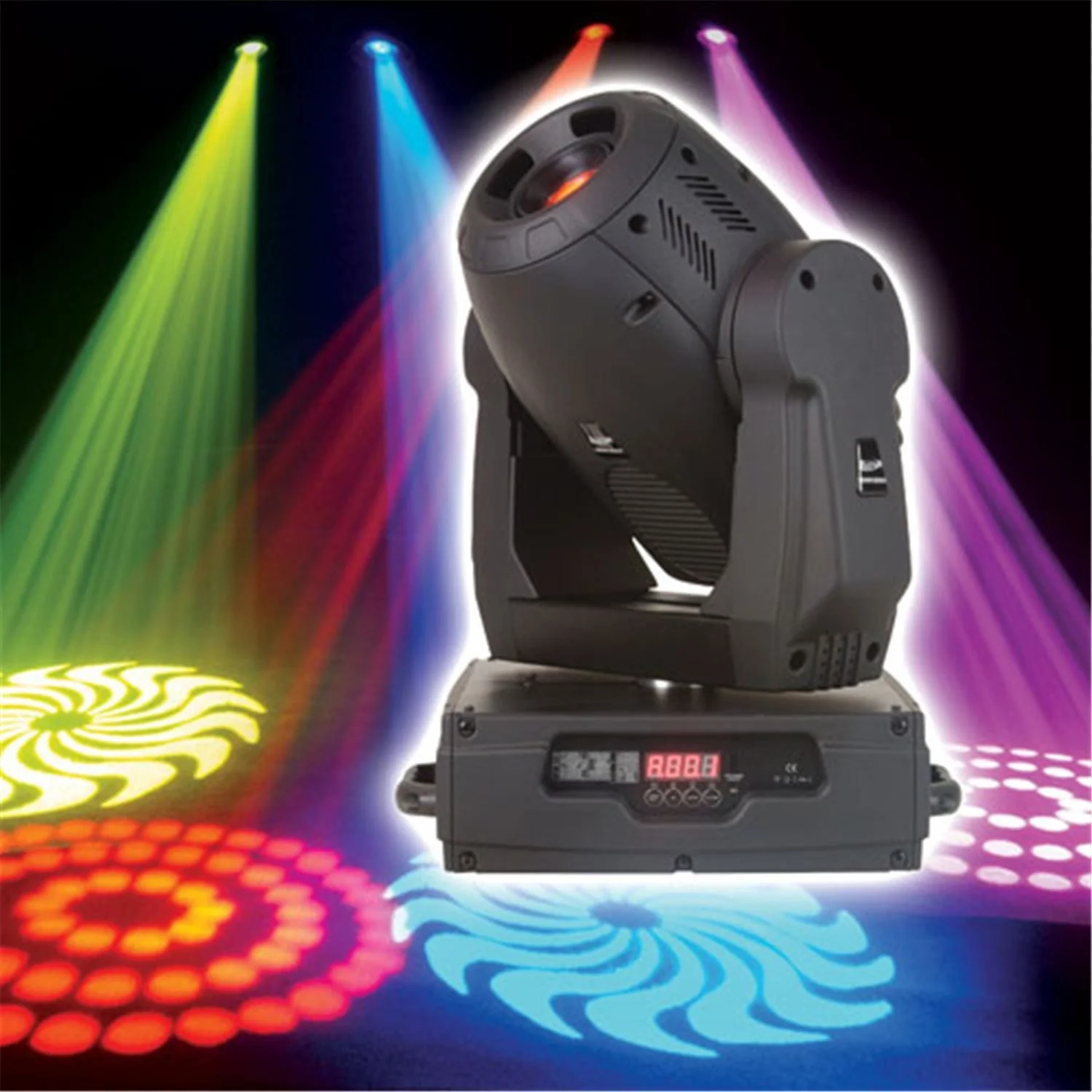

ELATION DESIGN SPOT 250 MOVING HEAD DMX SPOT

• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode

• High output luminous-parabolic dichroic reflector
• Beam Angle 17?
• Replacable Beam 14?, 20? angles (included)
• All lenses are anti-reflection coated

• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

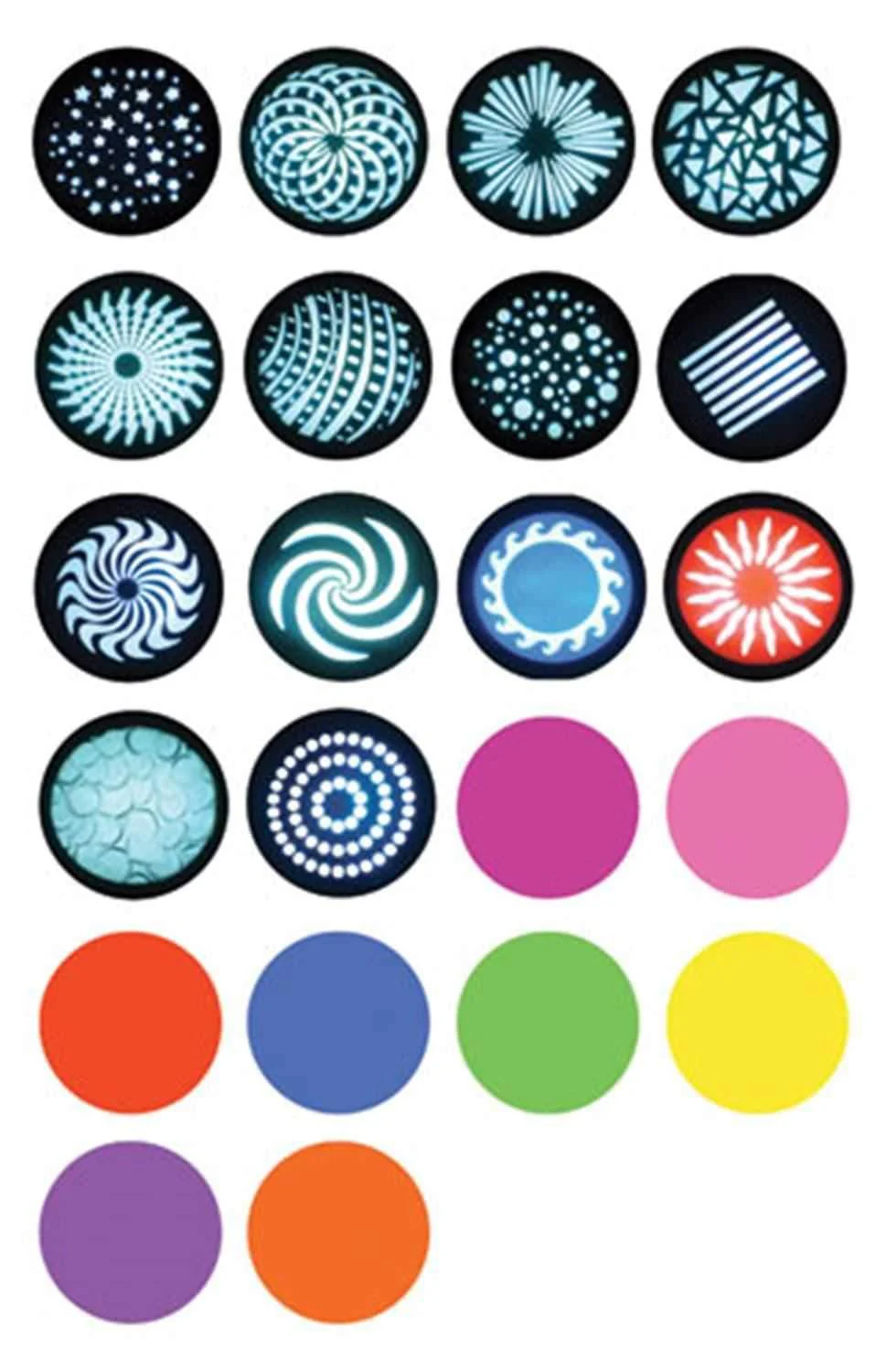

• 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
• 7 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)

• Variable speed strobe effect (1-10) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

• IRIS
• Beam narrow 7? to wide
• Variable speed iris macros
• Small to large and large to small

• Variable Frost Control
• Hard edge to soft edge

• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations

• Motor driven focus from near to far

• Phillips MSD 250/2 (250W, 8500?K, 3000 HRS)

• Automatic Pan / Tilit position correction
• Maximum PAN-movement 530? in 2.65s / 16 bit
• Maximum TILT-movement 280? in 1.68s / 16 bit
• Vector Mode with blackout

• 14?L x 14?W x 22.5?H
• 57.5 lbs

• 8A or 4A Fuse
• Magnetic Ballast
• Voltage: AC 98, 120, 220, 208, 230, 240V 50/60Hz
• Power Consumption 400W
