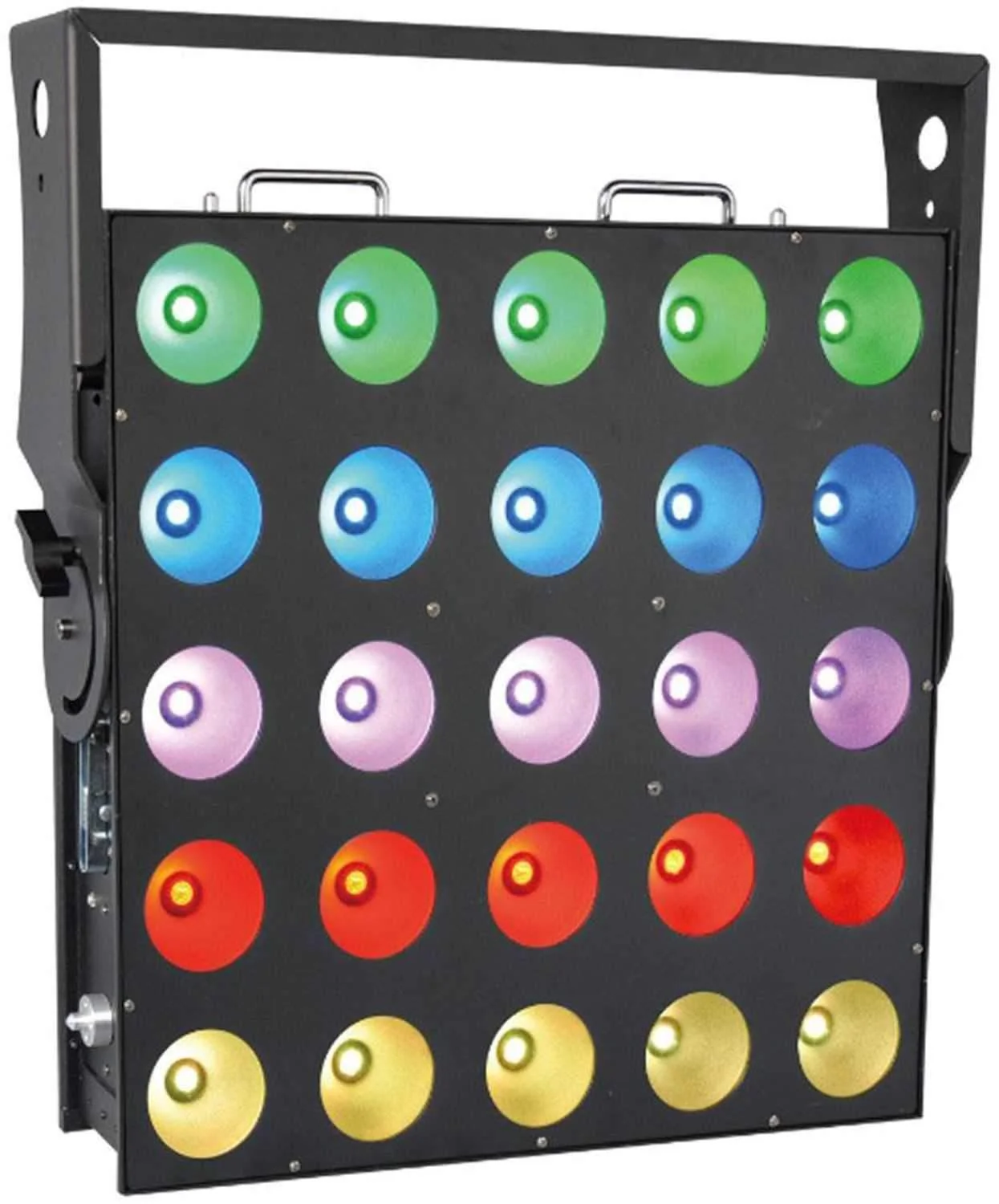

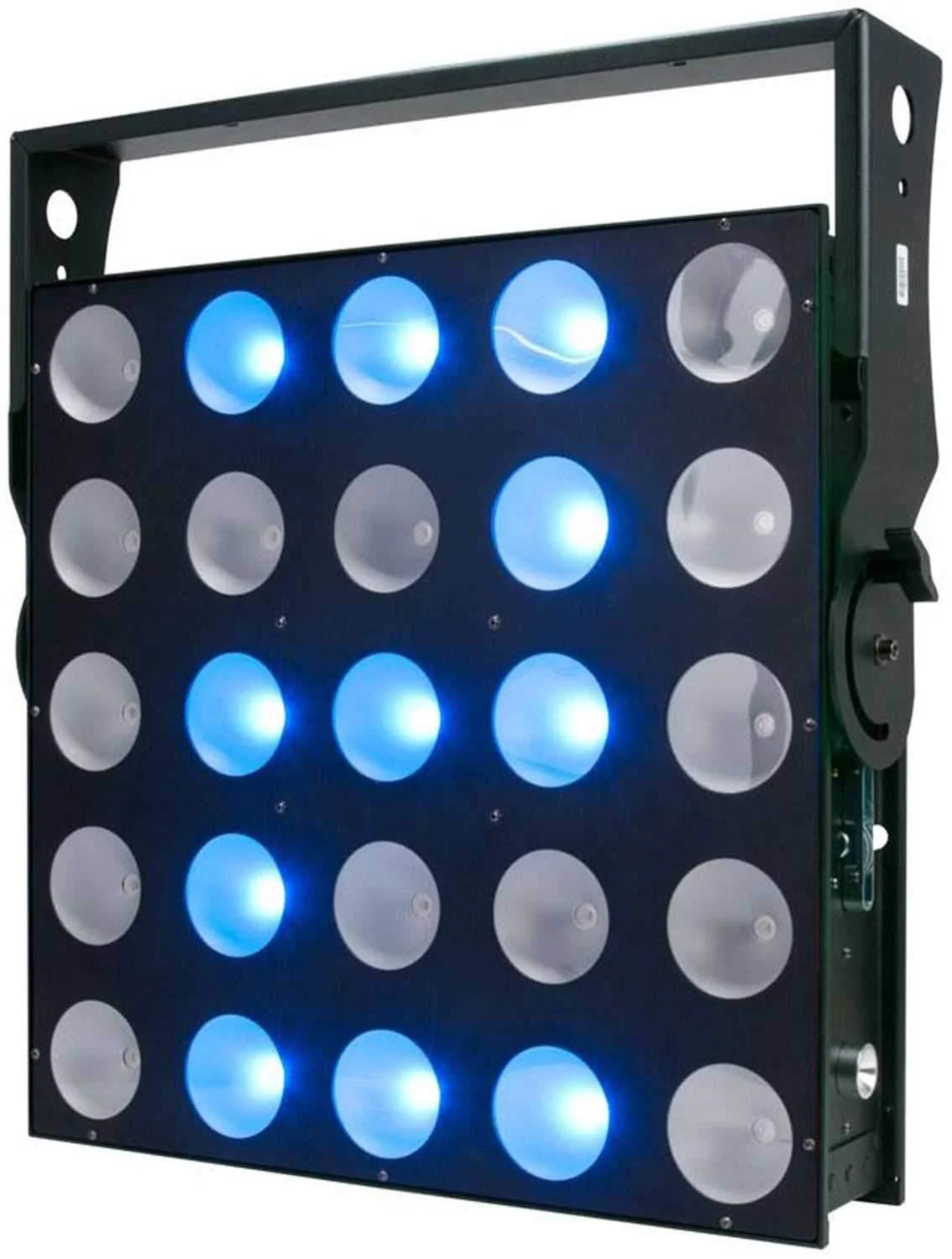

Elation CUEPIX Panel 30W 3-in-1 RGB LED Light

The CUEPIX Panel features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).

Source:

• (25) 30W 3-in-1 RGB COB LEDs
• 100,000 Hour Average Life

Photometric Data:

• 15,490 Max LUX (1439 fc) @2M (Full On)
• 3310 Max LUX (307 fc) @2M (Red LEDs)
• 3720 Max LUX (346 fc) @2M (Green LEDs)
• 5870 Max LUX (545 fc) @2M (Bllue LEDs)

Features:

• High Power Long Life 3-in-1 RGB COB LEDs
• 60° Beam Angle / 80° Field Angle
• Color Mixing + Individual Control of Each COB Module
• Dimming : 0% - 100% of Each COB Module
• Strobe, and Zone Chase Effects
• RDM (Remote Device Management)
• Flicker FREE Operation for TV and FILM
• Stand Alone Operation with Master/Slave Function

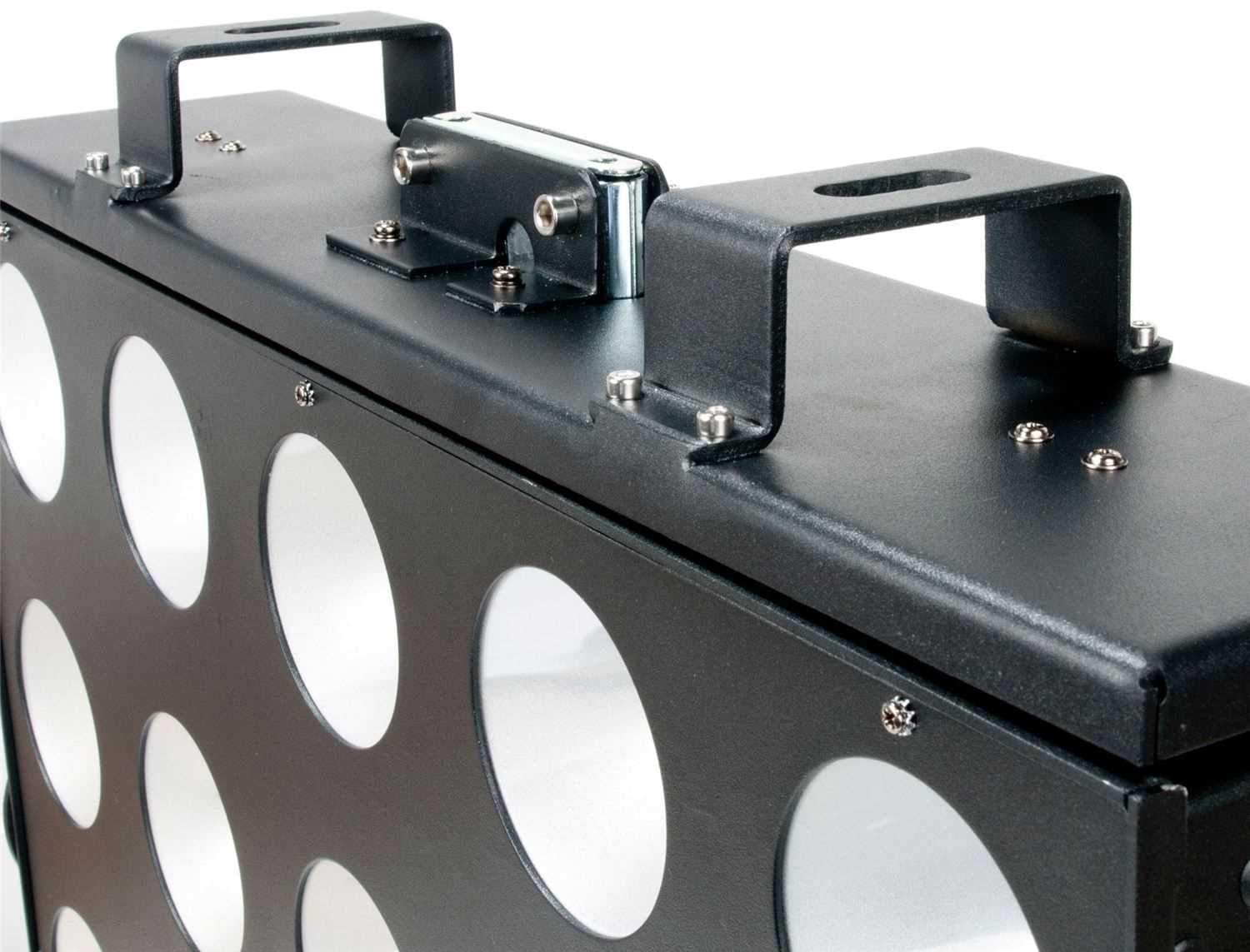

• Integrated Rigging Points and Optional Rigging Bracket
• Variable / Selectable Dimming Curves
• Auto Chase and Zone Program Macros
• 5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)

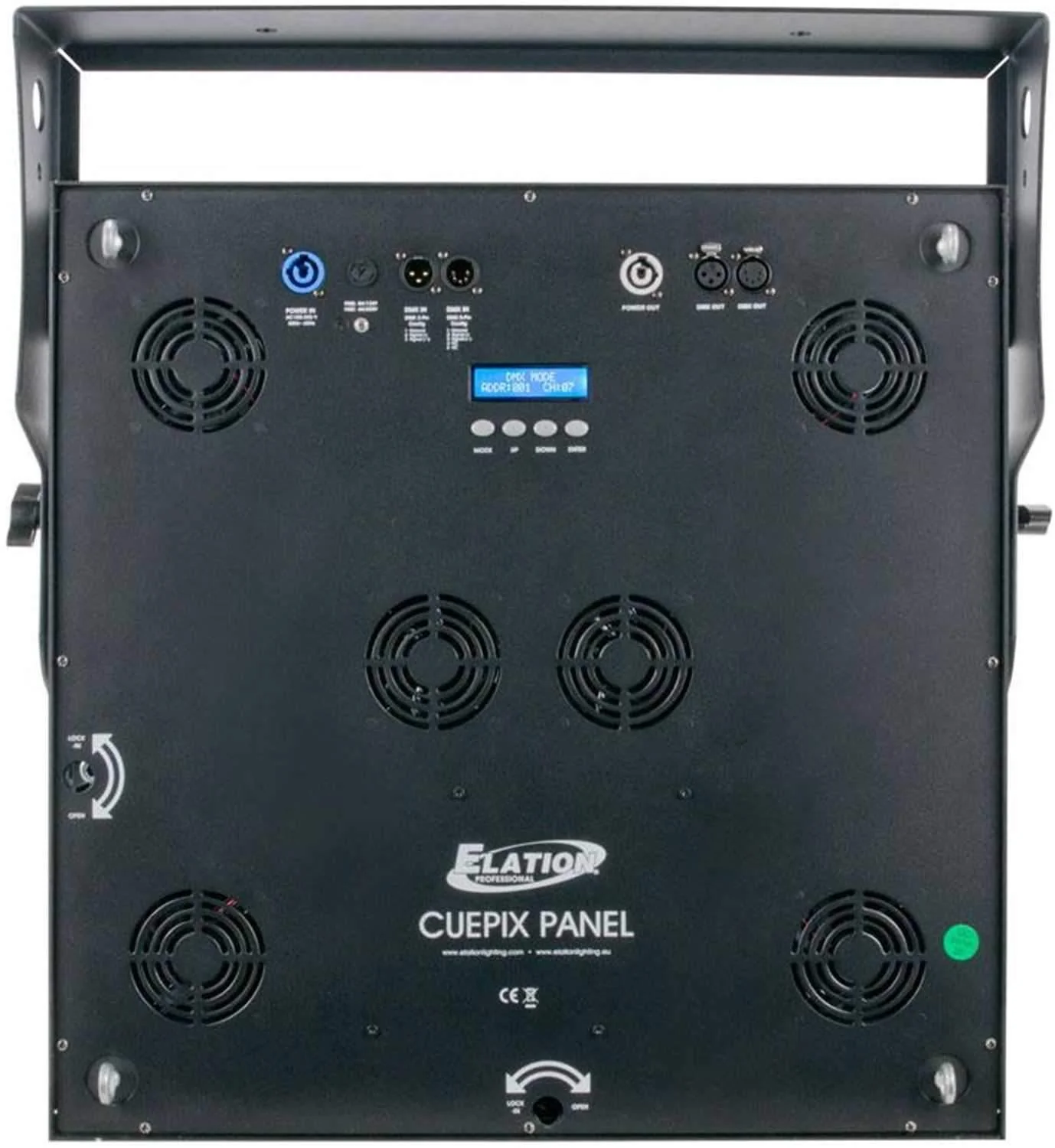

• 4 Button Control Panel and LCD Menu Display
• 3pin and 5pin DMX In/Out
• RDM (Remote Device Management)
• powerCON Power In/Out
• CE pending
• CETLus, RoHs pending
• IP20 Rated
• Includes (1) powerCON Cable
• Dimensions (W x L x H): 5.1" x 24.8" x 25.6"
• Weight: 36.4 lbs. (16.5 kg)

Electrical/Thermal:

• AC 100-240V - 50/60Hz
• 750W Max Power Consumption
• -14°F to 113°F (-10°C to 45°C)
