Elation Cue211 Uploader for Cuepix Series

The Cue Software Uploader™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a Micro SD card (included) and inserted into the uploader.

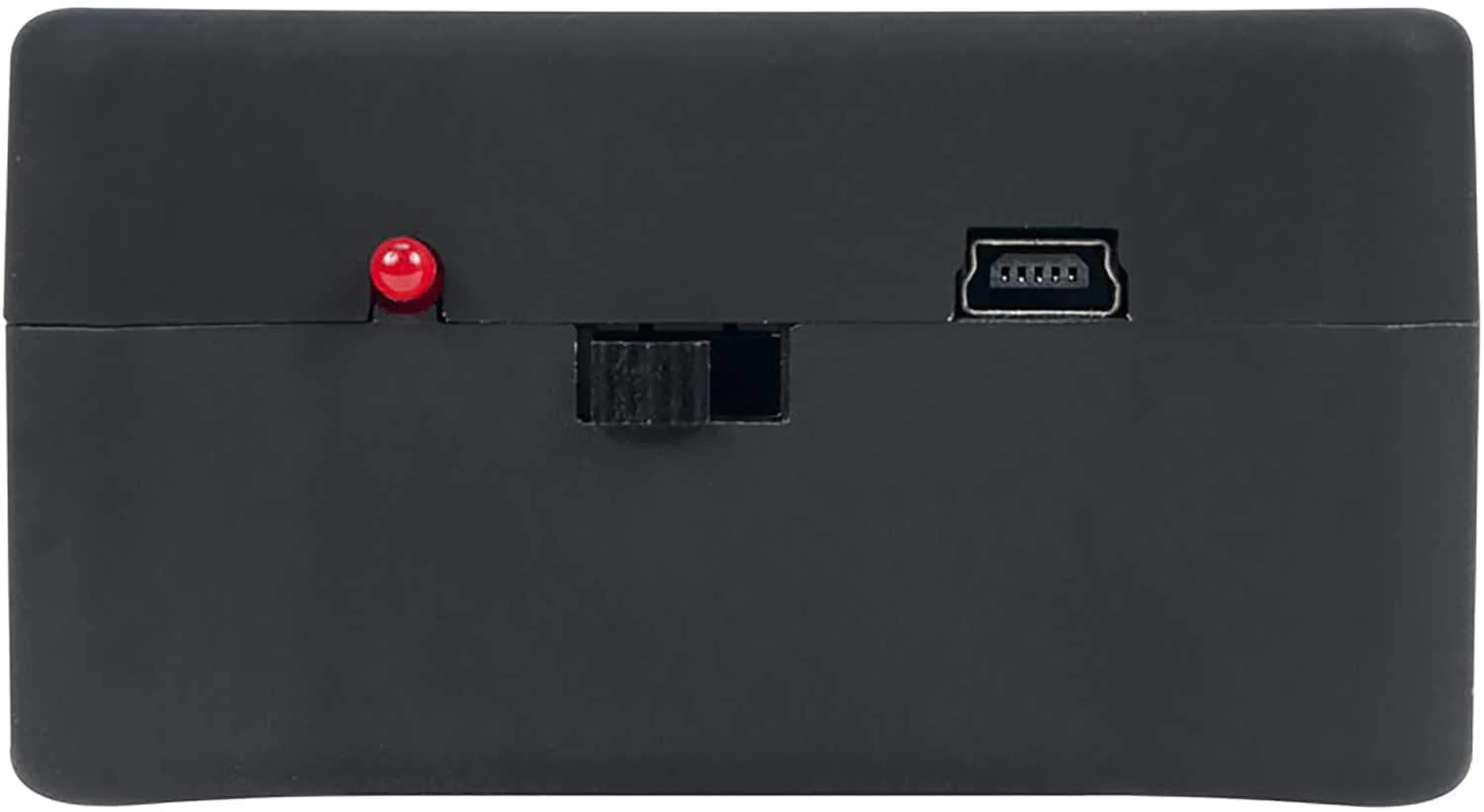

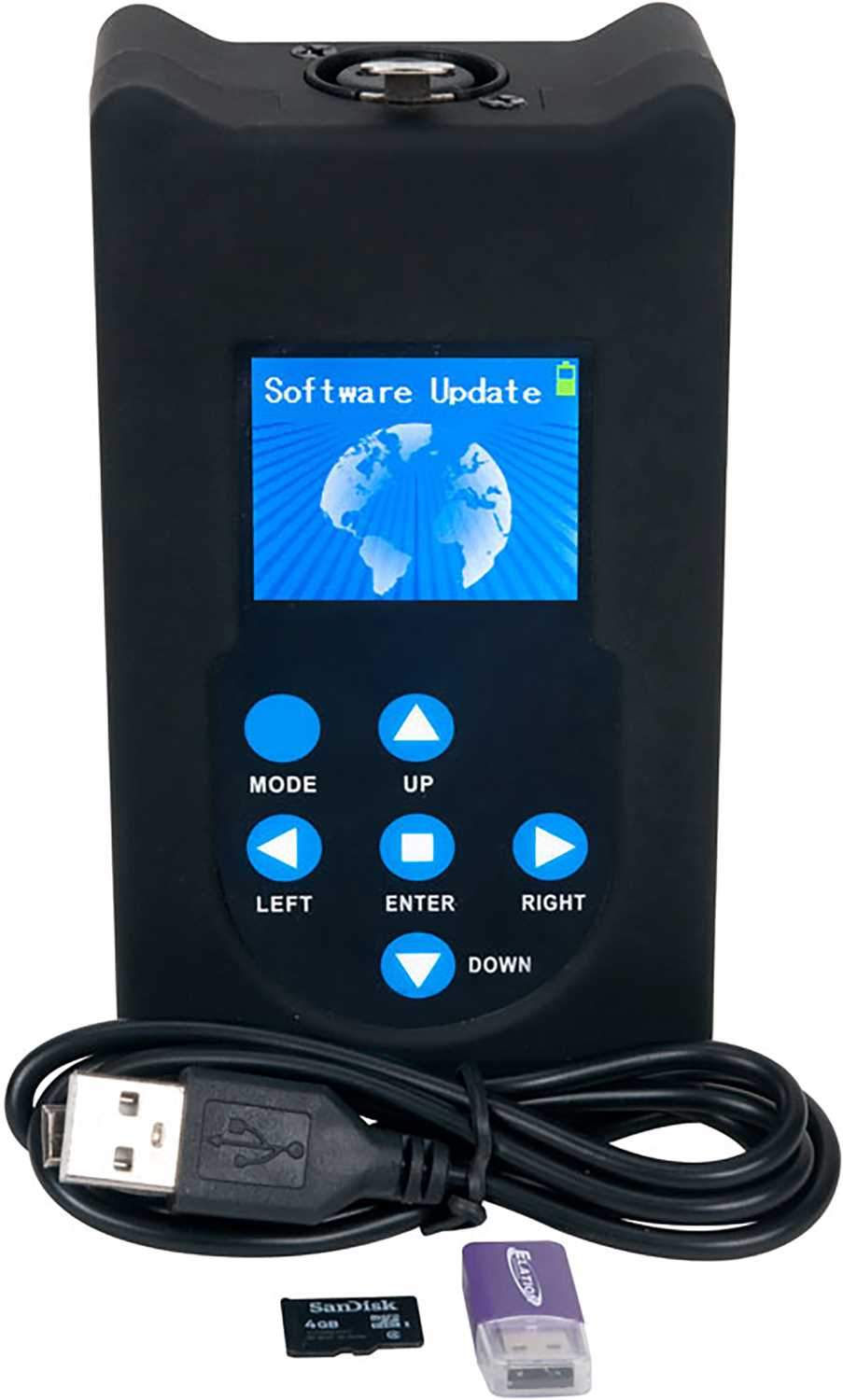

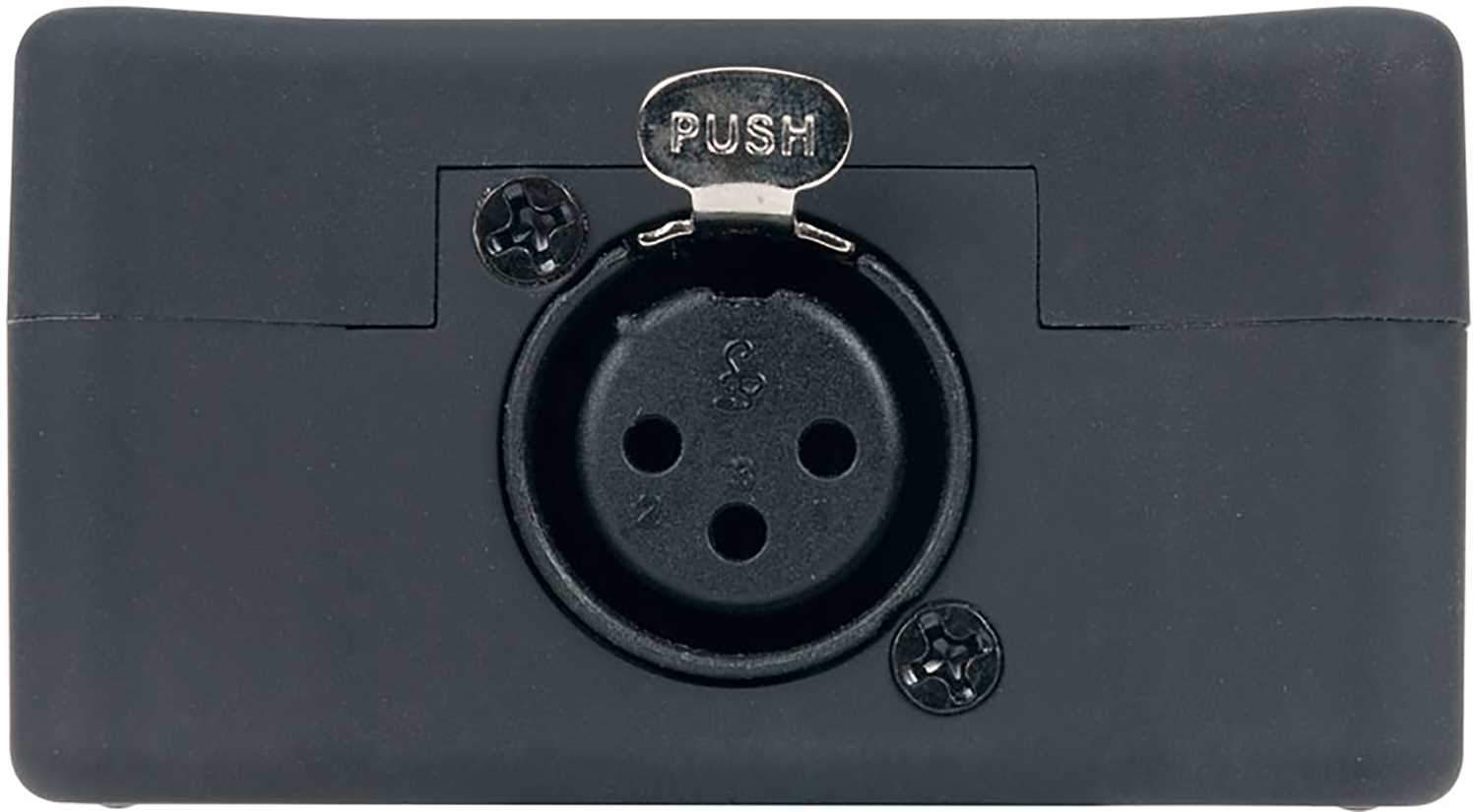

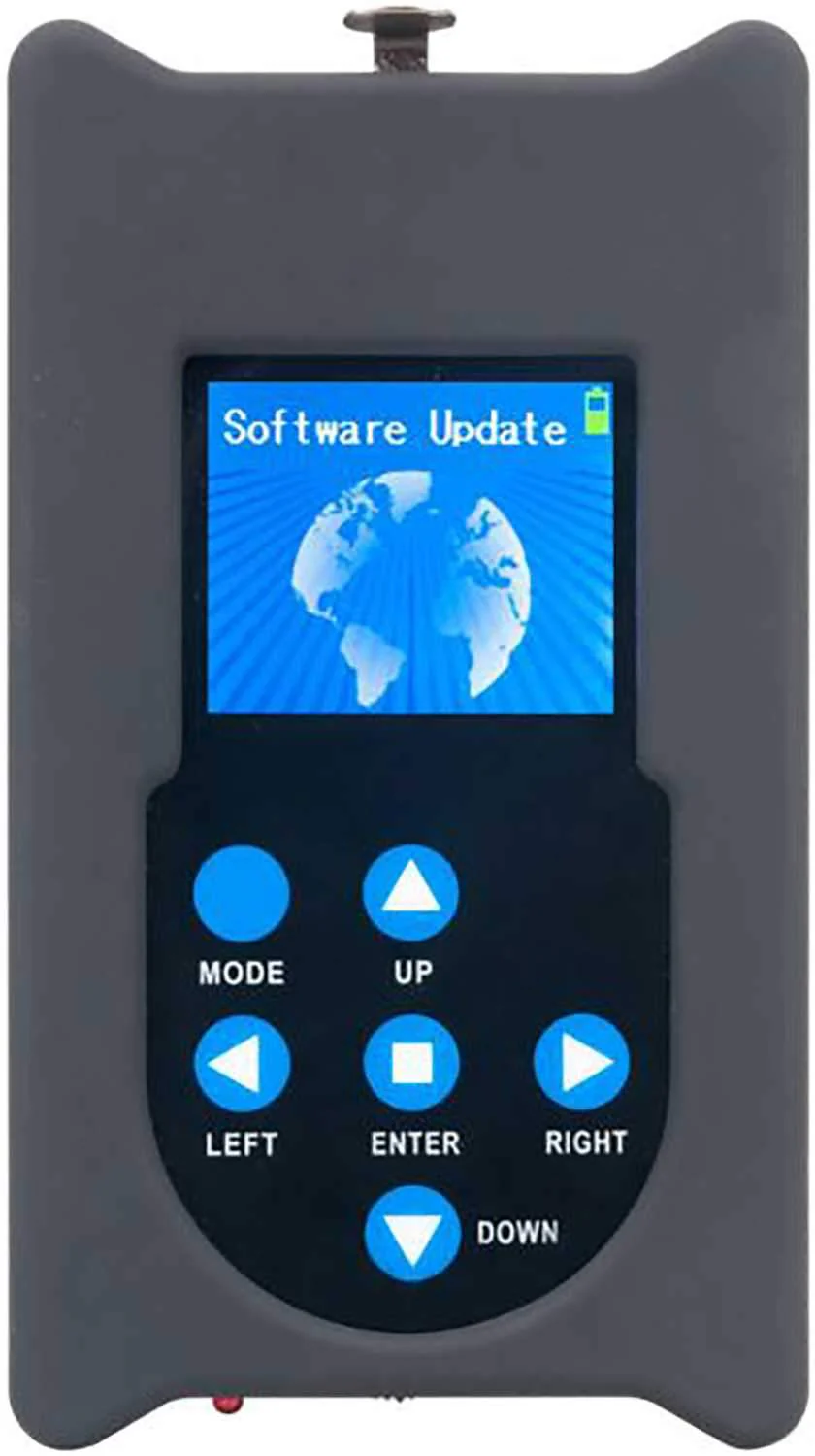

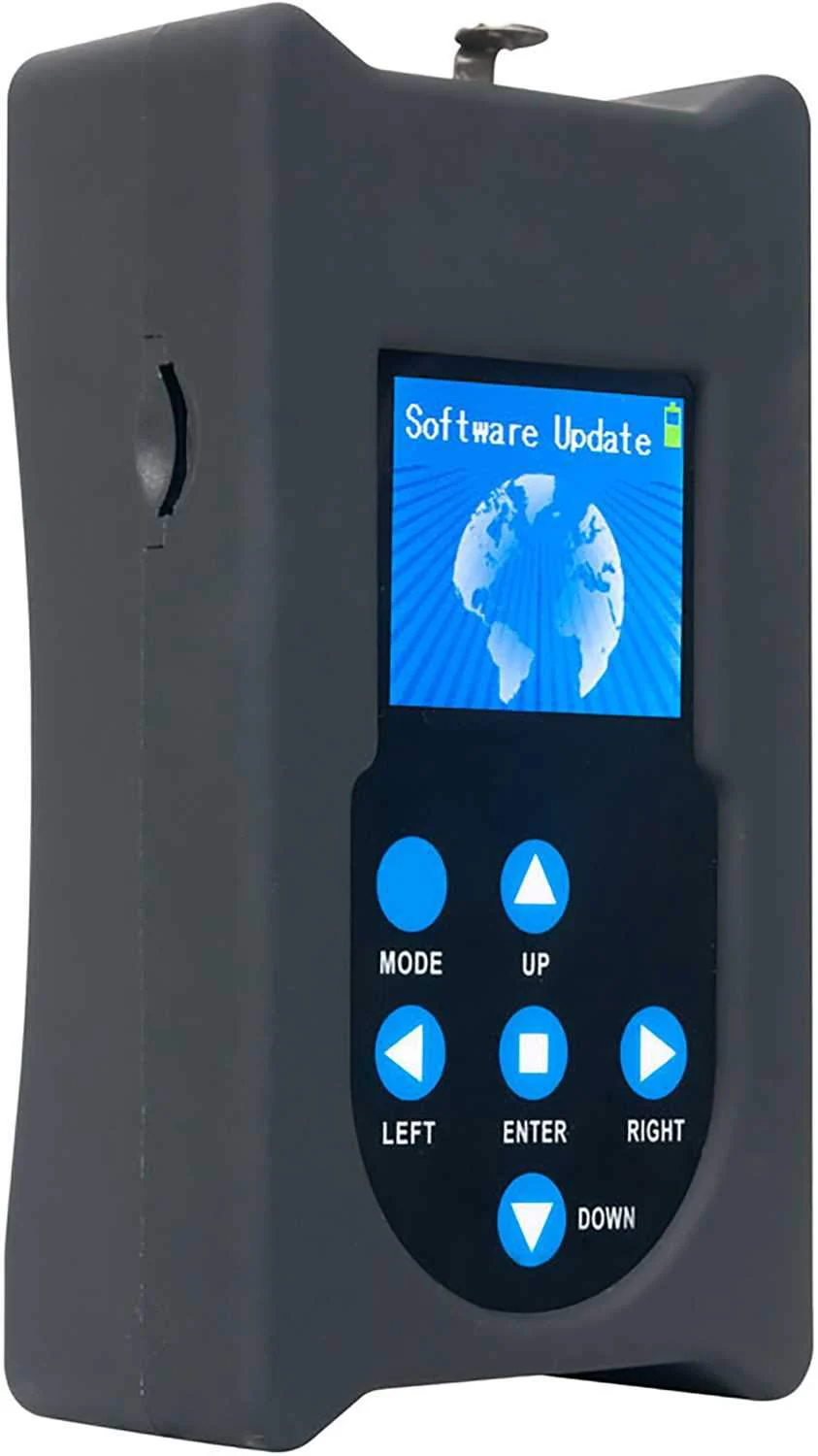

Cue Software Uploader™ features an LCD display, 6 button control panel, a Micro SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to Micro SD card adapter, and blank Micro SD card.

Specifications:

Control/Connections

• 6 Button Touch Control Panel
• LCD Menu Display
• 3pin DMX Out
• Micro SD Card Slot
• Mini USB Input

Size/Weight

• Length: 4.89" (124.15mm)
• Width: 2.73" (69.46mm)
• Vertical Height: 1.48" (37.5mm)
• Weight: 0.4 lbs. (0.2 kg)

Electrical

• USB Powered (Internal Battery)

Included Items

• USB Cable
• Micro SD Card
• USB to Micro SD Card Adapter
