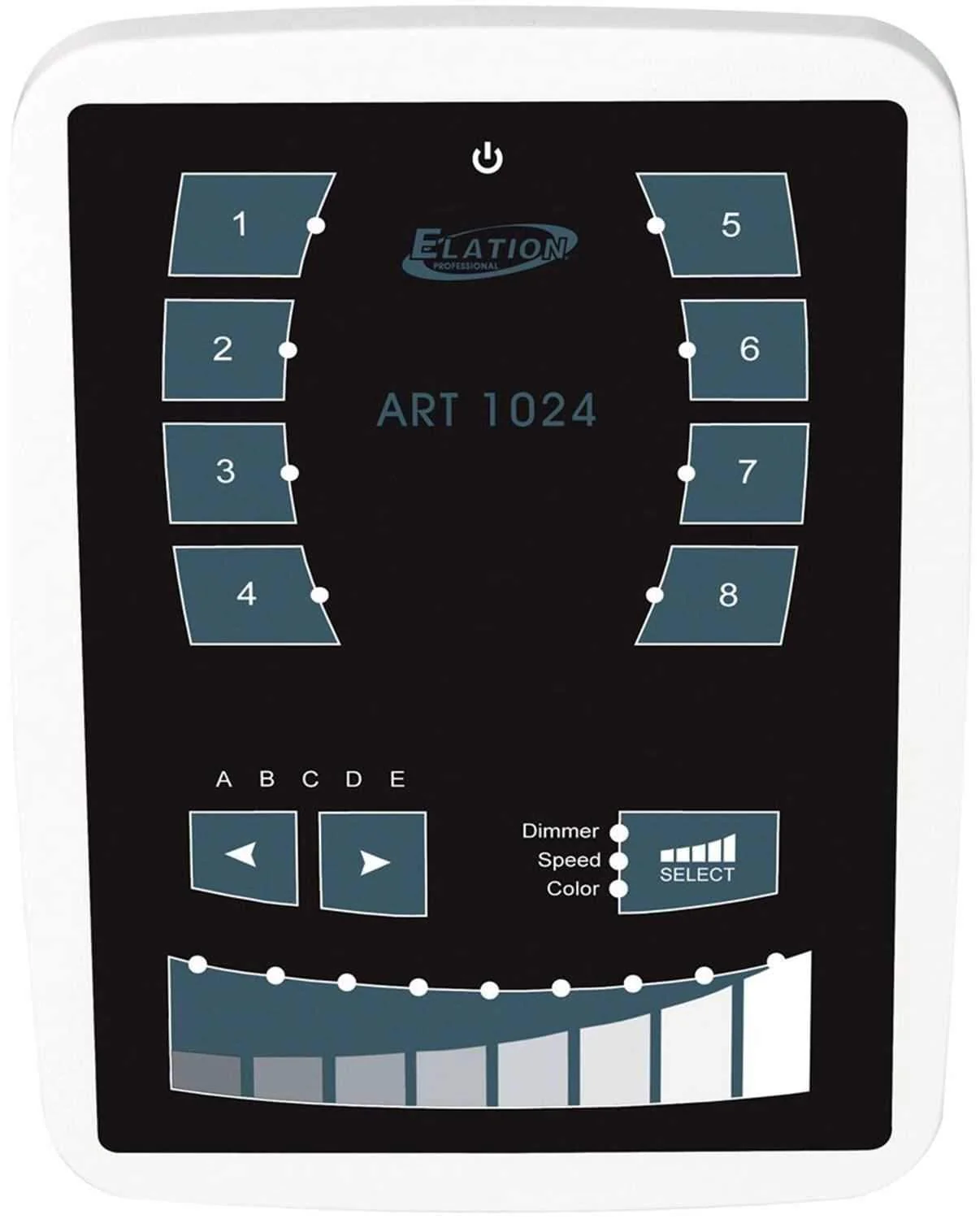

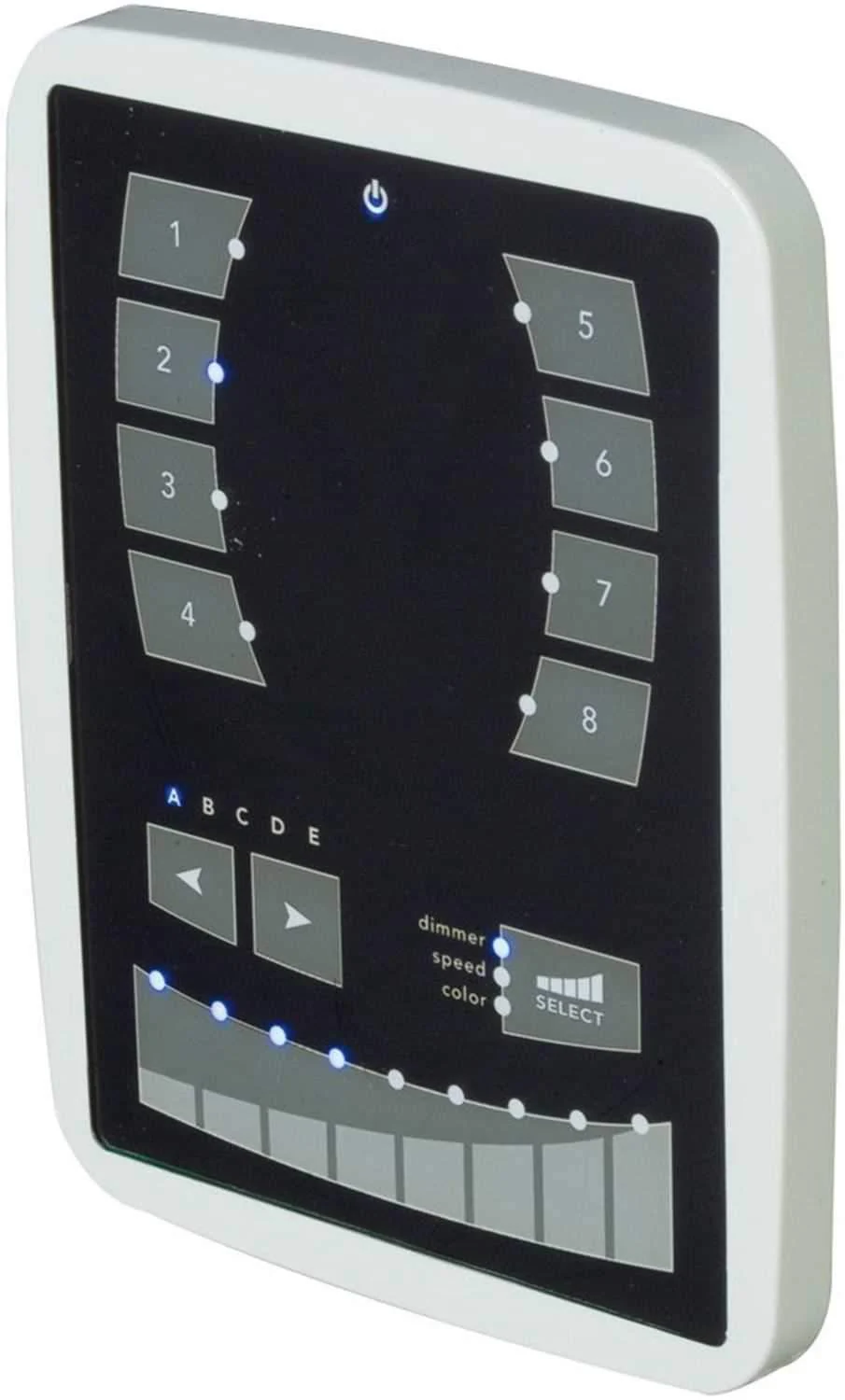

Elation ART-1024 Flex RGB Wall Mount Controller

The ART-1024 is the most advanced touch-controlled Stand-Alone Architectural DMX Controller with Ethernet, Internet, IR and Event-Port Control. Programmed comfortable using the included Software, running stand alone without any computer attached, using optional network-control-interface for intelligent synchronizing zone-control and remote access.

• Easily create your own "ART" with the new ART-1024 wall mount controller form Elation!
• User interface 14 buttons, 1 fader, 28 LEDs
• Touch Sensitive Keypad (extension socket rear connectors - 2x20 pins)

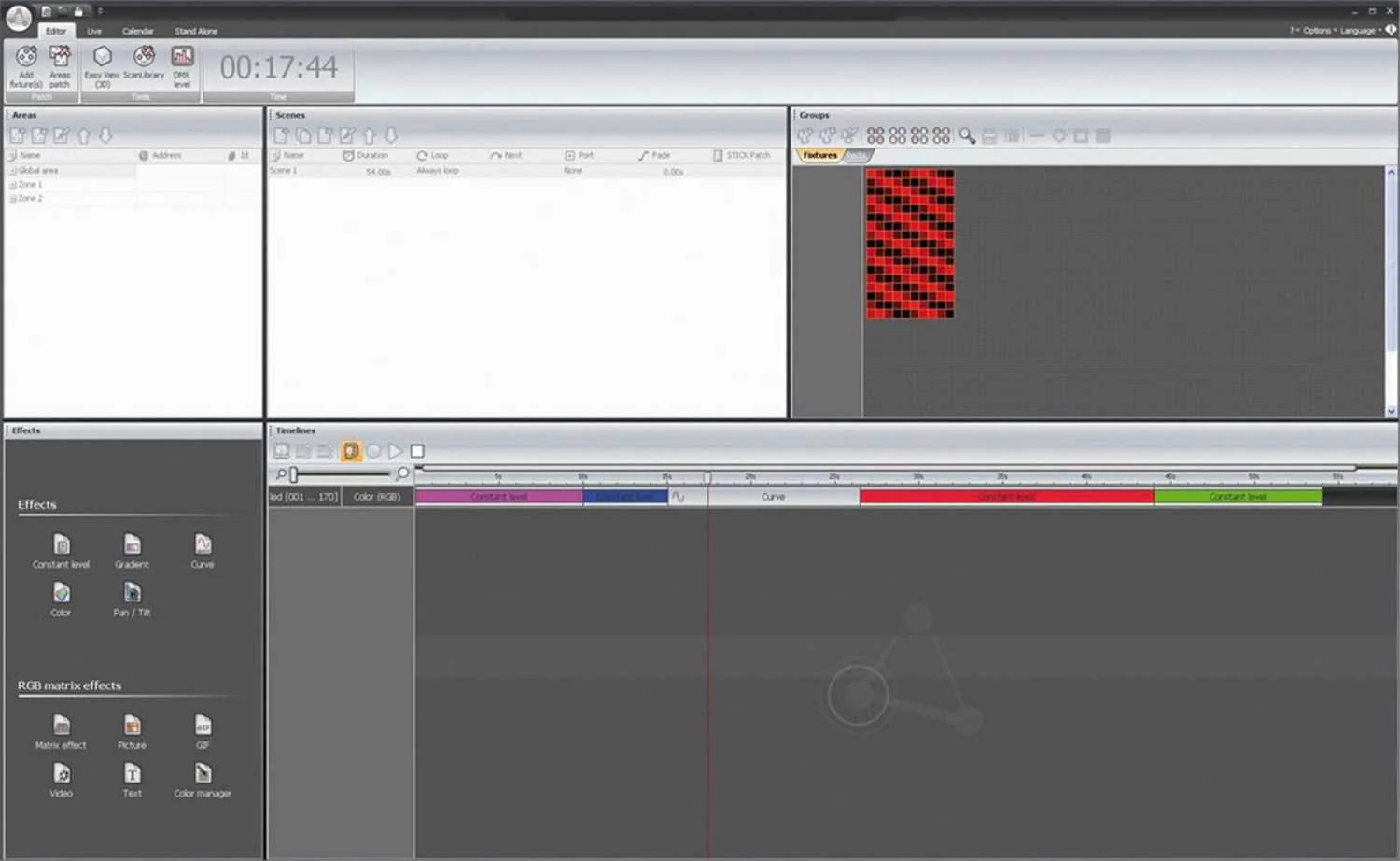

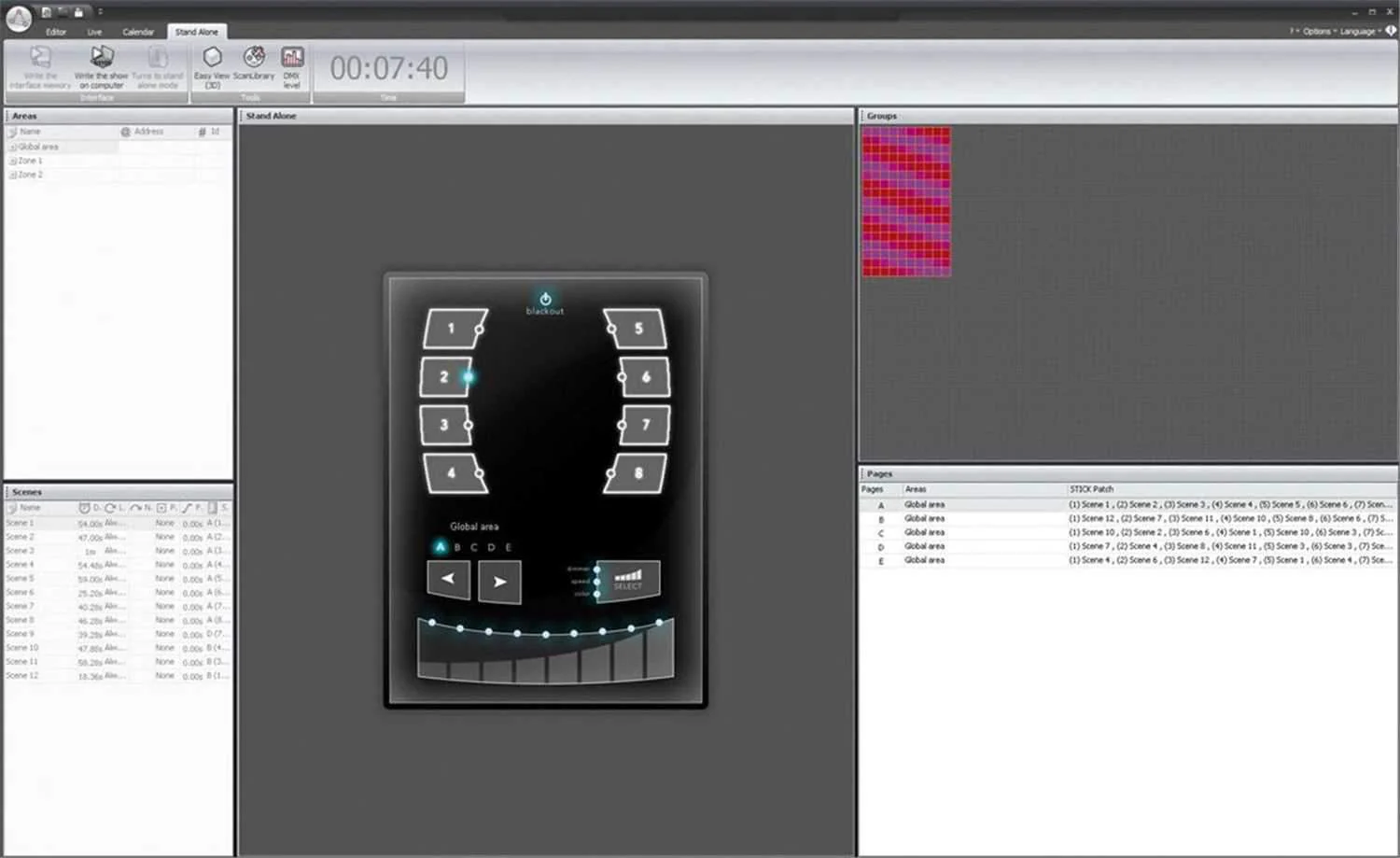

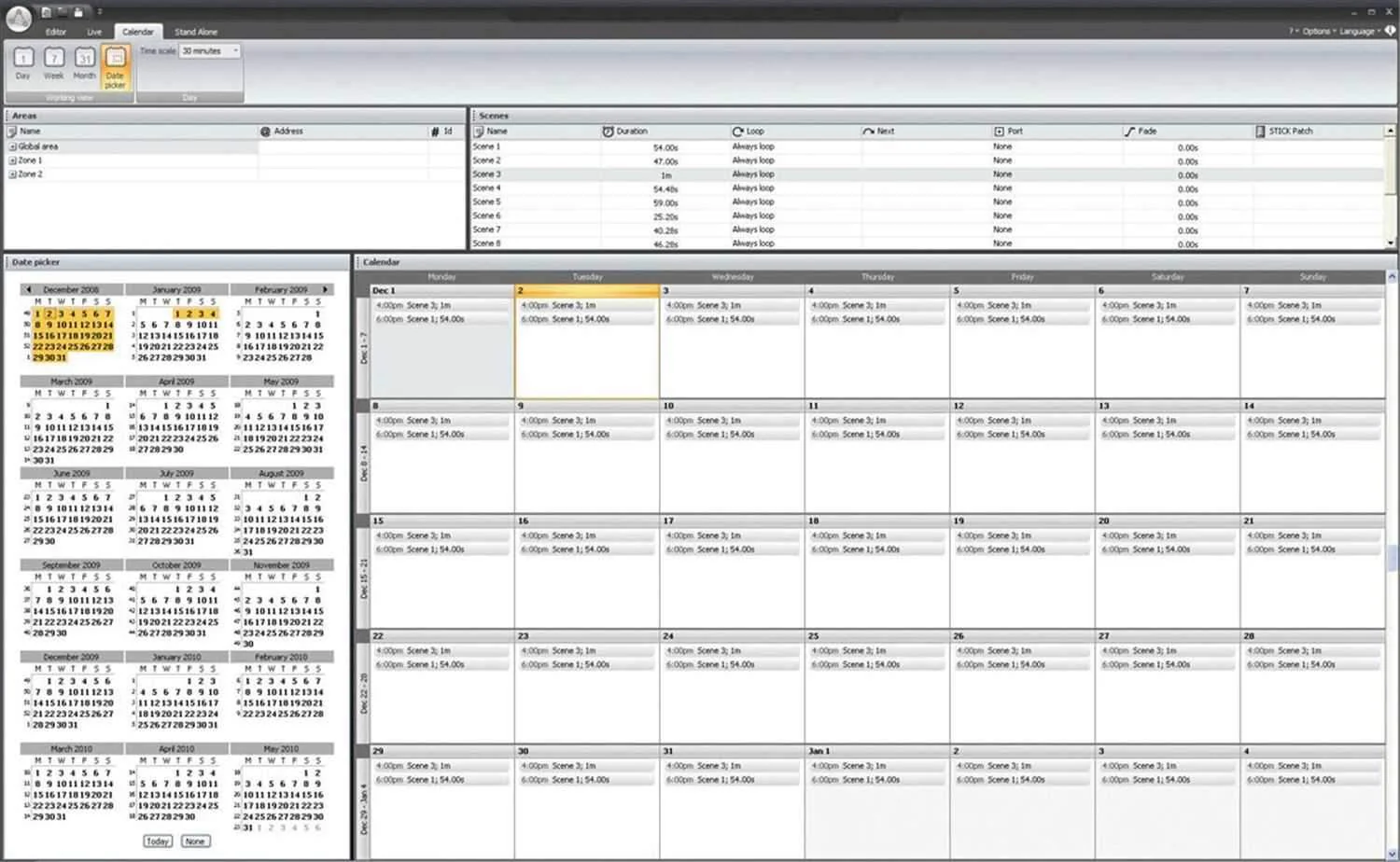

• Programming software included to run on PC
• SD Card Mini SD (included) card for stand alone memory use (Built-in features) & (front access connections - open cover)
• RESET Push button for reset operation (front access connections - open cover)
• RS232 RS232 serial communication for external synchronization (extension socket rear onnectors - 2x20 pins)
• Output relay Automatic stand by 5V signal (extension socket rear connectors - 2x20 pins)
• Real time clock and calendar, 10 minutes saving without power (Built-in features)
• IR Receiver* Easy learning triggering from any 36Khz remote control (Built-in features)
• DMX Output #1 Universe 1, 512 channels DMX512 Output (screw-terminal rear connector - 9 pins)
• DMX Output #2* Universe 2, 512 channels DMX512 Output (extension socket rear connectors - 2x20 pins)
• USB USB 2.0 communication for PC/software (extension socket rear connectors - 2x20 pins)
• Ethernet** Advanced networking features (front access connections - open cov
• Package Content: Interface, SD card, user manual, cdrom, USB cable, power supply (*)
• PC Requirement Computer using Windows XP/VISTA 32 bits and USB 2.0
• PC Software Included: ART 1024
• Options Dedicatted remote control, Ethernet extesion
• Safety Standards EC, EMC, ROHS
• Temperature 14°F to 122°F (-10°C to 50°C)
• Dimensions 6.62" x 5.04" x 0.45" Complete package (168 x 128 x 11,5mm)
• Weight 0.44lbs. (0,2kg) Complete package 1.32lbs. (0,6kg)
• Power Supply 9VDC 0.65A, Supplied (screw-terminal rear connector - 9 pins)
• Ports 1,2,3,4 4 Contact closure inputs, connect to ground for operating (extension socket rear connectors - 2x20 pins)
• Ports 5,6,7,8 4 Contact closure inputs, connect to ground for operating (screw-terminal rear connector - 9 pins) & (extension socket rear connectors - 2x20 pins)
• Built-in microphone for sound to light effect (Built-in features)
• Audio input for sound to light effect (extension socket rear connectors - 2x20 pins)
