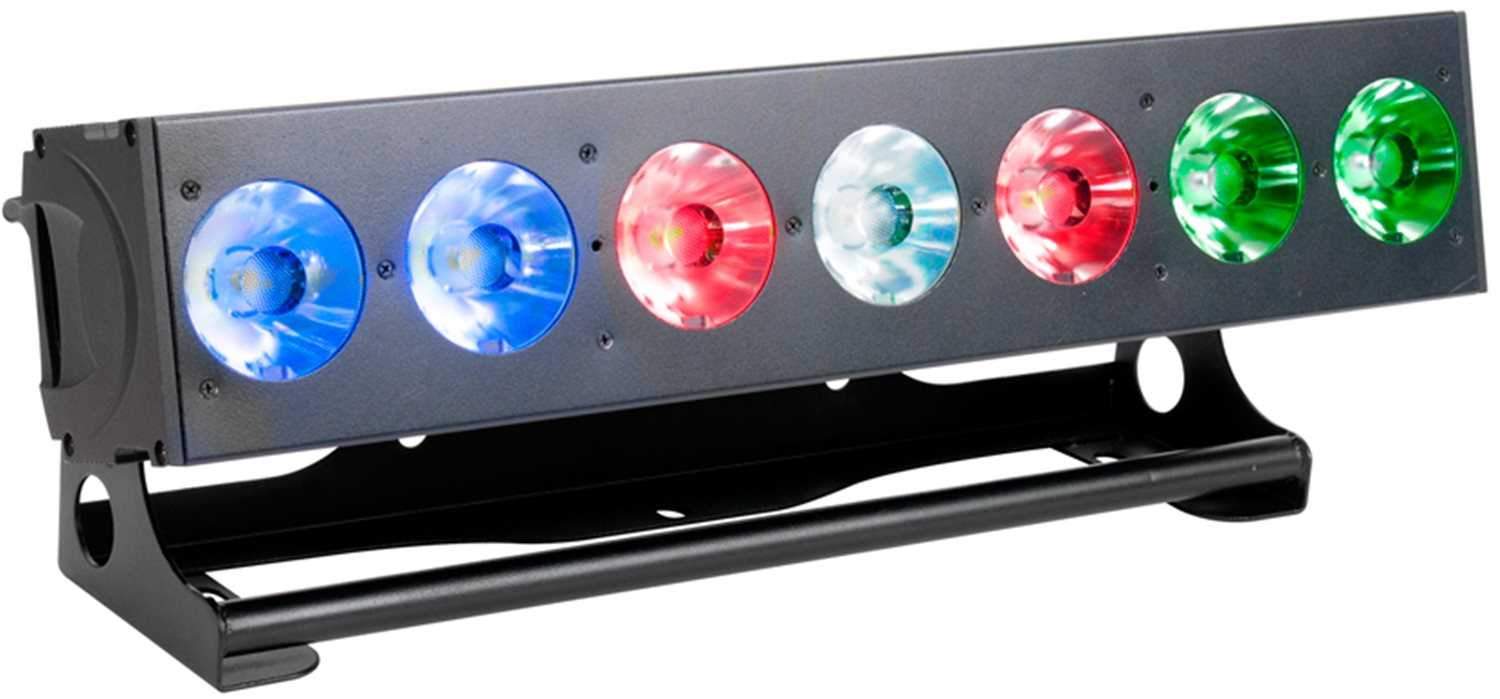

Elation ACL Bar LED 7x 15 Watt RGBW Light

The new ACL PAR 200IP™ is a versatile IP65 rated par luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management) support, IP DMX and power in/out connections, (4) touch control pads, LCD menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features

• Versatile 31° Beam Bar Luminaire
• New Advanced Collimator Lens
• (7) Pixel Controled RGBW 4-in1 LEDs
• Laser-Like Homogenized 4° Color Changing Beams
• Strobe and Selectable Dimming Curve Effects
• DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
• Flicker Free Operation for Broadcast TV and FILM

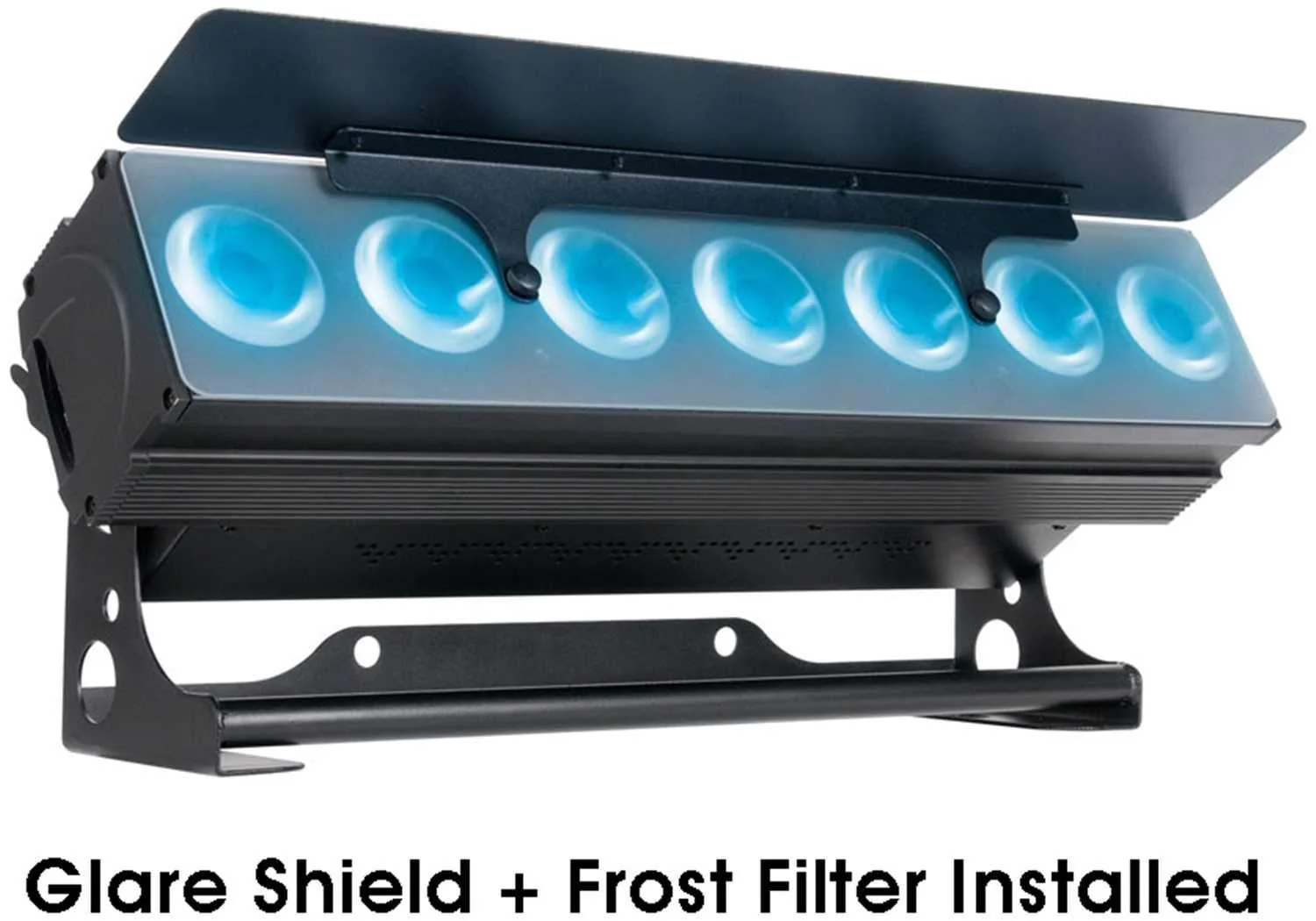

• Glare Shield and Frost Filter Included

Source

• (7) 15W RGBW 4-in-1 LEDs
• 100,000 Hour Average Lamp Life*

Photometric Data (Full ON)

• 43,380 LUX 4,030 FC @3.3’ (1m)
• 19,330 LUX 1,796 FC @6.6’ (2m)
• 12,180 LUX 1,132 FC @9.8’ (3m)
• 8,575 LUX 797 FC @13.1’ (4m)
• 6,247 LUX 580 FC @16.4’ (5m)

Effects

• Individual Pixel Control
• Strobe and Selectable Dimming Curves

Color

• RGBW

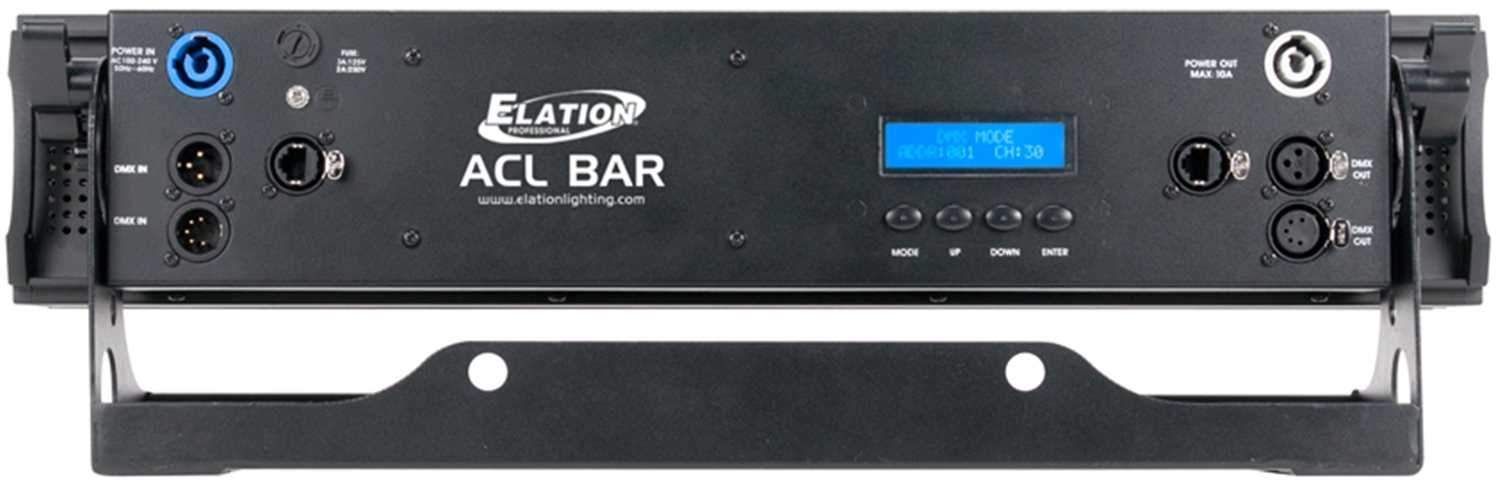

Control / Connections

• (10) DMX Channel Modes:
• (1CH:04 / 2CH:04 / 6 / 8 / 10 / 12 / 27 / 30 / 32 / 35)
• RDM (Remote Device Management)
• 4 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 3pin/5pin DMX In/Out
• RJ45 Ethernet In/Out (Art-NET)
• powerCON Power In/Out

Size / Weight

• Length: 21.6" (550mm)
• Width: 9.5" (241.2mm) (Glare Shield Installed)
• Vertical Height: 6.8" (172.5mm)
• Weight: 15.0 lbs. (6.8 kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 135W Max Power Consumption
• 5F to 113°F (-15°C to 45°C)

Approvals / Ratings

• CE | IP30

Installation

• Rigging: Clamps (Not Included)
• Working Position: Any (360°)

Included Items

• powerCON Cable
• Glare Shield
• Frost Filter
