Elation ACL 360i 60W RGBW LED Moving Head

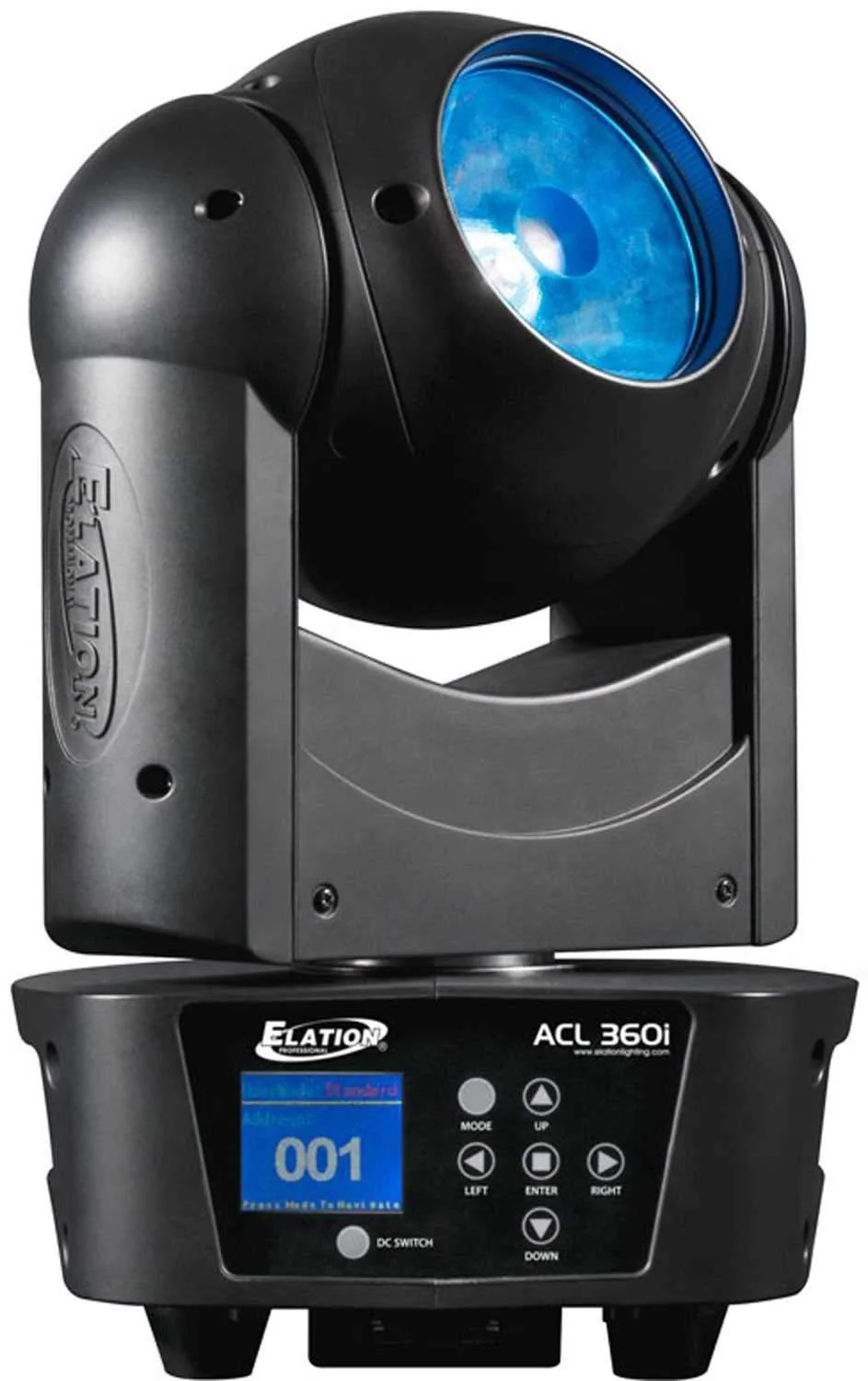

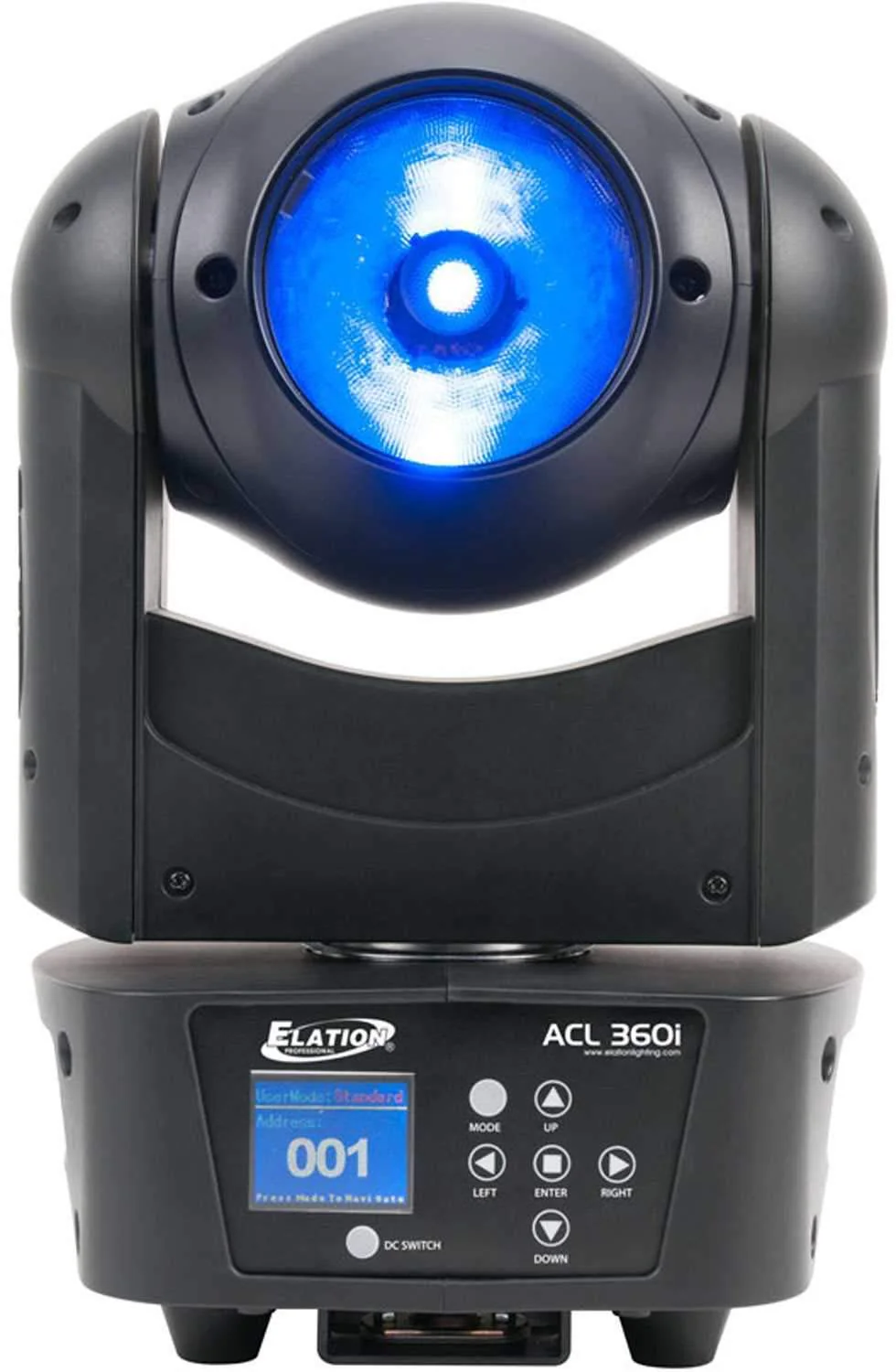

The new ACL 360i™ is an amazing single beam moving effect luminaire featuring a single 60W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4#176; color-changing beam. Features 10 and 45 degree frost lens options (included), fast and precise16-bit continuous full 360#176; pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180#176; reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Specifications:

SOURCE

• 60W RGBW 4-in-1 LED
• 100,000 Hour Average LED Life
• LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 30,601 LUX 2,843 FC @6.6' (2m)
• 12,955 LUX 1,204 FC @9.8' (3m)
• 7,687 LUX 714 FC @13.1' (4m)
• 5,112 LUX 475 FC @16.4' (5m)

EFFECTS

• Strobe and Selectable Dimming Curves
• Color Macros

COLOR

• RGBW

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (16 / 18 / 20)
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• Full Color 180#176; Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

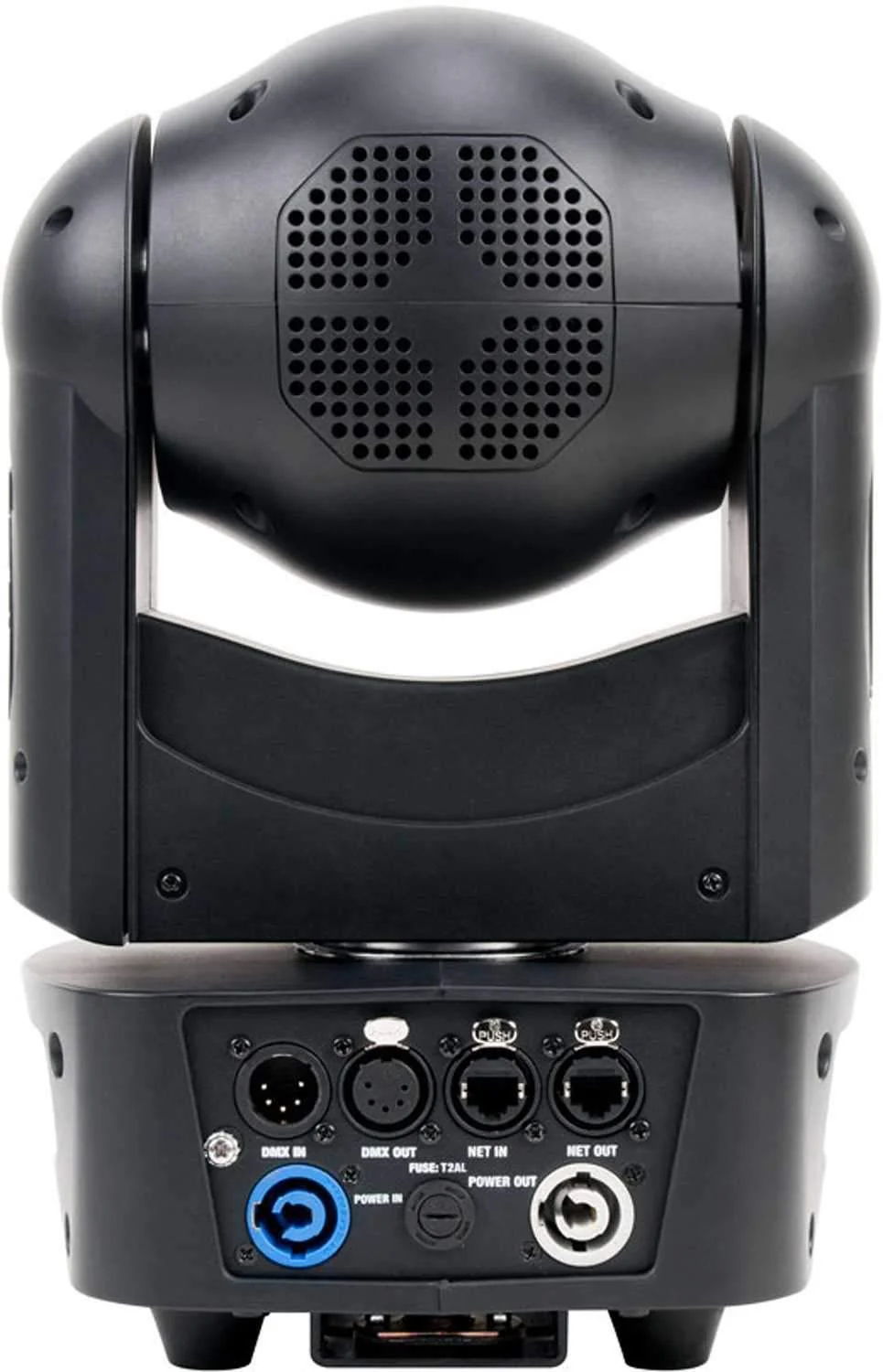

• 5pin DMX In/Out
• RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
• powerCON Power In/Out

SIZE / WEIGHT

• Length: 8.7" (222mm)
• Width: 7.3" (186mm)
• Vertical Height: 13.0" (330mm)
• Weight: 11.5 lbs. (5.2 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 110W Max Power Consumption
• 5F to 113#176;F (-15#176;C to 45#176;C)

APPROVALS / RATINGS

• CE | IP30

INSTALLATION

• Rigging: Clamps (Not Included)

INCLUDED ITEMS

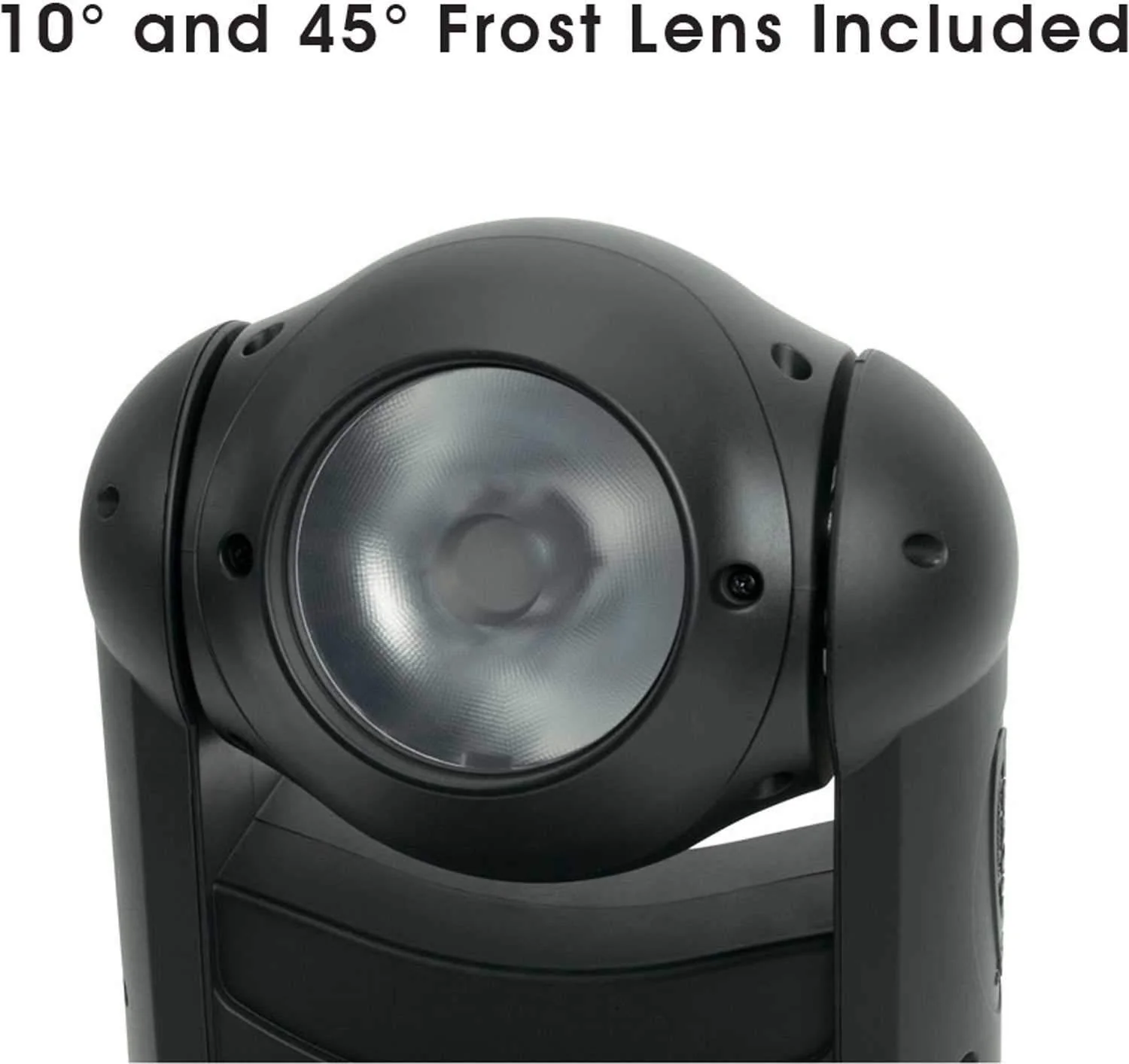

• 10#176; Frost Lens
• 45#176; Frost Lens
• Omega Bracket
• powerCON Cable
