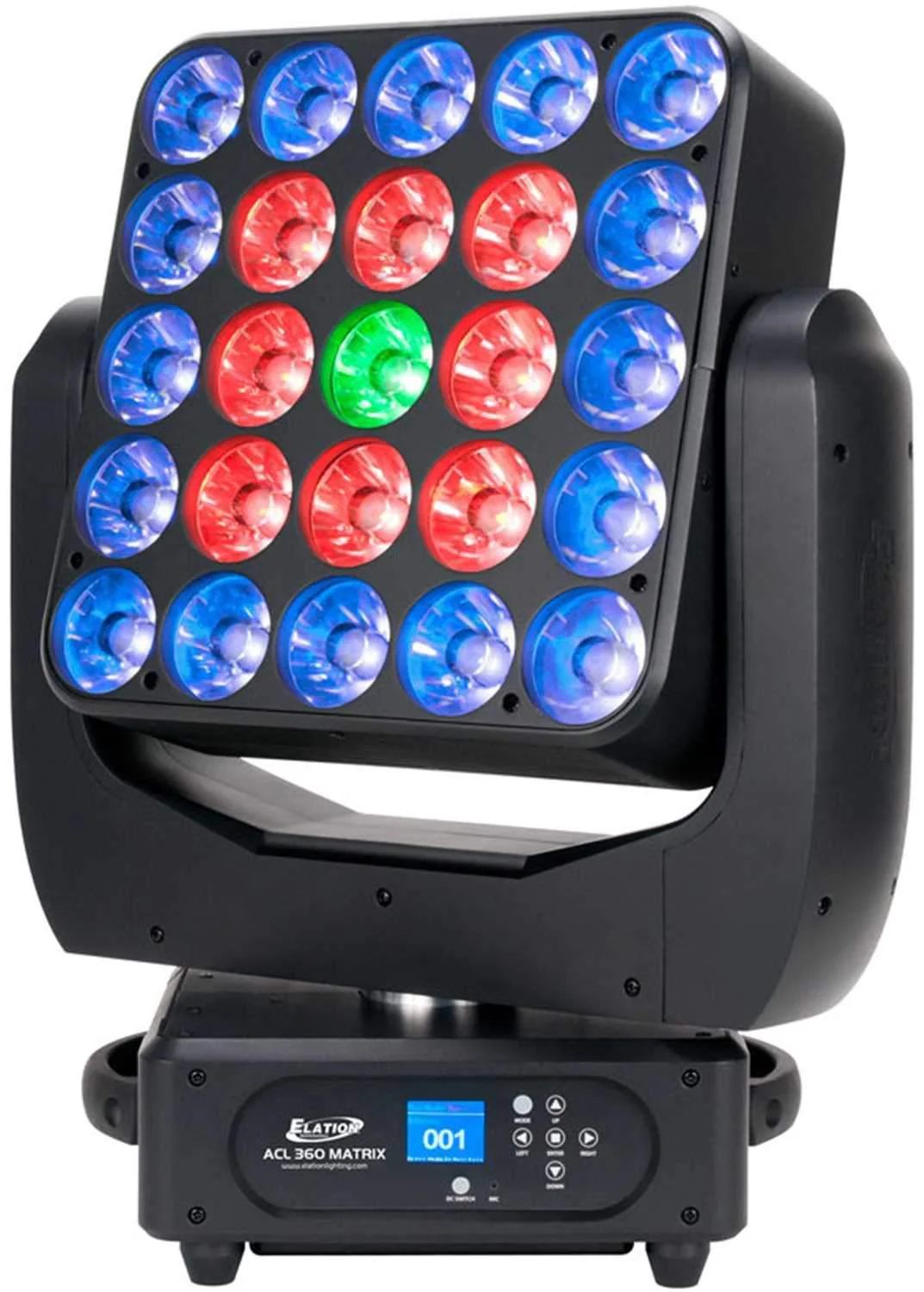

Elation ACL 360 Matrix 25x15w RGBW LED Moving Head

The new ACL 360 MATRIX™ is a versatile moving head effect luminaire featuring (25) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 425W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features

• Versatile 14° Moving Head Effect Luminaire
• New Advanced Collimator Lens
• (25) Pixel Control RGBW 4-in1 LEDs
• Laser-Like Homogenized 4° Color Changing Beams
• Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
• Strobe and Selectable Dimming Curve Effects
• DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
• Flicker Free Operation for Broadcast TV and FILM

Source

• (25) 15W RGBW 4-in-1 LEDs
• 100,000 Hour Average LED Life*

Photometric Data (31° Full ON)

• 77,344 LUX 7,185 FC @3.3’ (1m)
• 70,370 LUX 6,537 FC @6.6’ (2m)
• 54,413 LUX 5,055 FC @9.8’ (3m)
• 40,505 LUX 3,763 FC @13.1’ (4m)
• 29,722 LUX 2,761 FC @16.4’ (5m)

Effects

• Individual Pixel Control
• Strobe and Selectable Dimming Curves

Color

• RGBW

Control / Connections

• (3) DMX Channel Modes (17 / 19 / 115)
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

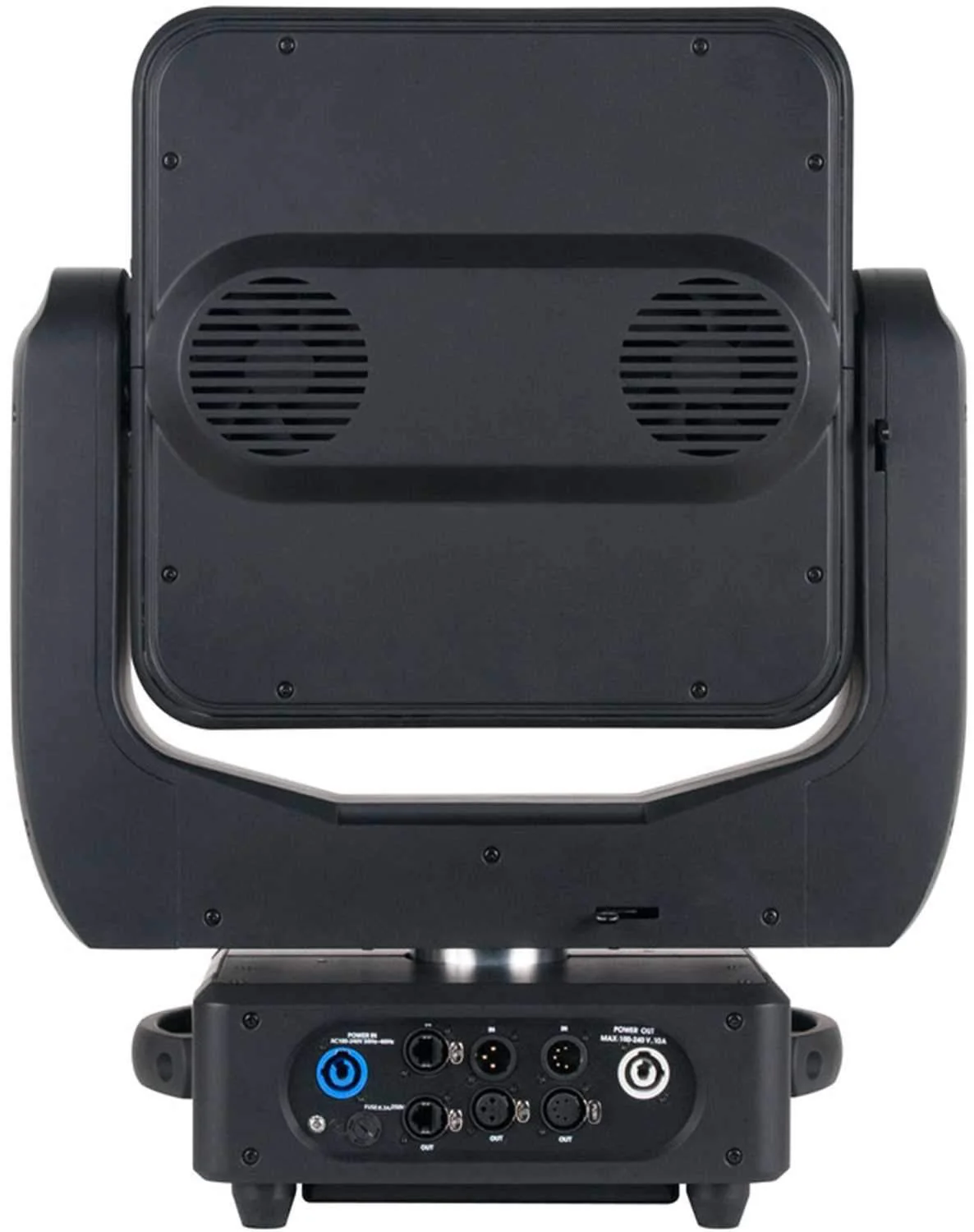

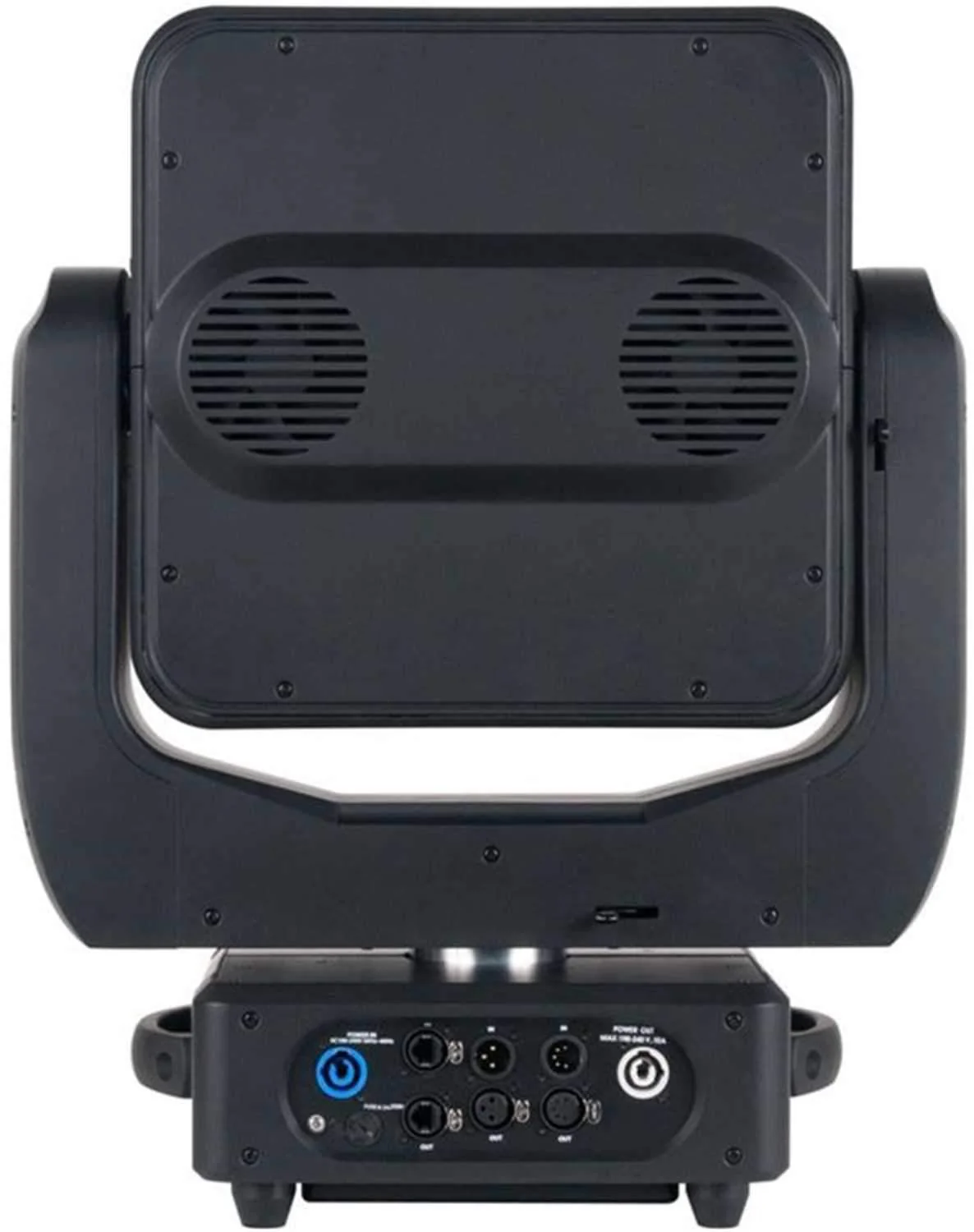

• 3pin/5pin DMX In/Out
• RJ45 Ethernet In/Out (Art-NET)
• powerCON Power In/Out

Size / Weight

• Length: 19.0" (481mm)
• Width: 13.8" (350mm)
• Vertical Height: 23.0" (583mm)
• Weight: 42.0 lbs. (19 kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 425W Max Power Consumption
• 5F to 113°F (-15°C to 45°C)

Approvals / Ratings

• CE | IP30

Installatoin

• Rigging: Clamps (Not Included)
• Working Position: Flat Surface / Inverted (180°)

Included Items

• Omega Brackets
• powerCON Cable
