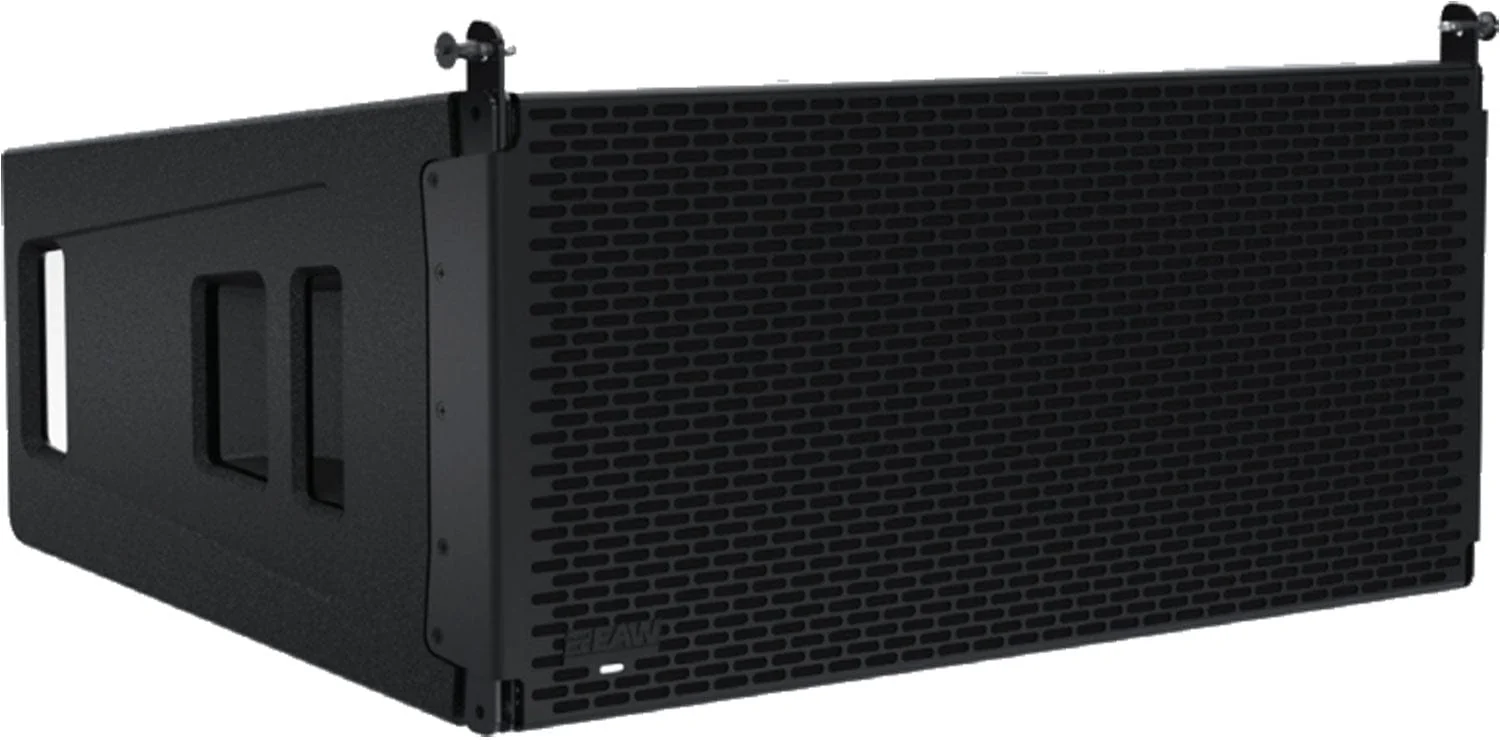

EAW RSX212L Series 2-Way Self Powered Line Array Loudspeakers

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Specifications:

• Frequency Response: 50 Hz -19 kHz
• Max SPL: 142 dB
• Operating Mode:
  • Bi-amp LF, HF
  • DSP w/EAW Focusing™ and DynO™
• Subsystem:
  • LF – 2 x 12 in cone, 2.5 in voice coil
  • HF – 2 x 1 in exit, 1.7 in voice coil compression drivers.
• Nominal Beamwidth:
  • Horizontal 90°
  • Vertical 12°
• Power Handling:
  • LF: 1000W
  • HF: 500W
• Connections:
  • Powercon AC Mains/Loop
  • 2x Neutrik® etherCON™
  • RJ-45
  • XLR Input/Loop
• Dimensions:
  • Height: 14 in (355.6 mm)
  • Width: 32 in (812.8 mm)
  • Depth: 20.38 in (517.7 mm)
• Weight: 82 lbs (37 kg)
