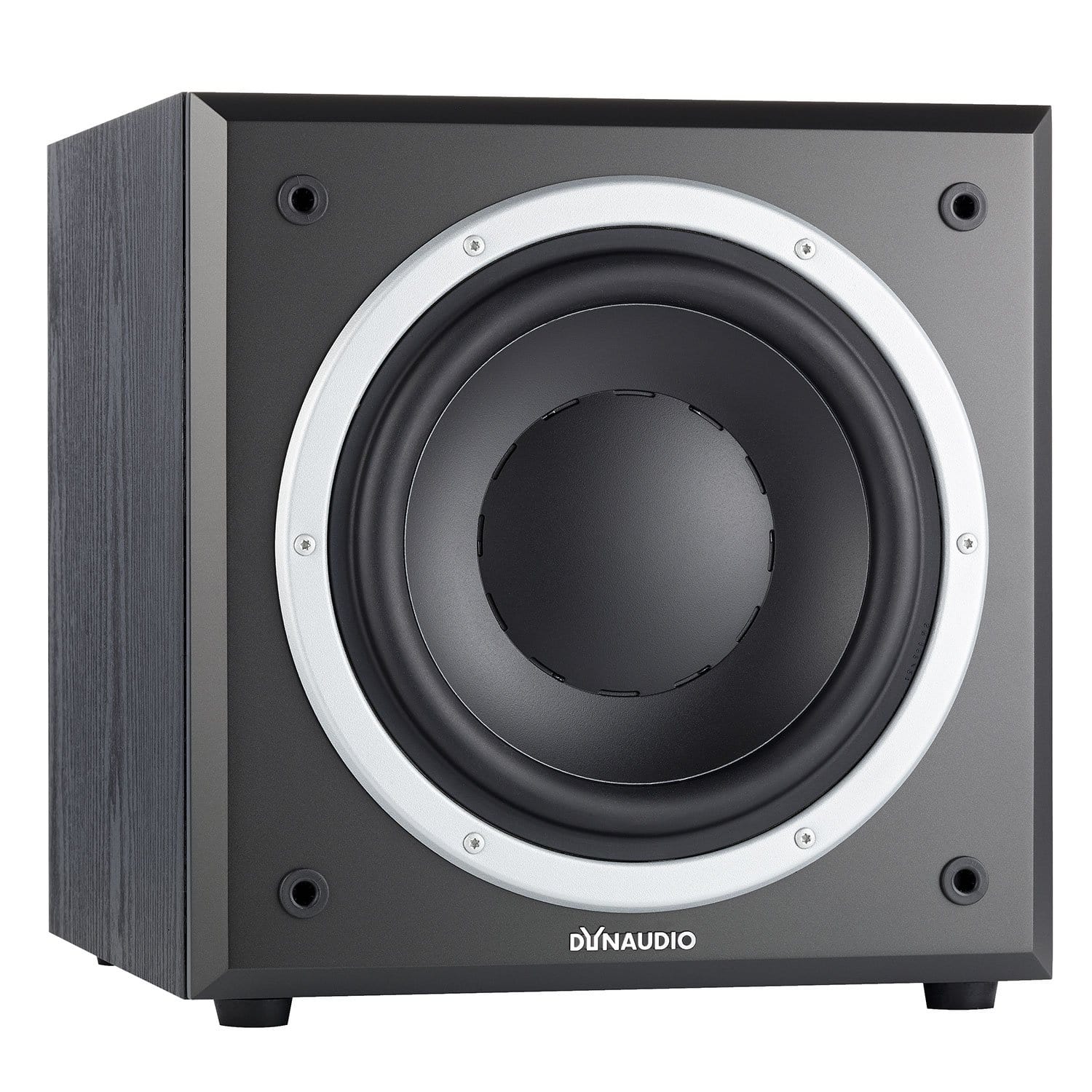

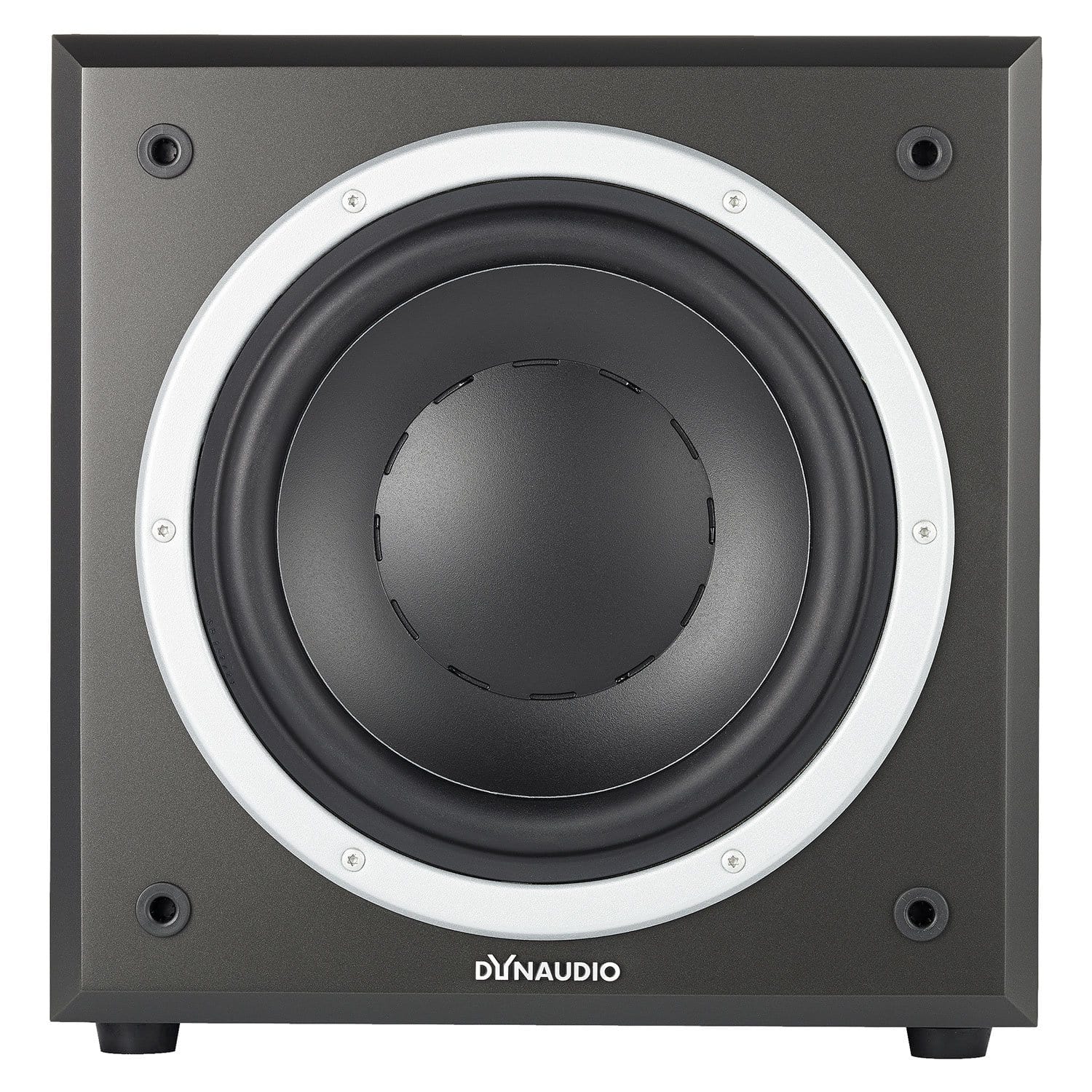

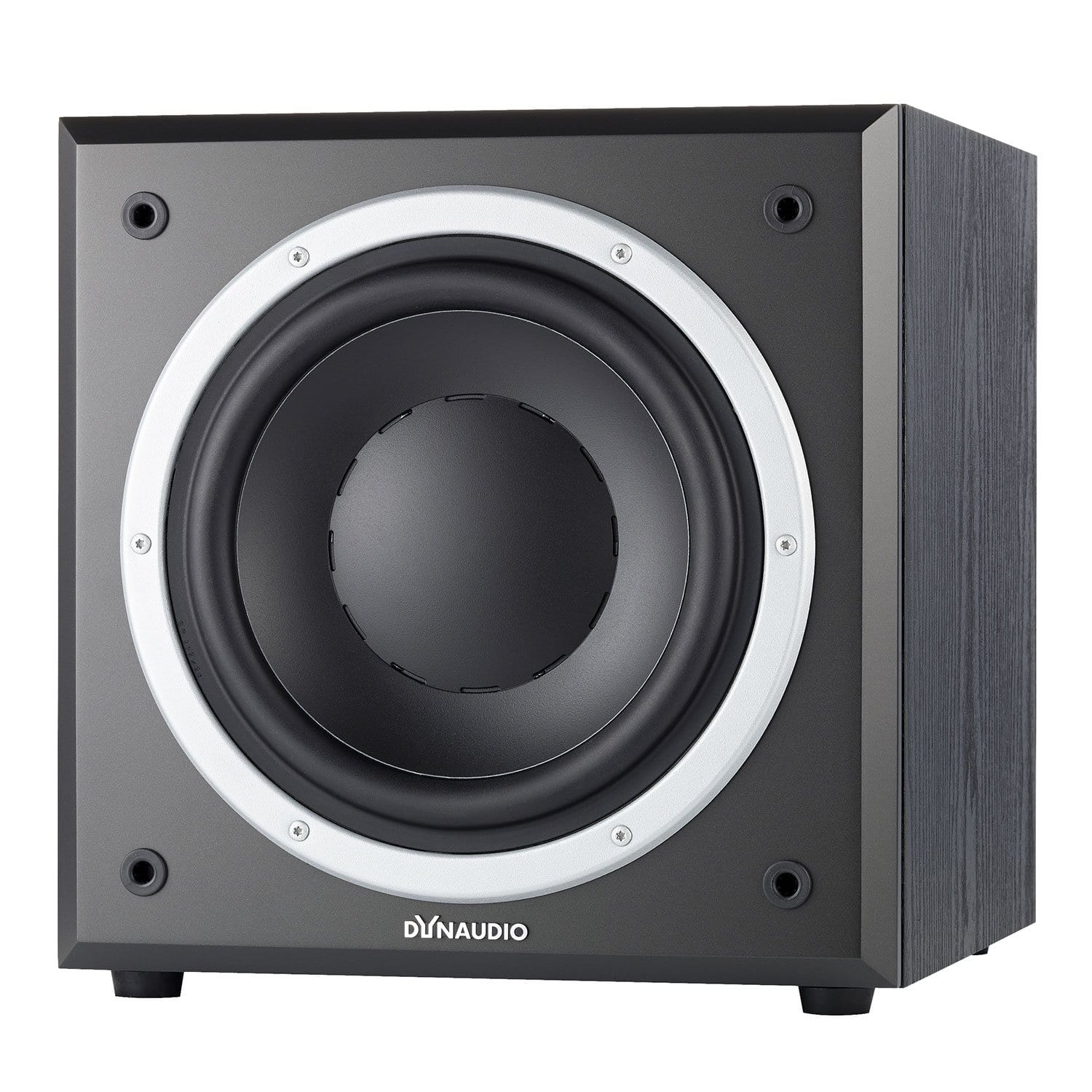

Dynaudio BM9S II 10-Inch Studio Monitor Subwoofer

The BM9S II is specifically designed to complement BM Compact mkIII and BM5 mkIII monitors, adding extended bass in smaller mixing and recording environments.

Features:

• 10" Subwoofer
• Handcrafted driver
• Selectable LFE or slave mode
• Made in Denmark

Specifications:

• System: Precision Subwoofer
• Frequency Response: 29 Hz to 250 Hz

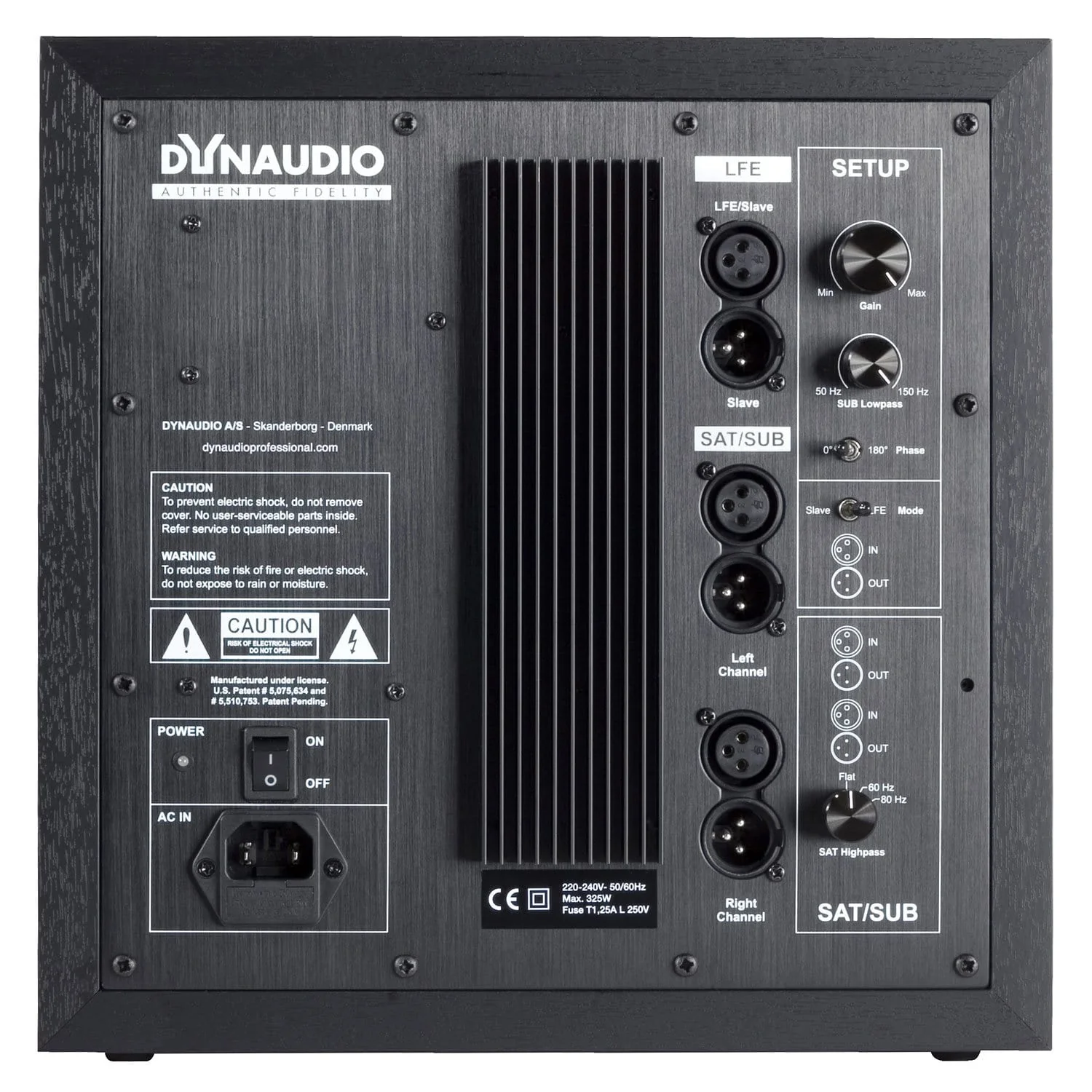

• Inputs: LFE/Slave, SAT/SUB, XLR right/left full bandwidth
• XLR Input impedance: + branch 20 kOhm, – branch 10 kOhm
• Sensitivity: 75 mVRMS to 5 VRMS, adjustable
• Max. Input voltage: 10 VRMS
• Outputs: Slave, SAT/SUB, XLR right/left, High-pass filtered
• XLR Output impedance: 100 Ohm (each branch)
• XLR Pin-out: 1: 0 / 2: + / 3: –Specification sheet for LYD part 1
• Mode selector: LFE, Slave (Phase and volume controls are bypassed in slave mode
• SAT High-pass: Flat, 60 Hz, 80 Hz
• SUB Low-pass: 50 Hz to 150 Hz
• Auto ON/OFF: Automatic ON (LED green) when signal is detected at input Automatic mute (LED red) when no signal is detected for 15 to 20 min.
• Amplifier power: 200 W, 4 Ohm
• Power consumption: <16 W Standby, 325 W Max.
• Woofer: 240 mm/10" One piece molded MSP cone (Magnesium Silicate Polymer), 100 mm/4", Pure aluminum voice coil
• Weight: 8.8 kg. / 19.4 lbs
• Dimensions (WxHxL): 290 x 290 x 300 mm / 11.4" x 11.4" x 11.8"
