DSan ASL4ND3 Large Speaker Timer Clock

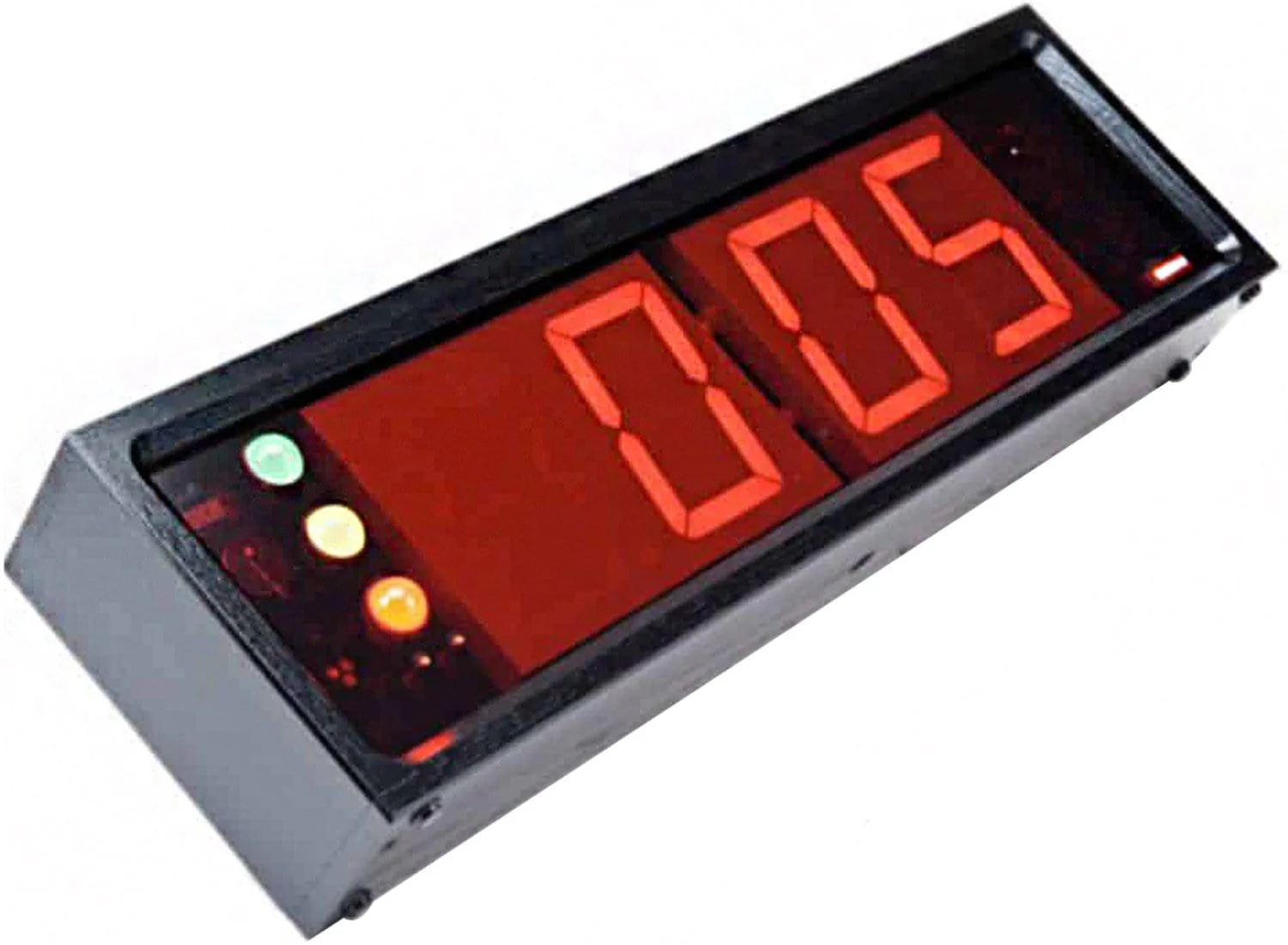

This is a large-display DSAN Audience Signal Light for the DSAN Limitimer timekeeper for presentational speakers. With 4" timer digits and green-yellow-red warning lights, it simplifies the presentation process by signaling the speaker when to start or stop. It can also be used as a regular digital clock when the timer functionality is off (and the time-of-day settings get saved).

Specifications:

• Connections:
  • 1 x RJ45 input for Limitimer
  • 1 x XLR input for Limitimer
  • 1 x RJ45 output for auxiliary signal lights
  • 1 x XLR output for auxiliary signal lights
  • 1 x 5-pin EBY adapter (5-pin XLR jack) for connecting to older model Limitimers
  • 1 x USB programming port
  • 1 x 12 V power input
• Dimensions:
  • 23 x 6.5 x 3.5" (58 x 16.5 x 9 cm)
  • Digits: 4" (10 cm)
• Package Weight: 10 lbs.
• Box Dimensions (LxWxH): 26 x 13 x 7"
