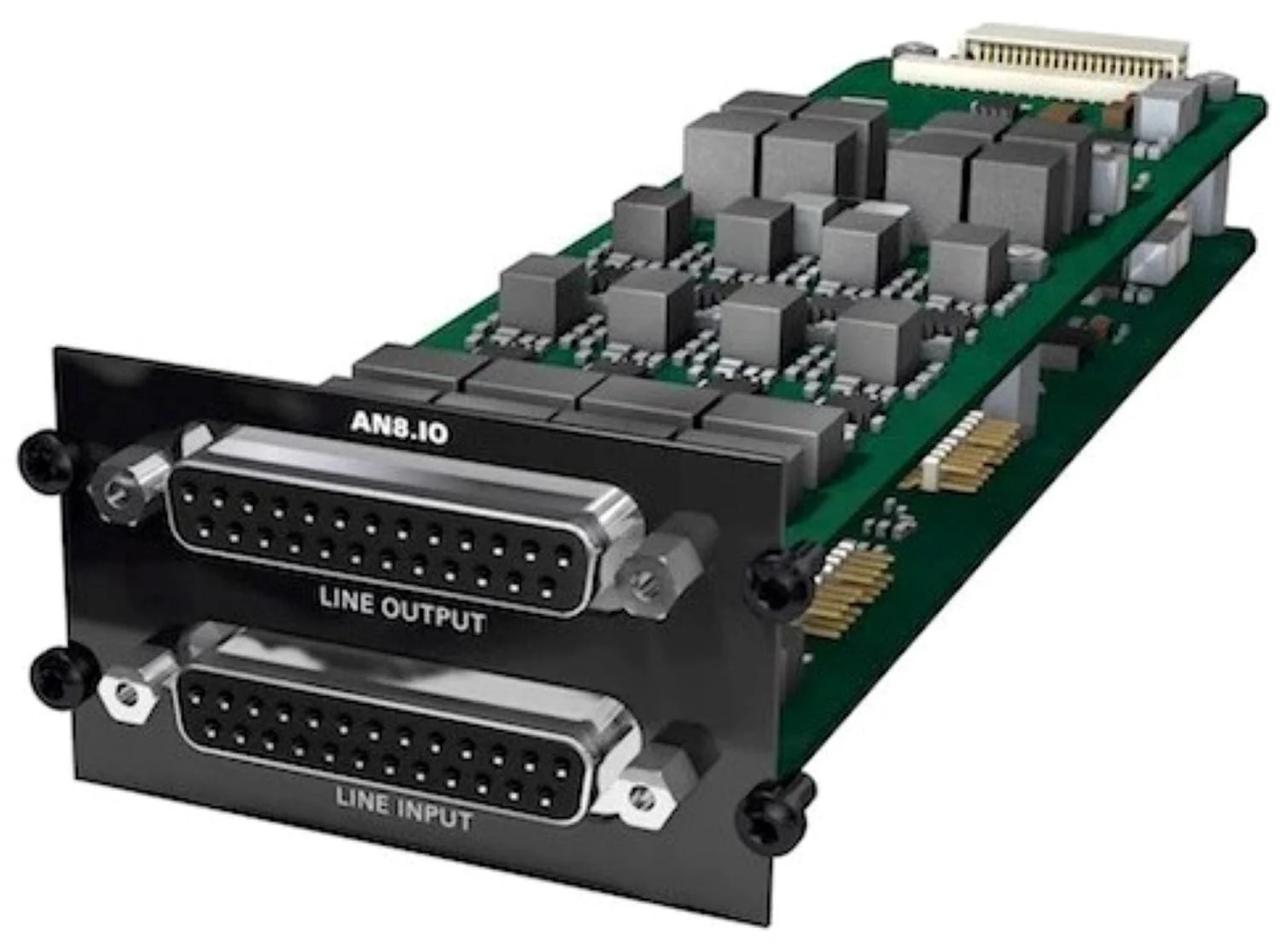

DirectOut DOAIO0001 Prodigy AN8.io module

AN8.IO is a converter module for the PRODIGY Series. Eight analog audio input and output channels are interfaced via two DSUB-25 connectors. The line inputs and outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel and per input or output.

Specifications:

• 8 channels line input/output
• reference levels +15 / +18 / +24 dBu via jumper A/D
• SNR: < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A)
• THD @ -1 dBFS: < -119 dB
• Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) D/A
• SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A)
• THD @ -1 dBFS: -109 dB
• Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
• 2 x DSUB-25 connector (input/output)
