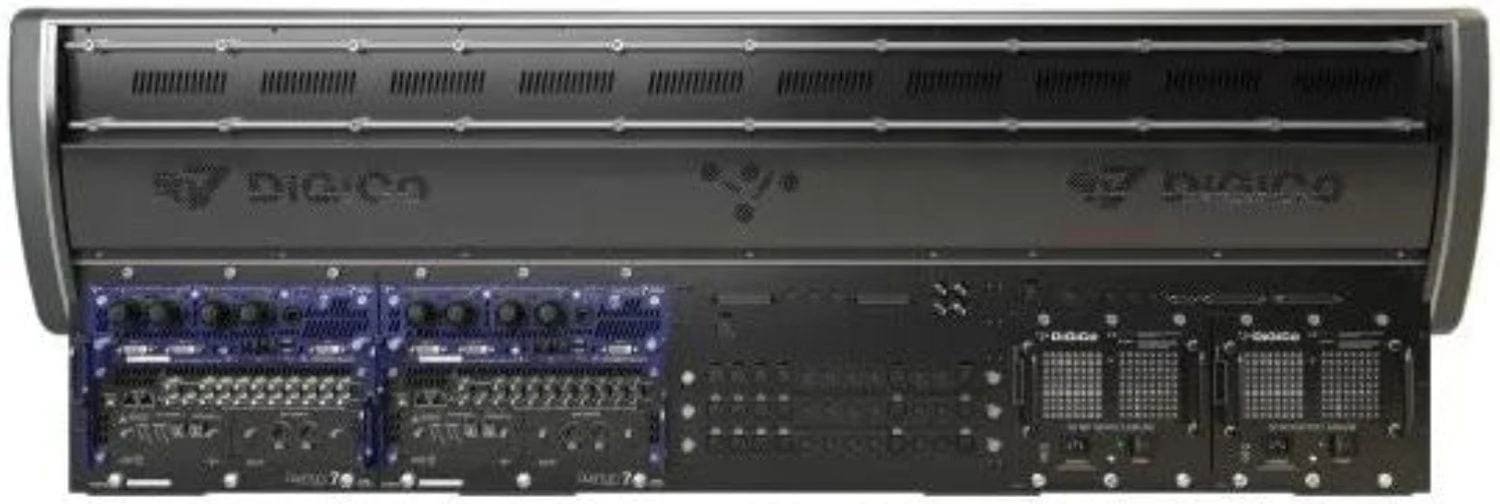

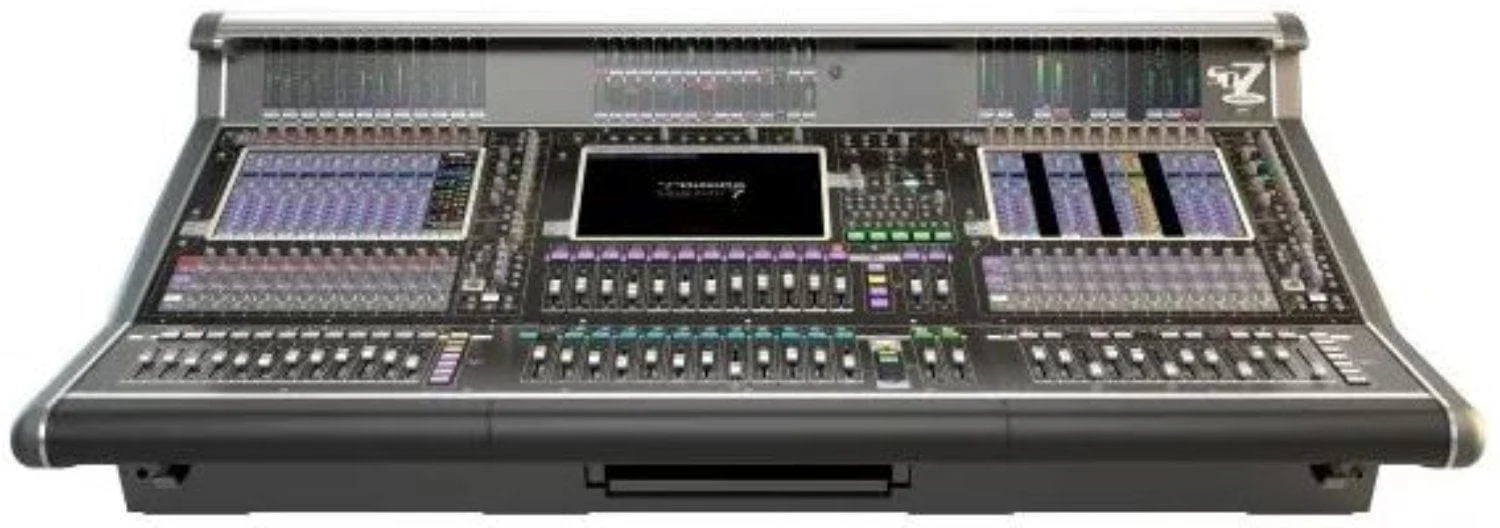

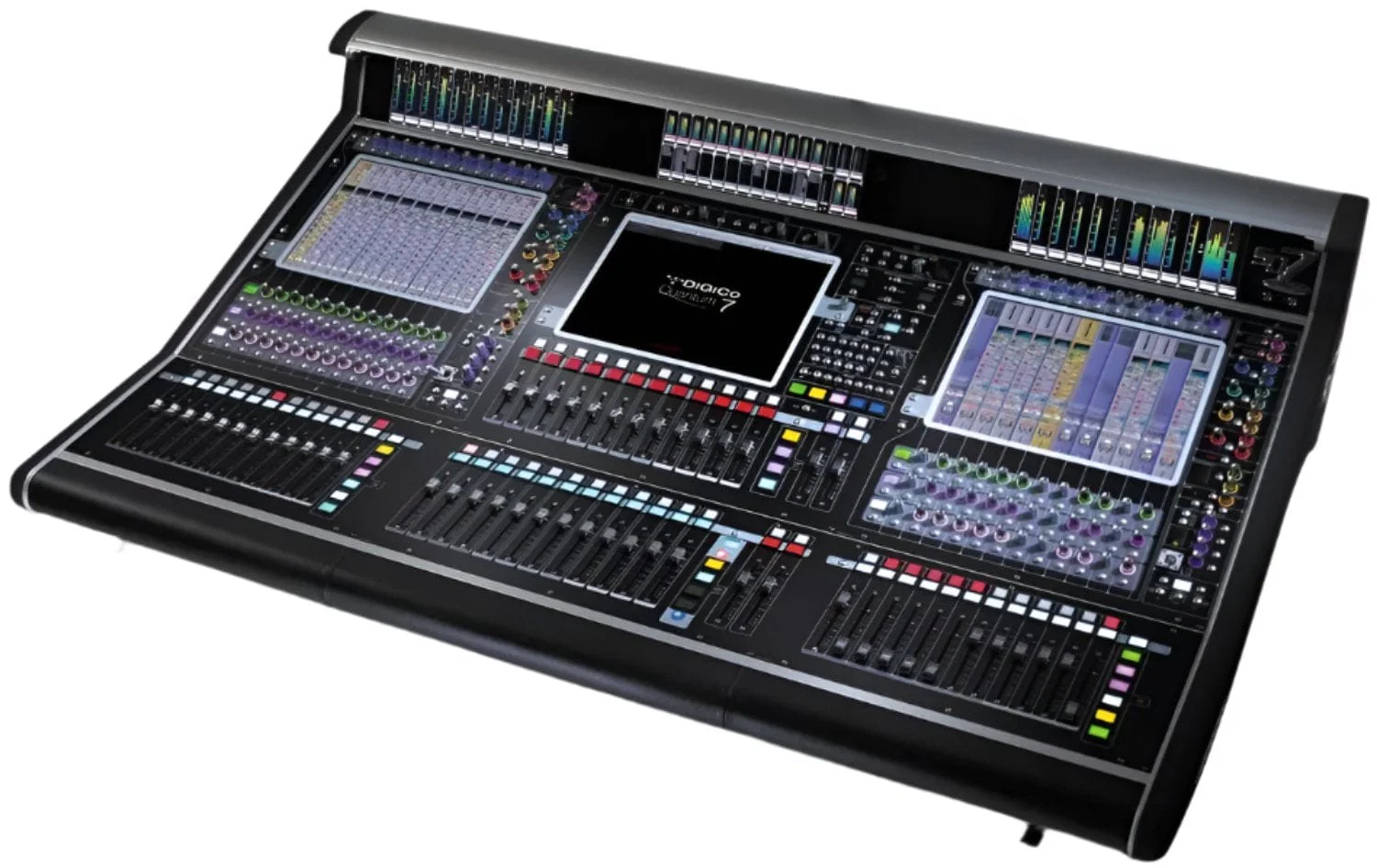

DiGiCo X-SD7-Q7-OP SD7 Quantum Digital Mixing Console with HMA Optics

The DiGiCo X-SD7-Q7-OP is a large-format digital mixer that will become an indispensable assistant for professional sound engineers. This SD7 mixing console impresses with its capabilities: Dual Engine, 52 faders, 2 Quantum audio processors, 256 processing channels and up to 128 output mixing buses.

Features:

• DiGiCo Quantum 7 surface - 36+2 100mm faders
• HMA optics
• 2 Quantum audio processors
• 256 processing channels
• up to 128 output mixing buses


Specifications:

• Dual Engine
• 52 faders
• 2 Quantum audio processors
• 256 processing channels
• Up to 128 output mix buses
• The matrix is ​​48x48
• 36 CG/VCA
• 48 FX
• 32IPC
• 48 x 32-band graphic equalizers
• 256 dynamic equalizers
• 256 multiband compressors
• 256 virtual tube preamps
• 12 mic inputs, 12 line outputs
• 12 AES inputs/outputs
• 2 mono/stereo Solo buses
• 48 channels USB audio
• 48 FX channels
• 64 in/out channels Waves Soundgrid
• 8 BNC MADI
• 2 DMI slots
• 4 redundant MADI
• HMA optics
• 2 power supplies
• Dust cover
• Dimensions: 150x87x50 cm
• Weight 107 kg
