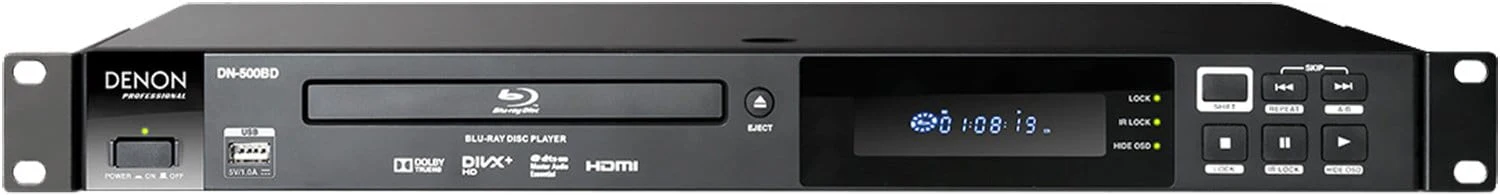

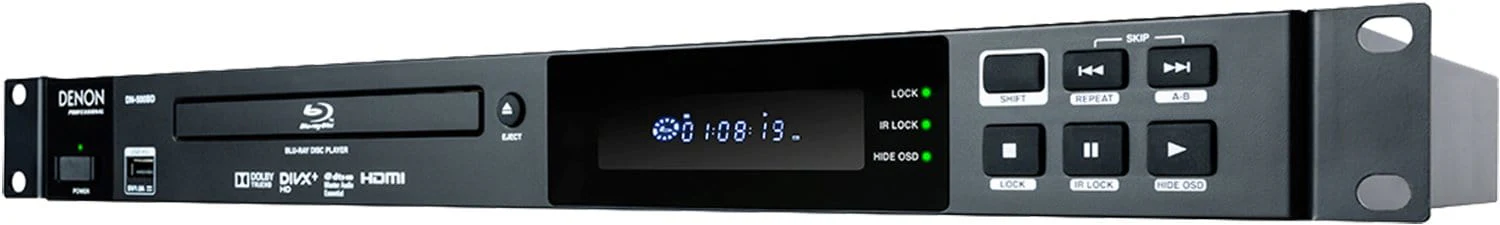

Denon Pro DN-500BD Pro Rack Mounted Blu-Ray Player

The Denon Professional DN-500BD Blu-ray disc player is a compact, high performance unit that handles all popular optical video playback formats for unrivaled capability from a single disc playback device. The DN-500BD offers a tremendous amount of performance and flexibility in a space-saving single rack unit (1RU) chassis. It provides the wide range of connection and control capabilities that are essential to the professional user, making it ideal for use in corporate A/V, education, theaters, house of worship, and more. These include RS-232C and IP controllability and XLR balanced audio outputs. The DN-500BD also has discrete 7.1 channel analog outputs for simple connection to powered speakers or signal management devices.

Features:

• Panel lock and IR remote lock functions prevent unwanted or accidental operation
• Power-on Play button eliminates extra steps, provides simplified, ultra-fast startup
• OSD (On Screen Display) hiding mode eliminates unwanted disc status updates
• Repeat mode offers an uninterrupted playback loop
• Supported CD formats: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)
• Supported DVD formats: DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
• Default repeat setting
• RS-232C and IP control capability
• XLR balanced audio output
• Discrete 7.1ch analog audio output
• Transport controls located conveniently on the front panel
• Occupies only a single rack space (1RU)

Specifications:

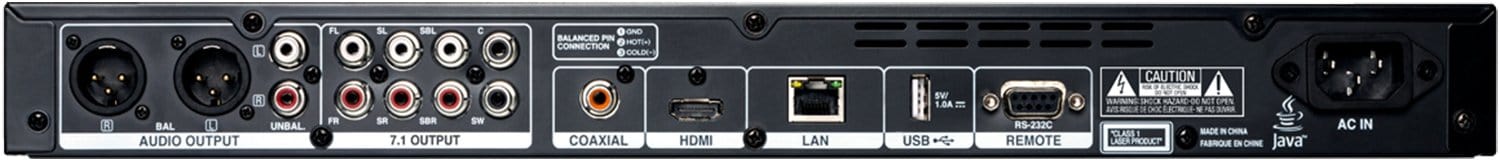

• Outputs:
  • (2) XLR audio outputs (L/R, balanced)
  • (2) RCA audio outputs (L/R, unbalanced)
  • (8) RCA audio outputs (7.1 surround sound)
  • (1) Coaxial digital audio/visual output
  • (1) HDMI audio/visual output
  • (1) RJ-45 LAN port
  • (1) 9-pin D-Sub female RS-232C port
  • (1) IEC power connection
• Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
• Signal-to-Noise Ratio: > 100 dB (A-weighted)
• Total Harmonic Distortion: < 0.05%
• Dynamic Range: > 100 dB (A-weighted)
• Headroom: 6 dB
• Channel Separation: > 90 dB
• Communication:

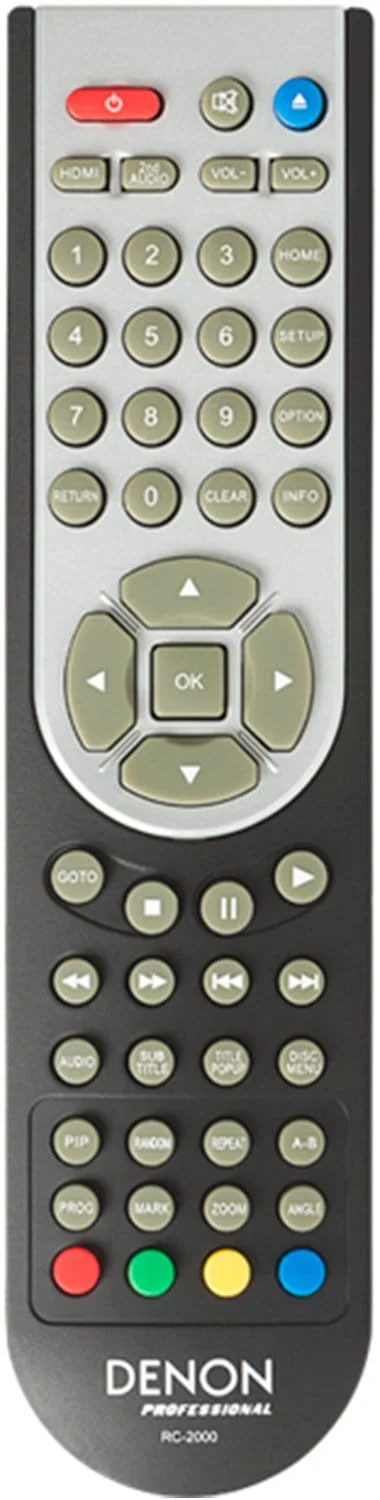

  • Remote Control: Infrared protocol, > 200 mV transmission output level
  • Serial Remote:
    • Connector: 9-pin D-Sub female, RS-232C
    • Mode: Full duplex
    • Baud Rate: 9600 or 38400 bps (selectable)
  • Ethernet:
    • Connector: LAN port
    • Standards: Ethernet (10 Mbps), Fast Ethernet (100 Mbps)
• Power:
  • Connection: IEC
  • Requirement: 100–240 VAC, 50/60 Hz
  • Consumption: 15 W typical, < 0.5 W standby
• Dimensions (width x depth x height, with rack ears): 19.00” x 10.75” x 1.73” (483 mm x 273 mm x 44 mm)
• Weight (with rack ears): 5.9 lbs. (2.7 kg)
