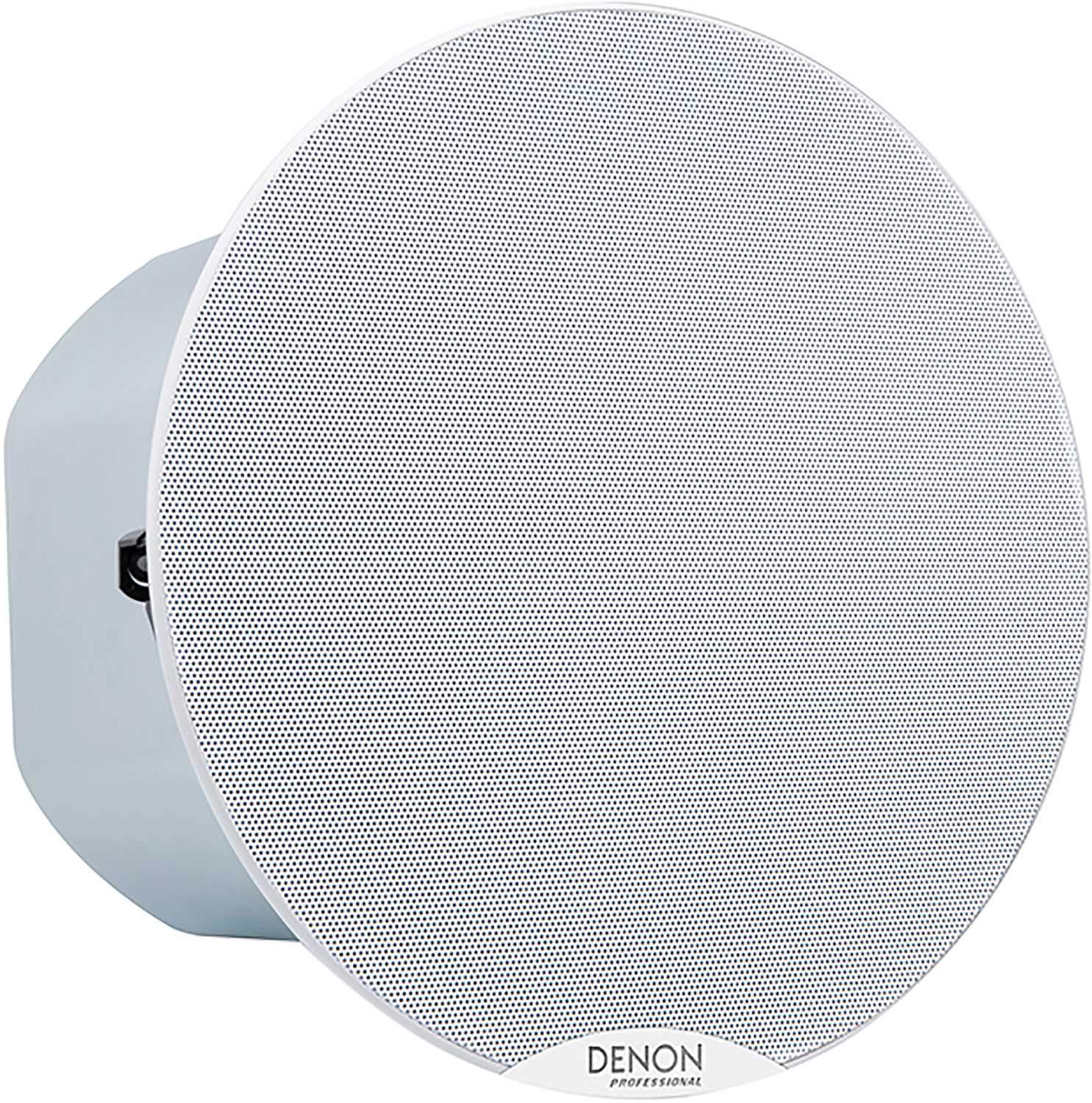

Denon Pro DN-108S 8-Inch Ceiling Speaker
Denon Pro DN-108S 8-Inch Ceiling Speaker
Denon Professional’s range of ceiling loudspeakers is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance (EN 54-24) and suitability for multiple unit installation.
All three models feature a metal "can" rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers.
There are three different size models with 4-inch, 6 ½-inch and 8-inch woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.
In the box:
- DN-108S loudspeaker
- Speaker grill

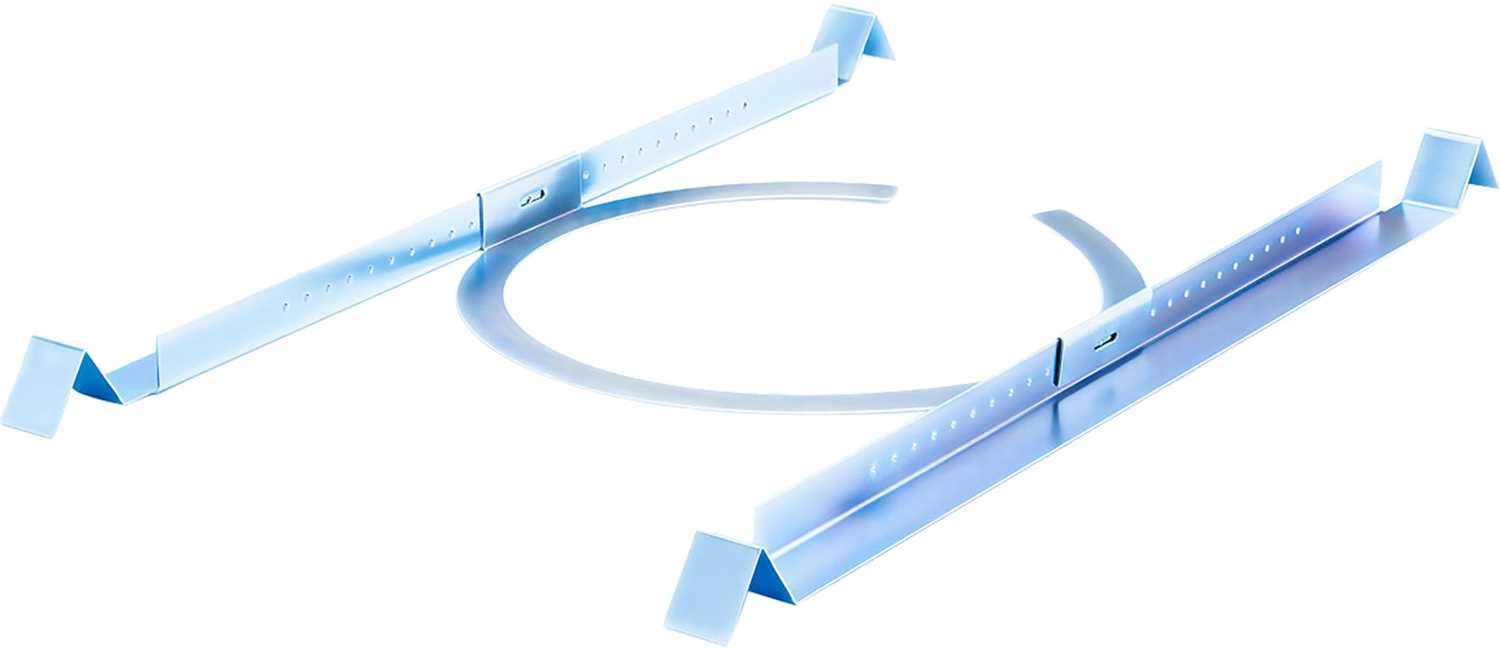

- Mounting bracket
- 4 x screws and washers
- 4-pin Euroblock connector
- User Guide
- Safety and Warranty Manual
Features:
- 8-inch long-excursion woofers
- 20mm wide dispersion dome tweeter
- Driver Power: 80 W (RMS) 160 W (Peak)
- 70/100V transformers for multi-unit installations
- Metal rear enclosures meet commercial fire codes
- Frequency response: 45-20kHz
- Mounting Bracket Included
- EN 54-24 Compliant
Specifications:

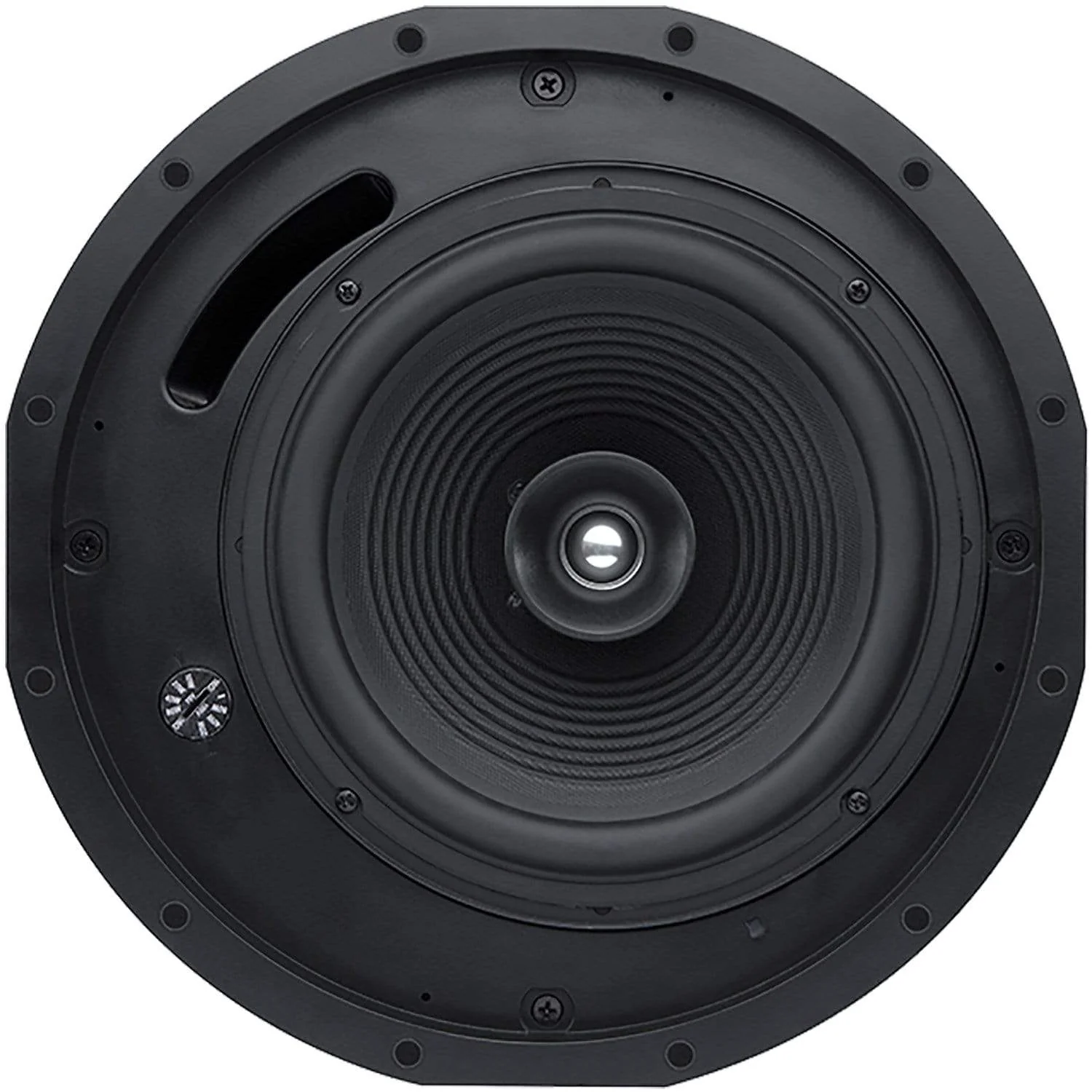

- LF Driver: 8 inch (210mm) long-excursion woofer
- HF Driver: 3/4 inch (20mm) wide dispersion tweeter
- Frequency Response: 45 - 20 kHz
- Driver Power: 80W (RMS) and 160W (Peak)
- Sensitivity: 90dB (1W/1m)
- Regulatory Compliance: EN 54-24
- 70V: 80, 40, 20, 10W and 16? bypass
- 100V: 80, 40, 20W and 16? bypass
- Cutout Hole Diameter: 10.75 inches (273mm)
- Overall Diameter: 12.13 inches (308mm)
- In-Ceiling Clearance Height: 8.75 inches (222mm)
System Specification
Power Taps: 70/100V transformers for multi-unit installations
Physical
