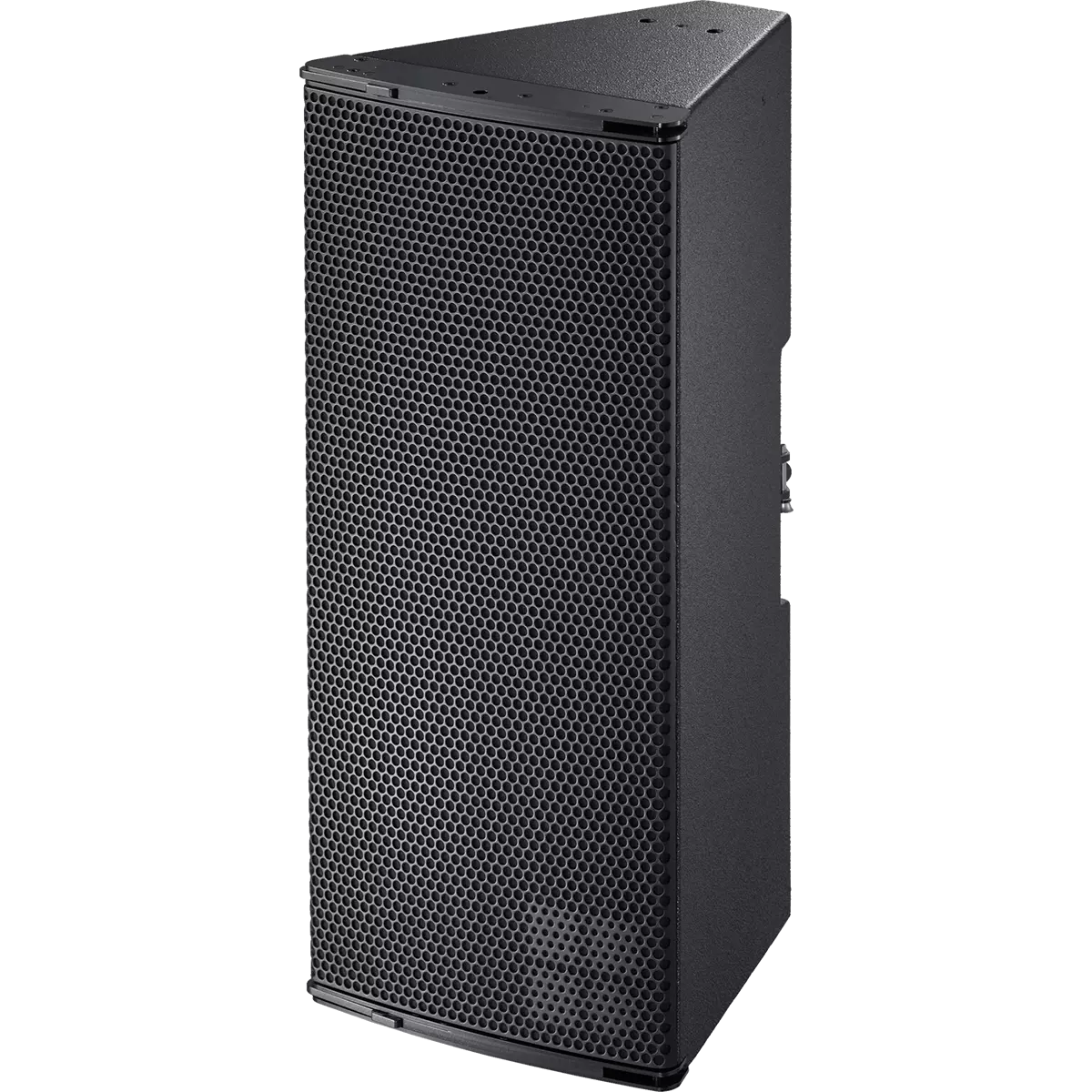

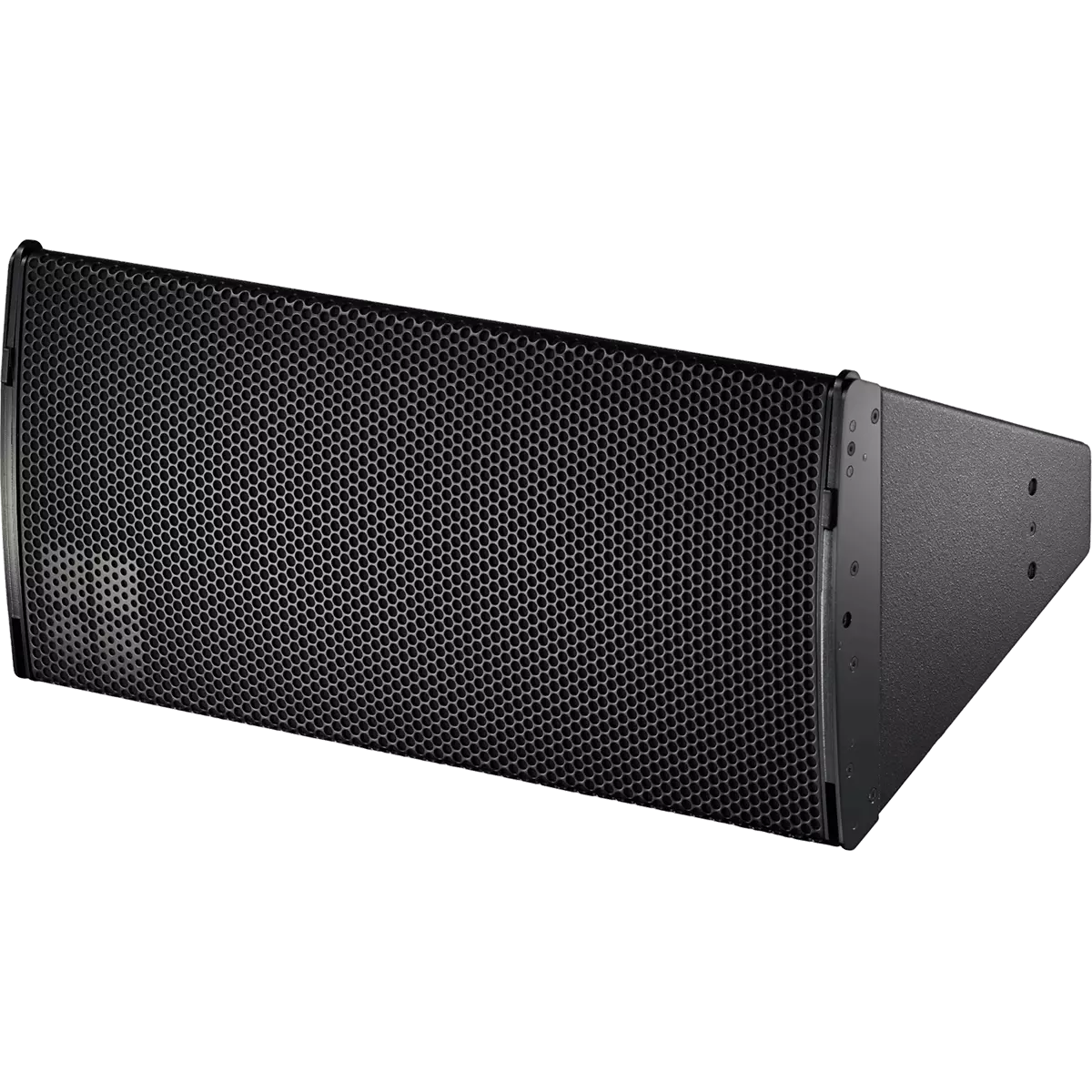

d&b audiotechnik ALi90 Loudspeaker
d&b audiotechnik ALi90 Loudspeaker Installation Specific Medium Format 2-way Augmented Array Loudspeaker
The ALi90 is a passive 2-way system featuring two 10" neodymium LF drivers and a 1.4" compression driver with a 3" diaphragm, optimised by a dedicated wave-shaping device.
The ALi90, when used with the AL Flyingframe, supports flying up to four cabinet modules in vertical columns, delivering a consistent 90° directivity dispersion. Horizontal arrays of up to four units can be configured using the AL Flying adapter.
The loudspeaker offers adjustable splay angles from 20° to 40° enable coverage ranging from 50° to 150°, while broadband horizontal dispersion control is maintained down to 370 Hz.
This is the install specific of the d&b audiotechnik AL90 Loudspeaker.
Features:
- Components 2 x 10" LF driver, 1 x 1.4” exit compression driver with 3" coil
- Dispersion 90° x 30°
- SPLmax 139 dB
- Weight 22 kg / 48.5 lb
Amplifiers:
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
d&b audiotechnik ALi90 Loudspeaker Installation Specific Medium Format 2-way Augmented Array Loudspeaker
The ALi90 is a passive 2-way system featuring two 10" neodymium LF drivers and a 1.4" compression driver with a 3" diaphragm, optimised by a dedicated wave-shaping device.
The ALi90, when used with the AL Flyingframe, supports flying up to four cabinet modules in vertical columns, delivering a consistent 90° directivity dispersion. Horizontal arrays of up to four units can be configured using the AL Flying adapter.
The loudspeaker offers adjustable splay angles from 20° to 40° enable coverage ranging from 50° to 150°, while broadband horizontal dispersion control is maintained down to 370 Hz.
This is the install specific of the d&b audiotechnik AL90 Loudspeaker.
Features:
- Components 2 x 10" LF driver, 1 x 1.4” exit compression driver with 3" coil
- Dispersion 90° x 30°
- SPLmax 139 dB
- Weight 22 kg / 48.5 lb
