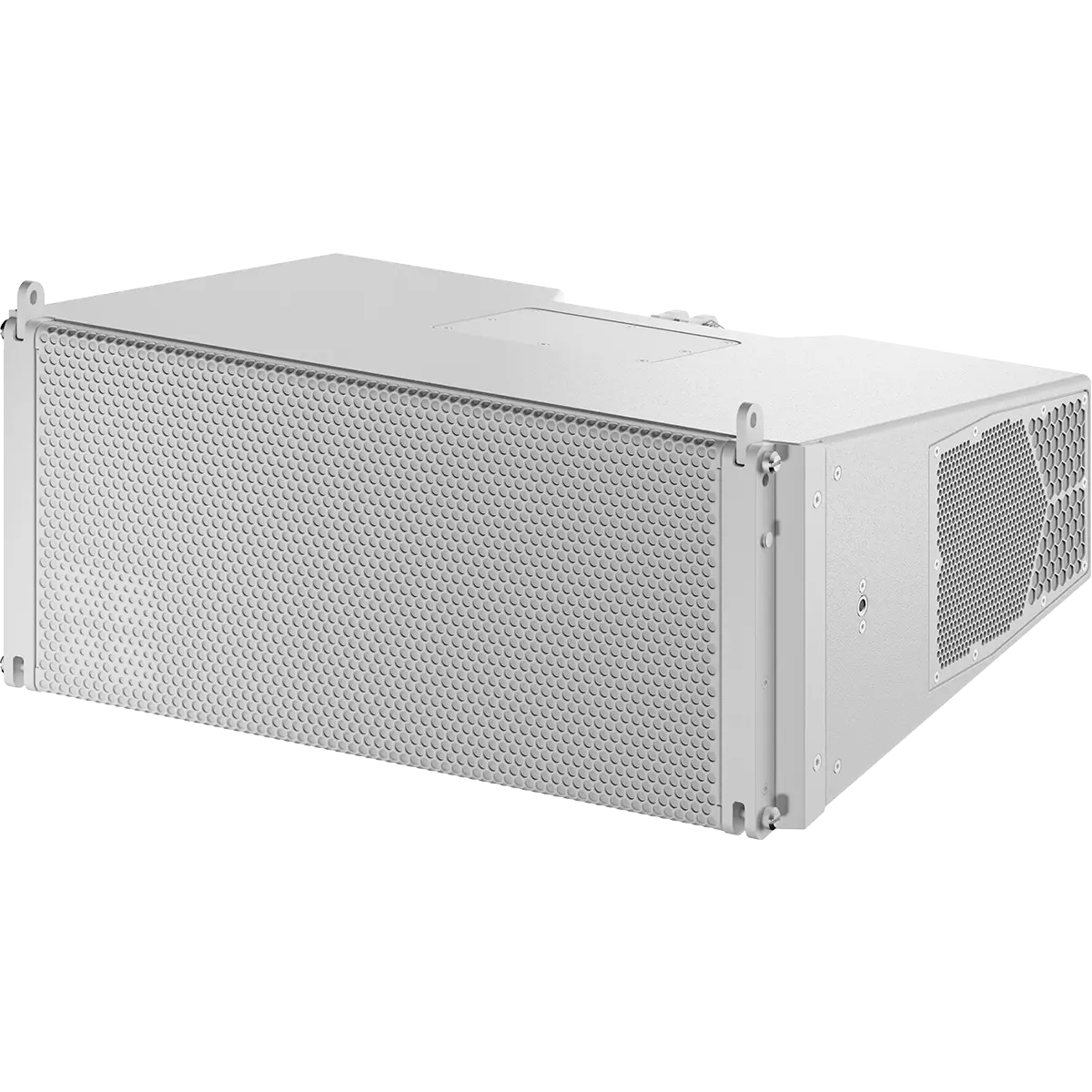

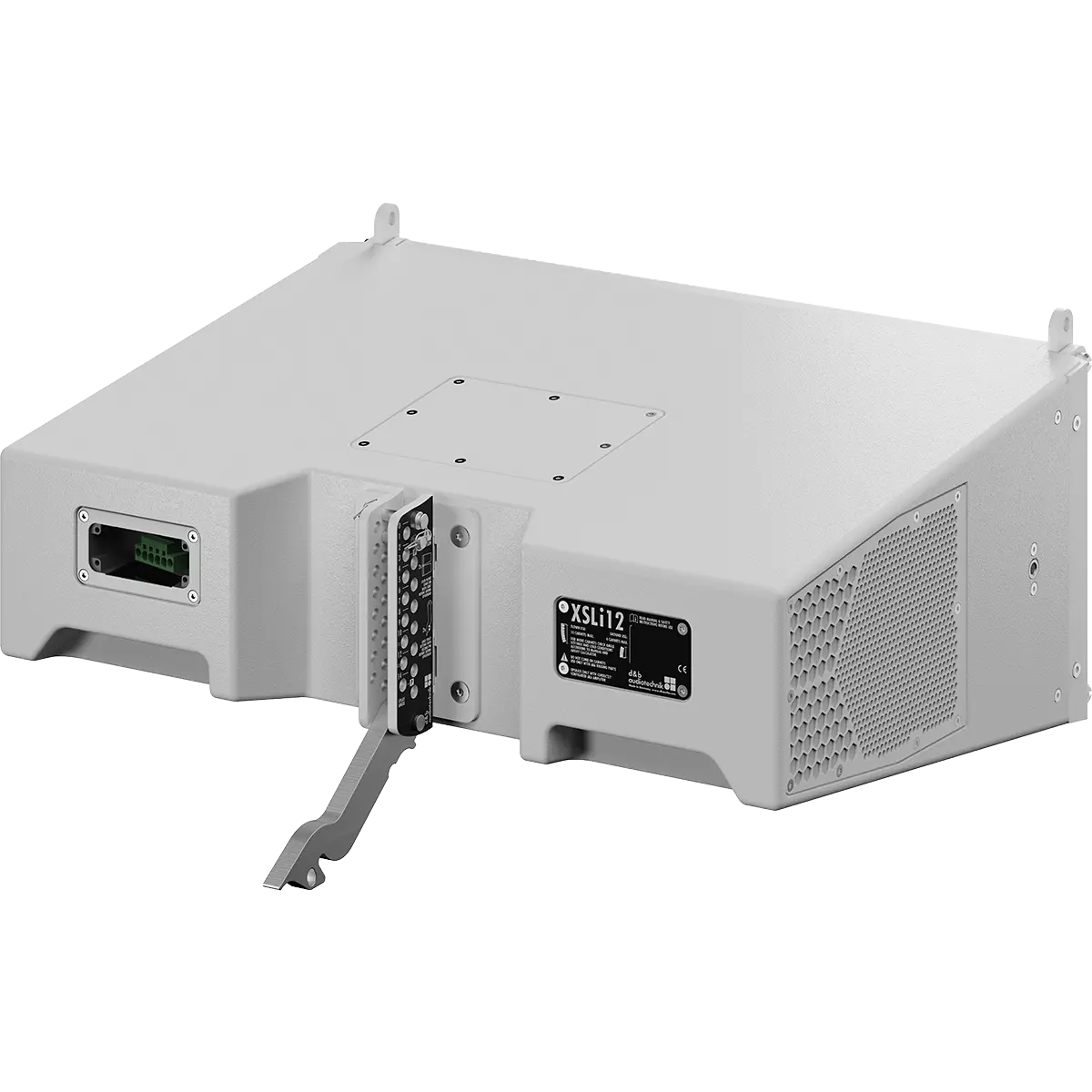

d&b audiotechnik XSLi12 Loudspeaker
d&b audiotechnik XSLi12 Loudspeaker
The XSLi12 allow up to twenty-four cabinets with the XSLi Flying frame set and up to twelve cabinets with the XSLi Mounting frame in vertical columns. This set-up delivers an 120° constant directivity dispersion pattern.
The XSLi12 houses two 8” neodymium forward-facing LF drivers, two 6.5” side-firing neodymium LF drivers, a horn-loaded 6.5” MF driver, and two 1” exit HF compression drivers with 2” voice coils, each mounted to a dedicated wave-shaping device.
The loudspeakers design ensures directivity control from the lowest frequencies up to above 18 kHz.
The XSLi-System mounting hardware supports splay angles between cabinets from 0° to 14° in 1° increments for precise coverage optimization.
This is the install specific of the d&b audiotechnik XSL12 Loudspeaker.
Features:
- Components LF: 2 x 8" + 2 x 6.5"; MF: 1 x 6.5"; HF: 2 x 1" exit compression driver with 2" coil
- Dispersion 120°
- SPLmax 140 dB
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
d&b audiotechnik XSLi12 Loudspeaker
The XSLi12 allow up to twenty-four cabinets with the XSLi Flying frame set and up to twelve cabinets with the XSLi Mounting frame in vertical columns. This set-up delivers an 120° constant directivity dispersion pattern.
The XSLi12 houses two 8” neodymium forward-facing LF drivers, two 6.5” side-firing neodymium LF drivers, a horn-loaded 6.5” MF driver, and two 1” exit HF compression drivers with 2” voice coils, each mounted to a dedicated wave-shaping device.
The loudspeakers design ensures directivity control from the lowest frequencies up to above 18 kHz.
The XSLi-System mounting hardware supports splay angles between cabinets from 0° to 14° in 1° increments for precise coverage optimization.
This is the install specific of the d&b audiotechnik XSL12 Loudspeaker.
Features:
- Components LF: 2 x 8" + 2 x 6.5"; MF: 1 x 6.5"; HF: 2 x 1" exit compression driver with 2" coil
- Dispersion 120°
- SPLmax 140 dB
