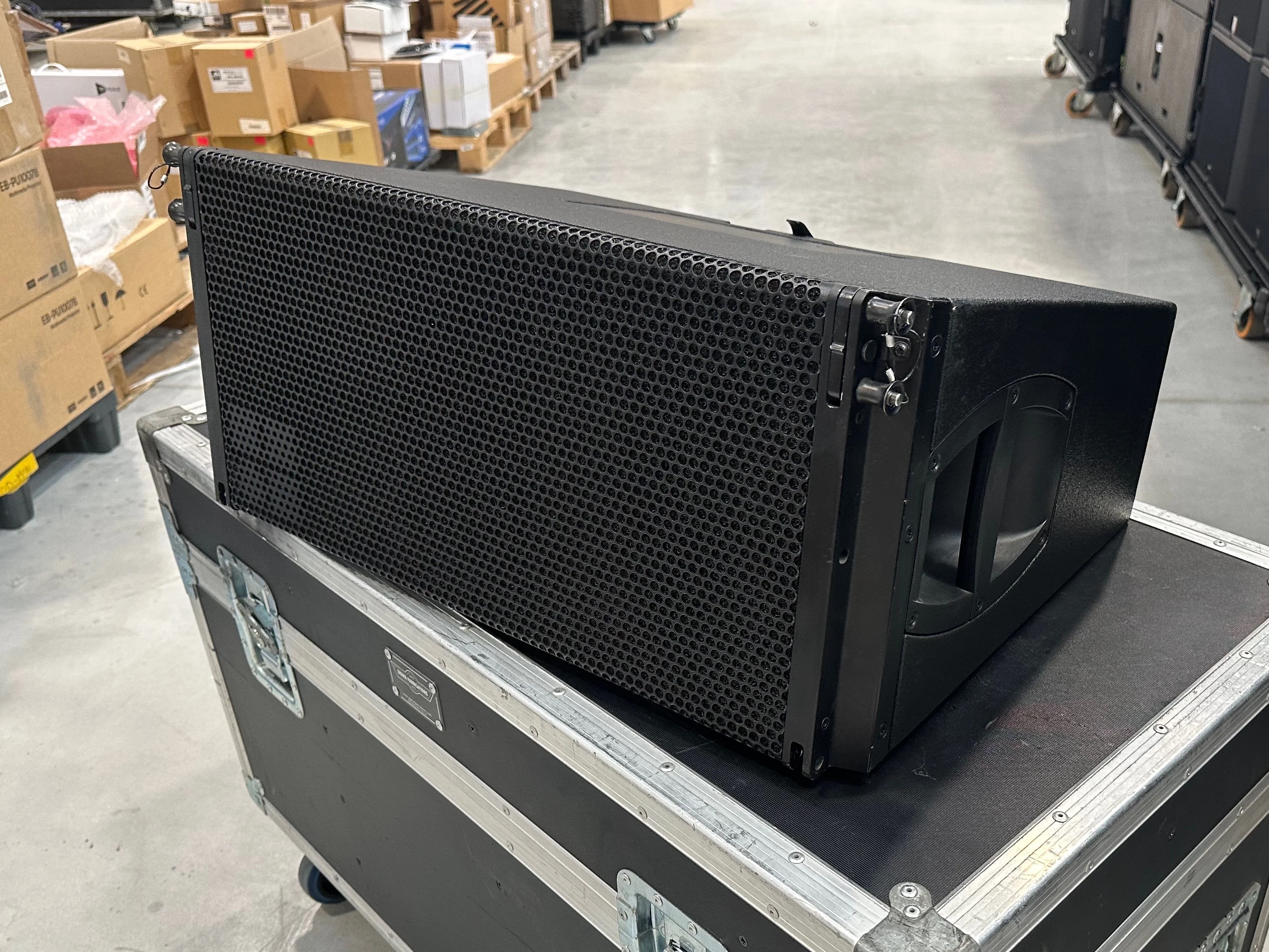

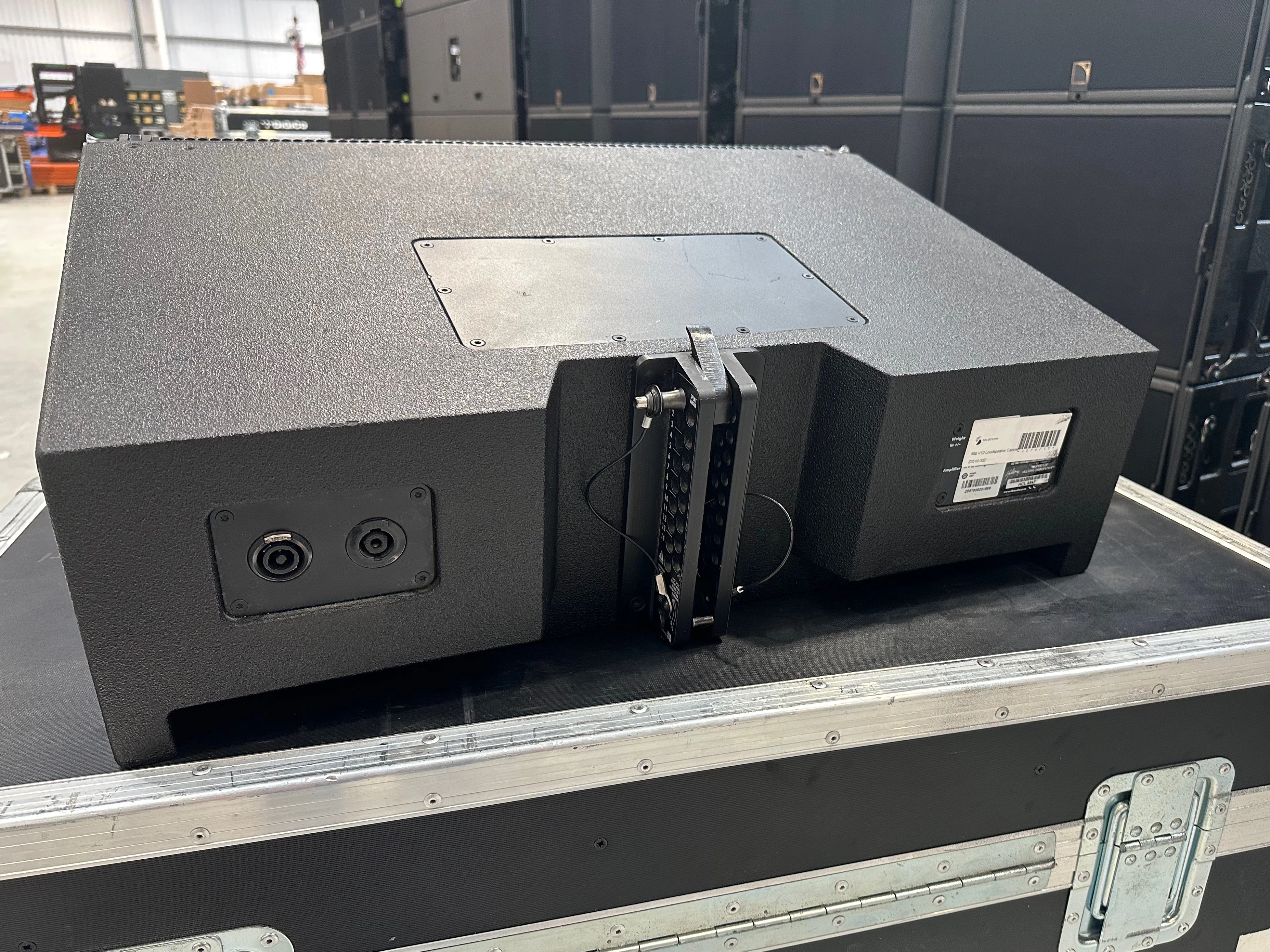

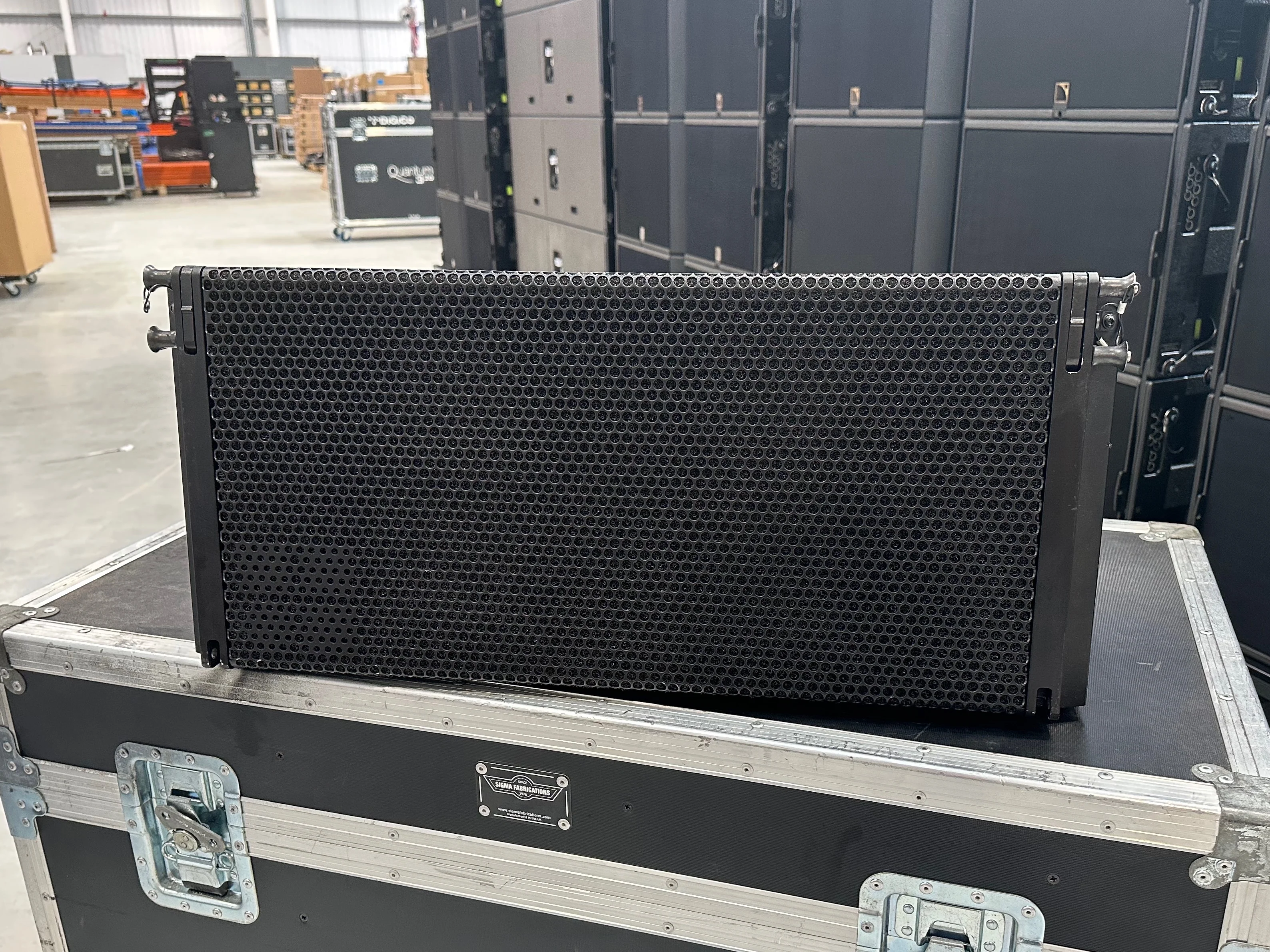

d&b audiotechnik V12 Used Line Array Cabinet
£4,000 ex-VAT
High performance 3-way passive line array loudspeaker
- Components 2 x 10"/1 x 8"/2 x 1.4"
- Dispersion 120°
- SPLmax 142 dB
The V12 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers.
Multiple units available, located in Manchester UK, ex works and shipping can be arranged at additional cost.
Original: $4,800.00
-70%$4,800.00
$1,440.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
£4,000 ex-VAT
High performance 3-way passive line array loudspeaker
- Components 2 x 10"/1 x 8"/2 x 1.4"
- Dispersion 120°
- SPLmax 142 dB
The V12 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers.
Multiple units available, located in Manchester UK, ex works and shipping can be arranged at additional cost.
