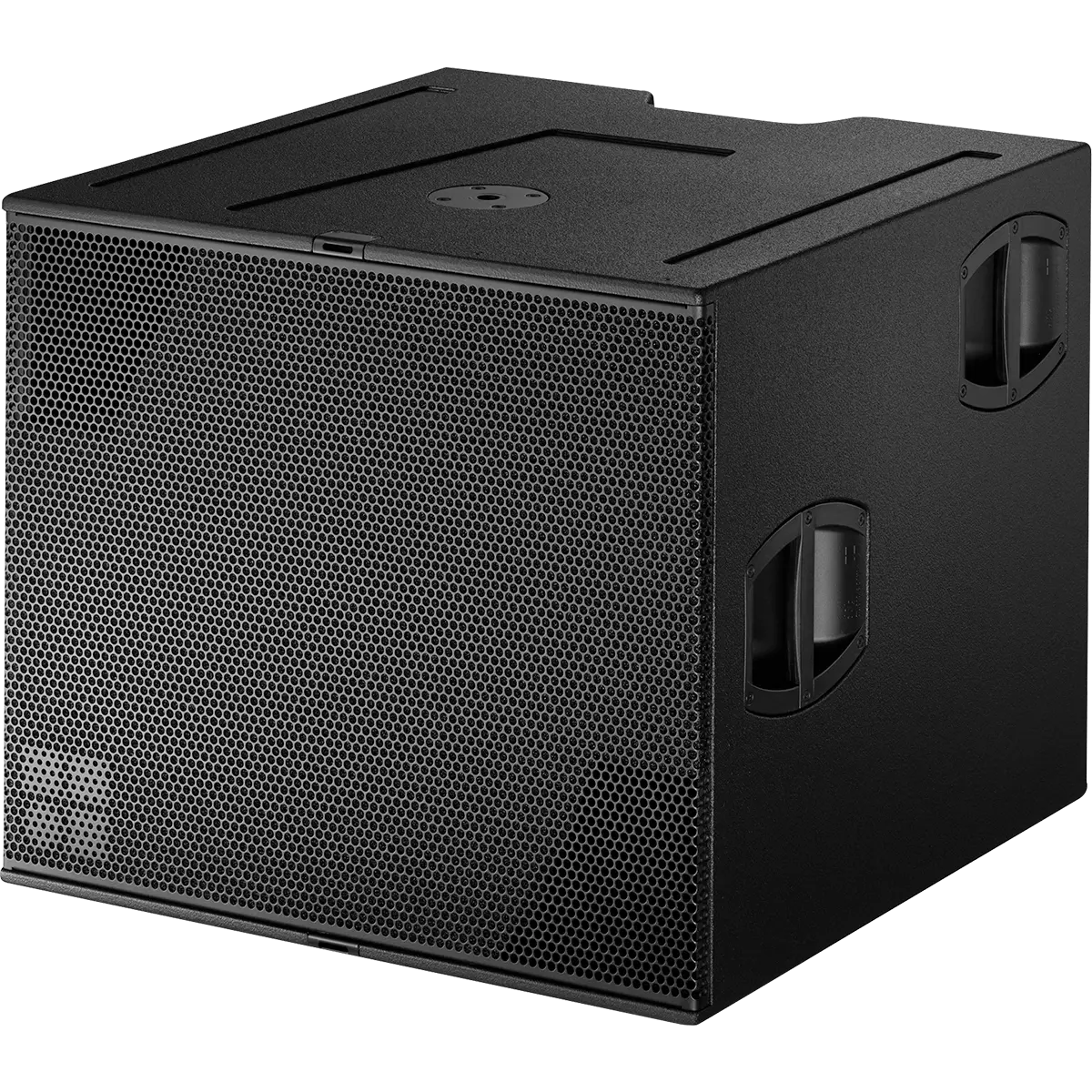

d&b audiotechnik V-GSUB Subwoofer High Performance Cardioid Subwoofer

The V-GSub is a high-performance cardioid subwoofer driven by a single amplifier channel. It features two long-excursion neodymium drivers: an 18" bass-reflex driver projecting forward, and a 12" driver in a two-chamber bandpass design radiating to the rear.

The V-GSub is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 18"/12"
• Dispersion Cardioid
• SPLmax 137 dB
• Weight 61 kg / 135 lb

Specifications:

System data:

• • Frequency response (-5 dB standard): 37 - 115 Hz
  • Frequency response (-5 dB 100 Hz mode): 37 - 95 Hz
  • Max. sound pressure:
    • with D20/30D: 133 dB
    • with D40/D80/40D2: 137 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance cardioid subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 800/3200 W
  • Splay angle settings: 0° and 2.5°
  • Components:
    • 1 x 18" driver
    • 1 x 12" driver
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 606 x 700 x 728 / 830 mm (23.8 x 27.5 x 28.63 / 32.6")
  • Weight: 61 kg (135 lb)

Amplifiers:

• d&b audiotechnik D20 Amplifier
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik 40D Amplifier
