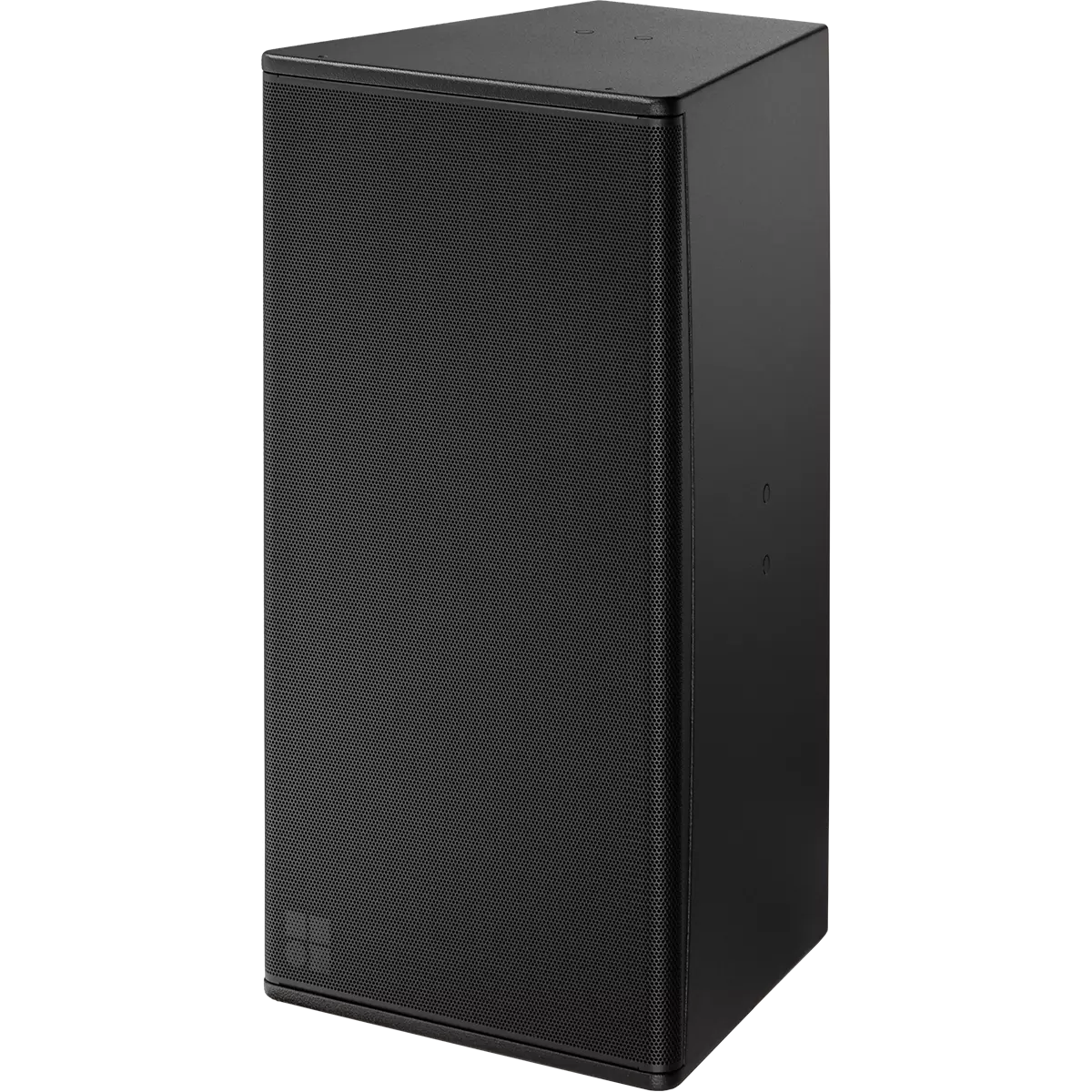

d&b audiotechnik 24S-D Loudspeaker Installation Specific High Performance Full Range 2-way Loudspeaker with Wide Dispersion

The 24S-D is a full-range, 2-way passive loudspeaker featuring dual 12" drivers in a bass-reflex enclosure with a 1.4" exit compression driver on a large rotatable CD horn. Its dipolar design provides directivity control down to around 500 Hz, delivering a frequency response from 55 Hz to 18 kHz.

The 24S-D is versatile in use, and functions as a stand-alone system or can be enhanced with d&b subwoofers.

The loudspeaker supports both ground stacking and individual flying, while the rotatable HF horn can be rotated 90° to enable horizontal orientation.

The 24S-D is available weather-resistant.

Features:

• Components: 2 x 12"/1.4"
• Dispersion: 110° x 45°
• SPLmax: 137 dB
• Weight: 33 kg / 73 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 55 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 90 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 137 dB
    • with D40/D80/40D: 137 dB
  • Cabinets per amplifier channel: 1
• Loudspeaker data:
  • Configuration: Installation specific high performance full range 2-way loudspeaker with wide dispersion
  • Nominal impedance: 4 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 110° x 45° rotatable
  • Components:
    • 2 x 12“ driver with neodymium magnet
    • 1.4” exit compression driver
    • Passive crossover network

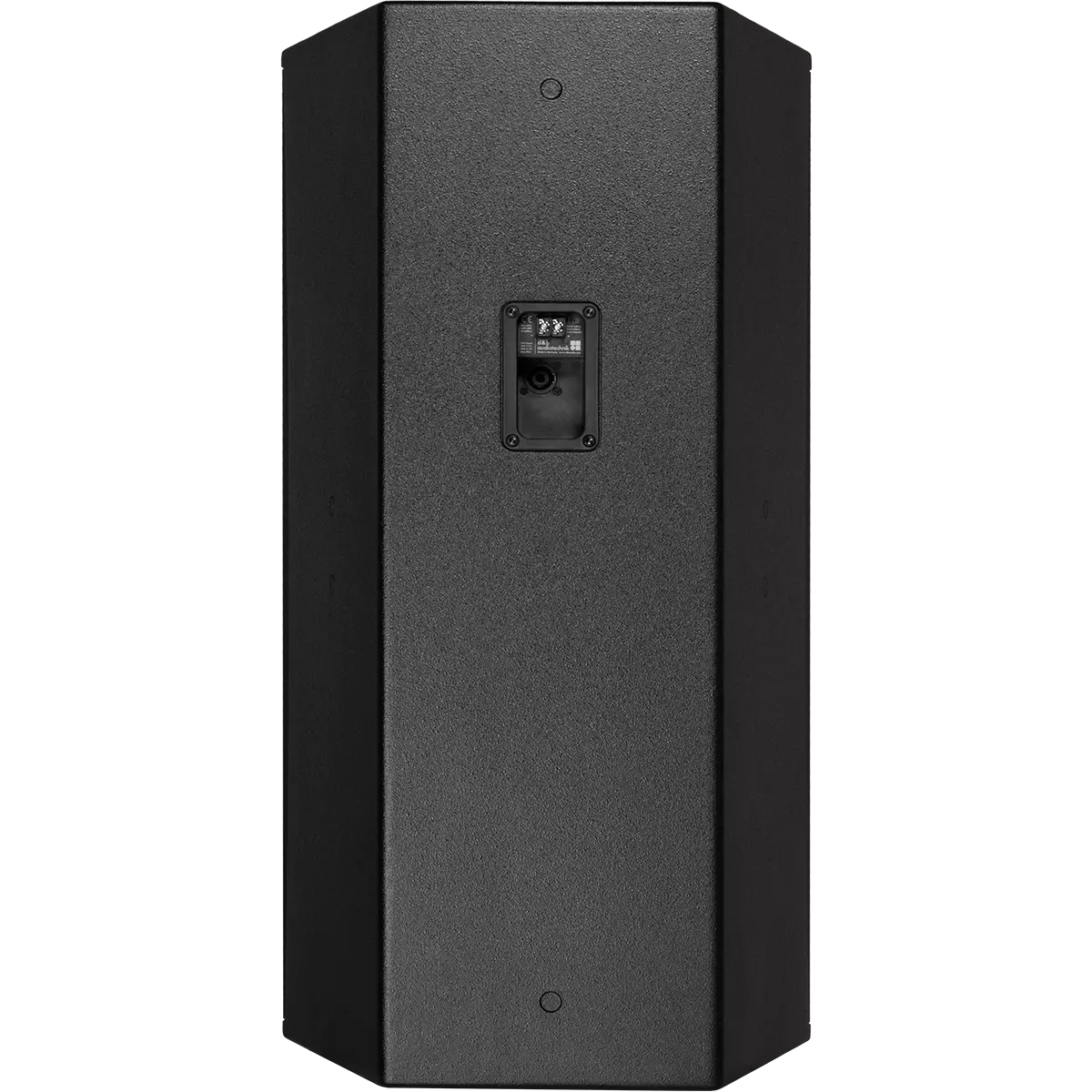

  • Connections:
    • 1 x NL4
    • 1 x screw terminal block
• Dimensions / weight:
  • Dimensions (H x W x D): 800 x 410 x 420 mm / 31.5 x 16 x 16.5”
  • Weight: 33 kg / 73 lb

Amplifiers:

• d&b audiotechnik D20 Amplifiers
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
