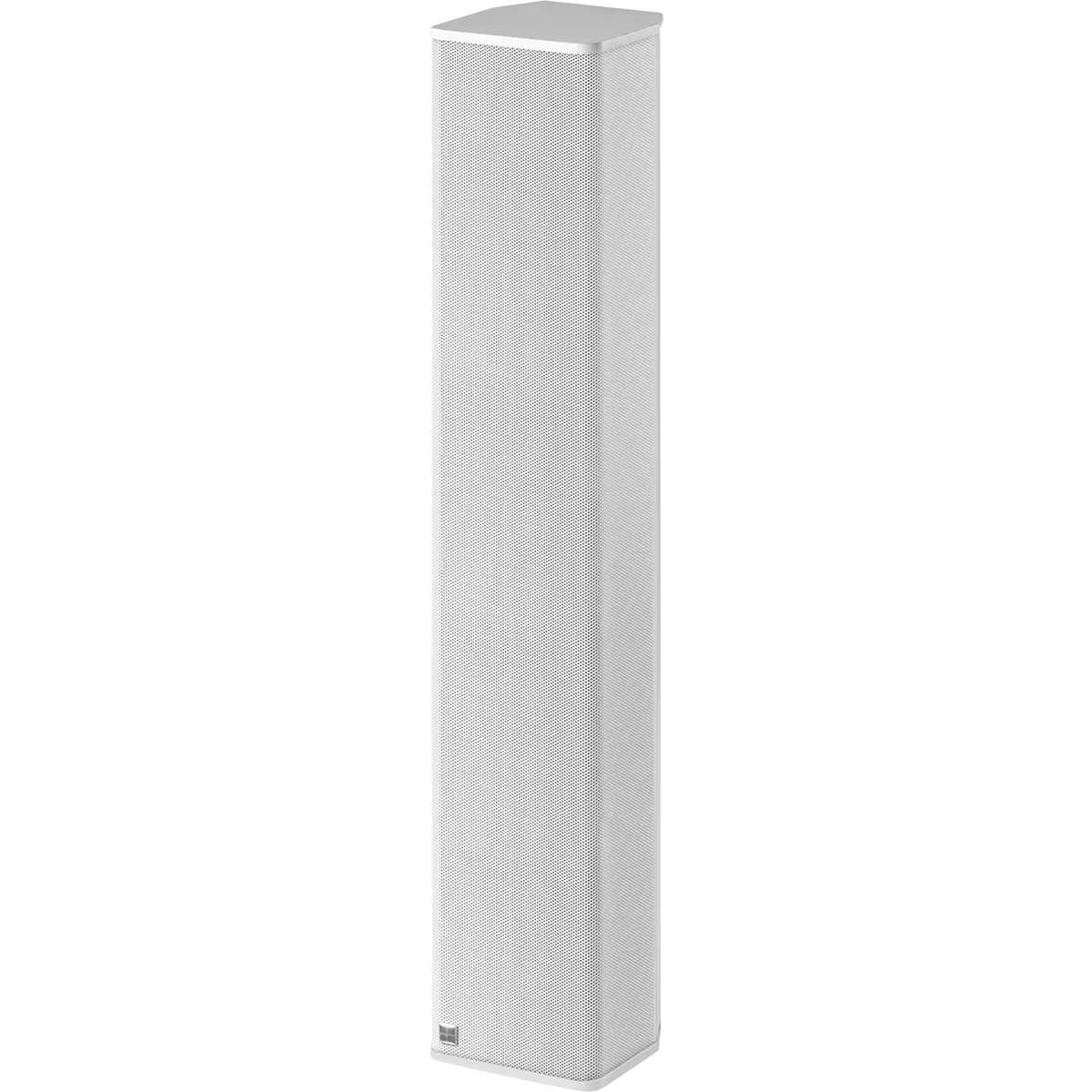

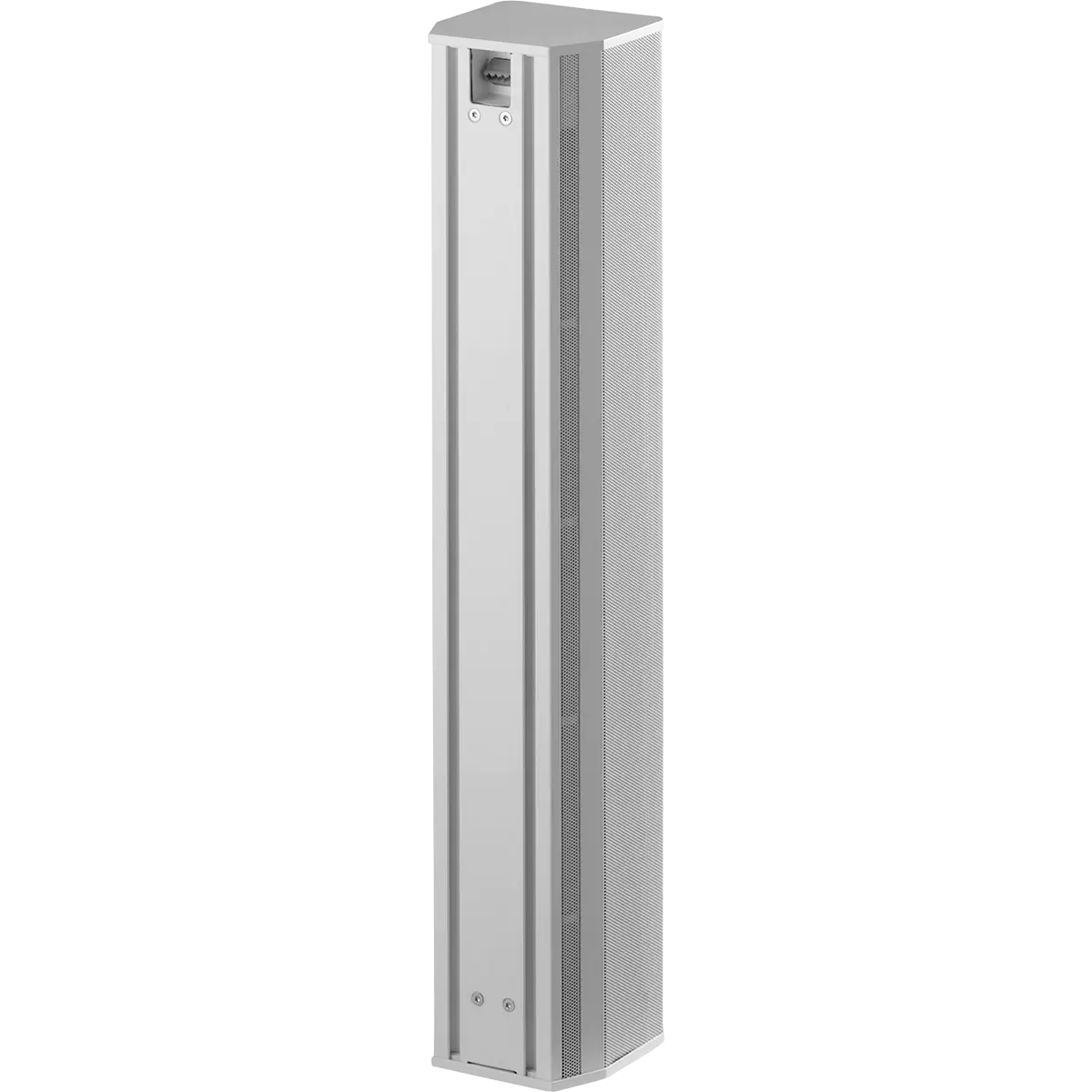

d&b audiotechnik 16C Loudspeaker Installation Specific Cardioid Column Loudspeaker

The 16C is a 2-way passive column speaker featuring four 4” neodymium drivers alongside a 0.75” compression driver on a CD horn.

The 16C covers 90° x 40° horizontal and vertical dispersion, while delivering a stable directivity pattern and approximately 18 dB rear.

The 16C is available weather-resistant.

Features:

• Components 4 x 4"/0.75"
• Dispersion 90° x 40°
• SPLmax 122 dB
• Weight 5 kg / 11 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 110 Hz - 18 kHz
  • Max. sound pressure: 122 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: Installation specific cardioid column loudspeaker
  • Power handling capacity (RMS/peak 10 ms): 100/500 W
  • Nominal dispersion angle (h x v): 90° x 40°
  • Components:
    • 4 x 4" driver with neodymium magnet
    • 1 x 0.75" compression driver mounted on CD horn
    • Passive crossover network
  • Connections: 4-pole Phoenix terminal NL4
• Dimensions / Weight:
  • Dimensions (H x W x D): 650 x 124.5 x 124 mm / 25.6 x 4.9 x 4.88"
  • Weight: 5 kg / 11 lb

Amplifiers:

• d&b audiotechnik D20 Amplifiers
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 5D Amplifier
• d&b audiotechnik 10D Amplifier
• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
