Clear-Com CC-220-MD4 Double Headset Ear Mini DIN (M) 4-Pin with Dynamic Mic

Product image 1
1 / 2

Clear-Com CC-220-MD4 Double Headset Ear Mini DIN (M) 4-Pin with Dynamic Mic

Clear-Com CC-220-MD4 Double Headset Ear Mini DIN (M) 4-Pin with Dynamic Mic

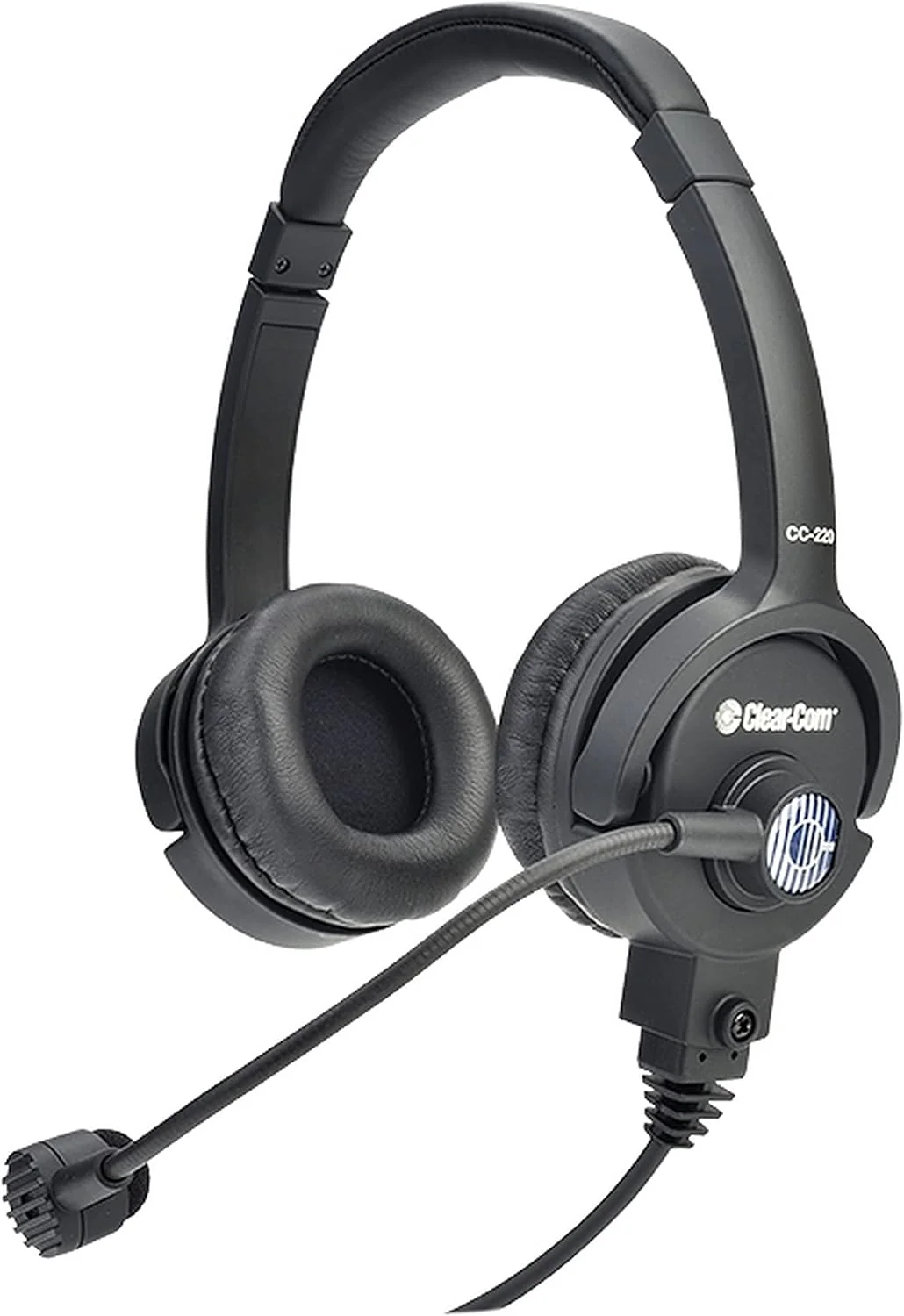

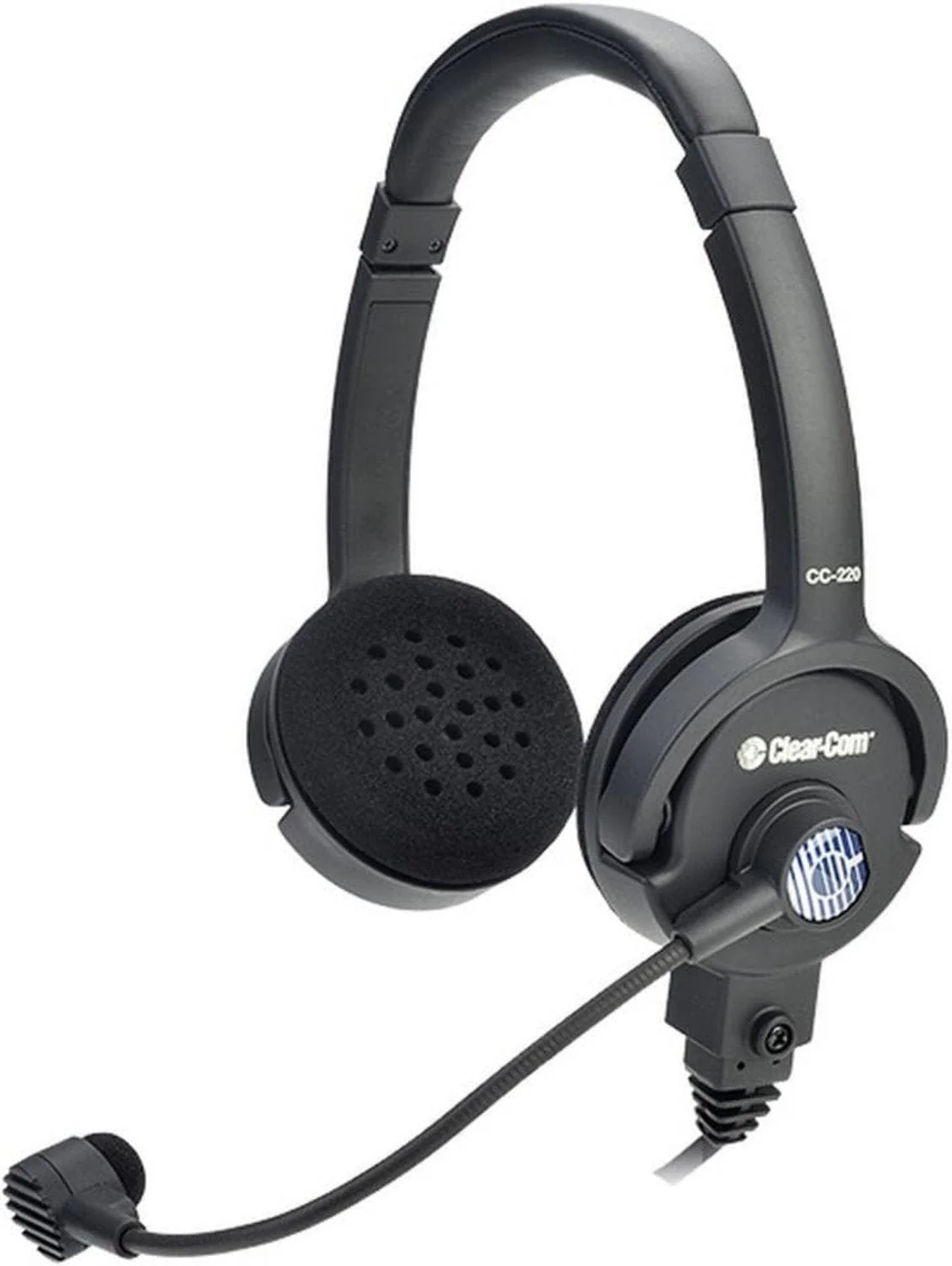

Clear-Com's CC-220-MD4 is part of their CC-220 line of premium versatile light-weight headsets, all designed to provide excellent audio quality. Comfortable and easy to use, this double-ear headset is made to suit a range of communications applications. It's easily adjusted to accommodate the preference of any user, via the 300° rotation of the microphone boom to allow the microphone to be worn on the left or right side of the head-as well as the rotating, flexible gooseneck-all offering optimal positioning. This particular model, the -MD4 version, comes equipped with a 4-pin Male DIN Connector.

Features:

  • High quality dynamic cardioid microphone
  • 20Hz -20KHz frequency response
  • Choice of earpads: leatherette or foam
  • Flexible gooseneck microphone positioning
  • Boom rotation ON/OFF switch for quick microphone muting
  • Interchangable cabling for easy connector change and repair
  • Fully serviceable headset
  • Rugged design

Specifications:

  • Headphone:
    • Type: Closed-back
    • Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
    • Frequency Response: 20Hz - 20kHz
    • Impedance:
      • CC-110: 400Ω ±30% at 1kHz typical
      • CC-220: 200Ω ±30% at 1kHz typical
  • Microphone:
    • Element: Dynamic
    • Driver: 15mm, neodymium magnet
    • Polar Pattern: Cardioid
    • Frequency Response: 250Hz - 20kHz
    • Impedance: 200Ω ±30% at 1kHz typical (for both CC-110 and CC-220)
  • Power: 500mW Maximum
    • Sensitivity:
      • Microphone Open Circuit Sensitivity: -64dB ±3.5dB (0dB=1V/1Pa, at 1kHz typical)
      • Headphone Sensitivity:
        • CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
        • CC-220: 96dB ±3dB (SPL) / 1mW, at 1kHz typical
    • Connector: Cable: 5ft (1.55m) long with 4-pin connector at headset end; 4-pin Male DIN Connector
      • Dimensions:
        • Packaging for CC-110 and CC-220: 6.7 x 8 x 3.5in (WxHxD), (170 x 205 x 90mm)
        • Weight:
          • CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW
          • CC-220: 6.8oz (195g) without 8-pin cable assembly and M3*18mm SCREW
      $210.00

      Original: $700.00

      -70%
      Clear-Com CC-220-MD4 Double Headset Ear Mini DIN (M) 4-Pin with Dynamic Mic—

      $700.00

      $210.00
