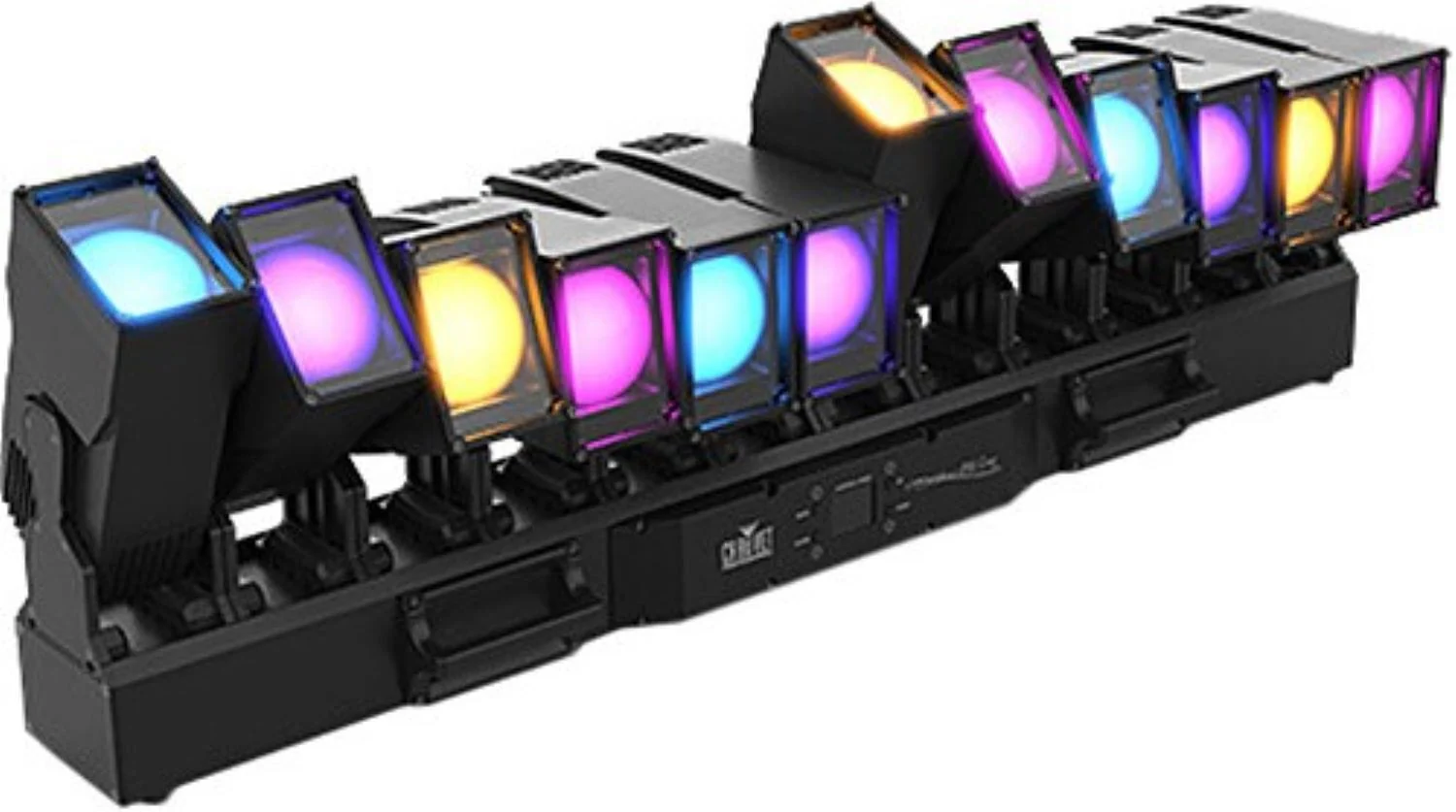

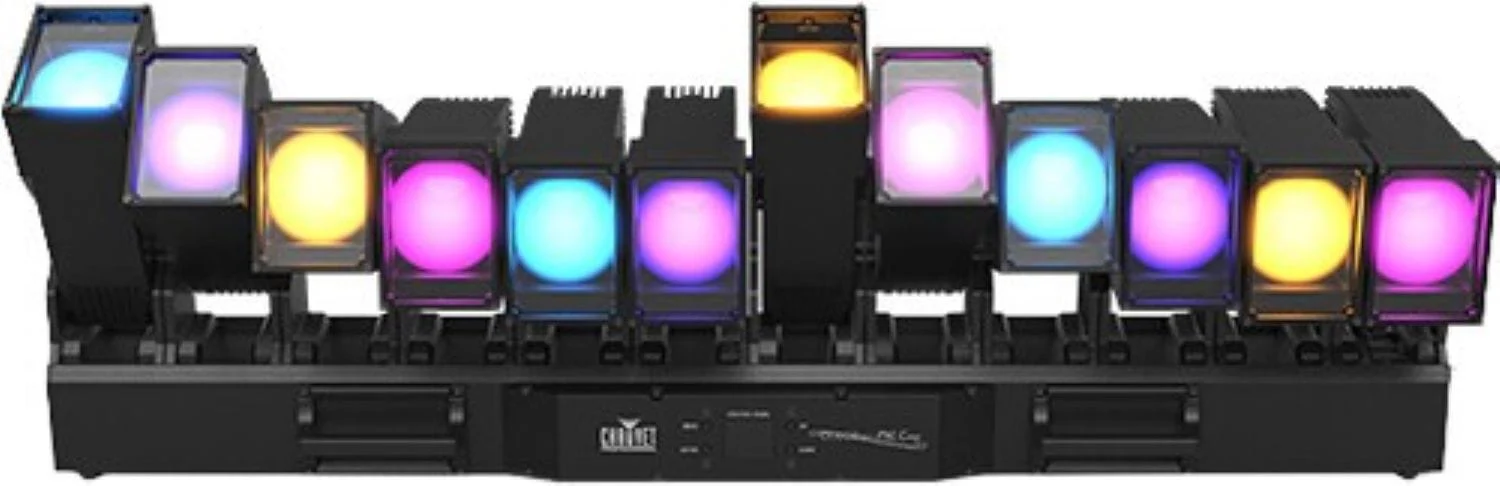

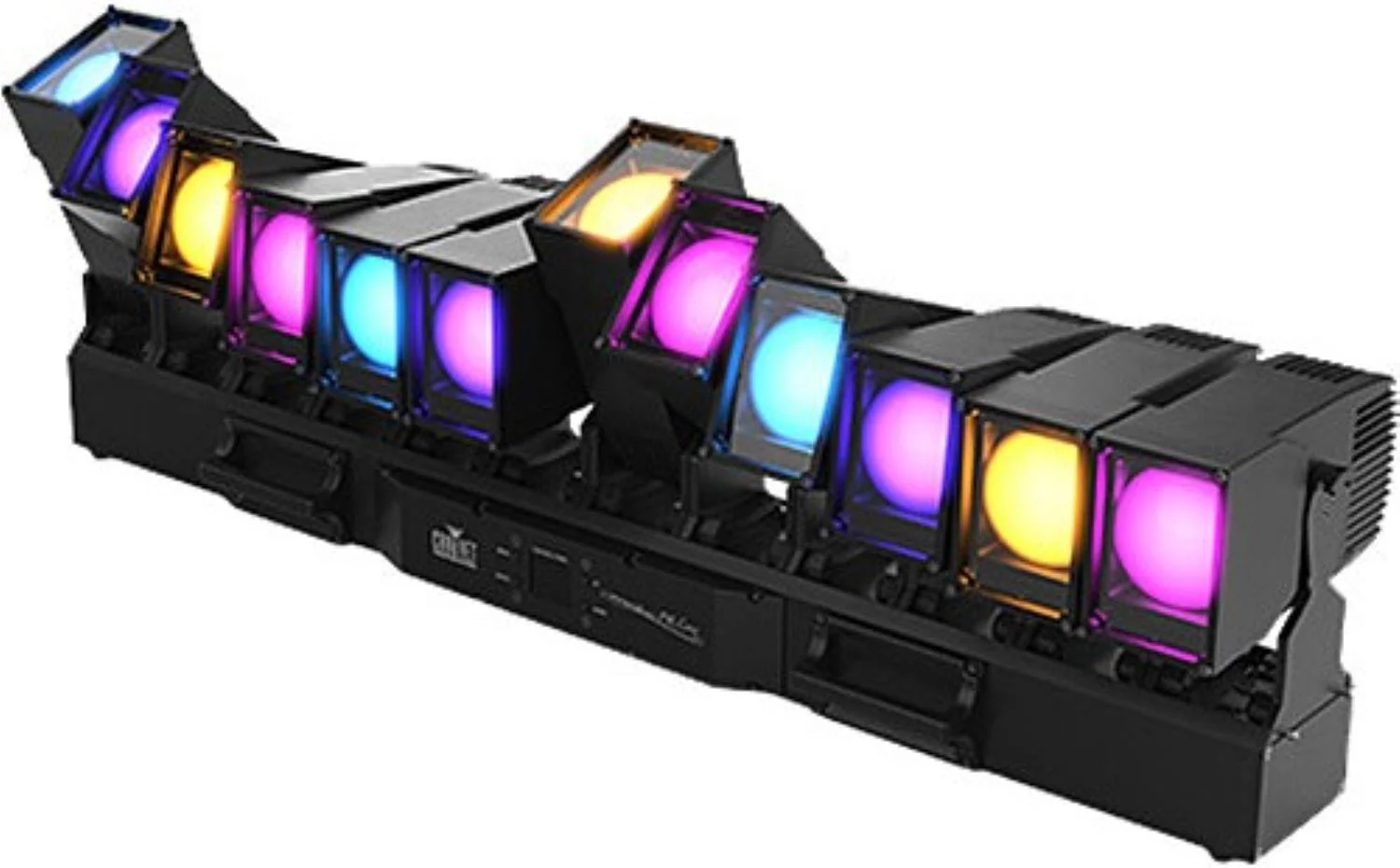

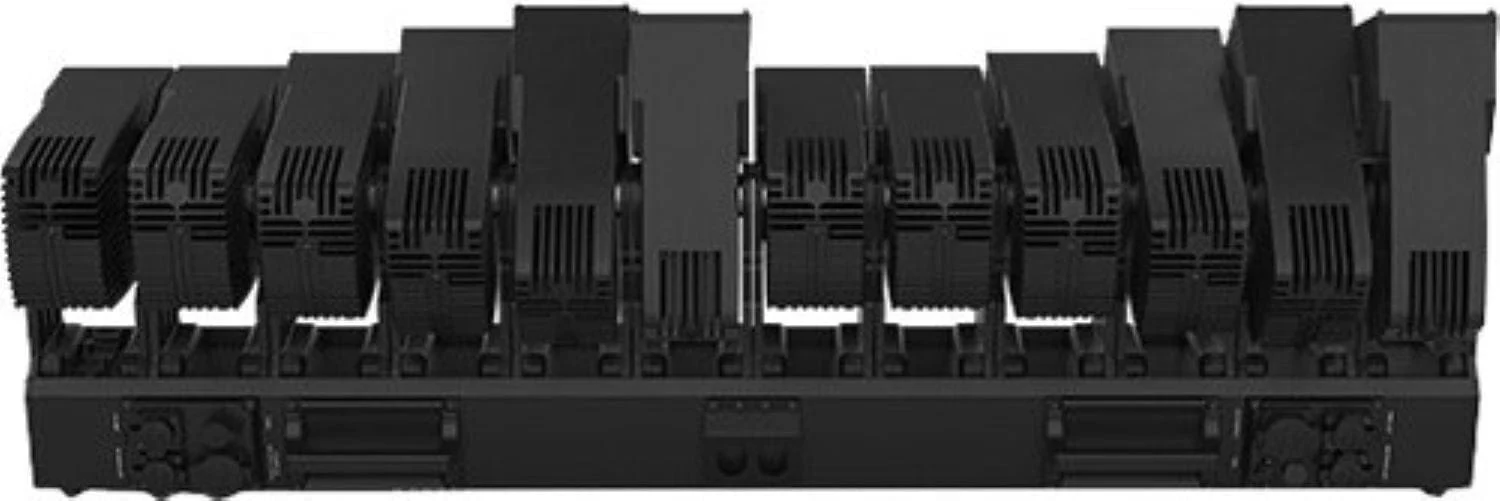

ChauvetPro COLORado PXL Curve 12 IP65 Motorized Articulated Linear Bar Light

The CHAUVET PROFESSIONAL COLORado PXL Curve 12 LED Light is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt, and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures, helping to make runway effects consistent. The COLORado PXL Curve 12 is compatible with DMX, sACN, Art-Net, Kling-Net, and RDM.

Features:

• IP65-Rated Weatherproof
• RGBW LED Fixture
• Individual Zoom of Tilt & Color Control
• DMX, sACN, Art-Net, Kling-Net & RDM

Specifications:

• Light:
  • Fixture Type: Linear/Bar Light / Moving Head
  • Light Source: 12x Color LED - 45 W / 2.96 A
  • Expected Lamp Life: 50,000 Hours
  • Colors: Blue, Green, Red, White
  • Pixel Configuration: 12x Zone
  • Photometrics:
    • 5.7°: 3597 fc / 38,727 Lux at 16.4' / 5 m
    • 26.8°: 104 fc / 1120 Lux at 0' / 5 mm
  • Color Temperature: 2700 to 8000K
  • Lumen Output: 5807 Lumens
  • Beam Angle: 5.7 to 26.8°
  • Field Angle: 9 to 33.9°
  • Shutter / Strobe: Electronic
  • Iris: No
  • Zoom Adjustment: Motorized, 5.7 to 36.3°
  • Dimming: Electronic
• Performance:
  • Operating Modes: DMX
  • Macros / Programs: Auto-Program
  • Effects: Strobe
  • Strobe Rate: 0 to 20 Hz
  • Gobos: No
• Movement:
  • Tilt Ranges: 200° / 180°
• Control:
  • Control Protocols: DMX512, RDM, Art-Net, Kling-Net, sACN
  • DMX Channel Modes:
    • 5 Mode(s): 20 / 53 / 101 / 155 / 179-Channel
  • Remote Control: No
  • Mobile App Compatible: No
• Connectivity:
  • Inputs/Outputs:
    • 1 x XLR 5-Pin DMX Input
    • 1 x XLR 5-Pin DMX Output
    • 1 x etherCON/RJ45 Network Input
    • 1 x etherCON/RJ45 Network Output
  • Wireless: No
• Power:
  • AC Input Power: 120 to 240 VAC, 50/60 Hz
  • AC Power Connector:
    • Input: 1x Seetronic IP-Rated
    • Output: 1x Seetronic IP-Rated
    • Plug Type: NEMA 5-15
    • Cord Length: 5' / 1.5 m
  • Fuse: F 12 A 250 V
  • Power / Current Consumption:
    • 120 VAC, 60 Hz: 790 W
    • 208 VAC, 60 Hz: 772 W
    • 230 VAC, 50 Hz: 768 W
  • Power Linking:
    • 1 Units at 120 VAC
    • 3 Units at 208 VAC
    • 3 Units at 230 VAC
• Environmental:
  • Environmental Protection: Dust/Water-Resistant (IP65)
  • Operating Temperature: 14 to 113°F / -10 to 45°C
• Physical:
  • Mounting: Omega Bracket
  • Included Accessories: 1x Power Cable
  • Duty Cycle: No
  • Exterior Color: Black
  • Cooling: Fan
  • Certifications: CE, MET, UKCA, FCC
  • Dimensions: 39.49 x 12.76 x 6.65" / 100.3 x 32.41 x 16.89 cm
  • Weight: 76 lb / 34.5 kg
