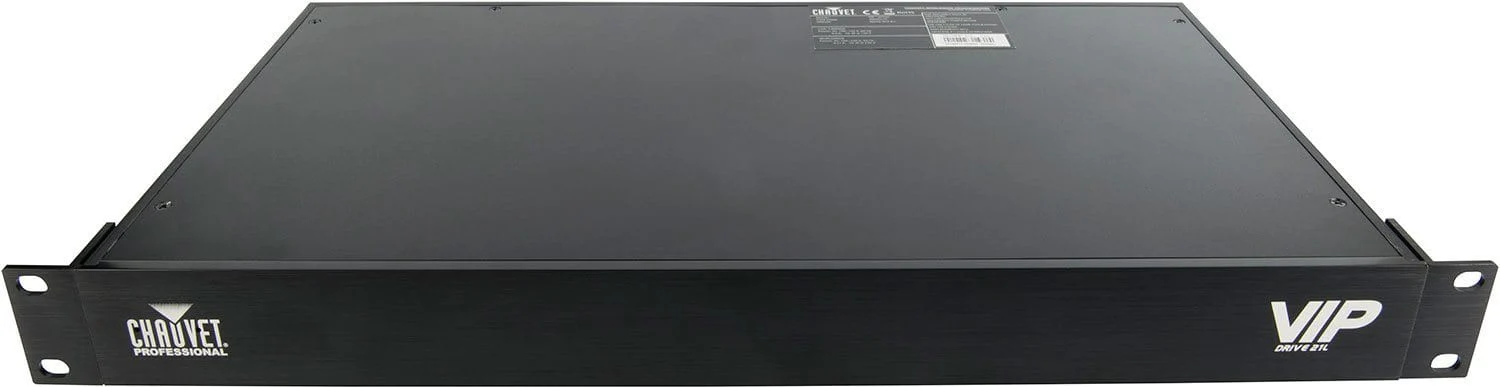

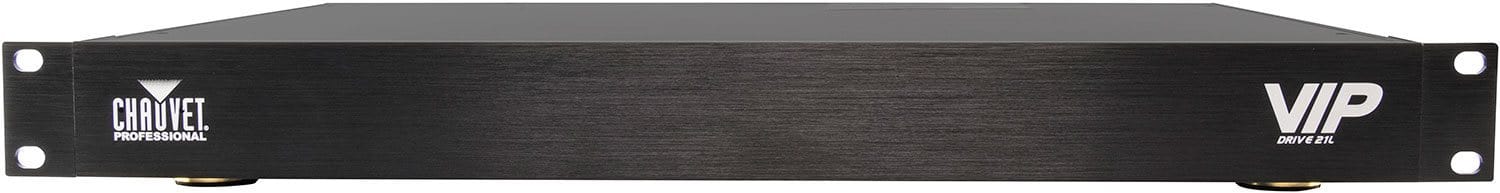

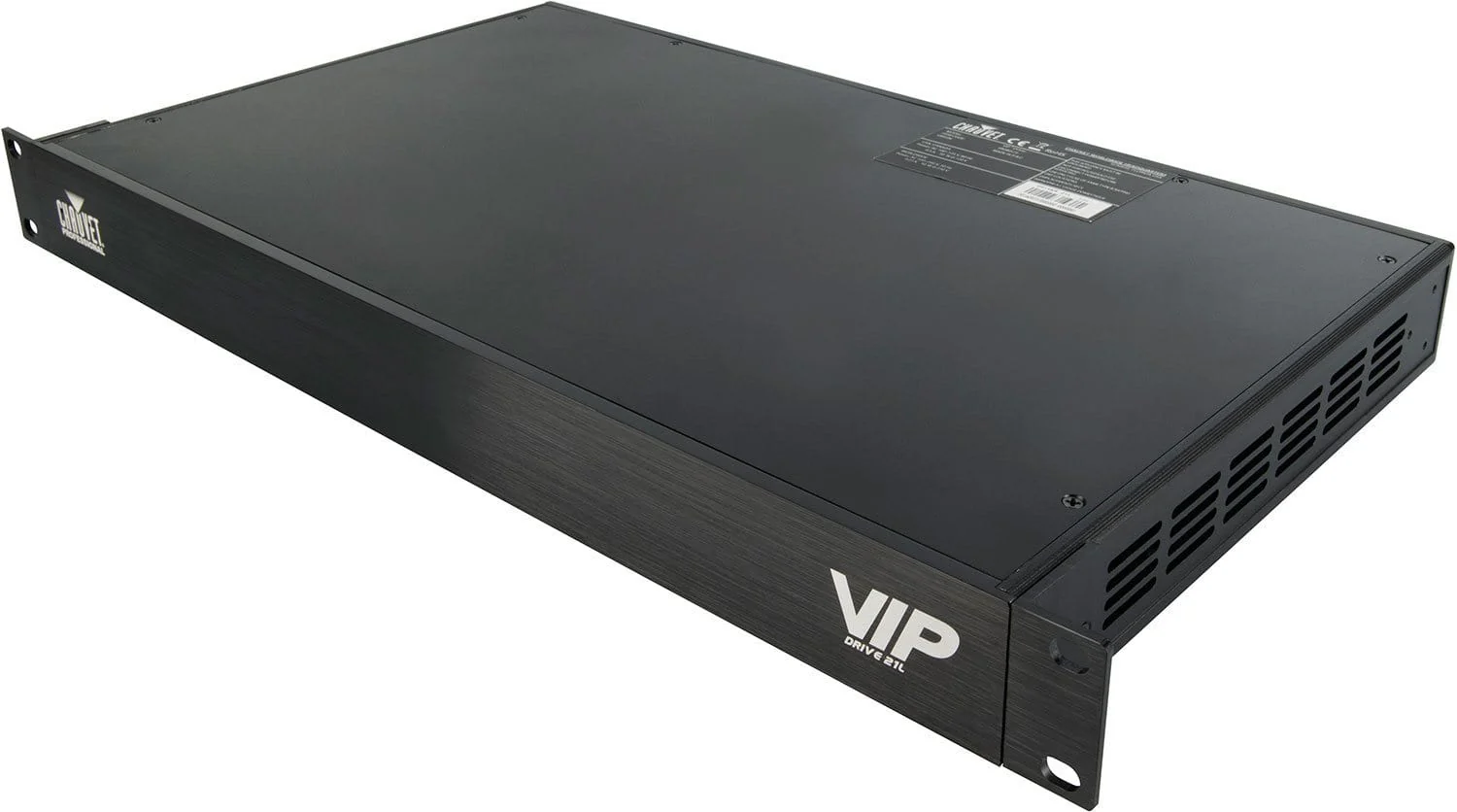

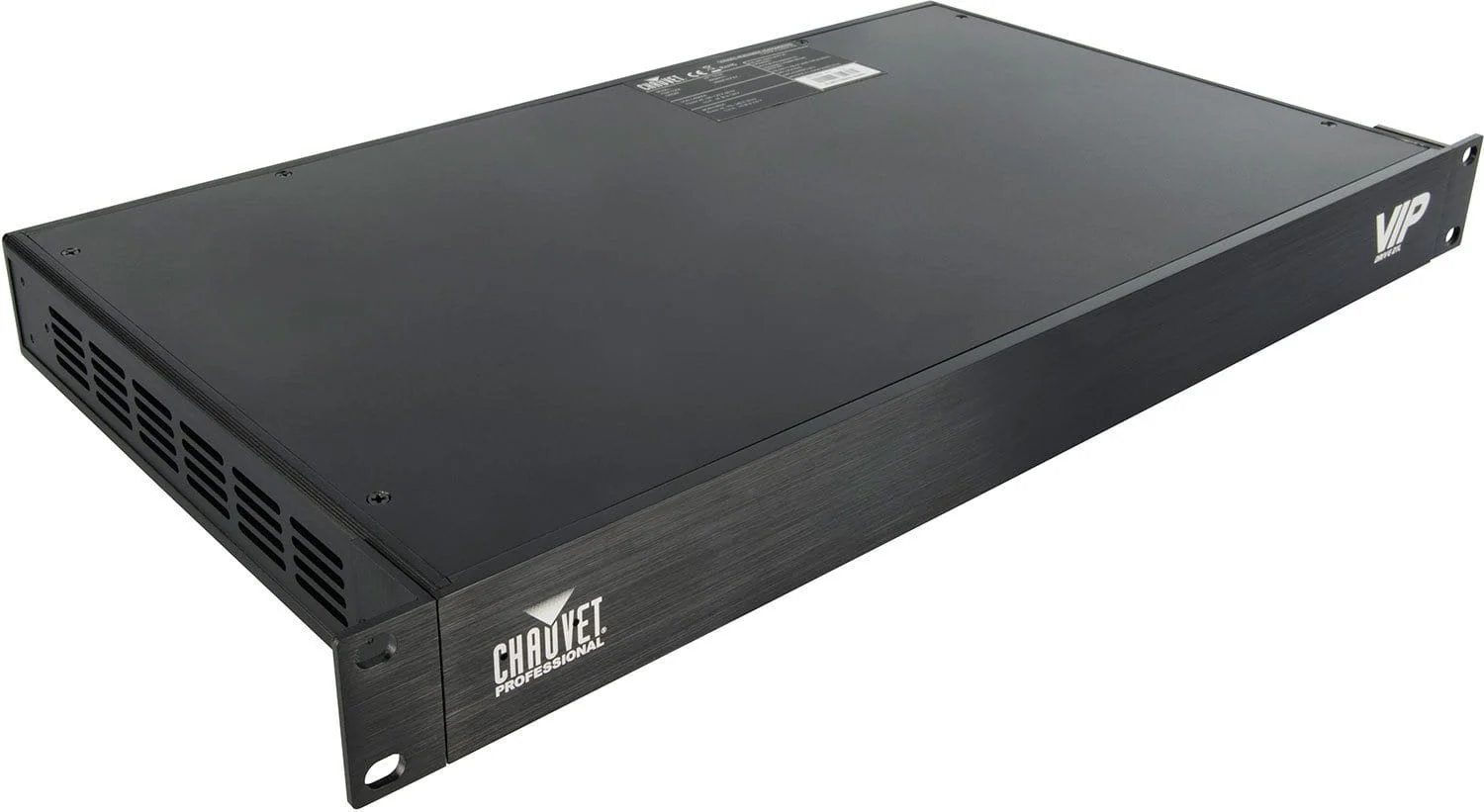

Chauvet VIP Drive 21L To Convert Video Signals

VIP Drive 21L is a video wall driver for use with Linsn video control protocol. With DVI input, and 2 outputs, it will map your video wall and configure your screen. Rack mountable, each output is capable of driving up to 655,360 LEDs (1,310,720 total) which connect via RJ-45 Ethernet to any configuration video panels.

Features:

• Video driver used to convert standard video signals (DVI) to Ethernet-based video wall protocol
• Required for panel calibration and video conversion to CHAUVET LINSN-based video panels
• CHAUVET LED Studio software connects directly to the VIP Drive 21L via USB for panel configuration
• 2 RJ-45 Ethernet outputs (655,360 LEDs capacity each, 1,310,720 total)

Specification:

• Dimensions: 20.8 x 4.7 x 17.3 in (528 x 119 x 439 mm)
• Weight: 4.6 lb (2.1 kg)
• Housing Material: Aluminum alloy
• Rackmount: 1U

• Power Connection: Edison (Local) plug to IEC
• Power Input: IEC

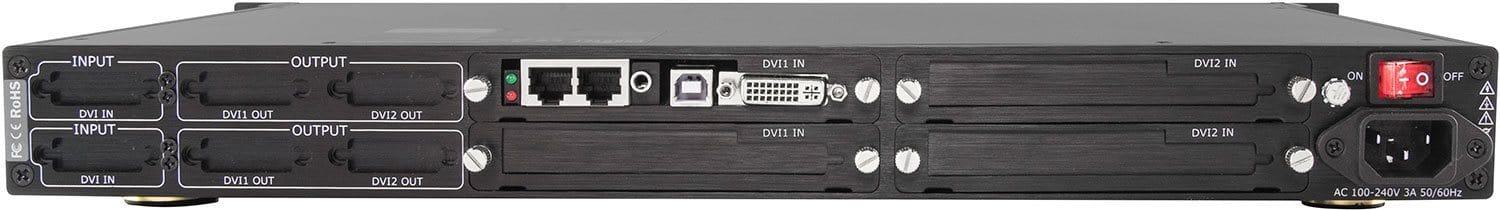

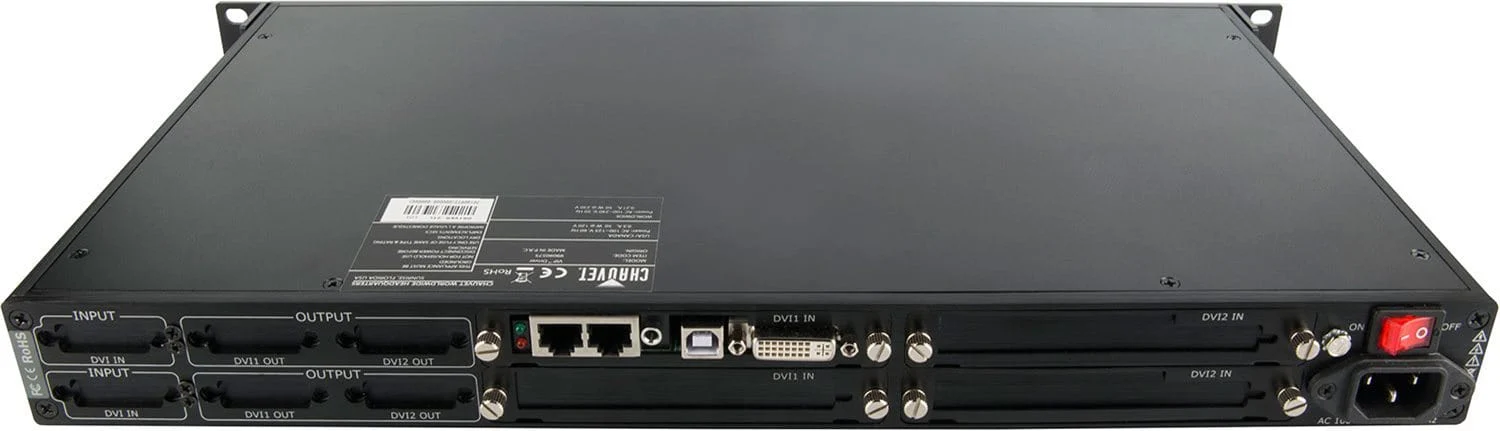

• Data Connectors: 2 Ethernet (RJ45), USB
• Cable Length (power): 5 ft (1.5 m)
• Video Input: DVI-I (requires progressive scan, not interlaced)
• Video Output: 2 Ethernet (RJ45)
• Software Connection: USB

• Control Protocol: LINSN
• Maximum Supported LEDs (per VIP Driver): 1,310,720

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 50 W, 0.50 A @ 120 V, 60 Hz
• Power and Current: 50 W, 0.24 A @ 208 V, 60 Hz
• Power and Current: 50 W, 0.21 A @ 230 V, 50 Hz

• CE, FCC
• IP Rating: IP20, dry location

• VIP Drive 21L
• IEC power cord
• USB cable

• ArKaos Media Master Express™ + KN software
• Neutrik® etherCON® cables

• Required Software: CHAUVET LED Studio and Windows®7
