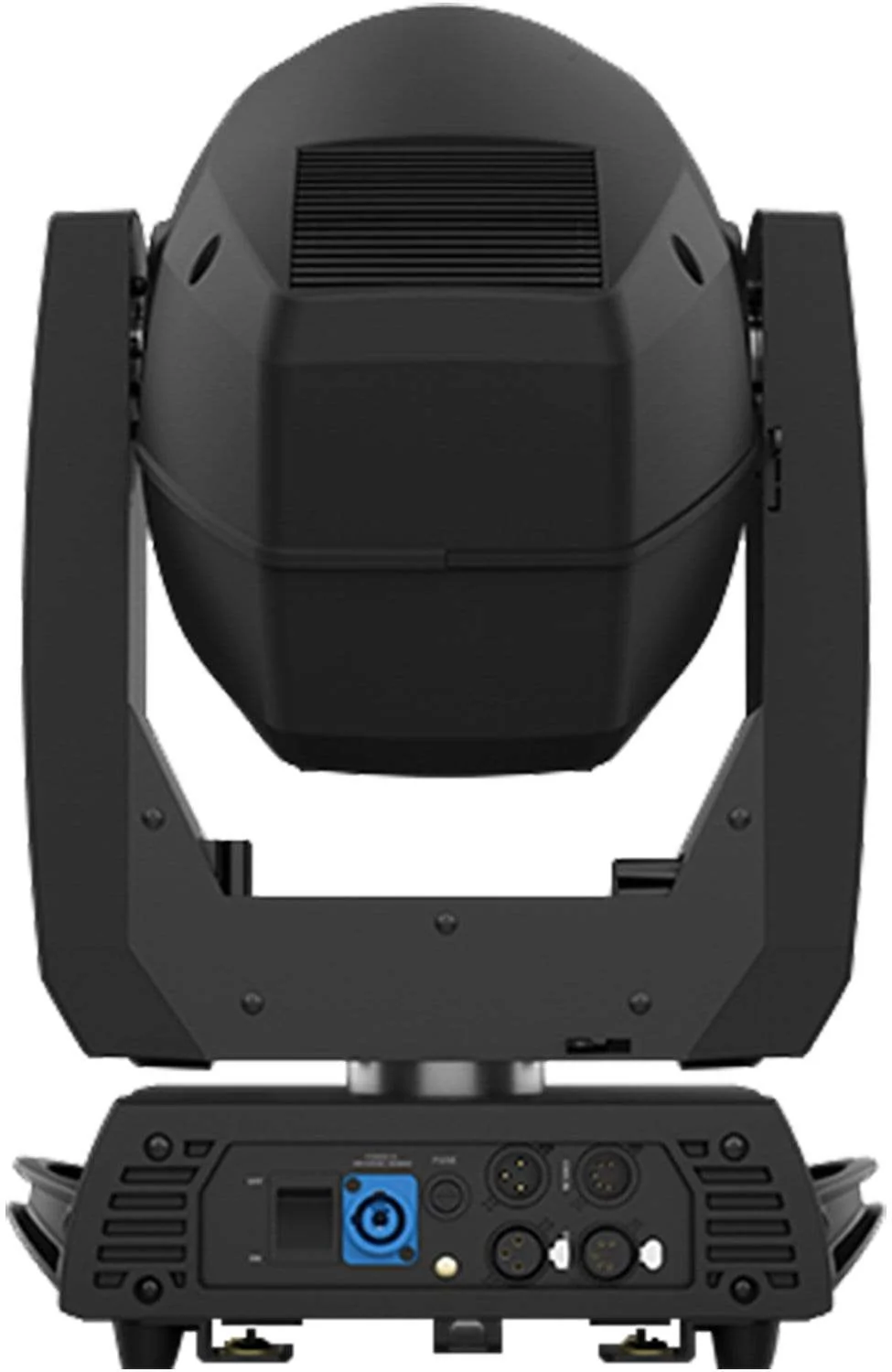

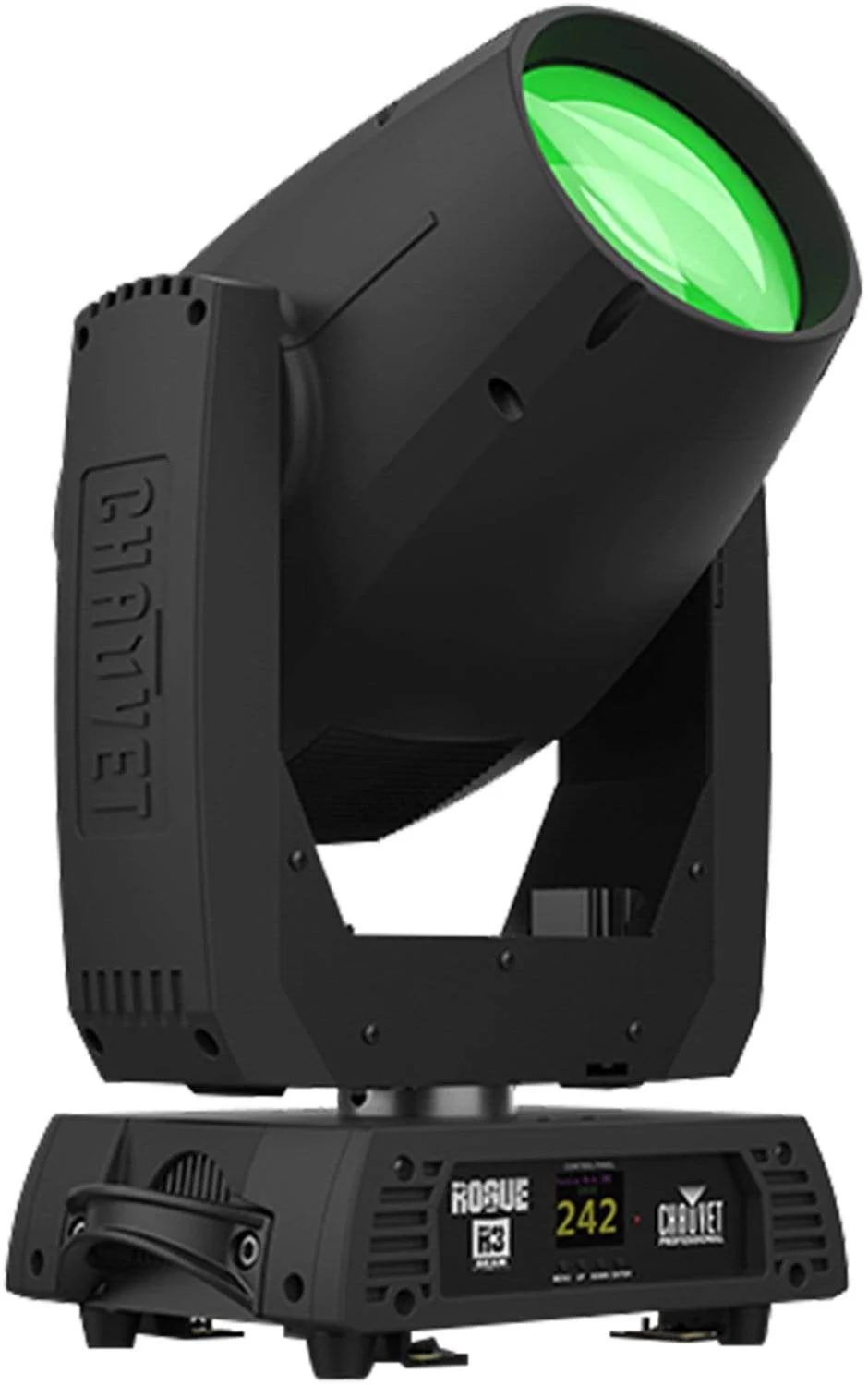

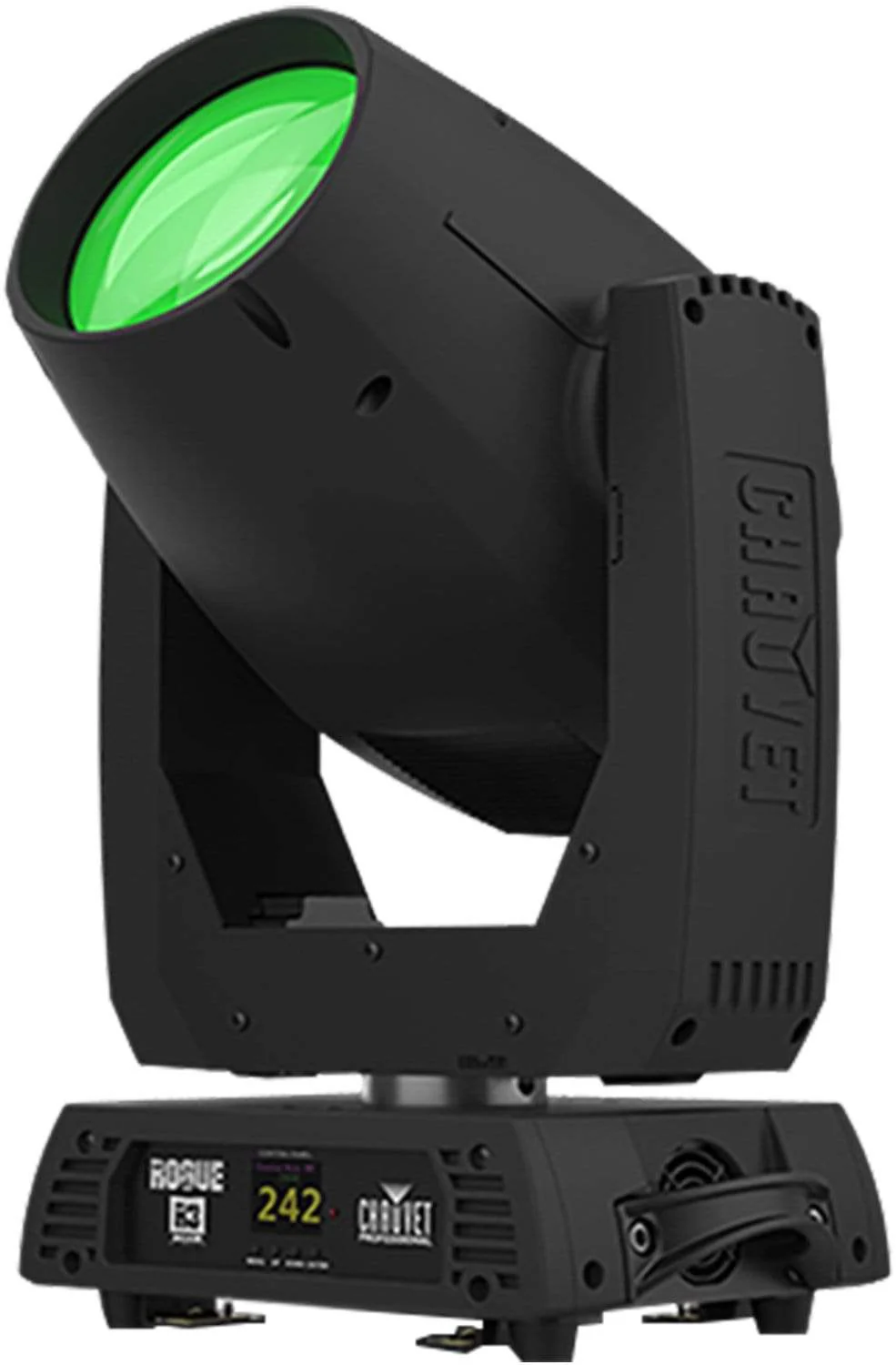

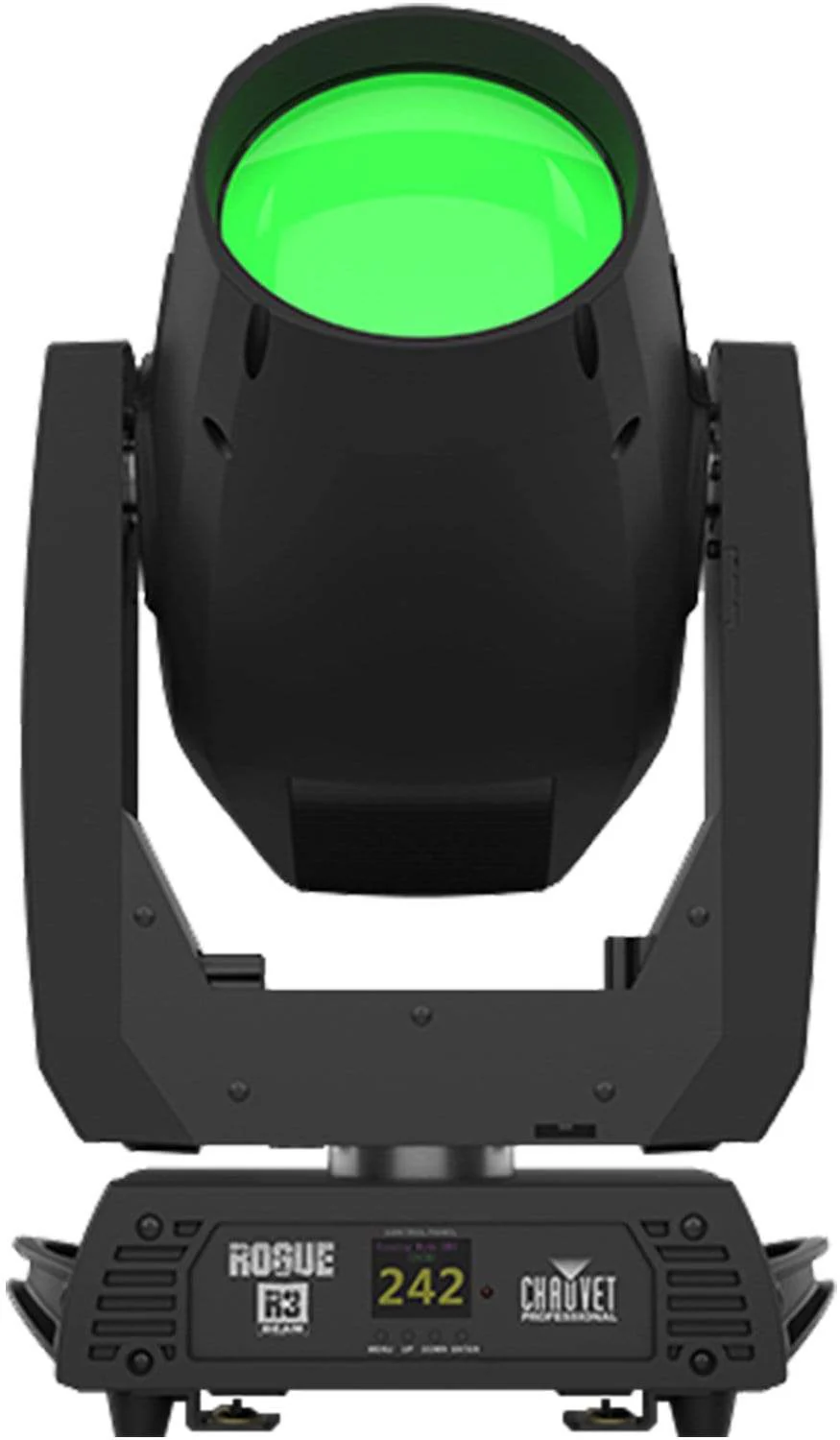

Chauvet Rogue R3 Beam Beam

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

Features:

• Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 8- and 24-facet prisms
• Frost for even light distribution
• Tight 0.8° beam for extremely focused areal effects
• RDM enabled for remote addressing and troubleshooting
• 17 static gobos for massive visual impact

Specifications:

• Optical
  • Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
  • Color Temperature (at full): 7657 K
  • CRI: 80.8
  • Front Lens Diameter: 153 mm
  • Beam Angle: 0.8°
  • Field Angle: 1.6°
  • Cutoff Angle: 2°
  • Lumens – Output: 30,878
  • Illuminance (total): 208,006 lux @ 15 m
• Dynamic Effects
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors: 14 + white, split colors, continuous scroll at variable speeds
  • Gobos : 17 + open (17 metal), continuous scroll at variable speeds
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism: 8 facets, motorized, rotating
  • Prism: 24 facets, motorized, rotating
  • Strobe Rate: 0 to 15 Hz
  • Move in Black: Yes
• Construction / Physical
  • Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
  • Weight: 34.4 lb (15.6kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
• Connections
  • Power Connection: Edison (Local) plug to Neutrik
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16, 19)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
  • Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
  • Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
  • Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
  • Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz
• Certifications / Qualifications
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• What's Included
  • Rogue R3 Beam
  • Neutrik powerCON power cord
  • 2 Omega brackets with mounting hardware
• Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX cables
  • Flight Case: #CP2CASER2XR3SPOT
  • UPLOAD 08 software uploader
