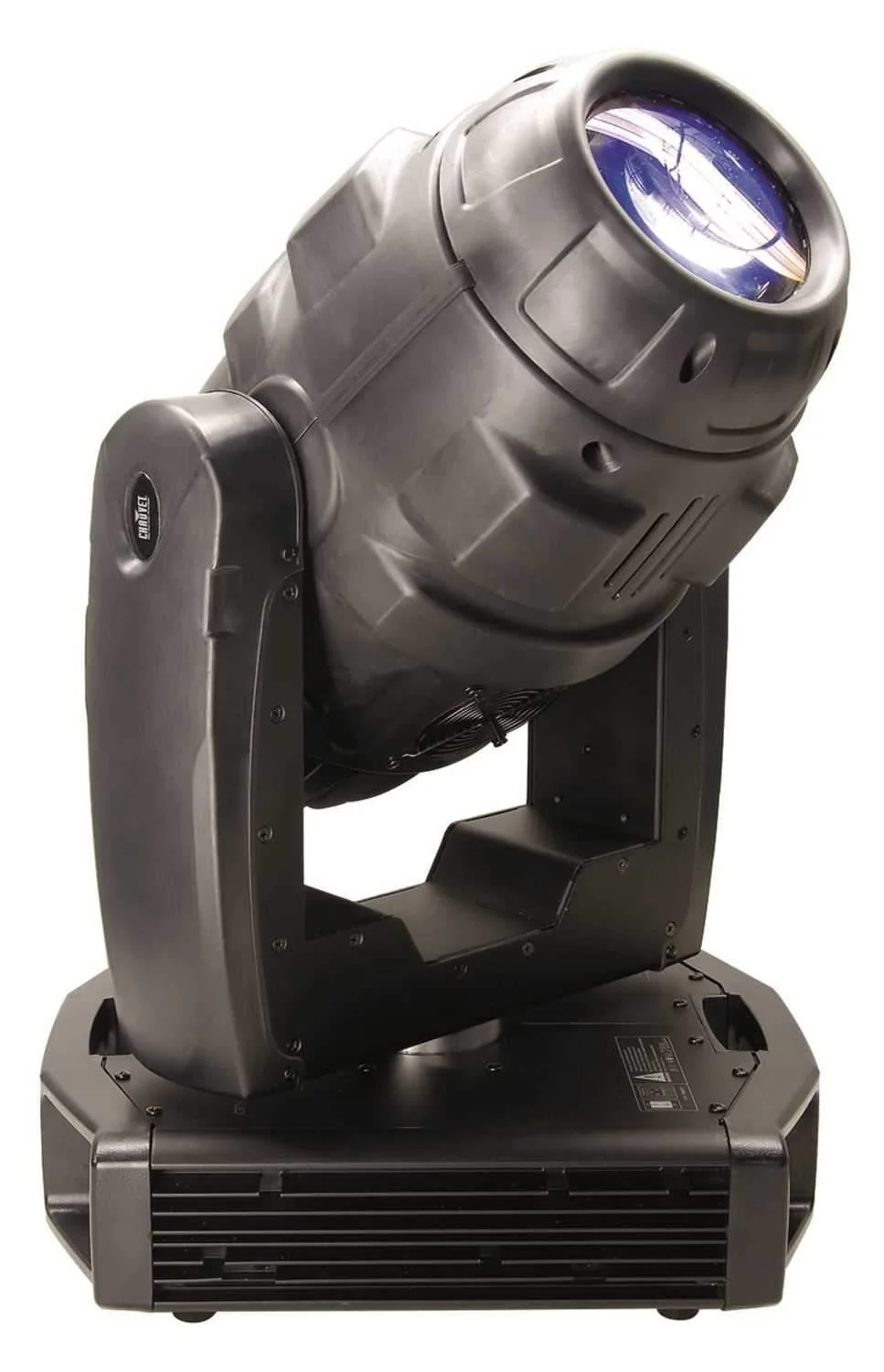

Chauvet Q-Spot 250 LED DMX Moving Yoke

CONTROL FEATURES

• 12 or 15-channel DMX-512 LED moving yoke
• Pan: 540º / tilt: 270º
• Color wheel: 7 colors + white / Rainbow color spin at variable speeds
• Static gobo wheel with gobo shake: 7 interchangeable, slot-n-lock gobos + open / Gobo wheel spin at variable speeds
• Rotating gobo wheel with gobo shake: 7 interchangeable, gobos + open / Gobo wheel spin at variable speeds
• 3-facet, high speed rotating prism at variable speeds
• Variable electronic strobe
• Variable electronic dimmer (0 – 100%)
• Remote fixture reset and vector speed channel
• Built-in effect macros via DMX (gobo, gobo rotation, color, strobe, prism)
• 255 user-programmable steps without DMX controller
• Move-in-black for pan/tilt
• Built-in automated programs via master/slave or DMX
• Built-in sound activated programs via master/slave or DMX

• High-powered, 5W (1500mA) LEDs
• 3-pin and 5-pin DMX connections
• User-selectable pan/tilt ranges
• Automatic pan/tilt correction
• Reset to factory settings option
• User-selectable basic or advanced operating modes

• Rotating gobo size: 31mm outside, 27mm image, 1.16 mm max thickness
• Static gobo size: 36mm outside, 27 mm image, .34 mm max thickness
• Beam angle: 15
• Lux: 6,660 @ 1m
• Light source: 27 (white) LEDs 50,000hrs
• Power and current: 120V 60Hz: 65.4W, .5A .operating, .4A inrush
• Power and current: 230V 50Hz: 68.7W, .2A operating, .2A inrush
• AC power: Autoswitching 100V – 240V 50/60Hz
• Weight: 48 lbs. ( 21.7 Kg)
• Size: 15.2in x 12.6in x 24.5in / 385m. x 320mm. x 623mm

• AC power: Autoswitching 100V – 240V 50/60Hz
