CONTROL FEATURES

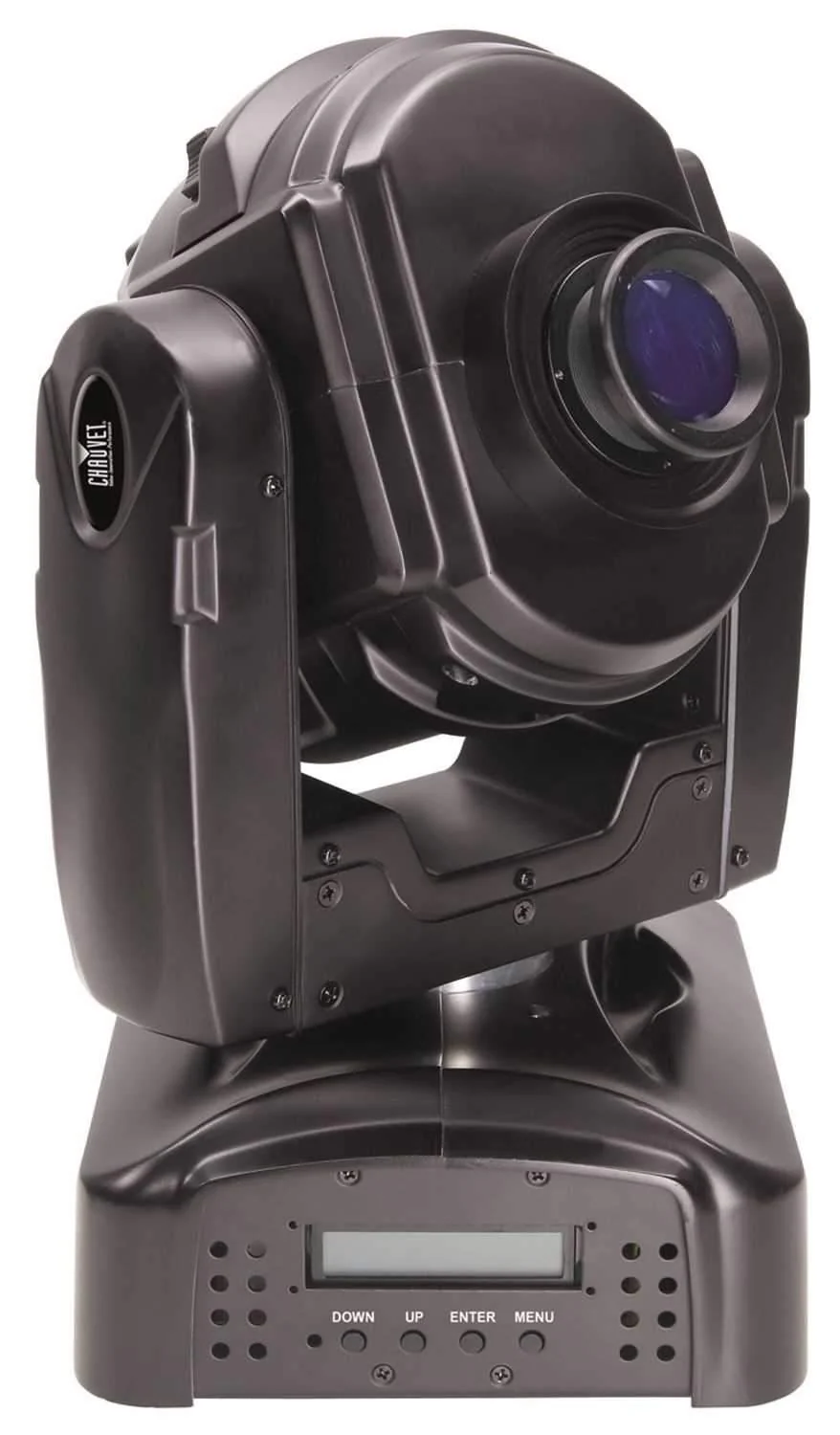

• 9 or 11-channel DMX-512 LED moving yoke
• Pan: 530º / Tilt: 270º
• Color wheel: 8 colors + white / Rainbow color spin at variable speeds
• Rotating gobo wheel with gobo shake: 7 interchangeable, slot-n-lock gobos + open / Gobo wheel spin at variable speeds
• 3-facet prism
• Variable electronic strobe
• Variable electronic dimmer (0 – 100%)
• Remote fixture reset
• 255 user-programmable steps without DMX controller
• Move-in-black for pan/tilt
• Built-in automated programs
• Built-in sound activated programs

• High-powered, 20W (1000mA) LED
• User-selectable pan/tilt ranges
• Automatic pan/tilt correction
• Reset to factory settings option
• User-selectable basic or advanced operating modes

• Gobo size: 25.75mm outside, 18.2mm image, 1.2mm max thickness
• Beam angle: 16
• Lux: 4,180 @ 1m
• Light source: 1 (white) LED 50,000hrs
• Power and current: 120V, 60Hz: 50W, 0.4A operating, 0.1A inrush
• Power and current: 230V. 50Hz: 50W, 0.2A operating, 0.1A inrush
• AC power: Autoswitching 100V – 240V 50/60Hz
• Weight: 13.5lbs (6.1kg)
• Size: 9.5in x 9.47in x 14.3in / 242mm x 240mm x 364mm

• AC power: Autoswitching 100V – 240V 50/60Hz
