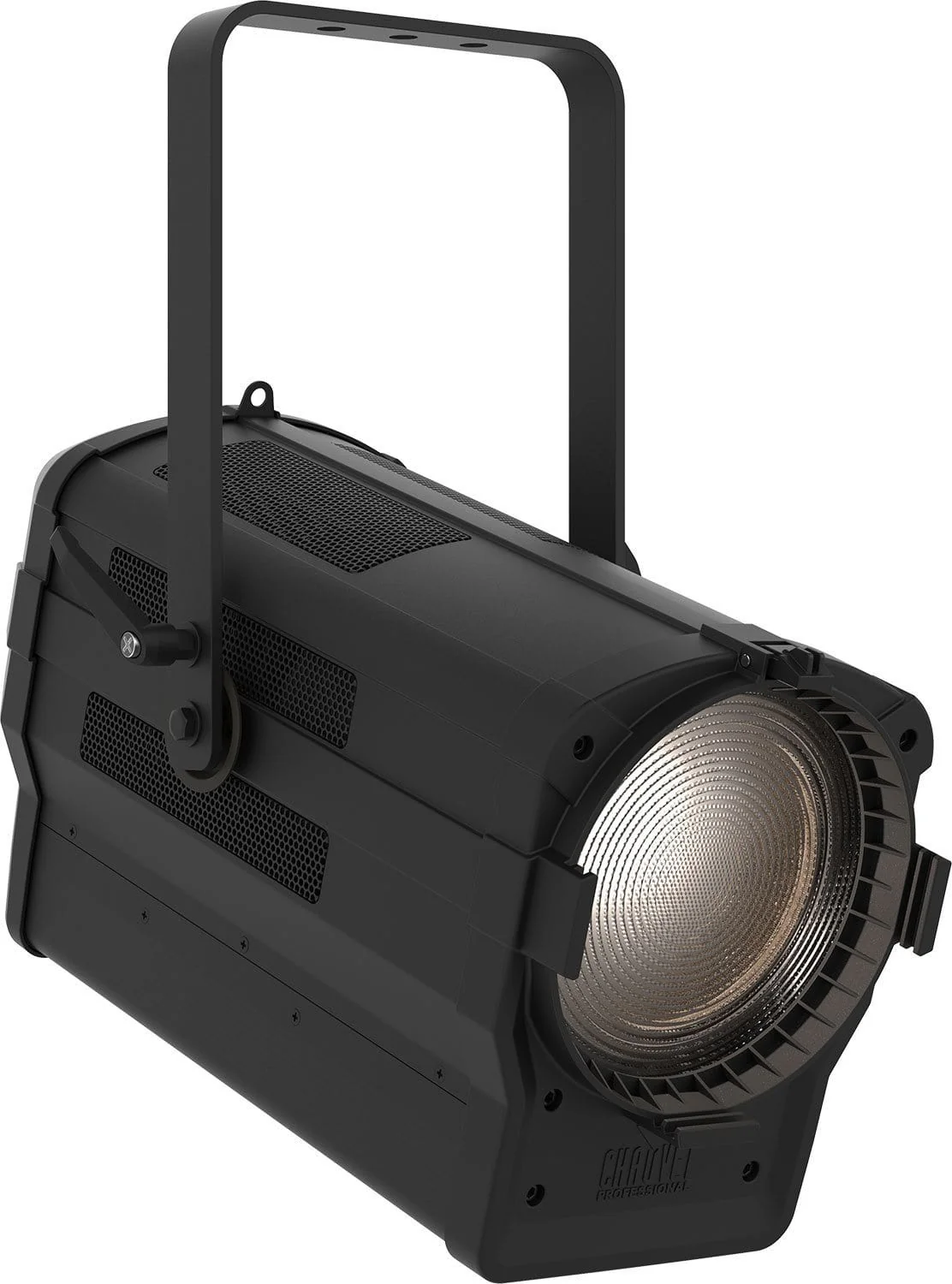

Chauvet Ovation F-915VW High-power, Variable White Fresnel-style Fixture

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theaters and TV studios. Each color temperature can be further adjusted for +/- green and a motorized zoom with a 30° – 85° field angle allows you to add light where it is needed. The color temperature and hue along with zoom and output can be controlled via DMX or on-board dials.

Features:

• Variable white LED Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 16° to 42° beam angle
• Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
• Beautiful 16-bit dimming
• Proprietary LED engine delivers tremendous, equal output at all color temperatures
• Easy to use on board control of color temperature, zoom and dimming
• +/- Green adjustment via DMX or on-board control
• Independent color control over the 6-color engine when a splash of color is needed
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

Specifications:

Optical

• Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 88-92
• Beam Angle: 17° to 54°
• Field Angle: 30° to 85°
• Zoom Angle: 30° to 85°
• Lumens (30°): 4,143
• Lumens (85°): 6,792
• Illuminance (30°): 1,748 lux @ 5 m
• Illuminance (85°): 414 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: No

Construction / Physical

• Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
• Weight: 18.6 lb (8.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
