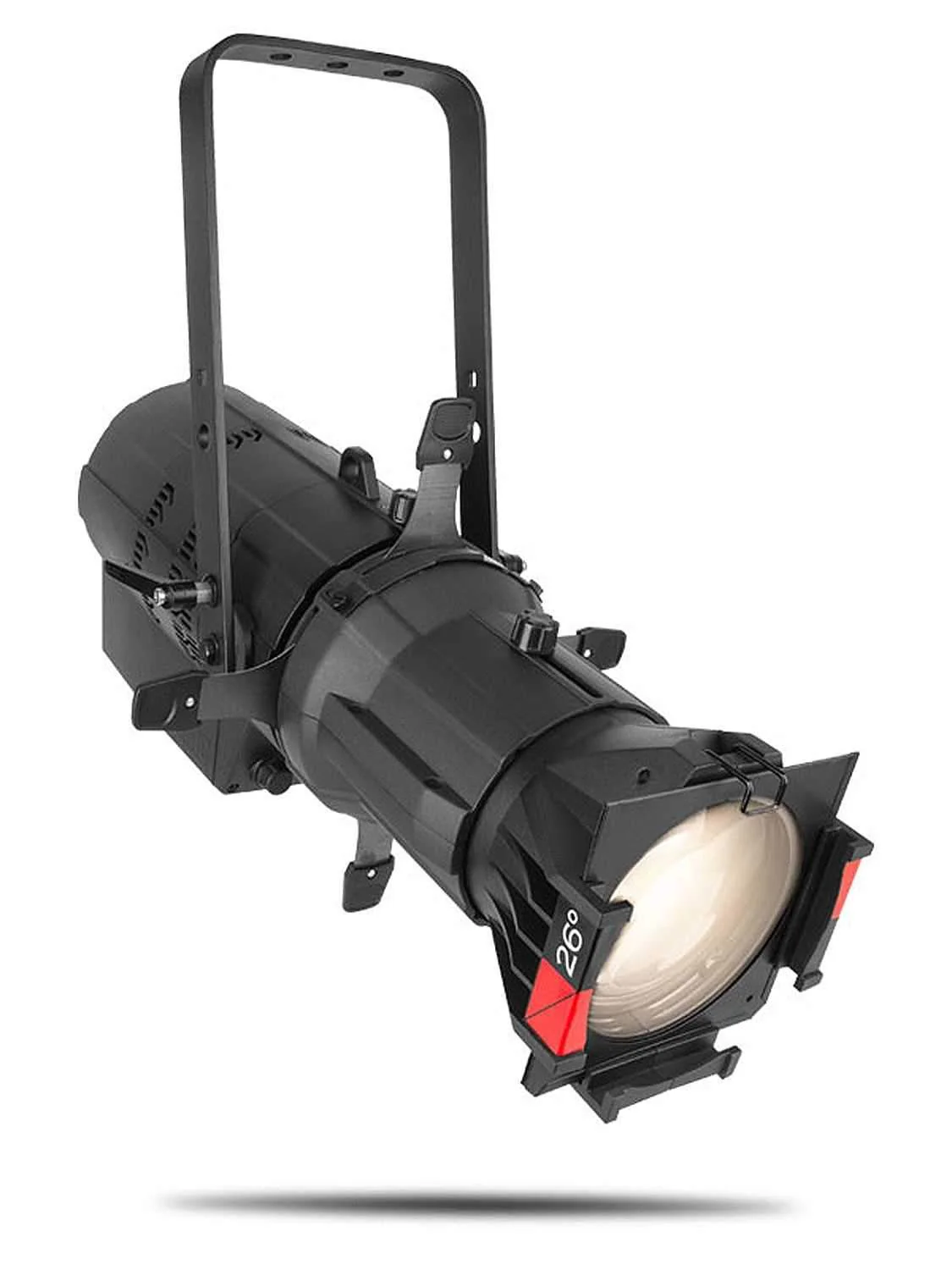

Chauvet Ovation E-260WWIP 36-Degree IP65 LED Ellipsoidal Light

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750W HPL. This ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

Features:

• Warm white ERS-style fixture with output exceeding a tungsten 750W source
• Fully IP 65 rated for seasonal use indoors or out
• Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
• Flat, even field of light for superior gobo projection
• RDM (remote device management) for added flexibility
• Adjustable PWM (pulse width modulation) to avoid flickering on camera

Specifications:

• Light source: 1 x 202W WW LED, (3.6 A), 3149K, 50,000 hours life expectancy
• Color temperature (at full): 3149 K
• CRI: 91
• Beam angle (with 36° lens): 20°
• Field angle (with 36° lens): 34°
• Dimming modes: 4
• Lumens (with 36° lens): 10,121
• Illuminance (with 36° lens): 4,053 lux @ 5m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

• Dimmer: electronic
• Shutter/strobe: electronic
• Strobe rate: 0 to 30 Hz
• Color temperature presets: No
• Dim modes: 4
• Built-in automated programs: yes

• Dimensions: 19.49" x 11.14" x 18.42" / 495 mm x 342 mm x 506 mm
• Exterior color: black
• Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory holder/gel frame size (19°, 26°, 36°, and 50° lens): 6.25" / 159 mm
• Weight: 20.2 lbs. / 9.2 kg

• Power connection: edison (local) plug to seetronic powerkon IP 65
• Power input: seetronic powerkon IP 65
• Power output: seetronic powerkon IP 65
• Data connectors: 5-pin XLR
• Cable length (power): 5' (1.5 m)

• Control protocol: DMX
• DMX channels: 1, 2, 3 or 6
• Modes/personalities: 4 personalities (1, 2, 3, 6)

• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power linking: 7 units @ 120V; 12 units @ 208V; 13 units @ 230V
• Power and current: 221W, 1.85A @ 120V, 60 Hz
• Power and current: 215W, 1.11A @ 208V, 60 Hz
• Power and current: 213W, 1.01A @ 230V, 50 Hz

• Ovation E-260WW IP
• Seetronic powerkon IP 65

• Lens tube: 19°, 26°, 36°, 50°
