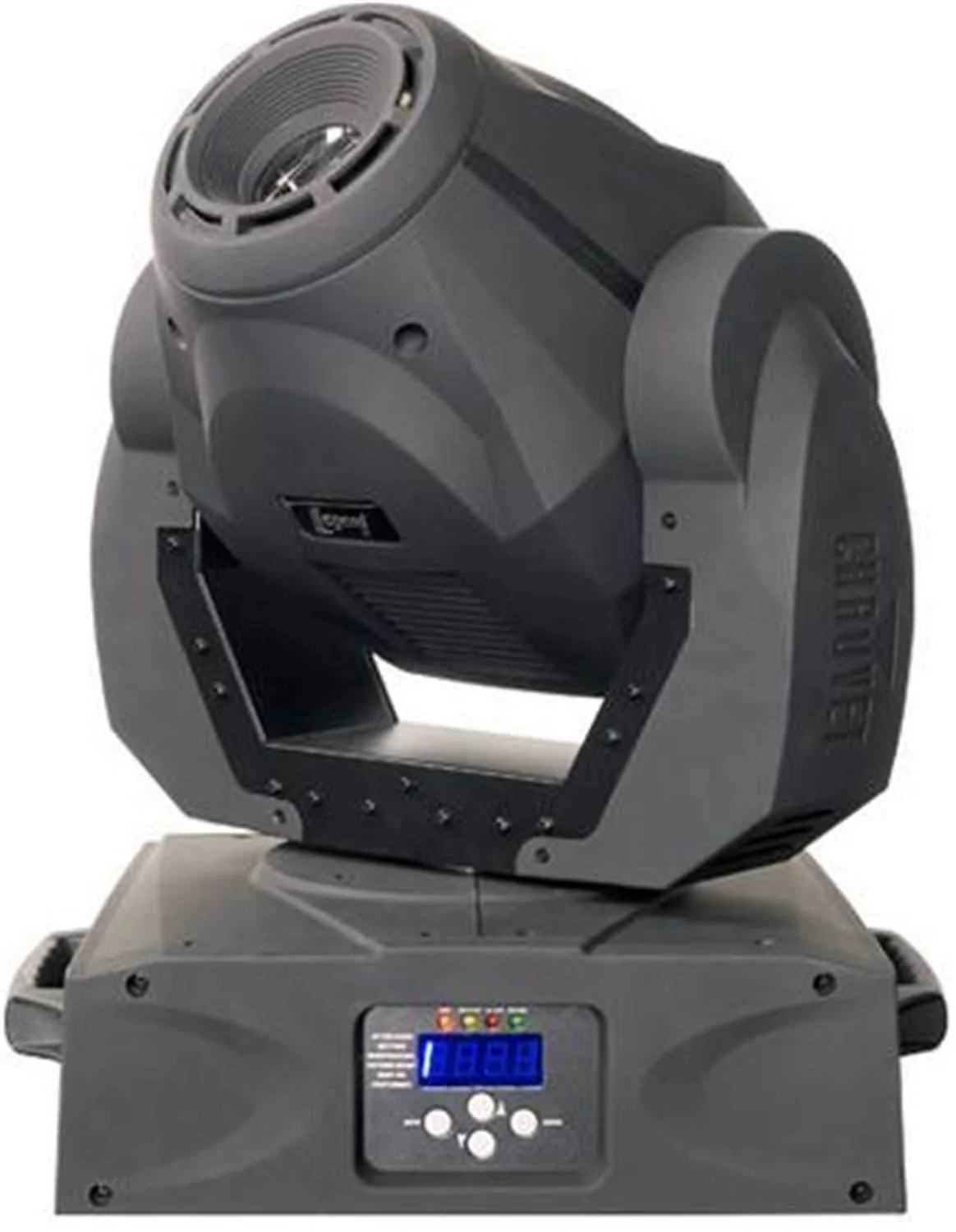

Chauvet Legend 550 Spot

The Legend 550 Spot moving yoke combines a powerful 575-watt high intensity discharge lamp with precision optics, including an iris. It houses two gobo wheels, one wheel with six slot-n-lock rotating gobos and the other with nine fixed gobos plus open. The fixture also includes two color wheels, one with a frost filter to create a soft edge similar to a wash.

Features:

• 12 or 18-channel, 575-watt moving yoke spot
• Pan: 540°
• Tilt: 270°
• Color wheel 1:9 trapezoid dicroic colors + white, Split/linear colors, Rainbow color spin at variable speeds
• Color wheel 2: 8 trapezoid dicroic colors + white and frost, Split/linear colors, Rainbow color spin at variable speeds
• Gobo wheel 1: Fixed gobo wheel, 9 steel replaceable gobos plus open,
• Gobo wheel 2:Indexed rotating gobo wheel with gobo shak, 6 glass, slot-n-lock gobos + open, Gobo wheel spin at variable speed
• 3-facet rotating prism
• Variable double bladed shutter
• Variable iris
• Variable focus
• Variable dimmer (0 ~ 100%)
• Move-in-black for pan/tilt, color, gobo
• Remote fixture reset, lamp on/off and vector speed adjustments
• Built-in movement and color macros with range adjustments
• Automatic pan & tilt correction
• FasTap for easy access to voltage re-tap
