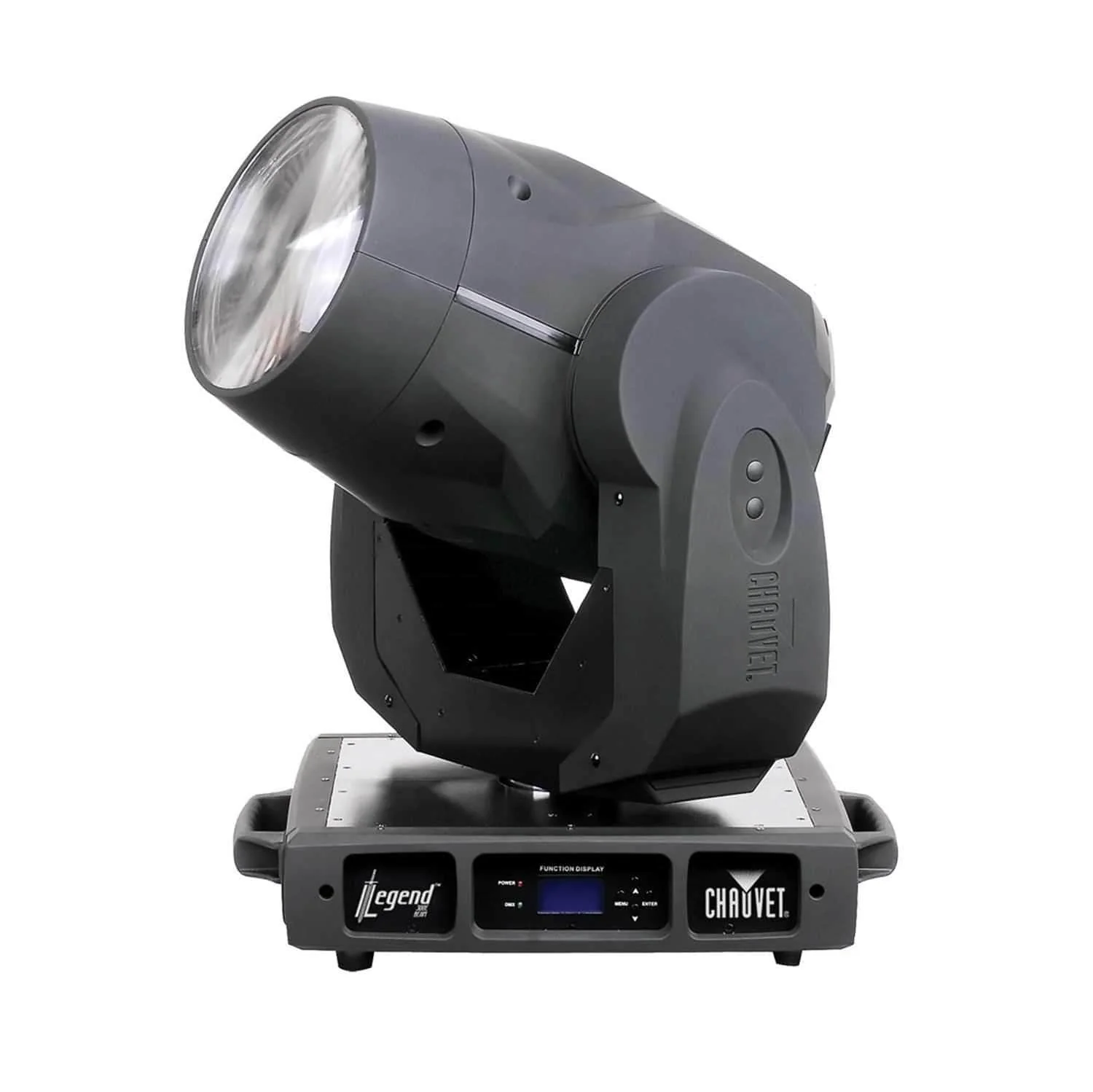

Chauvet Legend 300E Beam Moving Yoke Beam

The Legend™ 300E Beam moving yoke beam fixture features CMY color mixing to produce a vivid beam of light. It is powered by a MiniFastFit lamp. The fixture offers fast and precise pan of 540° and tilt of 270°. A gobo wheel with seven slot-n-lock gobos provides further beam shaping.

• 17 or 25-channel compact, fully electronic, 300-watt moving yoke beam
• Pan: 540°
• Tilt: 270°
• Color wheel: 7 colors + white, Split/linear colors, Rainbow color spin at variable speed
• Gobo wheel: Indexed, rotating gobo wheel with gobo shake,7 metal, slot-n-lock gobos + open, Gobo wheel spin at variable speed, 16-bit gobo rotation
• Variable frost
• CTC filters (5,600 K and 3,200 K)
• CMY color mixing system with vector speed adjustments
• 3-facet rotating prism
• Variable shutter
• Variable 16-bit dimming (0 ~ 100%)
• Individual reset of pan/tilt, color, gobo, shutter, prism
• Move-in-black for pan/tilt, color, gobo
• Remote fixture reset, lamp on/off and vector speed adjustments
• Built-in movement macros with range adjustments
• Built-in color macros
• 3-pin and 5-pin DMX connections
• User-configurable lamp ignition delay
• User-configurable maintenance reminder
• Electronic ballast with power factor correction
• Electronic power supply
• Automatic pan and tilt correction
• Pan and tilt locks
• Lamp and fixture use timers
• Power saver mode
• Battery powered display

• All gobos: 26.94 mm outside, 22.98 mm image, 4.27 mm max thickness
• Beam Angle: 7.63°
• Lux: 142,500 @ 5 m
• Light source: Philips MSR Gold 300/2 MiniFastFit™ 8,400 K, 750 hrs
• Power and current: 120 V, 60 Hz; 458 W, 3.94 A (operating), 3.0 A (inrush), PF 0.99, 230 V, 50 Hz; 428 W, 2.02 A (operating), 2.3 A (inrush), PF 0.95
• AC power: Auto-ranging 100 ~ 240 V, 50/60 Hz
• Weight: 43.60 lbs
• Size: 14.5 x 17.9 x 23.7 in
