Chauvet F3 x 4 SMD LED Video Panel System

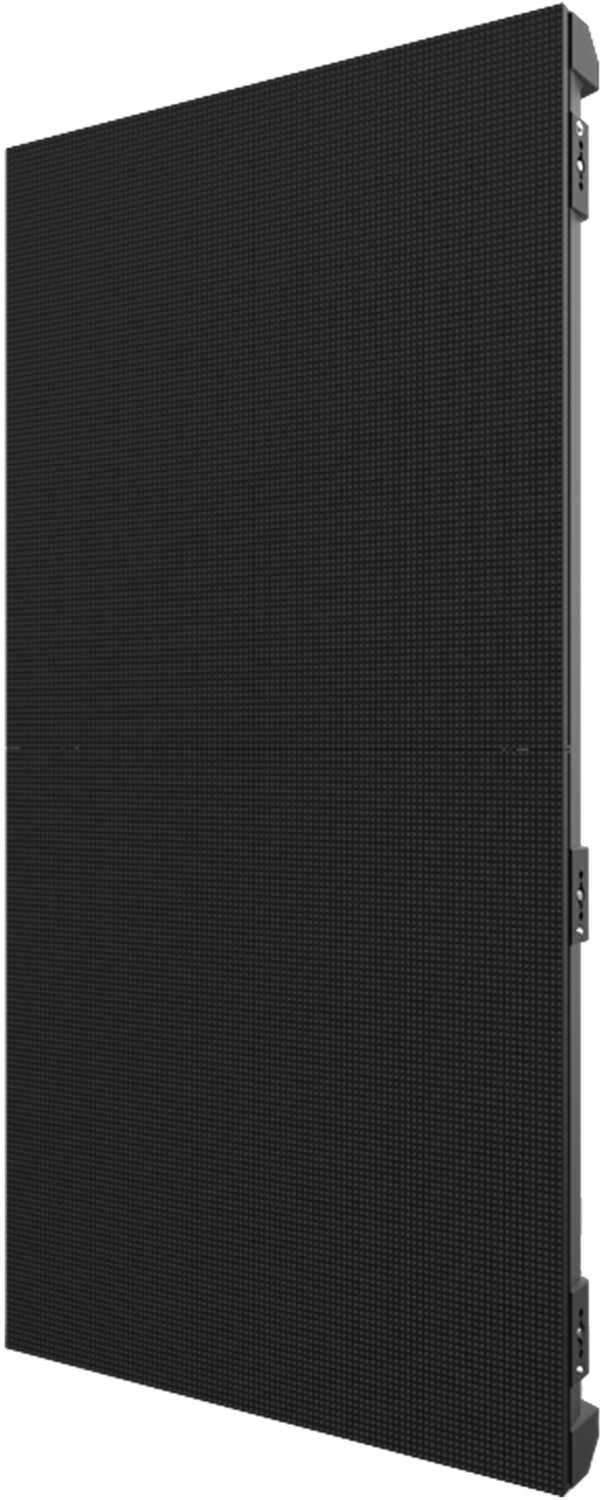

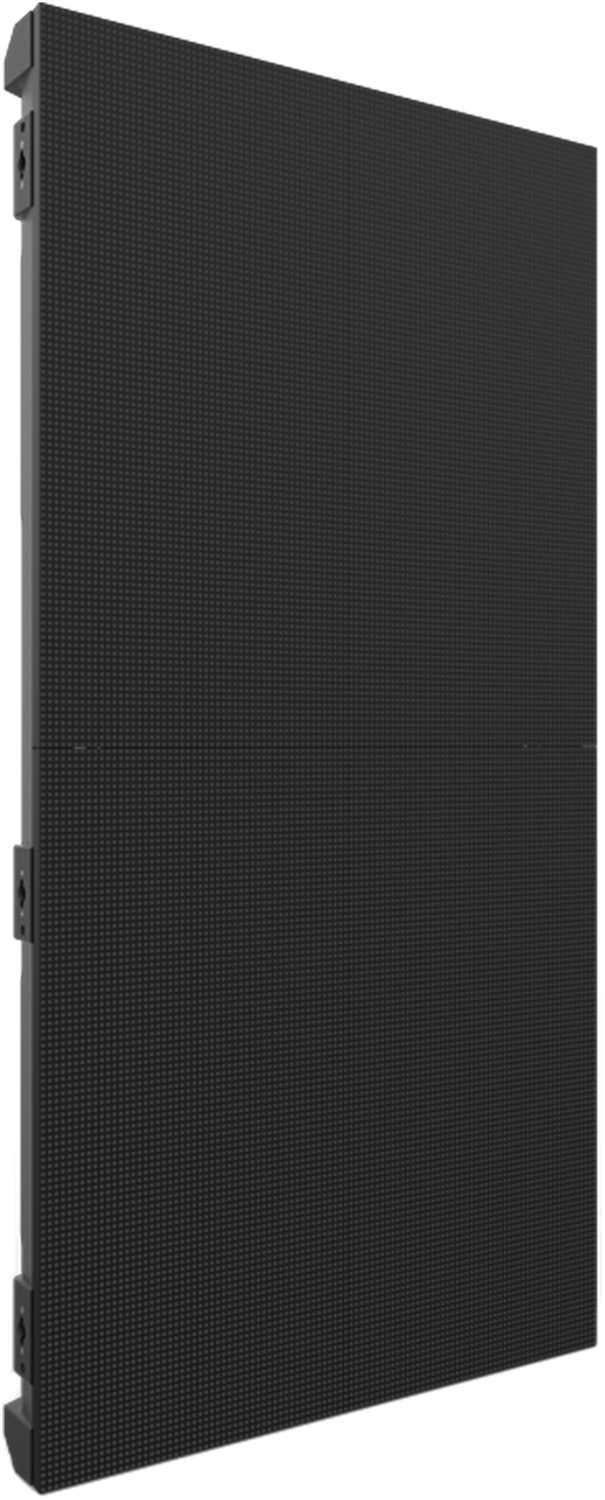

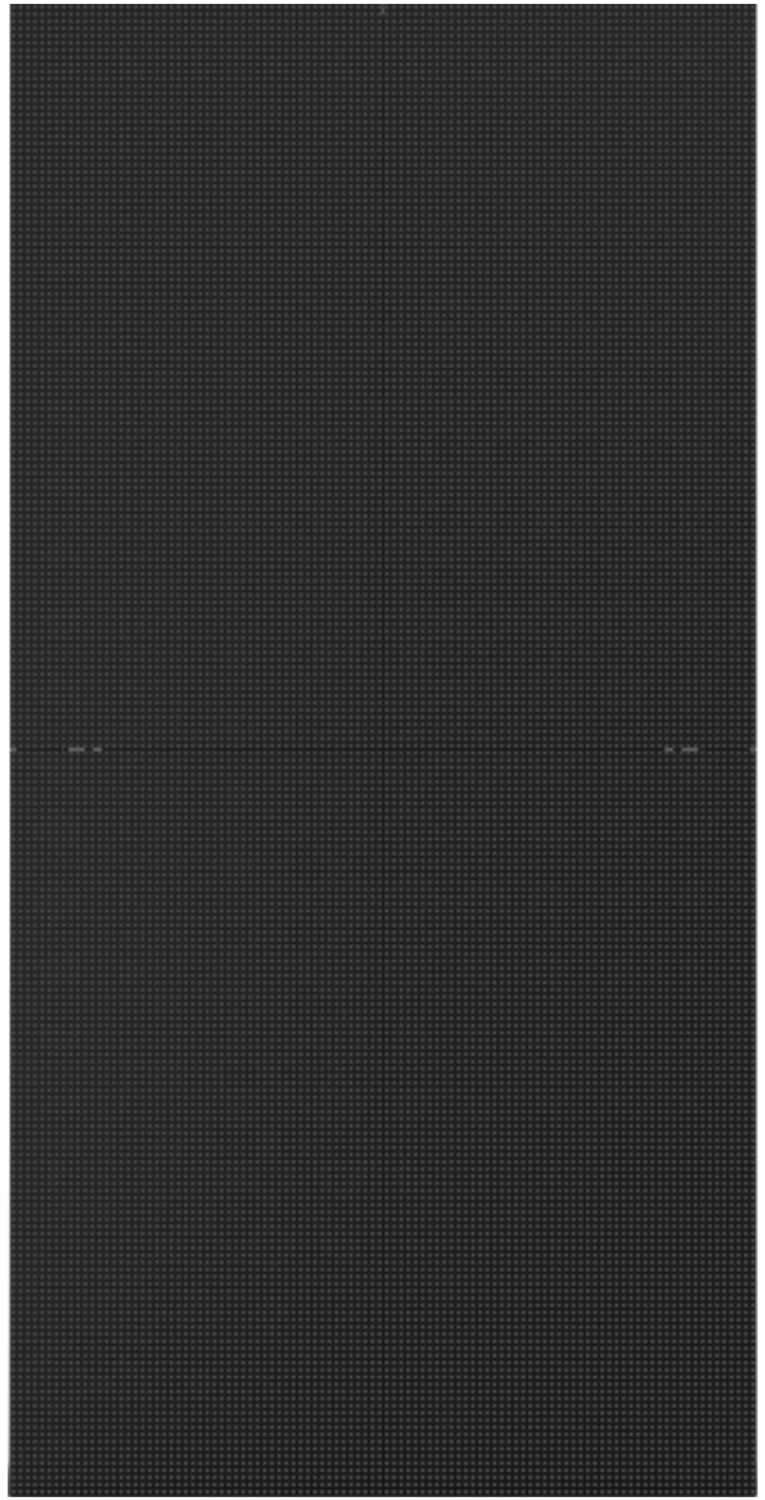

F3 is a 3.9 mm pitch 1 m x 0.5 m LED video panel equally suited for installations and rentals. It runs on the Novastar control protocol and is fully front & rear serviceable with easily accessed magnetic LED modules. The panels may be mounted directly on a flat wall due to the front-service option. The panel features powerful magnets in the frame, which assist with hanging the panels

What's Included

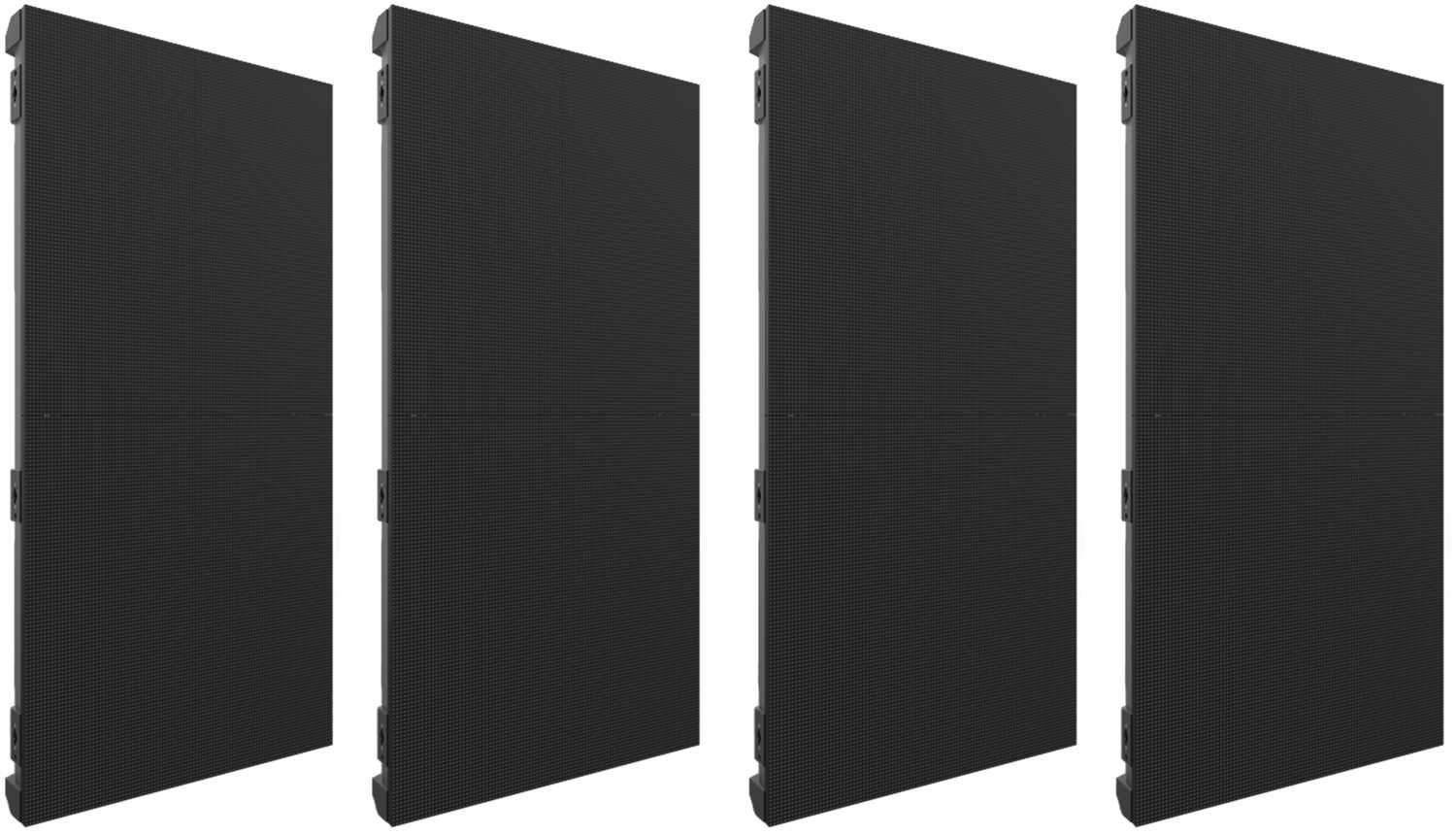

• 4 F3 video panels
• 1 Road case
• 1 Seetronic powerKon power cord
• 4 Seetronic powerKon power linking cords
• 4 Seetronic etherKon signal linking cords

Features:

• 3.9 mm pitch video panel works with the VIP Drive 43Nova, using the Novastar control protocol
• Black body LEDs accurately reproduce high contrast video quality
• 1,000 x 500 mm magnesium die-cast housing makes this product among the lightest in its class

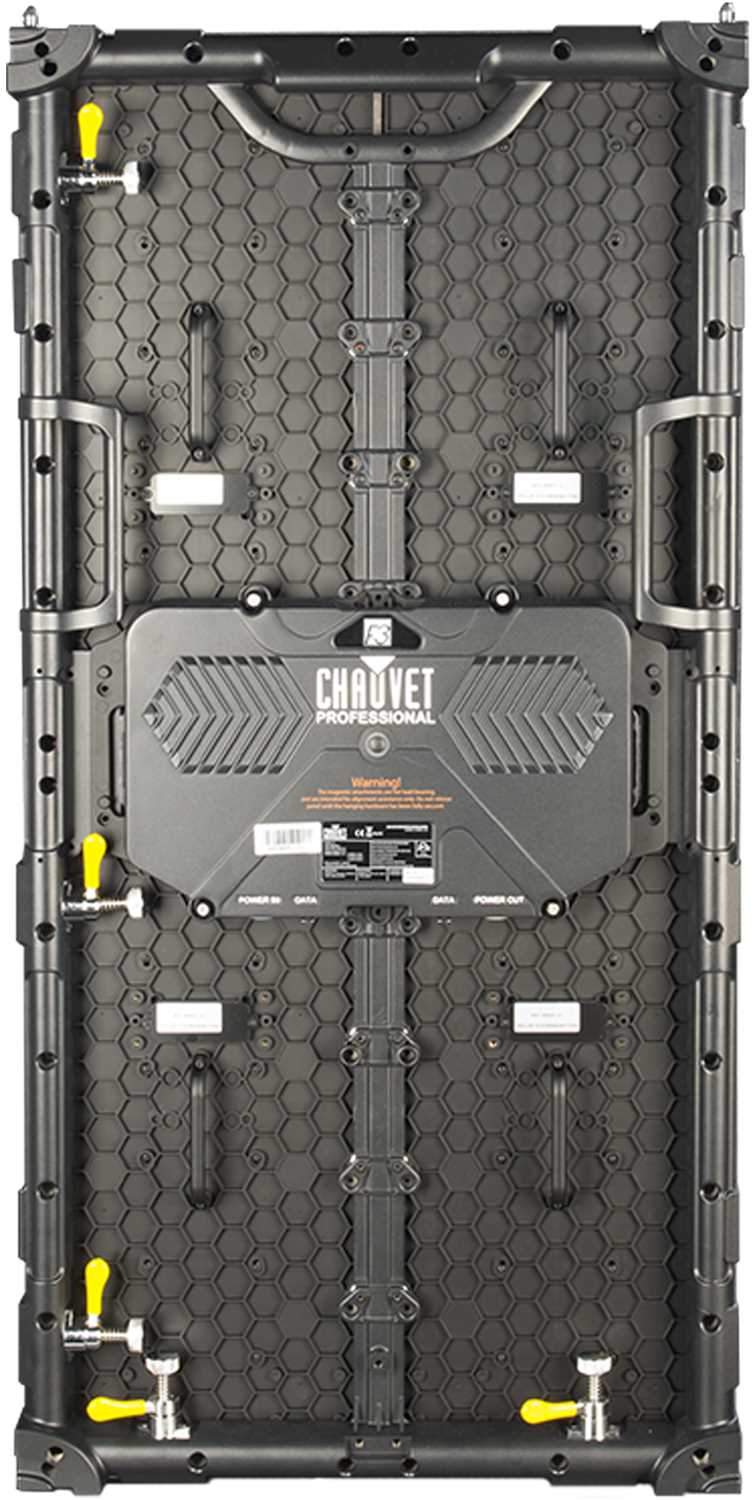

• Magnetic LED modules and modular control box make service fast and easy
• Full front and rear service maximizes installation and maintenance
• Modular system allows for front installation onto a flat structure, maximizing installation flexibility
• Magnetic connection and positioning pins assist in hanging panels
• Dual backup power supplies for more stable displays
• Intelligent modules with dedicated memory improve the image quality and simplify maintenance
• Easily replace the LED masks without tools so your display remains flat even after mishandling

Specifications:

Optical
• Light Source: 32,768 LEDs (tri-color RGB) SMD 2121, 50,000 hours life expectancy
• Color Wavelength: red (619 to 624 nm), green (522 to 525 nm), blue (468 to 471 nm)
• Viewing Angle: 140°
• Calibrated Illuminance: 1,500 NITS
• Contrast Ratio: 20,776 : 1
• Pixels: 128 x 256
• Pixel Pitch: 3.9 mm
• Minimum Viewing Distance: 10 ft (3m)
• Pixel Density: 65,536/m2
• Display Refresh Rate: 3,840 Hz
Construction/Physical
• Dimensions: 19.69 x 3.5 x 39.37 in (500 x 89 x 1000 mm)
• Weight: 28.6 lb (13kg)
• Exterior Color: Black
• Housing Material: Magnesium die-cast
• Maximum vertical hang: 16 panels
• Maximum horizontal hang: 22 panels
• Transparency: 0%
Connections
• Power Connection: Edison (Local) plug to Seetronic powerKon
• Power Input: Seetronic powerKon
• Power Output: Seetronic powerKon
• Data Connectors: Seetronic etherKon
• Cable Length (signal extension): 4 ft (1.2 m)
• Cable Length (power): 6 ft (1.8 m)
• Cable Length (power extension): 6 ft (1.8 m)
Control
• Control Protocol: Novastar
• Maximum Panels/VIP Drive 43Nova: 20/port, 80/Drive (4 ports) (Video products only)
• Video Input (compatible): 60 Hz
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
• Power and Current: 263 W, 2.18 A @ 120 V, 60 Hz
• Power and Current: 265 W, 1.28 A @ 208 V, 60 Hz
• Power and Current: 269 W, 1.16 A @ 230 V, 50 Hz
Certifications/Qualifications
• CE, MET
• IP Rating: IP31, dry location
• Thermal Dissipation @120V: 897 BTU per hour
• Thermal Dissipation @ 208V: 904 BTU per hour
• Thermal Dissipation @ 230V: 918 BTU per hour
• Temperature (Ambient): Black
Optional Accessories
• ArKaos Media Master Express + KN software
• Clamps
• Neutrik powerCON cables
• Neutrik etherCON cables
• MT-03 LED module removal tool
Required Accessories
• Controller (required): VIP Drive 43Nova
• Compatible Mounting Options: F-series Rig Bar (0.5 m, 1 m)(truss mounting) M12 Bolt/Clamp (rear mounting)
