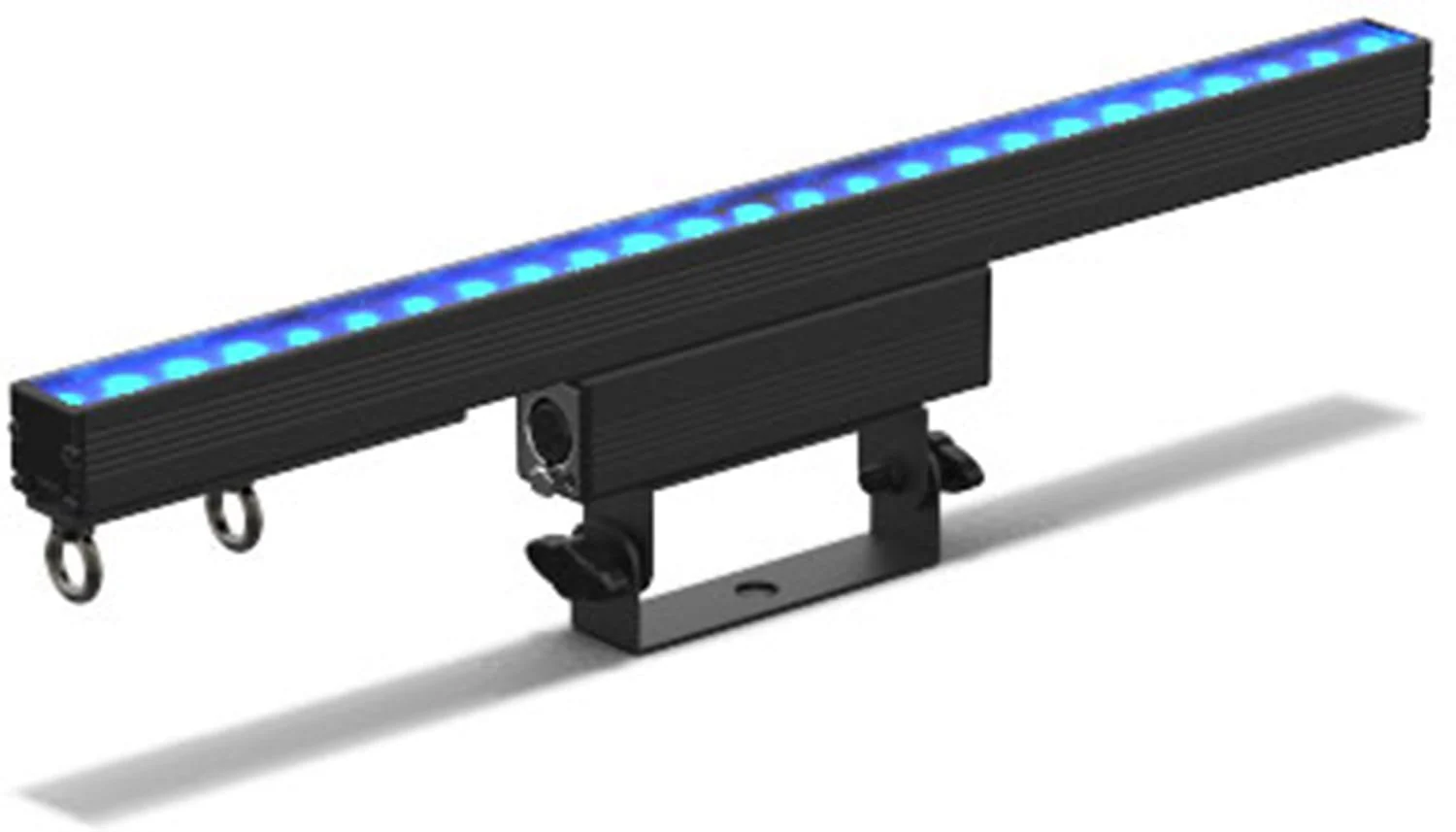

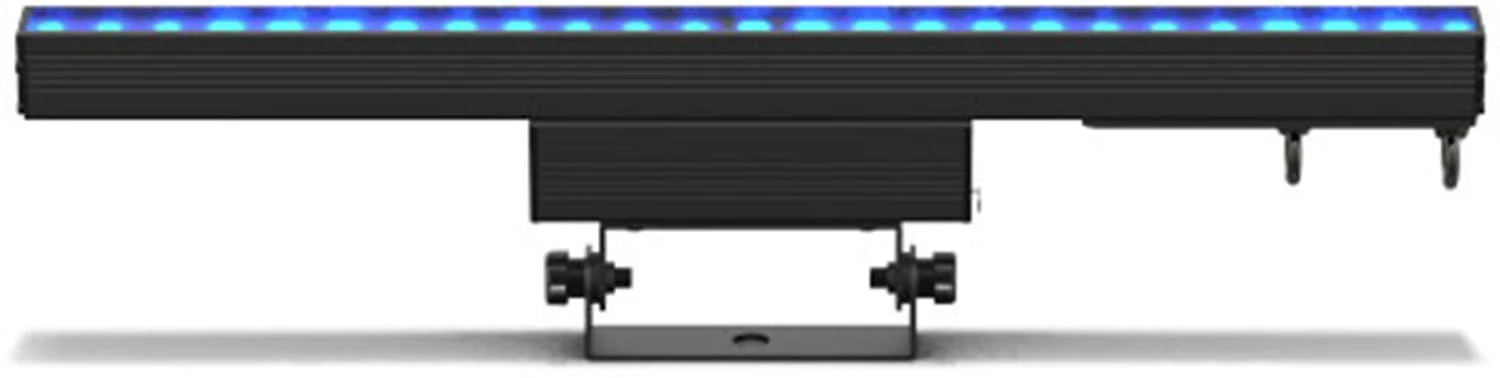

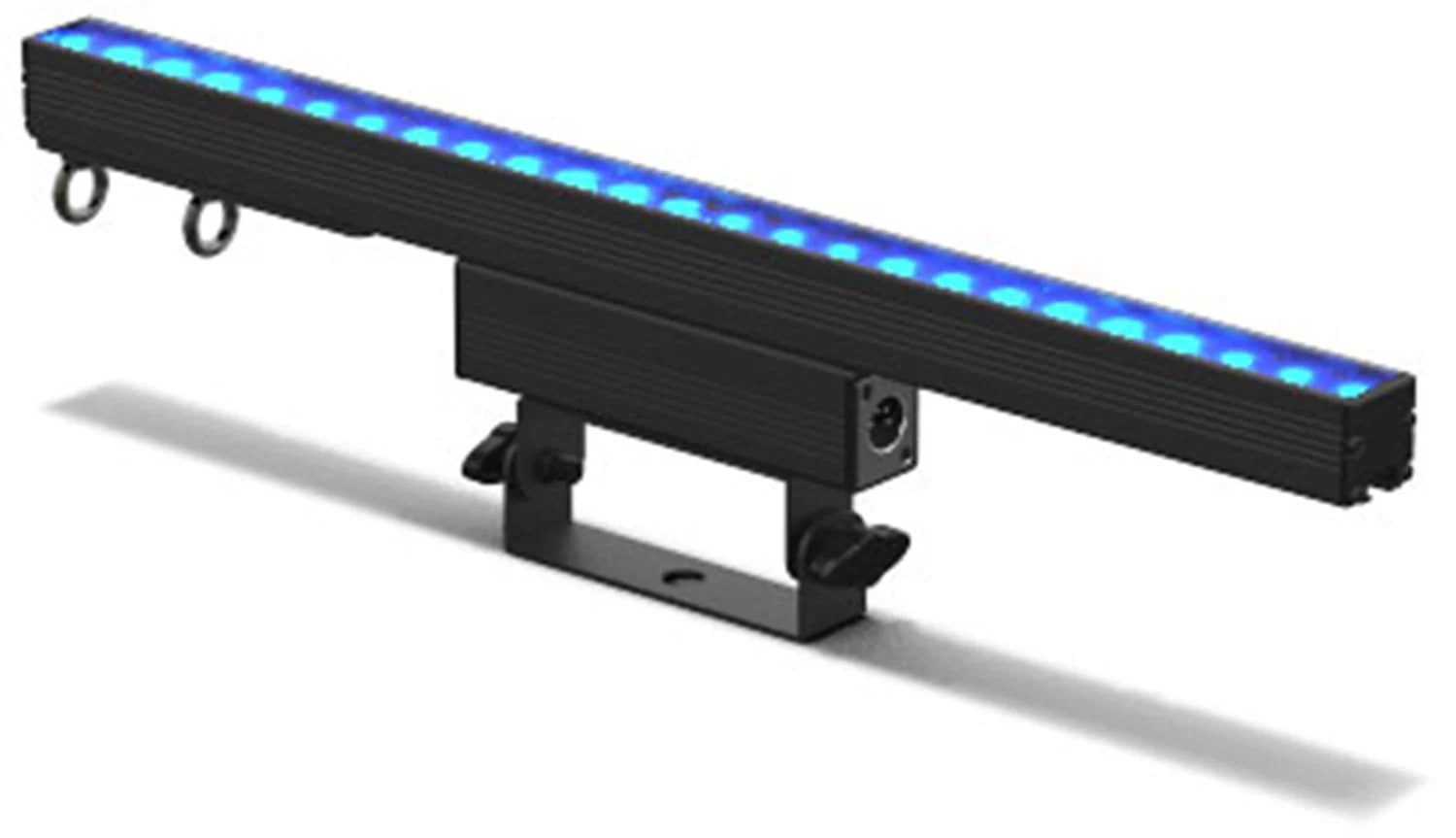

Chauvet EPIX Strip Tour 50 Pixel Mapping LED light

Épix Strip Tour 50 is a pixel-mapping ½ meter LED strip fixture, featuring 25 LEDs in a row. Power and control it through the Épix Drive 900 on Art-Net Kling-Net or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle.

Features:

• Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
• Includes square milky filter (installed) for diffused output and black stealth filter (included) for high contrast.
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
• Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15- channels), or use the Pixel personality (75 channels) for use with video servers
• Increase viewing angle by using the dome accessory
• Epix Drive 900 required for operation

Specifications:

• OPTICAL
• Light Source: 25 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle: 125°
• Viewing Angle (with optional dome accessory): 180°
• Illuminance (white frost filter installed): 1,100 NITS
• Illuminance (with optional dome accessory): 700 NITS
• Illuminance (black stealth filter installed): 270 NITS
• Pixels: 25 x 1
• Pixel Pitch: 20 mm
• Refresh Rate: 4,700 Hz
• CONSTRUCTION / PHYSICAL
• Dimensions: 19.68 x 1.2 x 4.7 in (500 x 30.5 x 119.5 mm)
• Housing Material: Aluminum
• CONNECTIONS
• Data Connectors: 4-pin XLR
• Physical Linking: 36 inline Epix Strip Tour
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
• CONTROL
• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels Art-net, sACN : 75
• ELECTRICAL
• Power and Current: 7 W, 0.051 A @ 120 V, 60 Hz
• Power and Current: 9 W, 0.046 A @ 208 V, 60 Hz
• Power and Current: 8 W, 0.031 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• WHAT'S INCLUDED
• ÉPIX Strip Tour 50
• White Frost Filter
