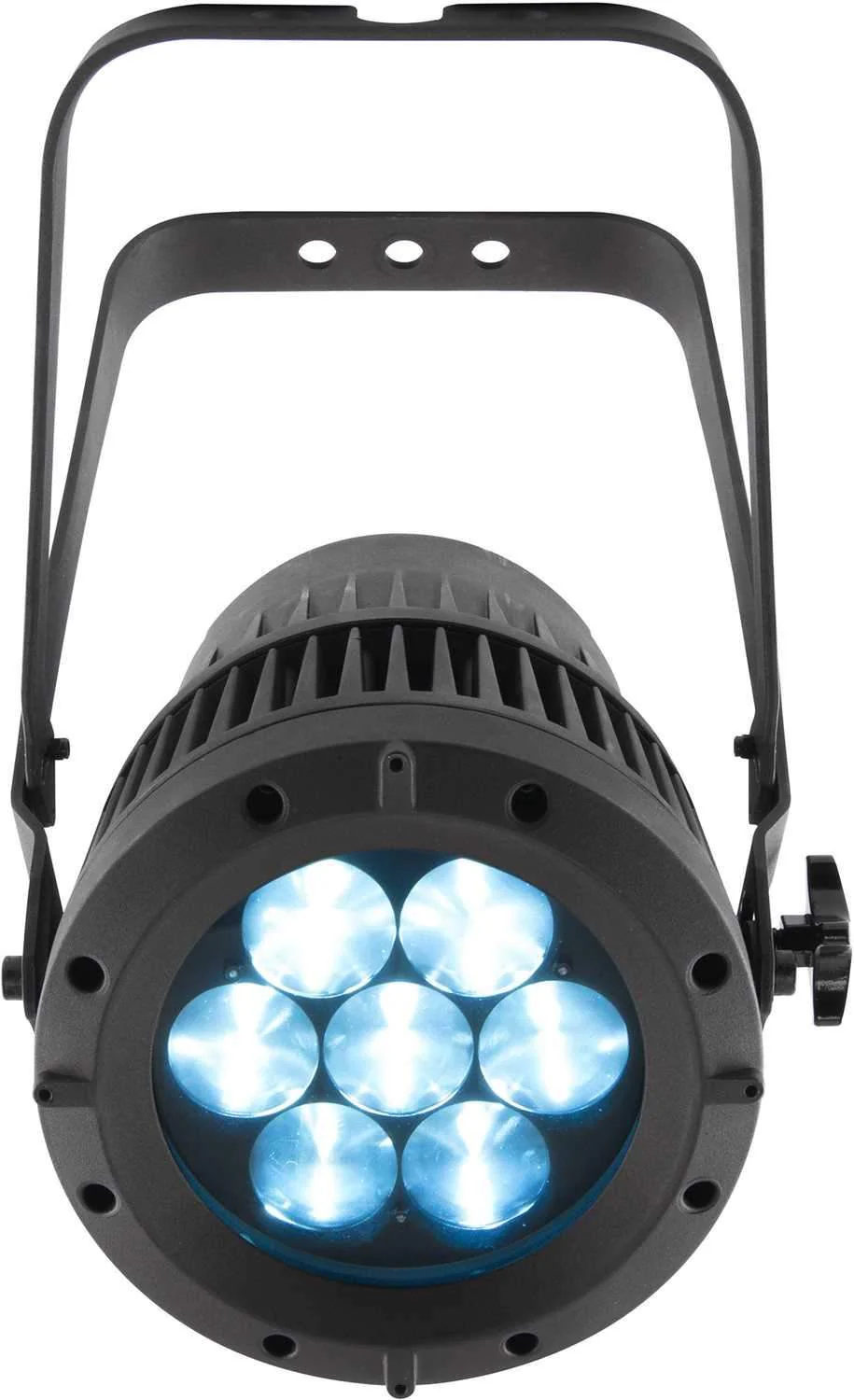

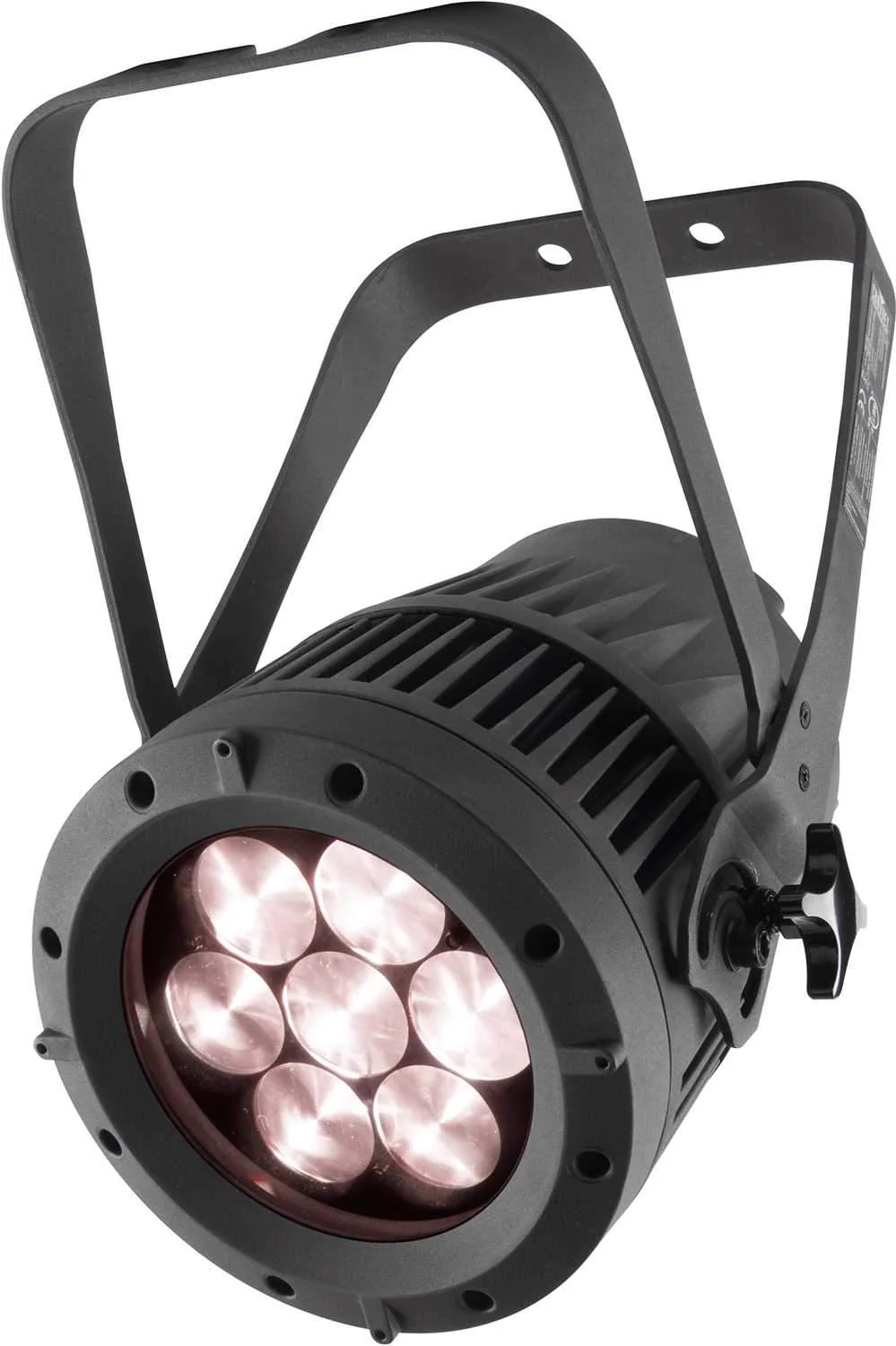

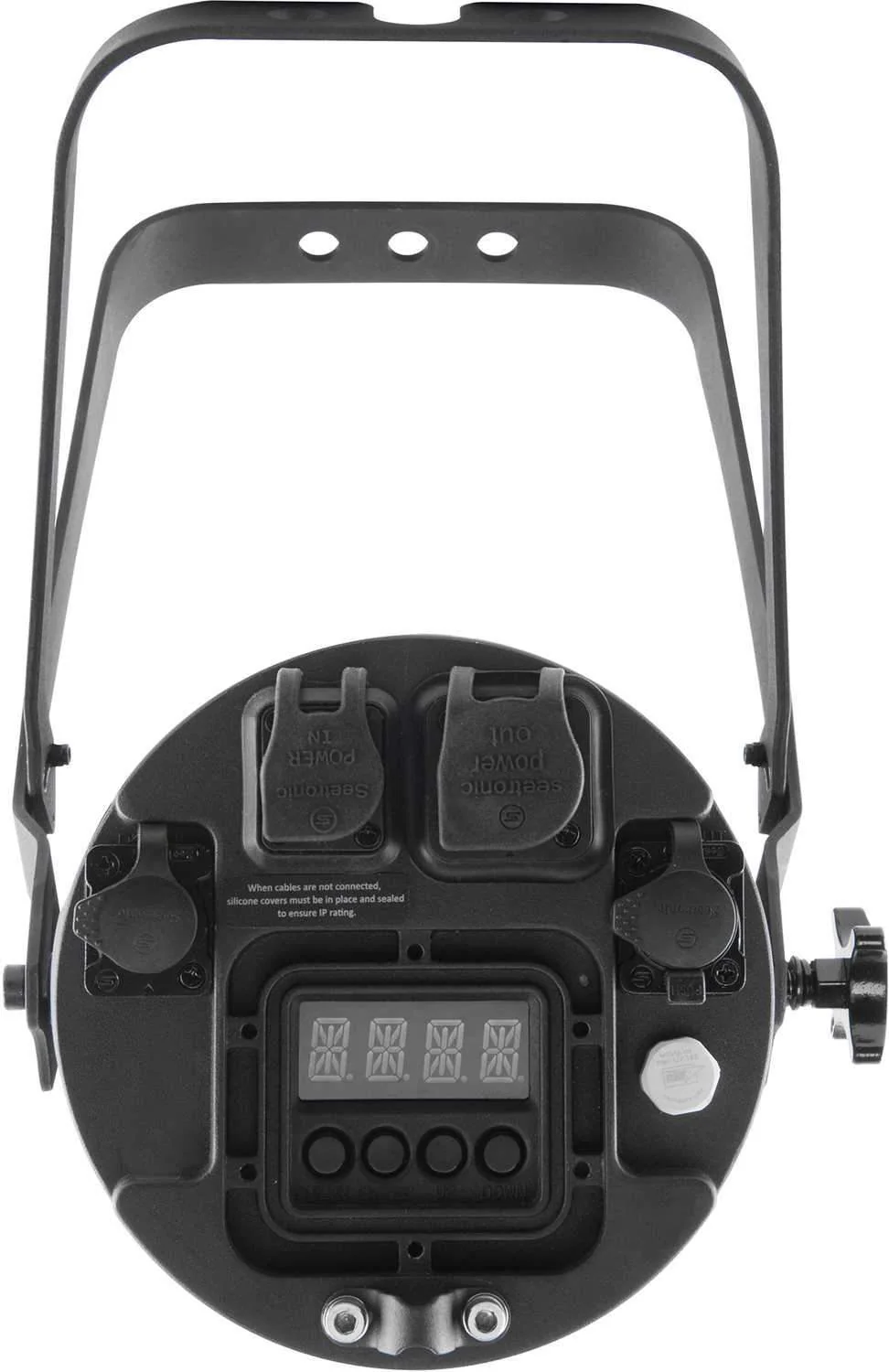

Chauvet COLORado 1-Quad Zoom VW 7 x 15w LED Light

COLORado 1-Quad Zoom VW is a bright indoor/outdoor PAR-style variable white wash light featuring seven 15 W Osram quad-LEDs with tunable color temperature, from 2800 K to 9010 K, to match tungsten sources up to and beyond daylight. A zoom range of 15° to 49°, and five dimming curves allow the creative use of the fixture as a beam, wide flood, and wash. It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use.

• Variable white color temperature control via DMX or manually
• Color temperature range of 2,800 to 9,000 K
• 16-bit dimming resolution for smooth fades
• Zoom control via DMX or manually
• Built-in auto and custom programs recalled via DMX and Master/Slave
• Selectable, smooth dimming curves for programming versatility
• Color macros with included speed adjustment
• Double-bracket yoke doubles as a floor stand
• All environment operation with IP rated power and DMX connections
• 5-pin DMX input/output connections
• LED display with password protection

Optical:
• Light source: 7 LEDs (quad-color VW) 5 W, (625 mA), 5061 K, 50,000 hours life expectancy.
• Color temperature (range): 2804 to 9013 K
• CRI: 83
• Beam angle: 9° to 33°
• Field angle: 15° to 49°
• Zoom angle: 15° to 49°
• Illuminance: 15° - 2,700 lux @ 5 m, 49° - 254 lux @ 5 m
• PWM frequency: 1,200 Hz
Dynamic Effects:
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe rate: 0 to 20 Hz
• Standalone color mixing: Yes
• Color temperature Presets: Yes
• Dim modes: 5
• Dim curves: 4
• Built-in automated programs: Yes
• Customizable programs: Yes
• Recall Custom programs: Yes
Construction & Physical:
• Dimensions: 13.14 x 9.25 x 7.48 in (334 x 235 x 190 mm)
• Weight: 15.2 lb (7kg)
• Exterior color: Black
• Housing material: Aluminum die-cast
• Accessory holder/gel frame size: 7.5 in (191 mm)
Connections:
• Power connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power input: Seetronic Powerkon IP65
• Power output: Seetronic Powerkon IP65
• Data connectors: 5-pin XLR
• Cable length (power): 5 ft (1.5 m)
Control:
• Control protocol: DMX
• DMX channels: 1, 5 or 9
• Modes/personalities: 3 personalities (UNO, STDW, STDP)
Electrical:
• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power linking: 20 units @ 120 V; 34 units @ 208 V; 37units @ 230 V
• Power and current:
• 77 W, 0.65 A @ 120 V, 60 Hz
• 82 W, 0.40 A @ 208 V, 60 Hz
• 84 W, 0.36 A @ 230 V, 50 Hz
Certifications & Qualifications:
• CE, MET
• IP rating: IP65, temporary outdoor/wet use
What's Included:
• COLORado 1-Quad Zoom VW
• Seetronic Powerkon IP65 power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Gel frame
