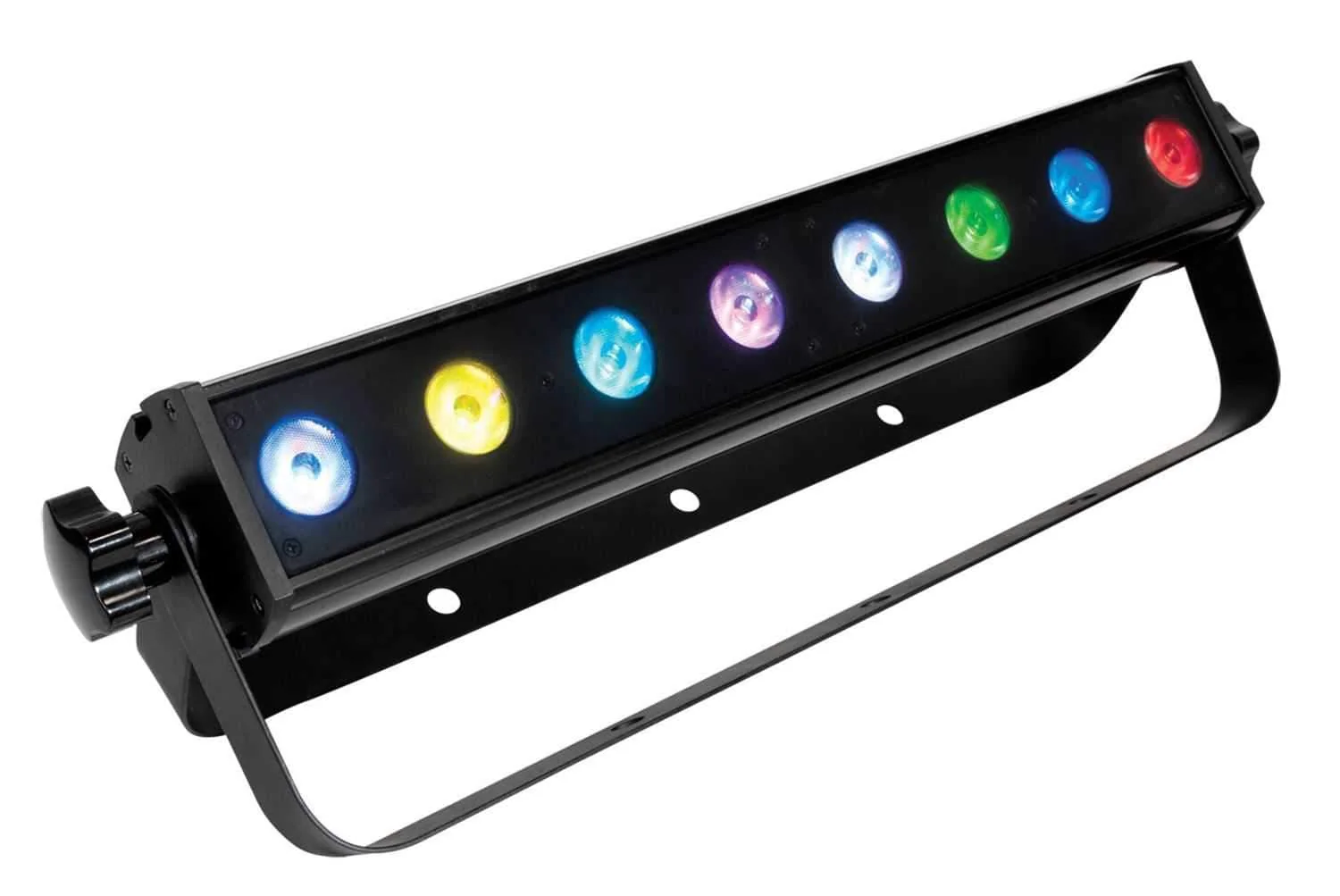

Chauvet Color Dash Batten TRI RGB DMX Bar Wash

It’s a fantastic addition to any show. It not only provides flawless solid colors for uplighting surfaces; it’s also highly effective as a striking effect light. The pixel mode personality allows control over each of the eight high-powered, tri-colored LEDs, giving the designer the flexibility to create intricate runway effects.

• 3, 4, 11, or 24-channel tri-color RGB LED wash light
• Operating modes: 3-channel: RGB control, 3-channel: HSV control, 4-channel: RGB, dimmer, 11-channel: RGB, dimmer, color macro, strobe, auto/custom, speed, ID addressing, dimmer curve, pre-programmed block control
• 24-channel: Pixel mode
• RGB color mixing with or without DMX control
• Color temperature presets (3,200 ~ 10,000 K)
• Built-in automated programs via DMX
• Recall custom programs via DMX
• Five distinct dimming curves
• Additional power output: max 12 units @ 120 V
• LCD display with password protection
• User selectable fan speed control
• 3-pin DMX input and output connectors
• Double-bracket yoke doubles as floor stand
• Color Calibration

• 16° optics
• Beam angle: 17°
• Field angle: 33°
• Lux: 1,113 lux @ 2 m
• Light source: 8 (3 W) tri-color LEDs, 50,000 hrs: red, green, blue (1,050 mA)
• Power and current: 120 V, 60 Hz; 38 W, 0.56 A (operating), 0.3 A (inrush), 230 V, 50 Hz; 36 W, 0.3A (operating), 0.3 A (inrush)
• AC power: Auto-ranging 100 ~ 240 V 50/60 Hz
• Power input cable: 60 in (1,524 mm)
• Weight: 6.8 lbs
• Size: 22.1 x 3.5 x 6.5 in
