Blizzard Pixellicious Squared RGB LED Panel Light

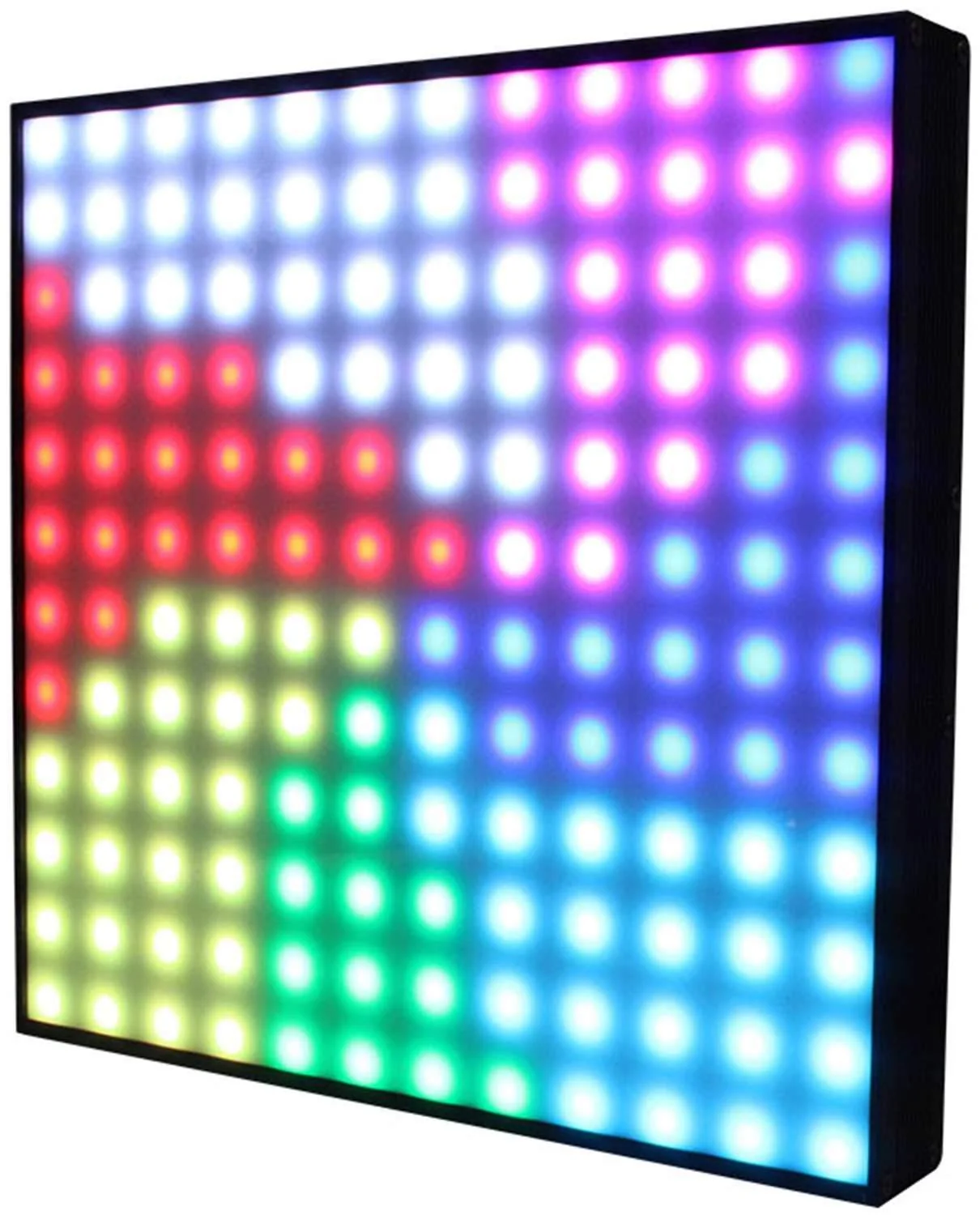

Introducing Pixellicious 2™ the insanely cool pixel mapping, 12" x 12" Square fixture that sets up in minutes with minimal technical know-how. Each panel houses 144 tricolored SMD 5050 RGB LEDs, and has a pixel pitch of 25 millimeters and 120-degree viewing angle.

Pixel mapping displays are achieved in minutes using multiple control options: DMX-512, industry standard Art-Net, Arkaos Kling-net, linkable in Master/Slave Mode up to 8 panels or it can simply be controlled via its easy-to-use 4-button LED control panel.

It also comes with equipped with PowerCON™ compatible AC in/out and DMX in/out jacks. And of course, the Pixellicious 2™ fixtures are backed by Blizzard’s 2-year warranty

Main Features

• Full color mixing in standalone, master/slave and DMX modes
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Easy to use LED digital control panel
• Individually controllable 3-in-1 LED pixels via 480ch DMX/Art-Net

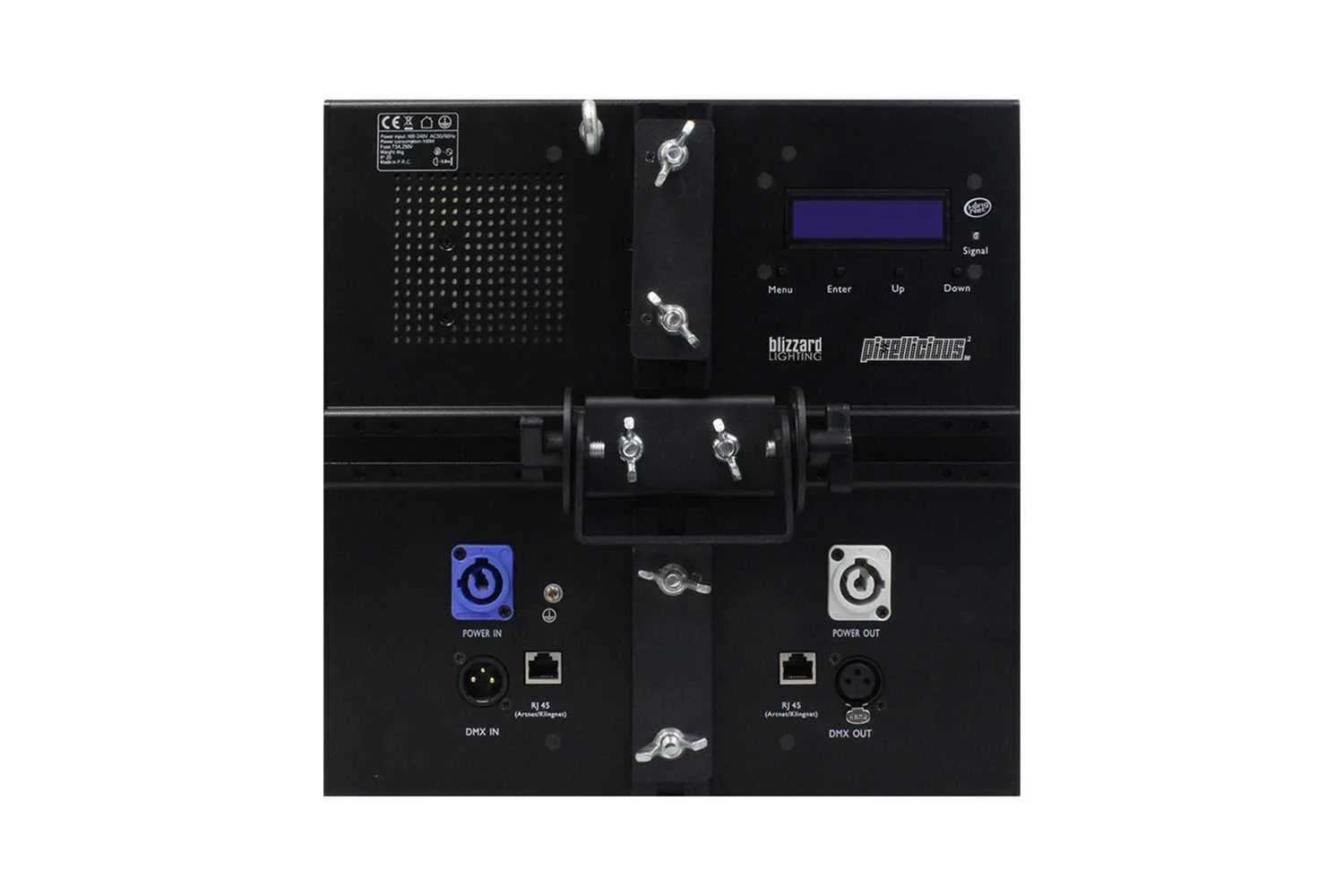

• Art-Net, Kling-Net, Ethercon RJ45 In/Out jacks built into back of fixture
• 3-pin & 5-pin male input and 3-pin & 5-pin female output
• Flexible mounting bracket allows fixtures to be connected horizontally or vertically
• PowerCon™ compatible AC power In/Out connectors

Power

• Operating Voltage: 120-230VAC, 50-60 Hertz
• Power Consumption: 51W, .36A

Light Source

• LED: 144 SMD 5050 3-in-1 RGB LEDs

Optical

• BeamAngle: 120°

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512
• DMX Channels: 8/35/480 (User Selectable)
• Input: 3-pin & 5-Pin XLR Male
• Output: 3-pin & 5-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset, Art-Net/Kling-Net

Weight & Dimensions

• Size: 12" x 12" x 4"
• Weight: 7.6 lb (3.5 kg)
