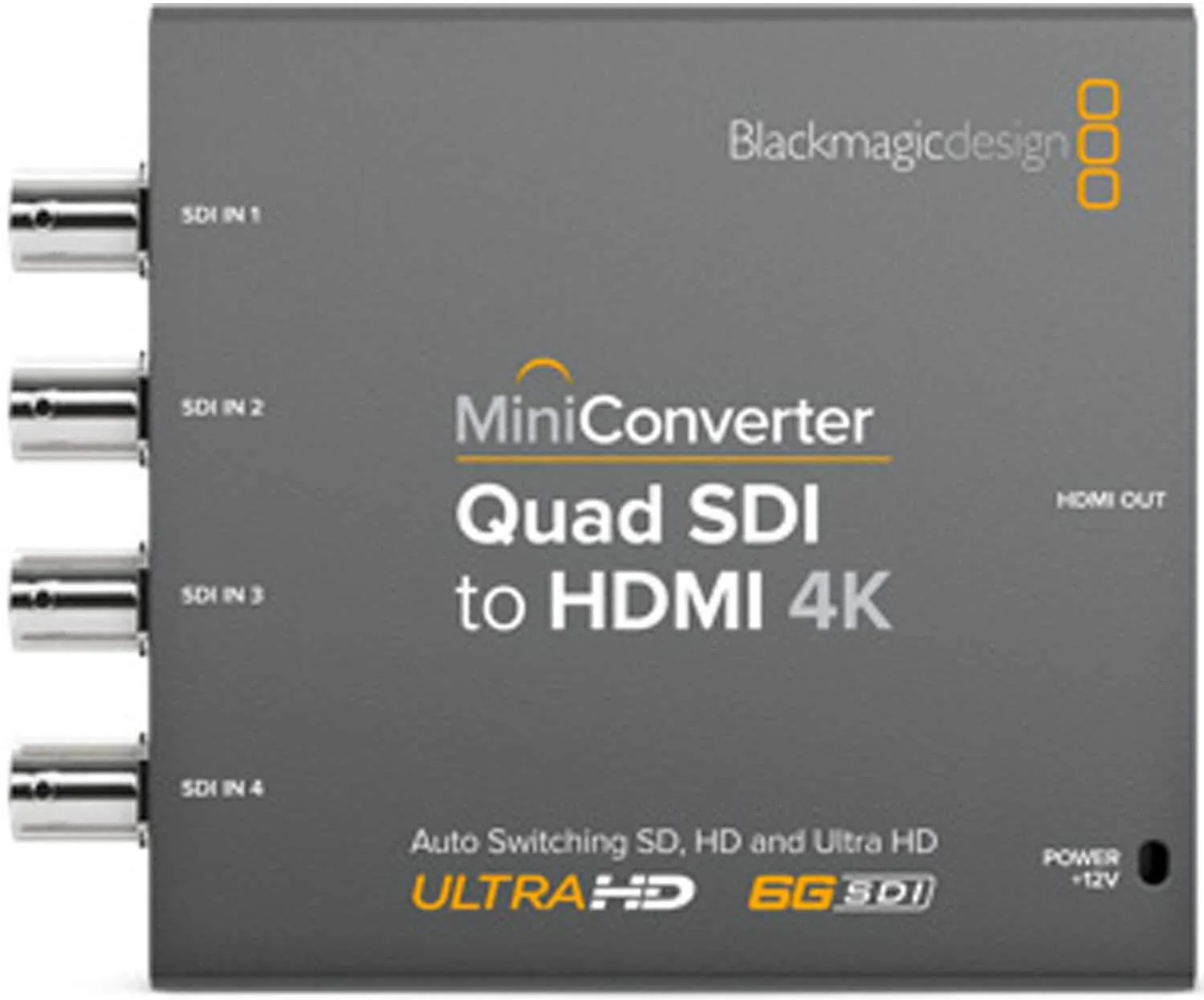

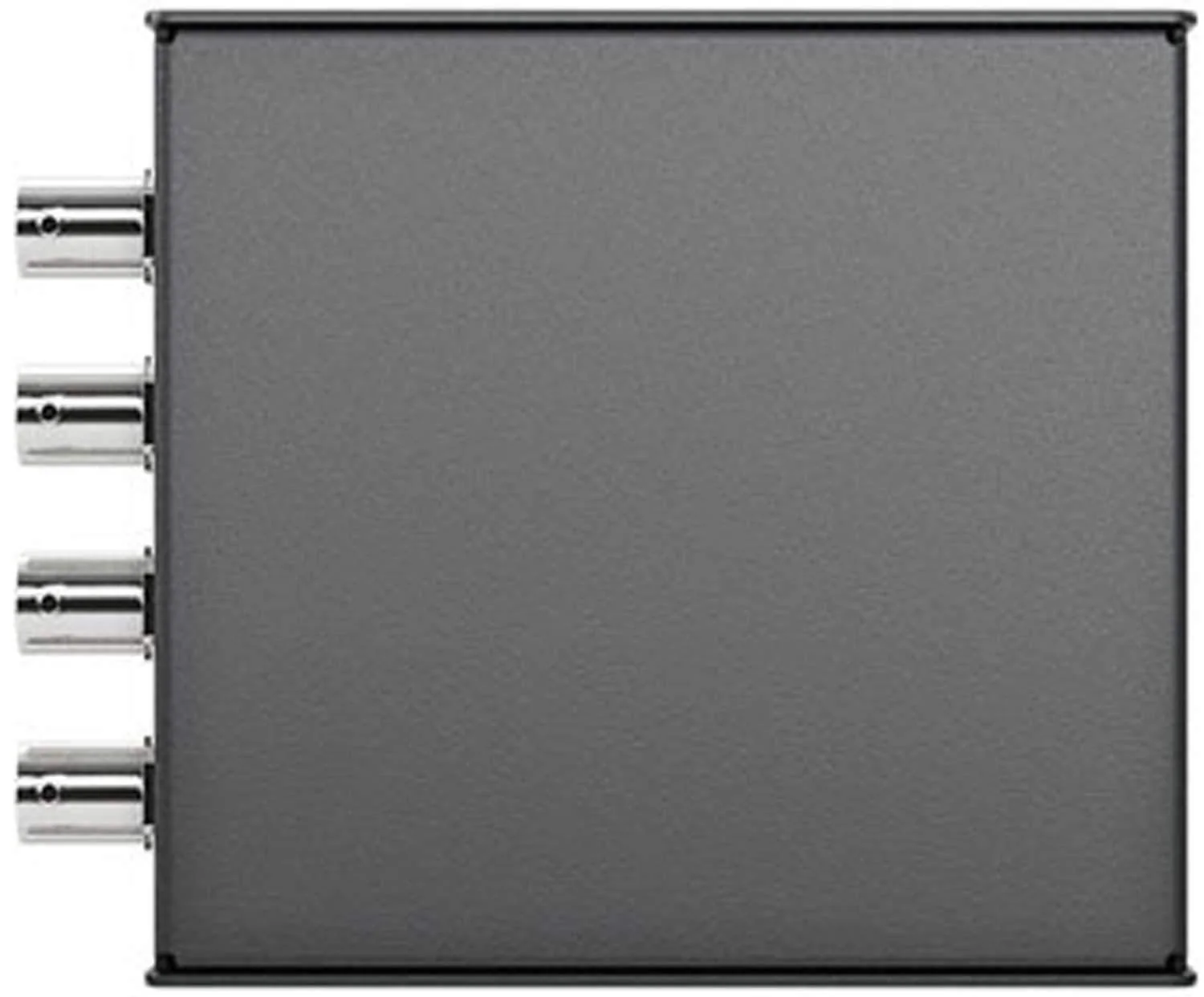

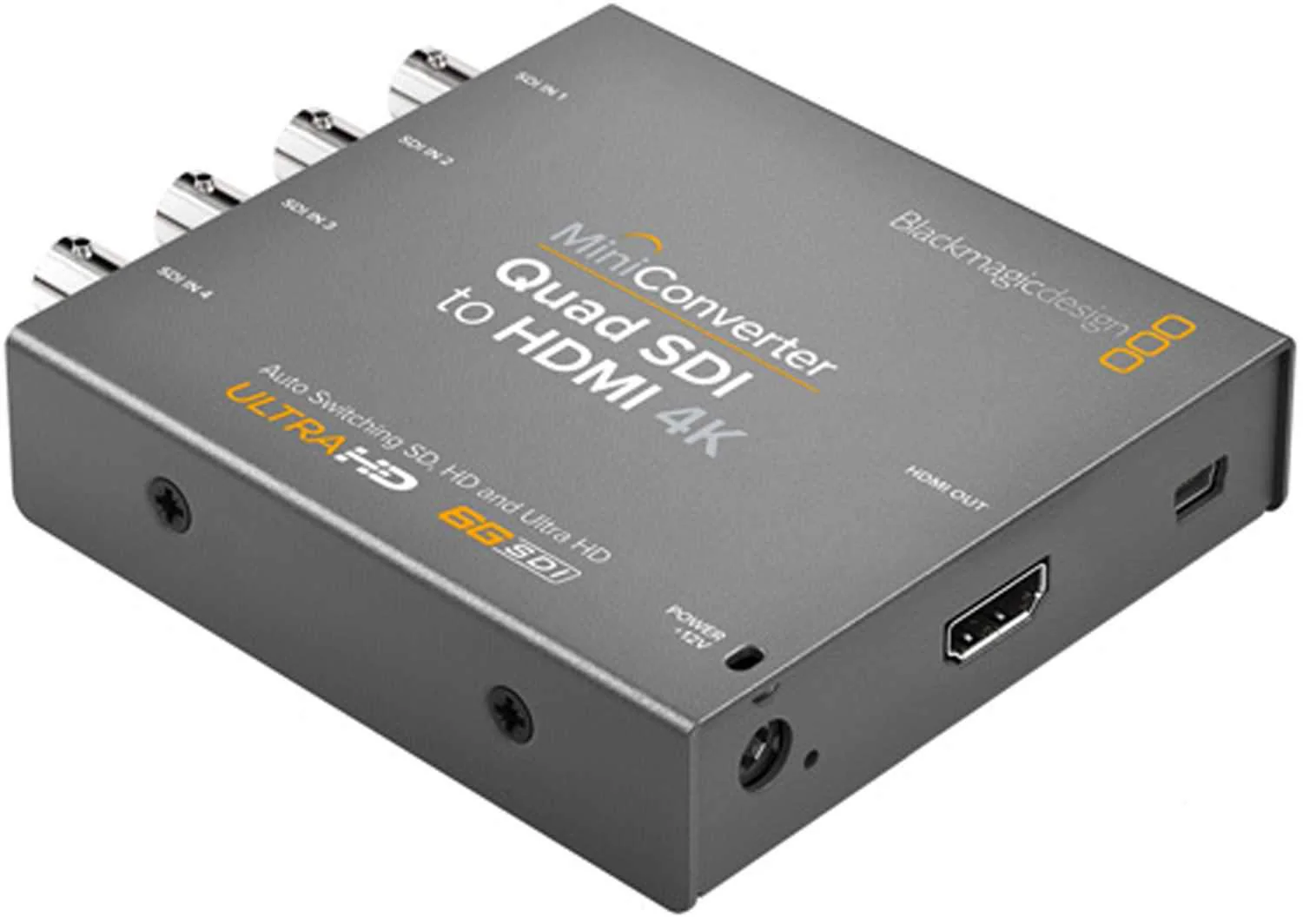

Blackmagic Design Mini Converter Quad SDI to HDMI

Connect Single Link 6G-SDI, Dual Link 3G-SDI or Quad Link HD-SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. Includes SD/HD and Ultra HD auto switching.

• Mini Converter Quad SDI to HDMI 4K
• 12V universal power supply with international socket adapters

Specifications:

Connections

• SDI Video Inputs: 4 x 1.5G-SDI or 2 x 3G-SDI or 1 x 6G-SDI
• SDI Video Outputs: (4K HDMI output only)
• HDMI: HDMI type A out.
• Multi Rate Support: Auto detection of 6G-SDI or standard definition on Input 1.
• Updates and Configuration: USB
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
• 720p50
• 720p59.94
• 720p60
• 1080p23.98
• 1080p24
• 1080p25
• 1080p29.97
• 1080p30
• 1080p50
• 1080p60
• 1080PsF24
• 1080PsF25
• 1080PsF29.97
• 1080PsF30
• 1080i50
• 1080i59.94
• 1080i60
• 2K Video Standards:
• 2K DCI 23.98p
• 2K DCI 24p
• 2K DCI 25p
• 2K DCI 23.98PsF
• 2K DCI 24PsF
• 2K DCI 25PsF
• Ultra HD Video Standards:
• 2160p23.98
• 2160p24
• 2160p25
• 2160p29.97
• 2160p30
• 4K Video Standards:
• 4K DCI 23.98p
• 4K DCI 24p
• 4K DCI 25p
• SDI Compliance:
• SMPTE 292M
• SMPTE 259M
• SMPTE 296M
• SMPTE 372M
• SMPTE 424M-B
• SMPTE 425M
• SMPTE ST-2081
• SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
• HDMI Video Standards:
• 525i29.97 NTSC
• 625i25 PAL
• 720p50
• 720p59.94
• 720p60
• 1080p23.98
• 1080p24
• 1080p25
• 1080p29.97
• 1080p30
• 1080p50
• 1080p59.94
• 1080p60
• 1080i59.94
• 1080i60
• 2160p23.98
• 2160p24
• 2160p25
• 2160p29.97
• 2160p30
• 4K DCI 2160p24
• HDMI Color Space: YUV and RGB
• HDMI Color Precision: 4:2:2 and 4:4:4

Operating Systems

• MacOS: macOS 10.12 Sierra,macOS High Sierra 10.13 or later.
• Windows: Windows 8.1 or Windows 10.
• Settings Control: Mini Switches

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 5.2 Watts

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• Warranty: 3 Year Limited Manufacturer's Warranty.
