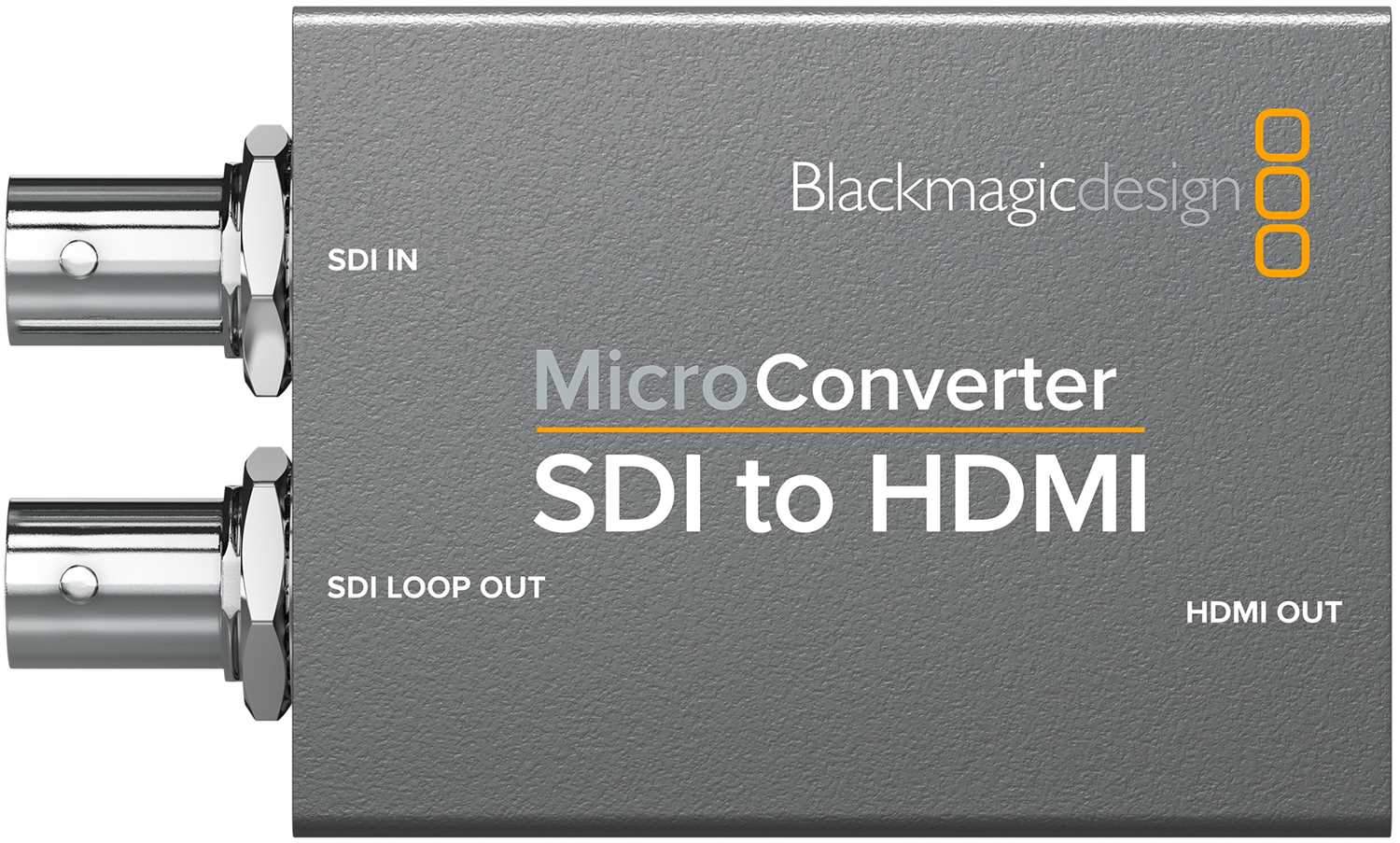

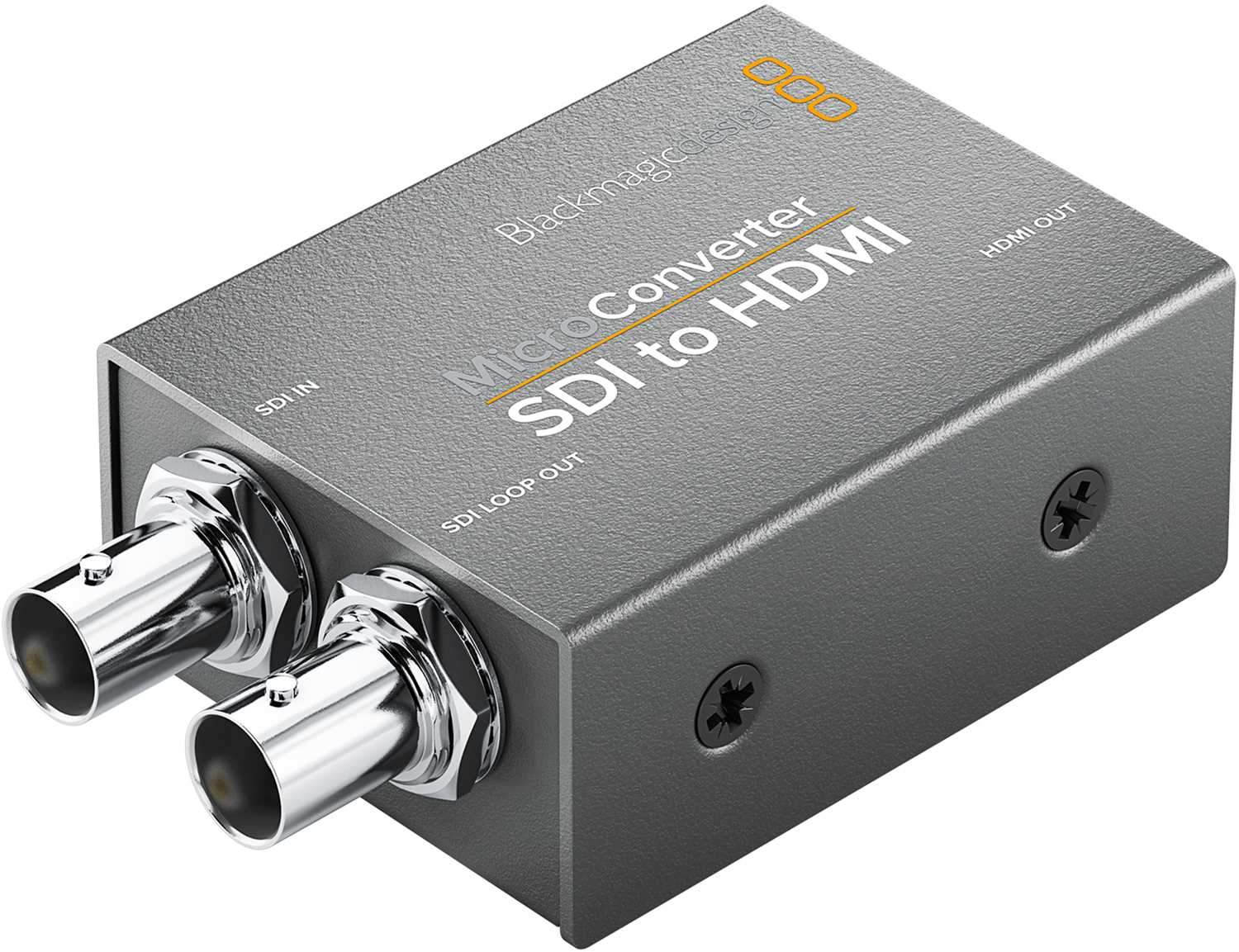

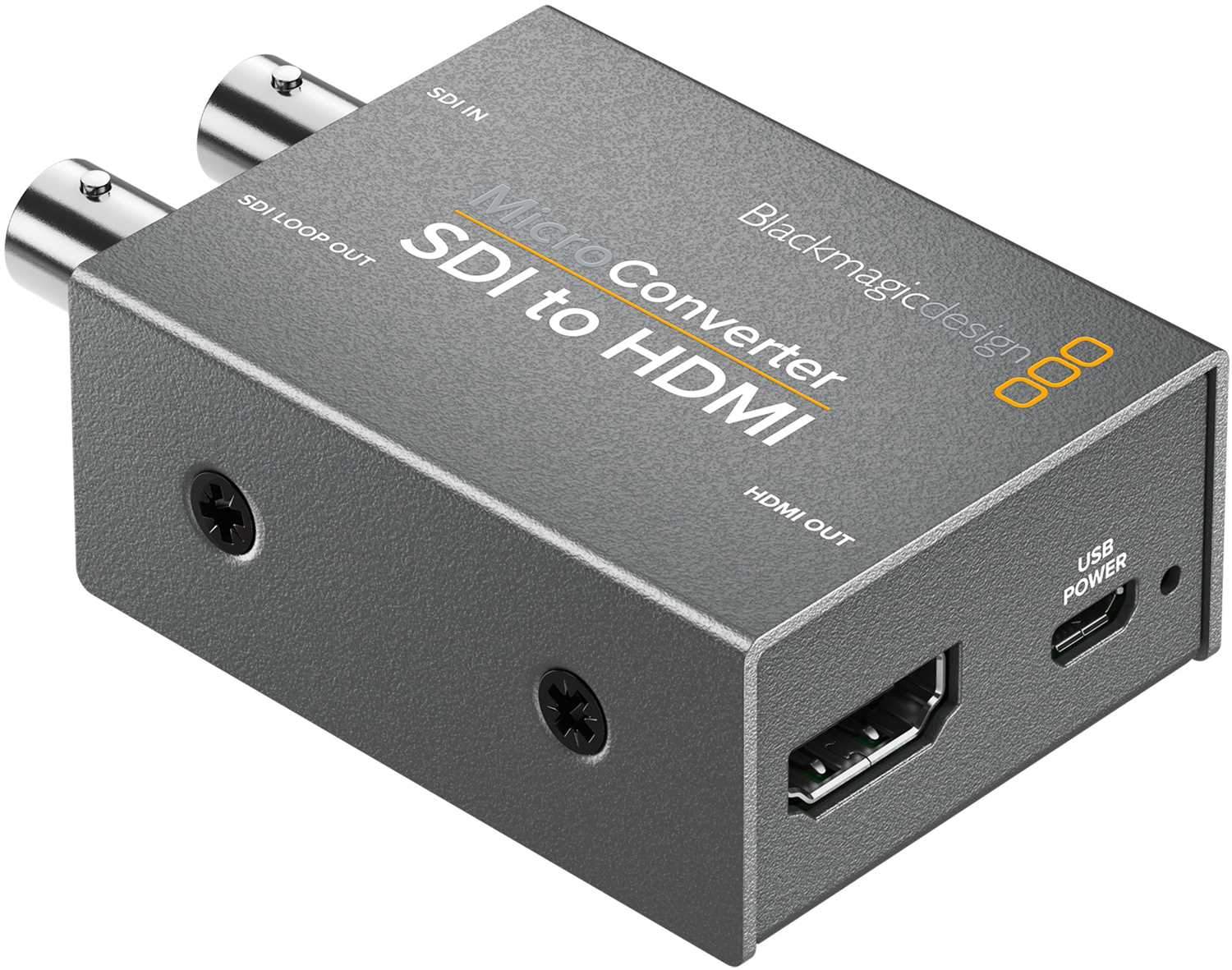

Blackmagic Design Micro Converter SDI to HDMI

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

Specifications:

Connections

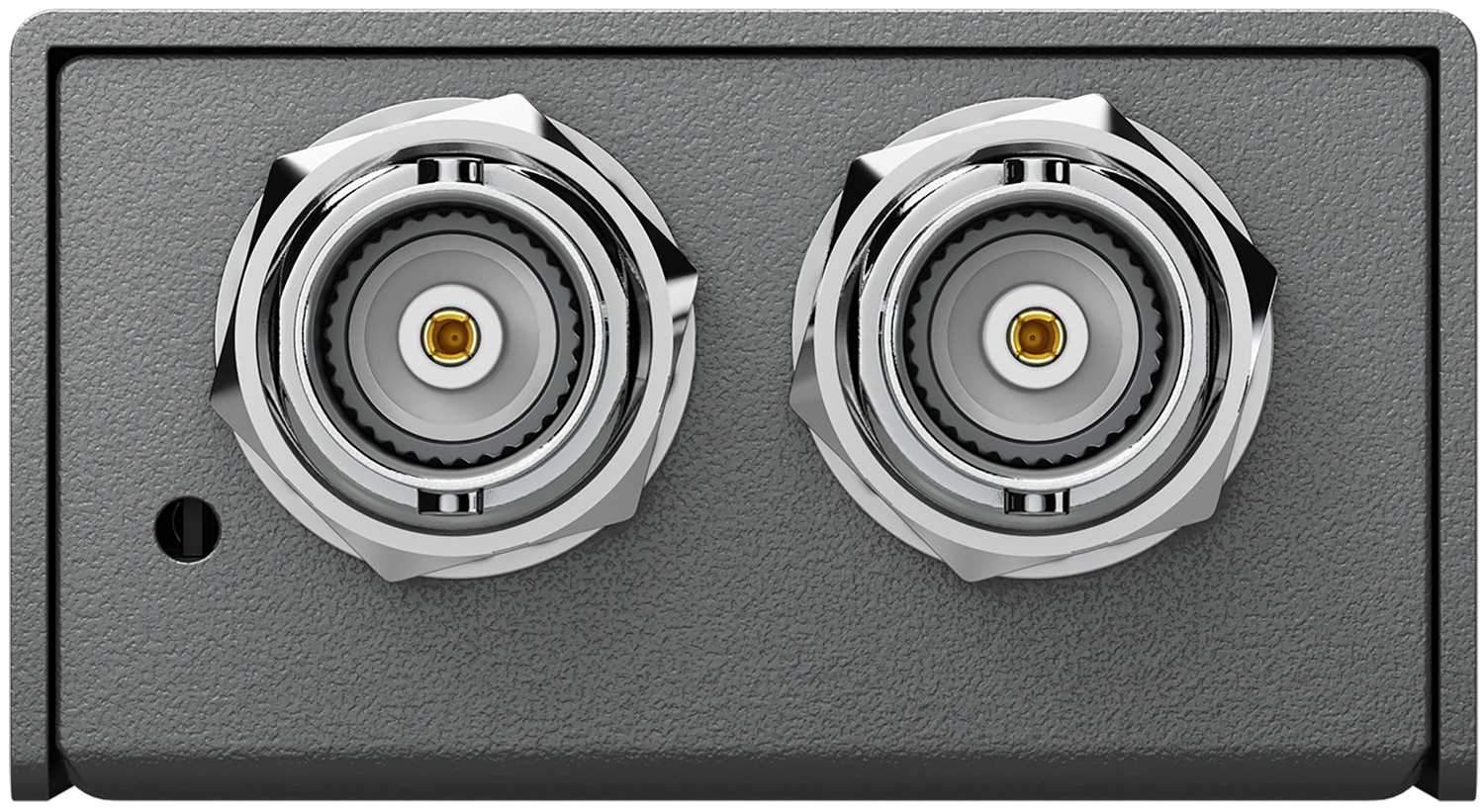

• SDI Video Inputs: 1 x SD, HD or 3G-SDI.
• SDI Video Outputs: 1 x SDI loop out.

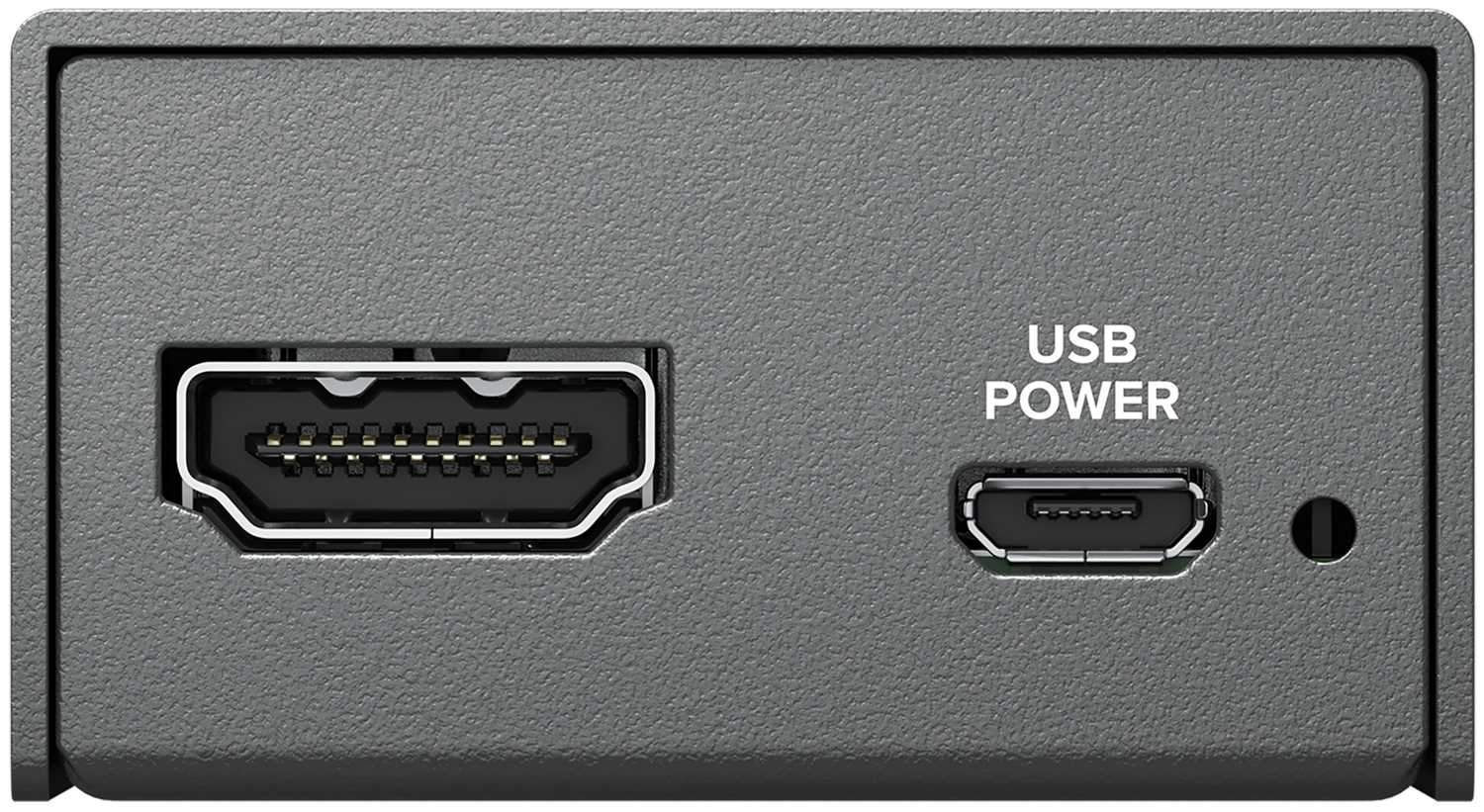

• HDMI Outputs: HDMI Type A out.
• Multi Rate Support: Auto detection of SD or HD.
• Updates, Configurations and Power: Micro USB.

Standards

• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
  • 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI.
• HDMI Video Standards:
  • 525i29.97 NTSC, 625i25 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV

Software

• Software Control: Mac™ and Windows™ software upgrade via micro USB.
• Internal Software Upgrade: Via micro USB.

Operating Systems

• Mac 10.12 Sierra, Mac 10.13 High Sierra or later.
• Windows 8.1 or Windows 10.

Settings Control

• Via software utility.

Power Requirements

• Power Consumption: 1.60 Watts
• Operational Voltage Range: 4.4V to 5.25V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Micro Converter SDI to HDMI

Warranty

• 3 Year Limited Manufacturer's Warranty.
