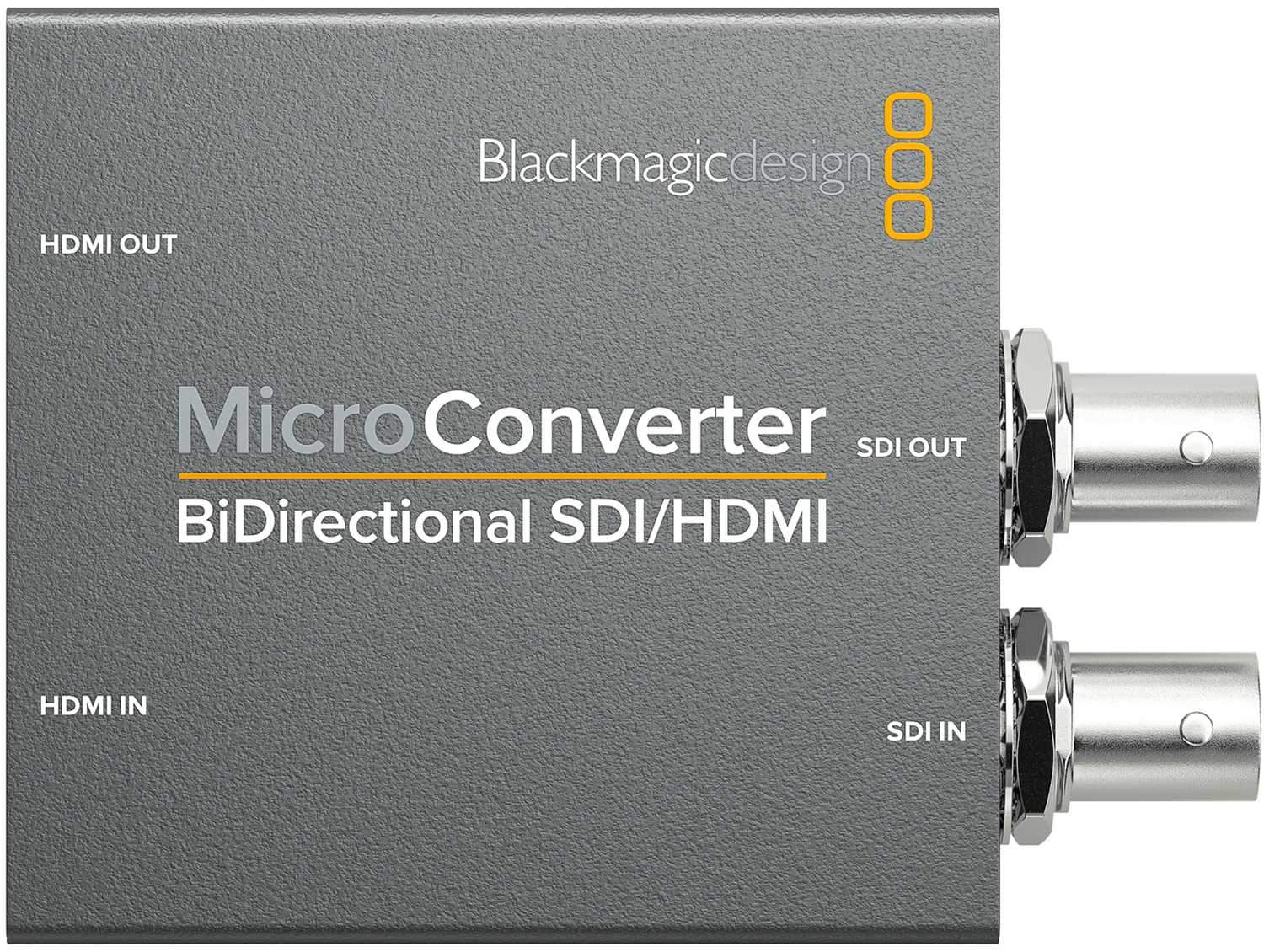

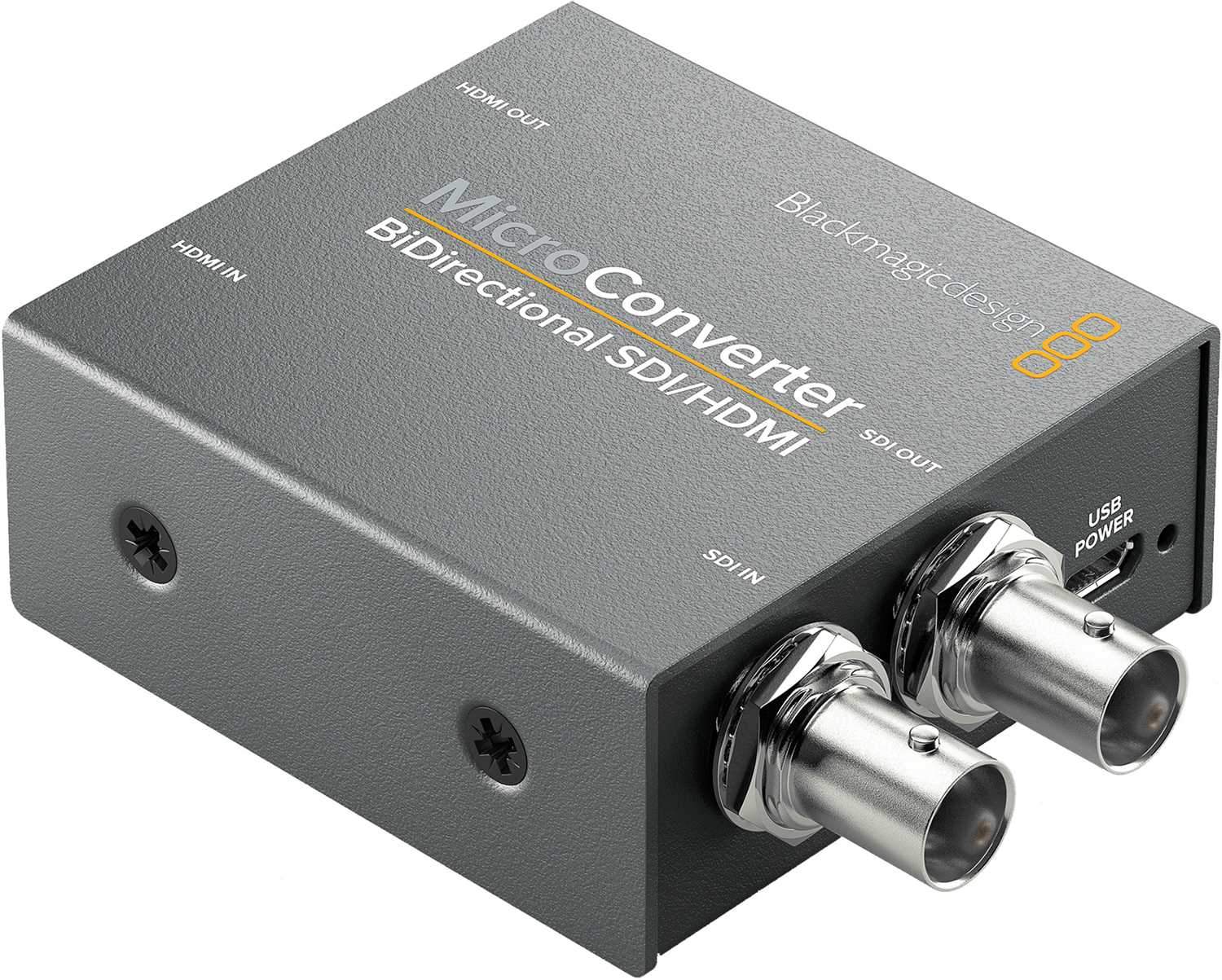

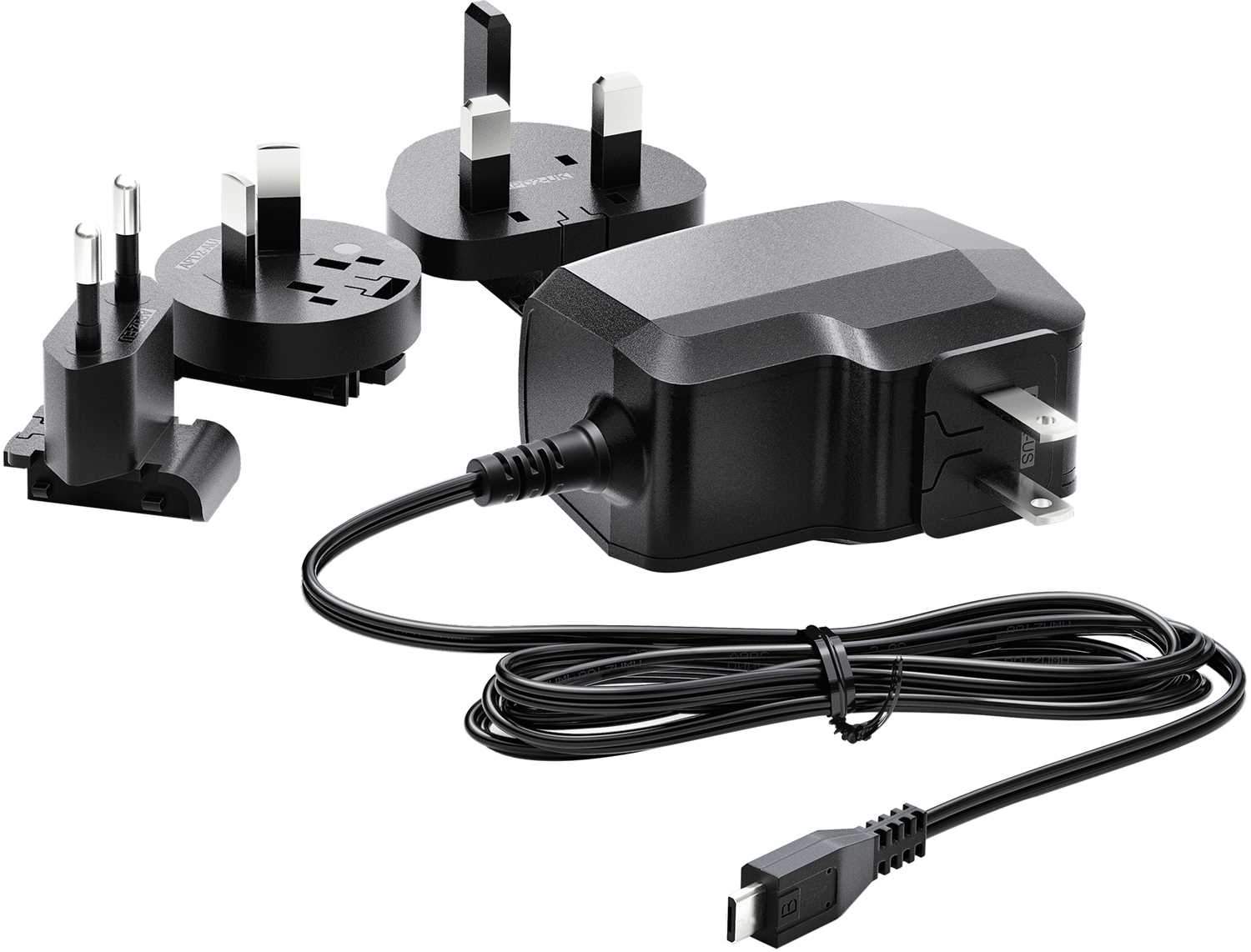

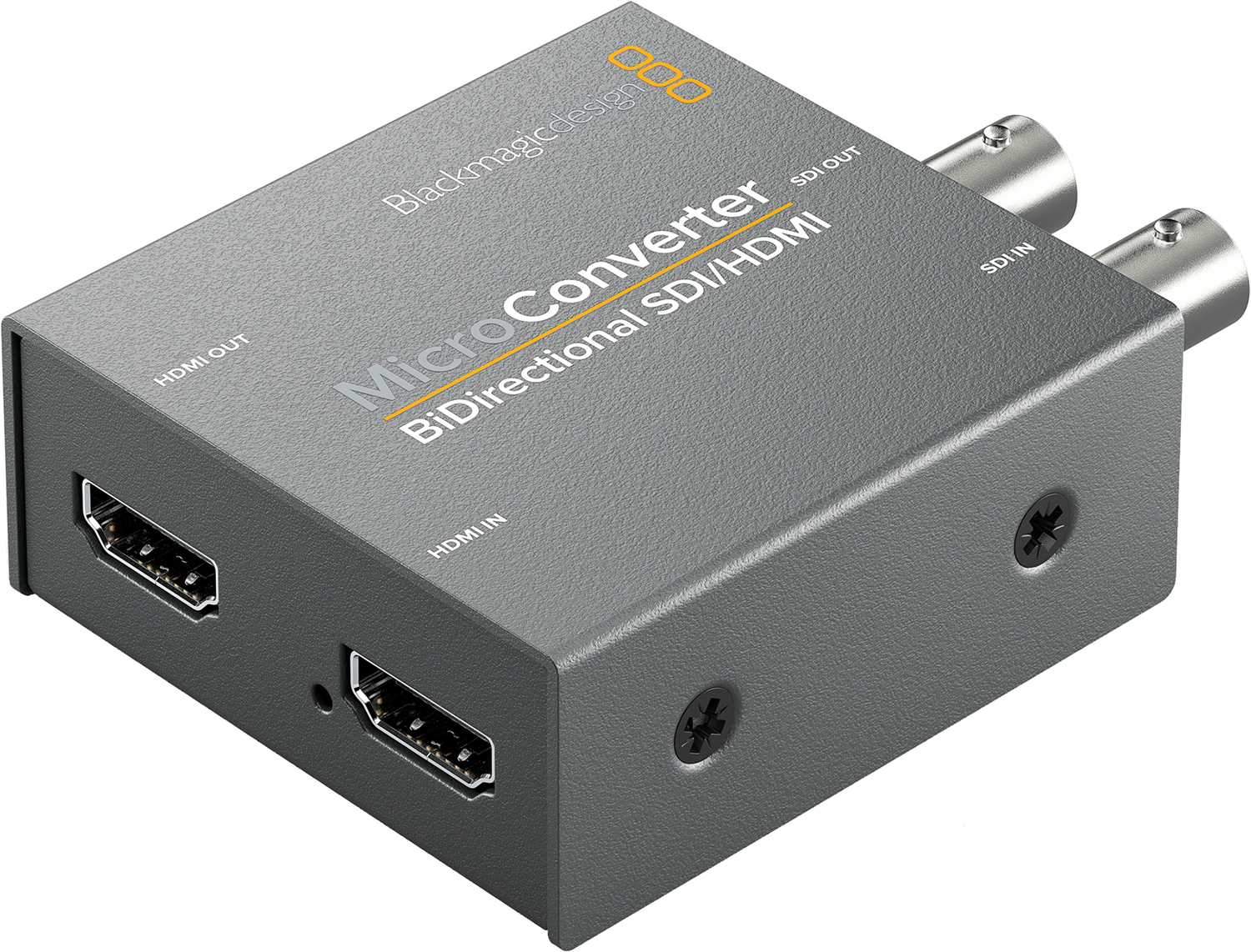

Blackmagic Design Micro Converter SDI-HDMI w- PSU

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

Specifications

Connections

• SDI Video Inputs: 1 x SD, HD or 3G-SDI.
• SDI Video Outputs: 1 x SDI loop out.
• HDMI Outputs: HDMI Type A out.
• Multi Rate Support: Auto detection of SD or HD.
• Updates, Configurations and Power: Micro USB.

Standards

• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
  • 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI.
• HDMI Video Standards:
  • 525i29.97 NTSC, 625i25 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV

Software

• Software Control: Mac™ and Windows™ software upgrade via micro USB.
• Internal Software Upgrade: Via micro USB.

Operating Systems

• Mac 10.12 Sierra, Mac 10.13 High Sierra orlater.
• Windows8.1 orWindows10.

Settings Control

• Via software utility.

Power Requirements

• Power Consumption: 1.60 Watts
• Operational Voltage Range: 4.4V to 5.25V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Micro Converter SDI to HDMI

Warranty

• 3 Year Limited Manufacturer's Warranty.
