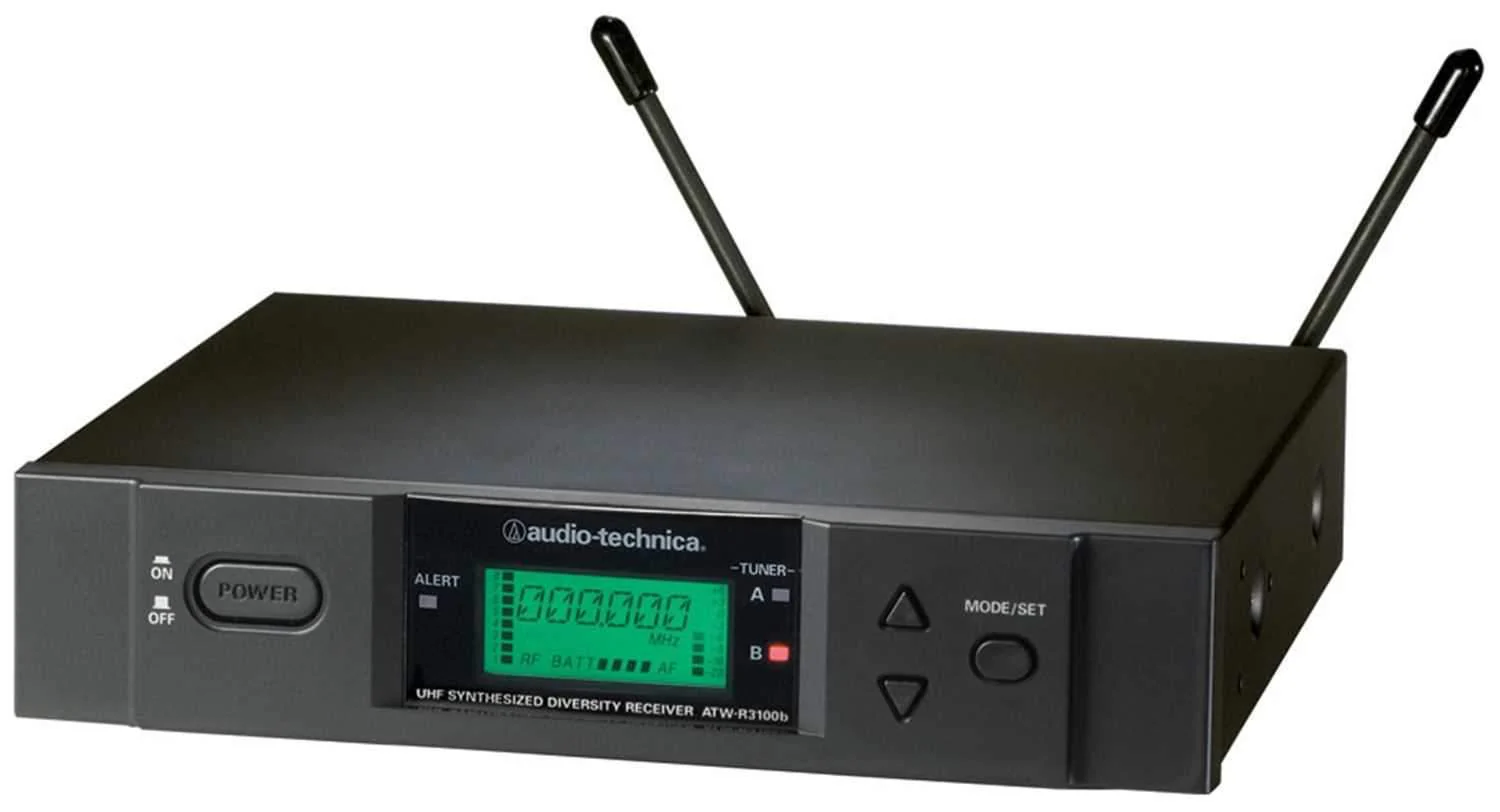

Audio Technica R3100B 3000 Diversity Receiver

The Audio-Technica ATW-R3100b wireless receiver—main component of Audio-Technica's 3000 Series—is equipped with automatic frequency scanning for easy setup. The ATW-R3100b also offers true diversity reception. Two antennas feed 2 completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts.

The Audio-Technica ATW-R3100b receiver's soft-touch controls provide convenient access to a variety of functions, while a backlit LCD information display provides constant monitoring of system operation, including indication of the transmitter's battery status. The ATW-R3100b receiver is half-width for a standard 1U 19in. rack mount. Audio-Technica includes rack-mount adapters with the ATW-R3100b wireless receiver.

Includes:

• ATW-R3100 Receiver
• (2) Flexible UHF Antennas
• 1 x Rack-Mount Adapters
• 1 x AC Adapter

Features:

• Antenna power available for powered antennas and other in-line RF devices
• Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system
• True Diversity operation reduces dropouts
• Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data
• for receiver display
• Red alert light that warns of low battery power, signal loss and input overload
• Transmitter battery-life fuel gauge on the receiver
• Ground-lift switch
• Balanced and unbalanced audio output jacks
• Two receivers can be mounted side-by-side in a single 19" rack space
