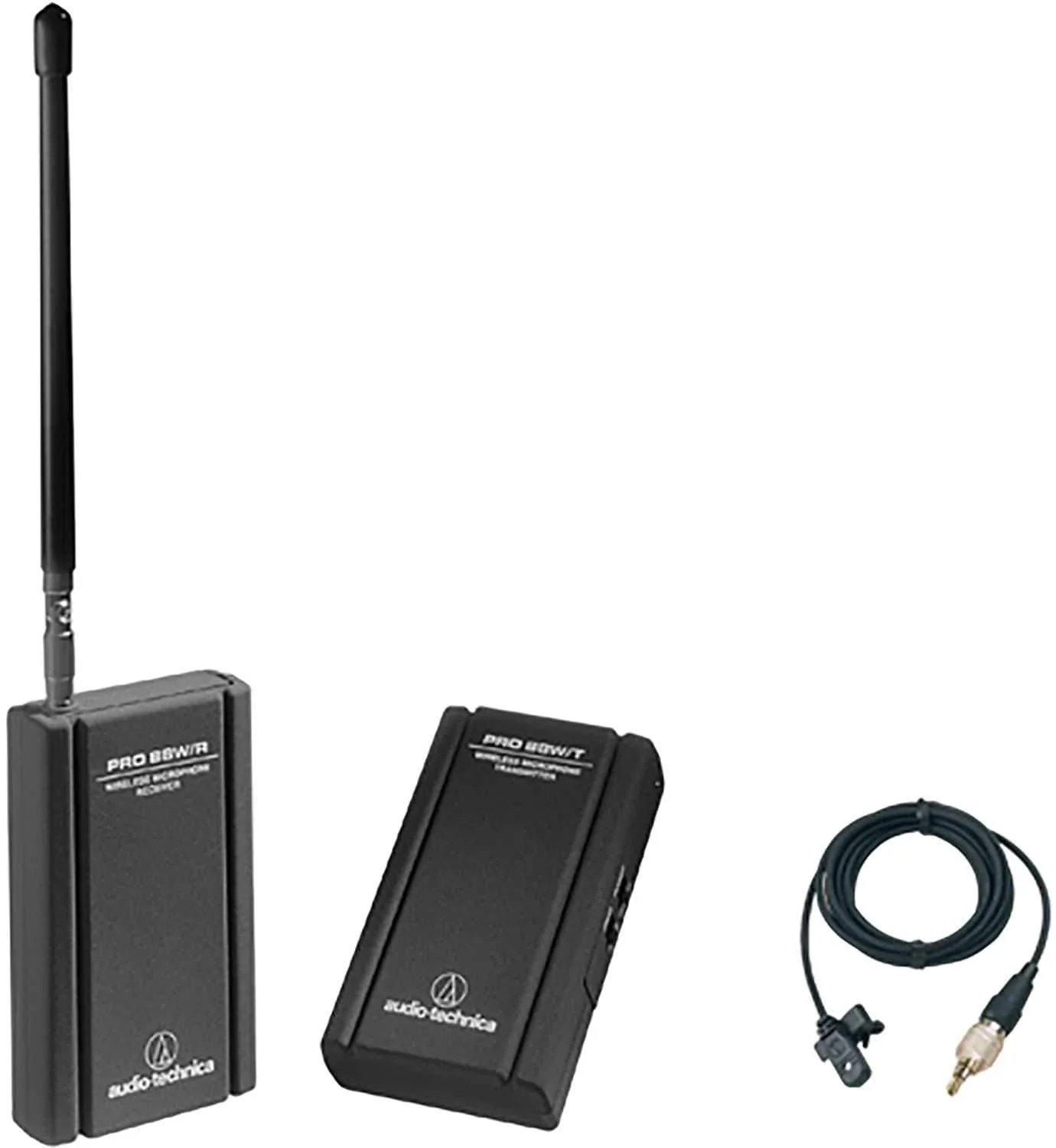

Audio Technica PRO88W Camera Mount Wireless Lav 88

Pro 88W-830Includes MT830mW subminiature omnidirectional clip-on microphone.

Audio-Technica’s Pro 88W VHF wireless microphone systems are designed for camcorder and other applications requiring a small, easily portable wireless. Equipped with a flexible detachable antenna and a choice of two transmitter and receiver frequencies on each system, the small and inconspicuous VHF wireless system will mount on the light shoe of camcorders or on the back of a camera itself with a Velcro attachment. For fixed installations, a 9V DC input is available on the receiver. Eight VHF channels are available for interference-free operation in virtually any location.

Features:

• Provides freedom of movement for video production, computer applications and business presentations
• Two switchable frequencies for interference-free operation
• High-band VHF operation for superior sound
• Normal operating range 100'; up to 300' under optimum conditions
• Durable, flexible antenna can be positioned for best reception
• Real-time monitoring capability with included earphone
• Rugged design and construction with handsome non-reflective finish
• Quick and reliable mounting system for camcorder use
• Receiver and transmitter are each powered by a single 9V battery

Specifications:

• Operating Frequencies: TVHF (179.400 MHz & 180.600 MHz)
• Number of Channels: 2
• Modulation Mode: FM
• Frequency Response: n/a

Receiver Specifications:

• Reception System: FM Superheterodyne
• Reception Sensitivity: 2 µV for 30 dB S/N
• Output Connector: 1/8" (3.5 mm) TRS
• DC Input: 9V DC (center-positive)
• Battery: 9V alkaline (not included)
• Current Consumption: 50 mA
• Battery Life: 8 hours nominal
• Dimensions: 4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D
• Net Weight: 3.5 oz (100 grams)

Body-Pack Transmitter Specifications:

• Modulation: Frequency Modulation
• Modulation Sensitivity: 6 mV input for full deviation
• Battery: 9V alkaline (not included)
• Current Consumption: 50 mA
• Battery Life: 8 hours nominal
• Dimensions: 4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D
• Net Weight: 2.8 oz (80 grams)

Microphone

• MT830mW: Subminiature omnidirectional condenser microphone only, terminated for use with Pro 88W transmitter. Includes clothing clip and windscreens

Accessories

• CP8306: Transformer balanced adapter cable to use Pro 88W receiver with XLR-type balanced microphone inputs.
