Audio Technica ATWT801T2 System 08 Bodypack Trans

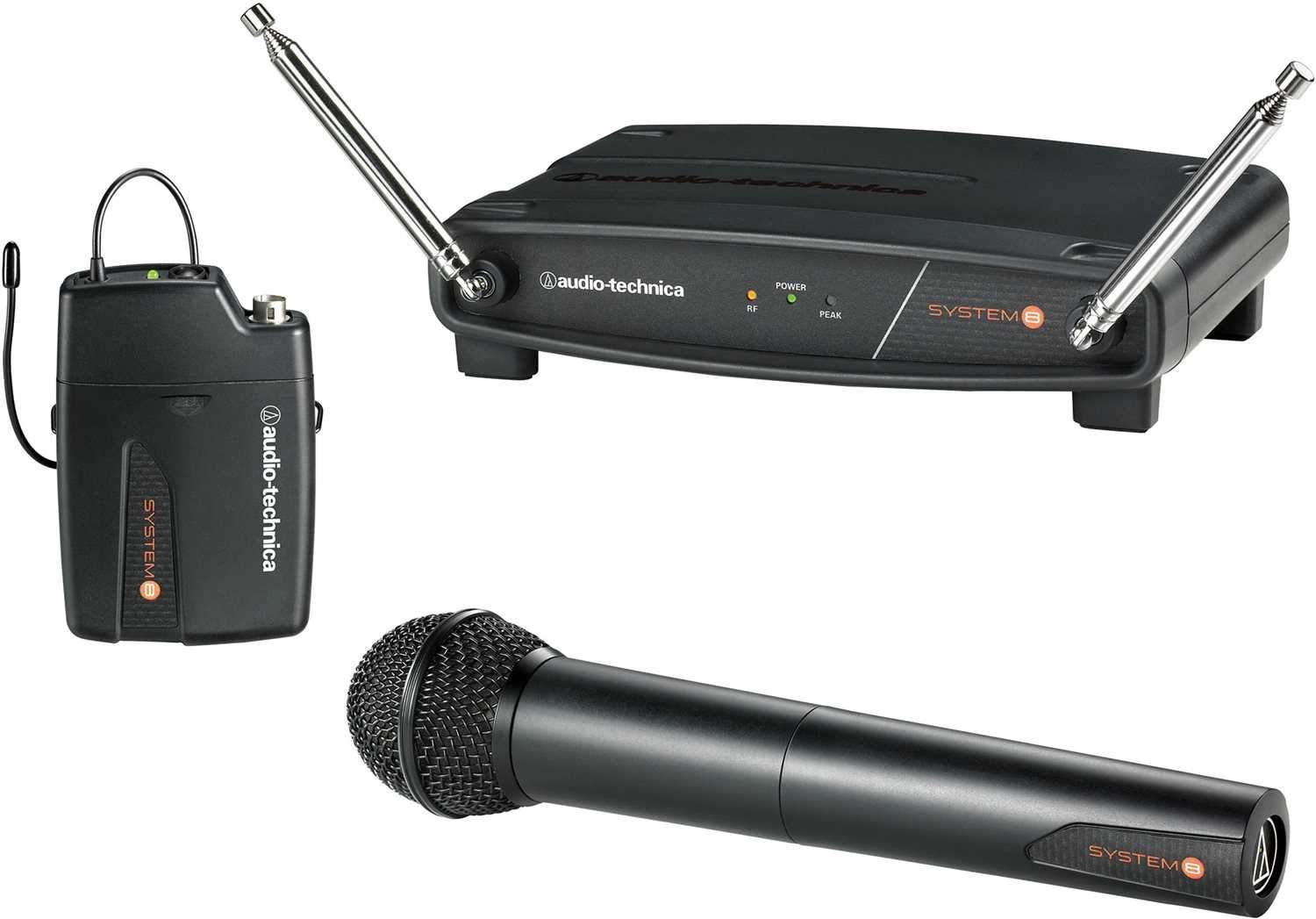

Featuring sleek, stackable, contemporary styling, Audio-Technica's System 8 Wireless Systems are designed for reliable performance, easy setup and clear, natural sound quality. Available in handheld, headworn, guitar, lavalier and body-pack configurations, these single-channel, fixed-frequency systems are available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz).

Features:

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, 1/4" output jack and user-adjustable squelch
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
• Professional locking connector on UniPak body-pack transmitter
• Available in 7 system configurations

Specifications:

• Operating Frequency: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Dynamic Range: >/=90 dB (A-weighted), typical
• Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
• Operating Range: 200' (60 m) typical
• Open range environment with no interfering signals
• Operating Temperature Range: 40 degree F (4 degree C) to 110 degree F (43 degree C)
• Battery performance may be reduced at very low temperatures
• Frequency Response: 80 Hz to 13 kHz

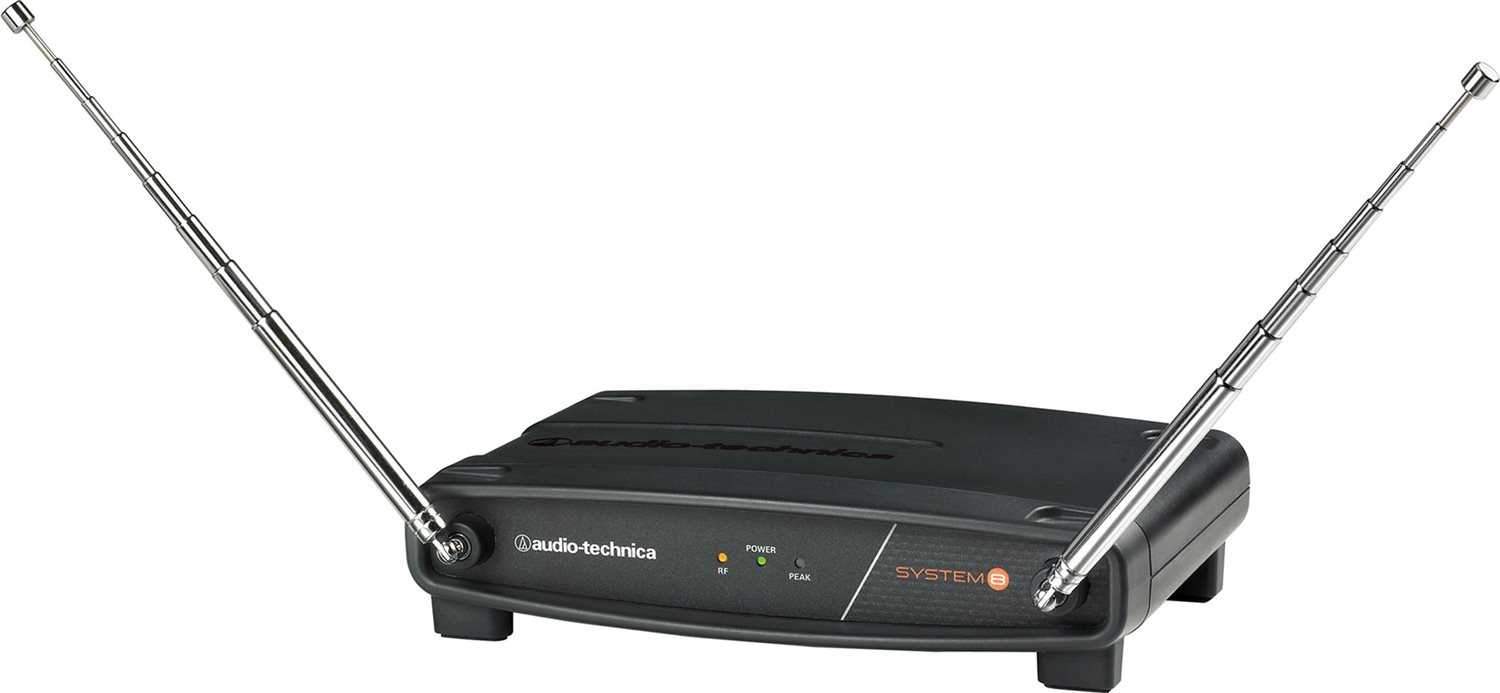

Receiver Specifications:

• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity
• 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
• Net Weight: 11.8 oz (335 grams)

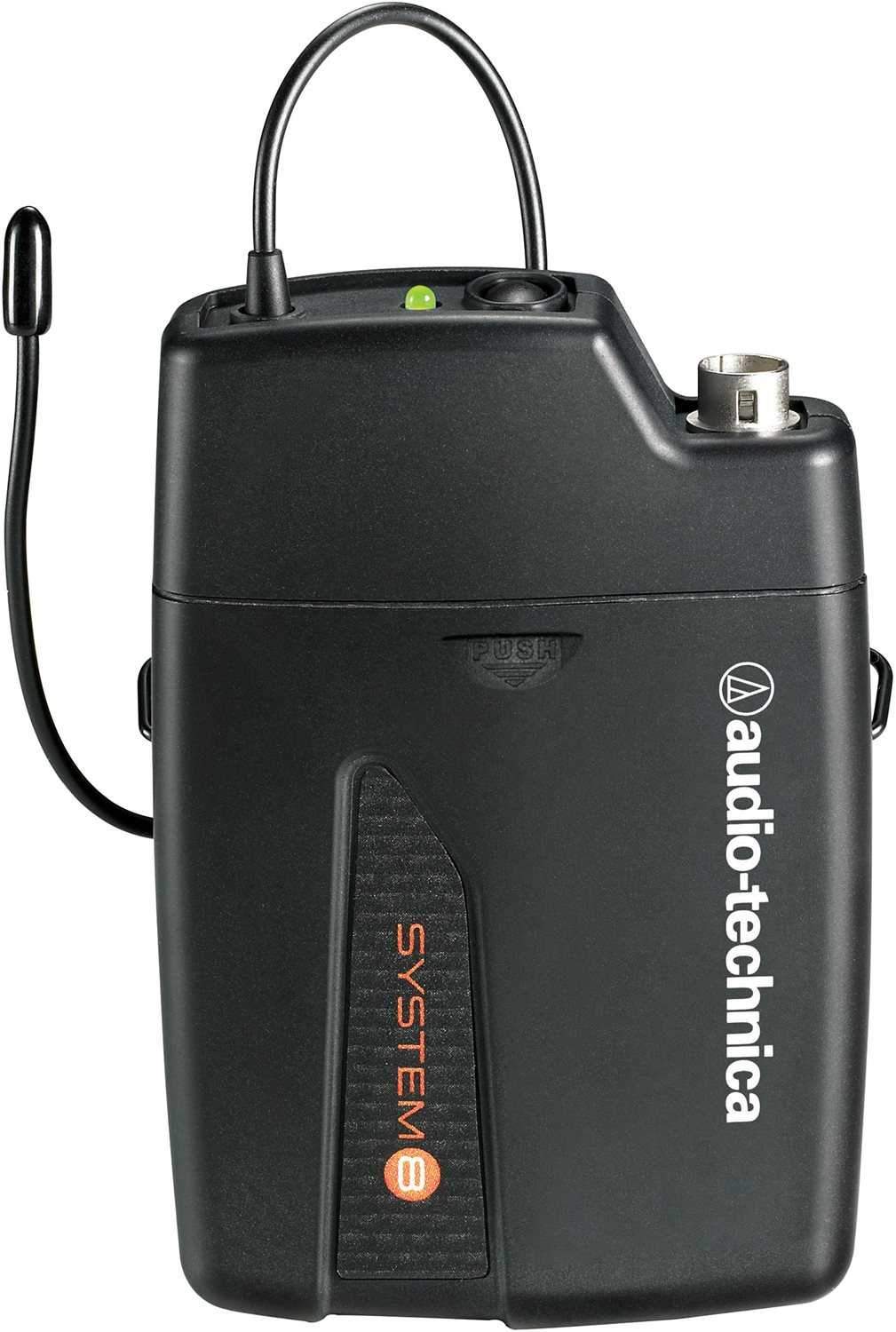

Accessory IncludedBody-pack Transmitter Specifications

• RF Power Output: 10 mW
• Spurious Emissions
• Following federal and national regulations
• Input Connections: Four-pin Locking Connector
• Pin 1: GND
• Pin 2: INST INPUT
• Pin 3: MIC INPUT
• Pin 4: DC BIAS +9V
• Batteries: Two 1.5V AA Alkaline (not included)
• Battery Life: 8 hours (alkaline)
• Depending on battery type and use pattern

Dimensions

• 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
• Net Weight: 3.0 oz (84.5 grams)(without battery)

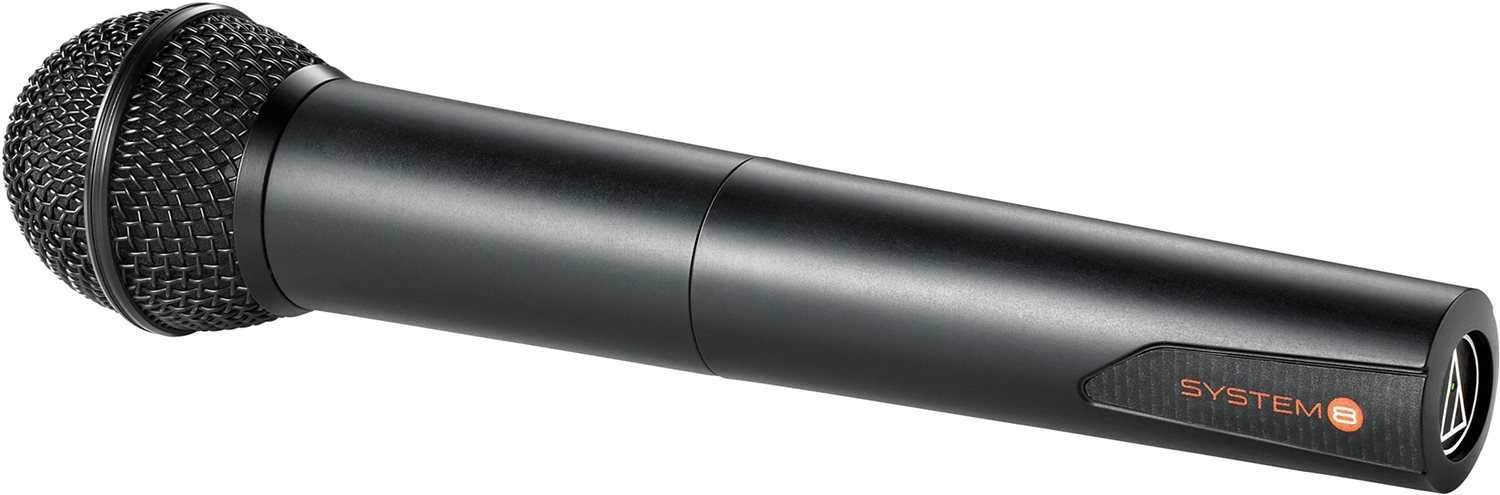

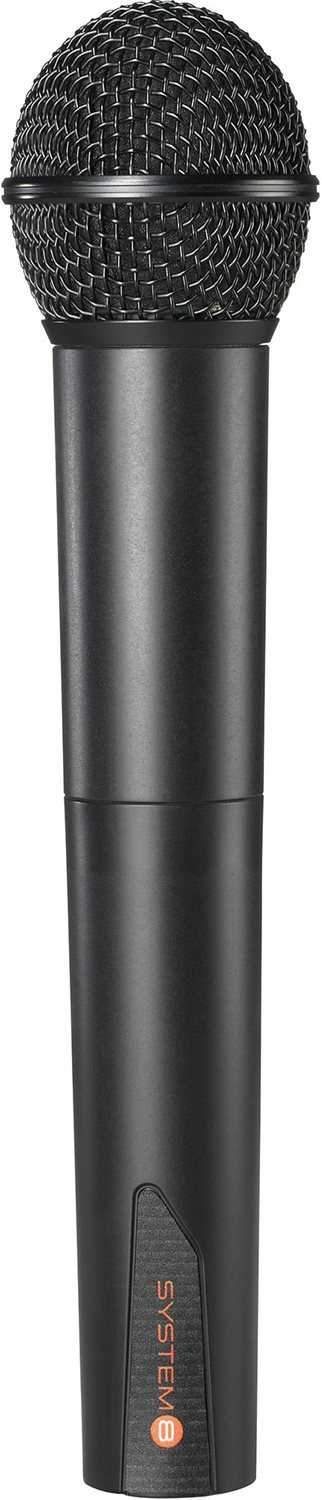

Handheld Transmitter Specifications

• RF Power Output: 10 mW
• Spurious Emissions
• Following federal and national regulations
• Batteries: Two 1.5V AA Alkaline (not included)
• Battery Life: 8 hours (alkaline)
• Depending on battery type and use pattern

Dimensions

• 9.91" (251.8 mm) long,
• 2.11" (53.5 mm) diameter
